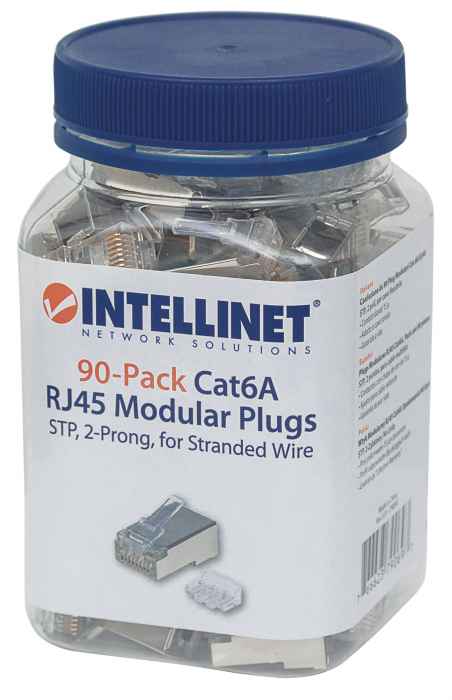

  • 90-Pack Cat6A RJ45 Modular Plugs Packaging Image 2
  • 90-Pack Cat6A RJ45 Modular Plugs Image 3
  • 90-Pack Cat6A RJ45 Modular Plugs Image 4
1 4

Intellinet

90-Pack Cat6A RJ45 Modular Plugs

90-Pack Cat6A RJ45 Modular Plugs

STP, 2-prong, for stranded wire, 90 plugs in jar

SKU: 790697

Highlights

  • 15 micro-inch gold-plated contacts
  • Two-prong terminal for stranded wire
  • Supports 24 to 26 AWG
[ view high resolution images ]

Intellinet Network Solutions RJ45 8-position, 8-contact (8P8C) modular plugs provide our customers with options for CAT5e, CAT6 and CAT6a cables in unshielded and shielded varieties. We offer 15 micron gold contacts for our standard plugs or a high-quality 50 micro-inch standard in our Premium and Pro lines.

  • 15 micro-inch gold-plated contacts
  • Two-prong terminal for stranded wire
  • Supports 24 to 26 AWG
  • Fits round cable
  • For shielded twisted pair applications
  • Standard 8P8C design, compatible with all network RJ45 connections
  • Fully compatible with Category 3, 4, 5, 5e, 6 and 6A applications
  • Lifetime Warranty

    Standards
    Category 5 (ANSI/TIA/EIA-568-C)
    Category 5e (TIA/EIA-568-C)
    Category 6 (ANSI/TIA-568-C)
    Category 6A (ANSI/TIA-568-C)

    Material
    Insulator: polycarbonate rated UL 94V-2
    Contacts: phosphor bronze
    Contact Plating: 15 micro-inch gold

    Package Contents
    90 Cat6A RJ45 Modular Plugs with liners in jar

  • Additional SKUs

    • Amazon ASIN: B01L6PTP12
    • EAN: 0766623790697
    • UPC: 766623790697
    • ALSO: 2645165
    • API: 209343

  • Physical Specifications

    • Product net weight: 0 kg
    • Product gross weight: 0.25 kg
    • Dimensions: 21.5 (L) x 11.5 (W) x 8.2 (H) [mm]
    • Packaging dimensions: 68 x 68 x 110 [mm]
    • Master Carton Quantity: 70
    • Master Carton Weight: 18.33 kg
    • Master Carton Dimensions: 480 x 340 x 240 [mm]
  • Datasheet
View full details
