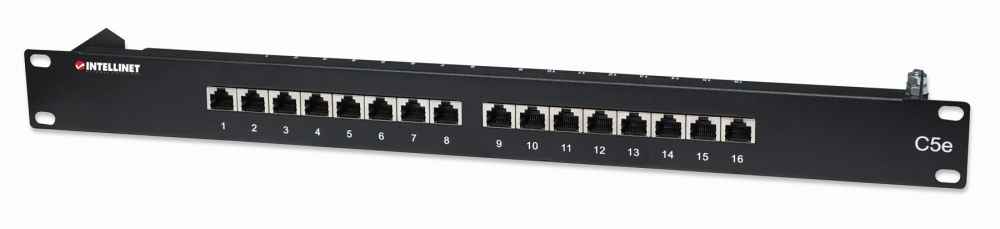

Cat5e Shielded Patch Panel

Lifetime Warranty
Strict manufacturing standards ensure the highest quality in all INTELLINET NETWORK SOLUTIONS products. All items carry a full Lifetime Warranty — the strongest quality commitment anyone can make.

• Solid and reliable terminations for copper cabling featuring a minimum of 3 mm 50 micro-inch gold-plated jack contacts
• Top-entry punch down blocks simplify installation
• Compatible with both 110 and Krone punch down tools
• Supports 22 to 26 AWG stranded and solid wire
• For use with fully shielded twisted pair (FTP) Cat5e network cable
• Ideal for Ethernet, Fast Ethernet and Gigabit Ethernet network applications
• Connects 16 RJ45 ports to a network
• Occupies 1U rack height
• Meets 19" rackmount standards
• Lifetime Warranty

Standards

• IEEE 802.3 (10Base-T Ethernet)

• IEEE 802.3u (100Base-TX Fast Ethernet)

• IEEE 802.3ab (1000Base-T Gigabit Ethernet)

  Certifications

• UL listed

• RoHS compliant

  Environmental

• Dimensions: 482 mm (W) x 43 mm (H) x 109 mm (D) (19 x 1.7 x 4.29 in.)

• Horizontal distance between left and right mounting holes: 465 mm (18.3 in.)

• Vertical distance between top and bottom mounting holes: 31.8 mm (1.25 in.)

• Weight: 2.25 kg (4.96 lbs.)

• Operating temperature: -40 – 80°C (-40 – 176°F)

  Package Contents

• Cat5e Shielded Patch Panel

• 4 mounting screws

• Quick start guide

• Additional SKUs

• Amazon ASIN: B0072IHY98
• EAN: 0766623513470
• UPC: 766623513470
• ALSO: 2535046
• API: 191837



• Physical Specifications

• Weight: 1.41 kg
• Dimensions: 483 (L) x 112 (W) x 43 (H) [mm]
• Packaging: Retail Box
• Carton Quantity: 9
• Carton Weight: 15.50 kg

• Datasheet
• Datasheet     » Download
