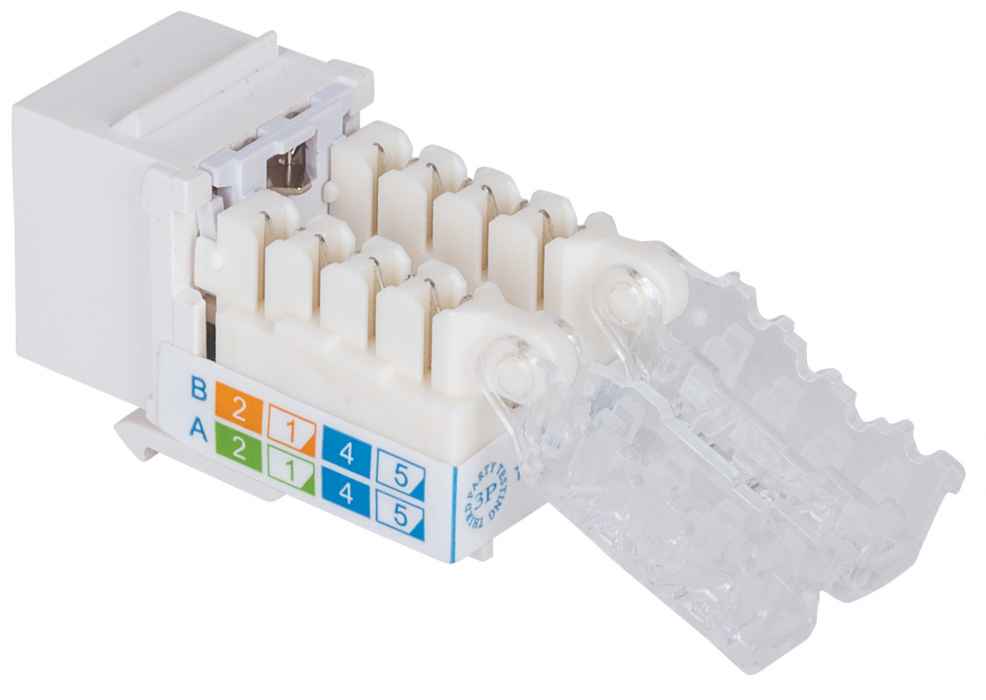

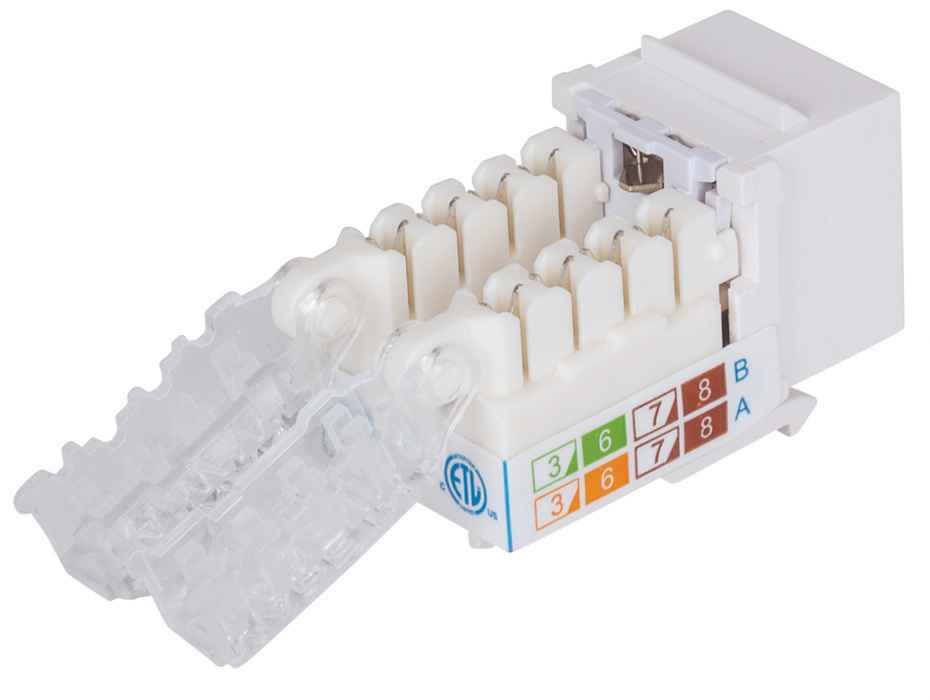

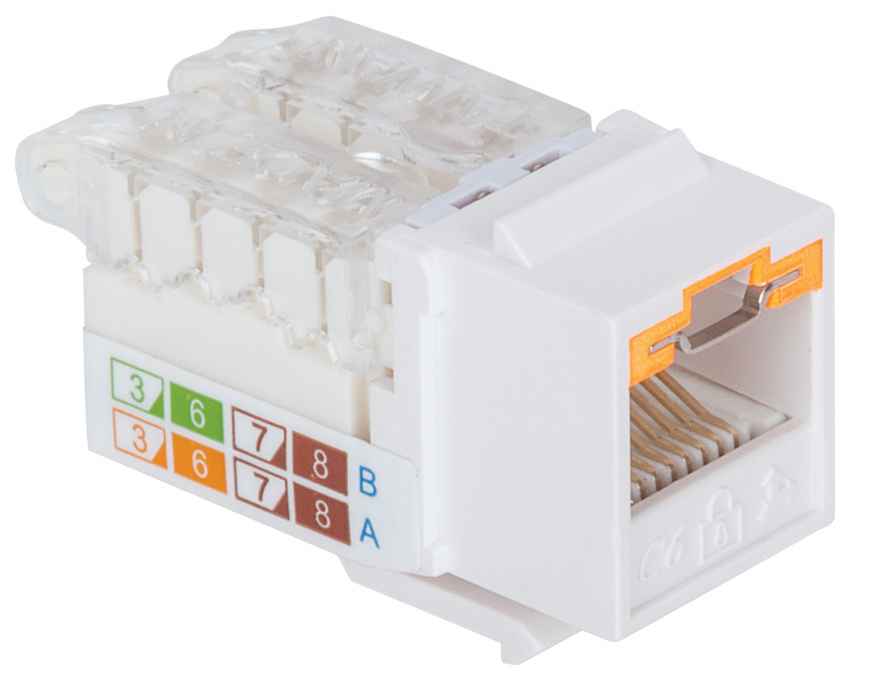

Locking Cat6 Keystone Jack

UTP, Toolless, Locking Function, White

SKU: 790758

Highlights

  • Extra security with locking function (requires RJ45 Key Tool, model #790833)
  • 50 micron gold plated contacts
  • Toolless type, compatible with Krone or 110 punch-down Tool

Where to buy:

Country
Ship to
Purchase
In Deutschland kaufen
Deutschland


For extra security in your server room patch panels, I.T. Department test bench or network access points, the new range of Locking Function Patch Panels, Keystones, Inline Couplers and mount boxes will inevitably be of interest to you and your I.T. team. Recommended for all businesses and currently utilized in financial institutions, hotels, airports, schools, hospitals and retail stores. Excellent in areas where vibration can loosen a standard RJ45 connection such as in trains, aircraft and in the vicinity of vibrating machinery.

  • Extra security with locking function (requires RJ45 Key Tool, model #790833)
  • 50 micron gold plated contacts
  • Toolless type, compatible with Krone or 110 punch-down Tool
  • For use with Cat6 Unshielded cable
  • Cat6 performance compliance with ANSI/TIA/EIA 568B.2 standard
  • Lifetime Warranty
  • 50 micron gold contacts
  • Fireproof ABS UL-94V0 Body
  • For use with 22 to 26 AWG stranded and solid wire
  • EIA/TIA approved
  • UL listed
  • 568A/B color coded
  • Operating temperature: -40 – 70°C (-40 – 158°F)

    Package Contents
  • Keystone Jack

    NOTE: Part number 790833 needed for use
  • Additional SKUs

    • Amazon ASIN: B01N1ELK9F
    • EAN: 0766623790758
    • UPC: 766623790758
    • ALSO: 2829089
    • API: 219801

  • Physical Specifications

    • Weight: 0.01 kg
    • Dimensions: 38.75 (L) x 16.6 (W) x 22.3 (H) [mm]
    • Packaging: Bag
    • Carton Quantity: 500
    • Carton Weight: 6.40 kg
  • Datasheet


  • Manual

    • Quick Instruction Guide     » Download
