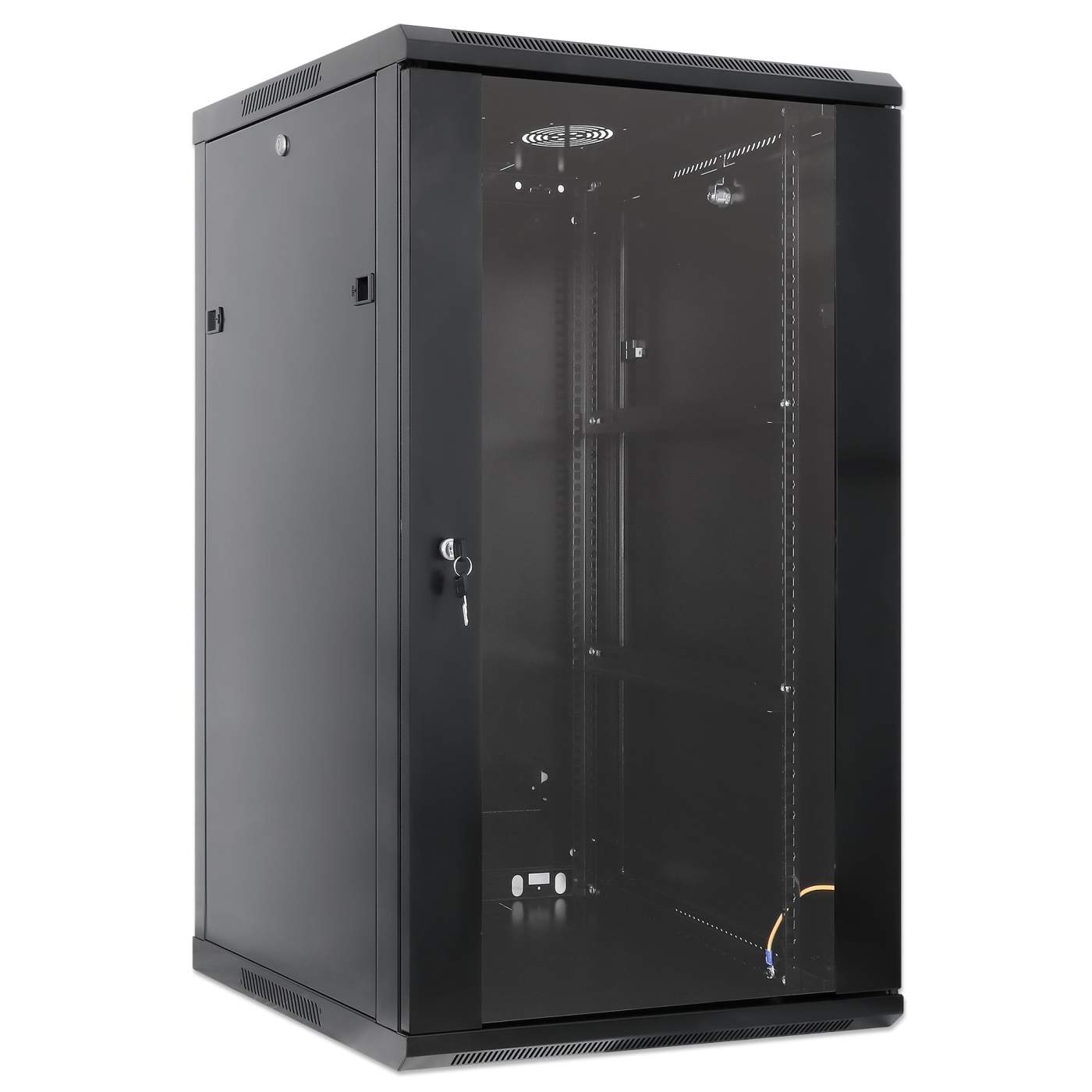

19" Wallmount Cabinet

20U, Assembled, Black

SKU: 712057

Highlights

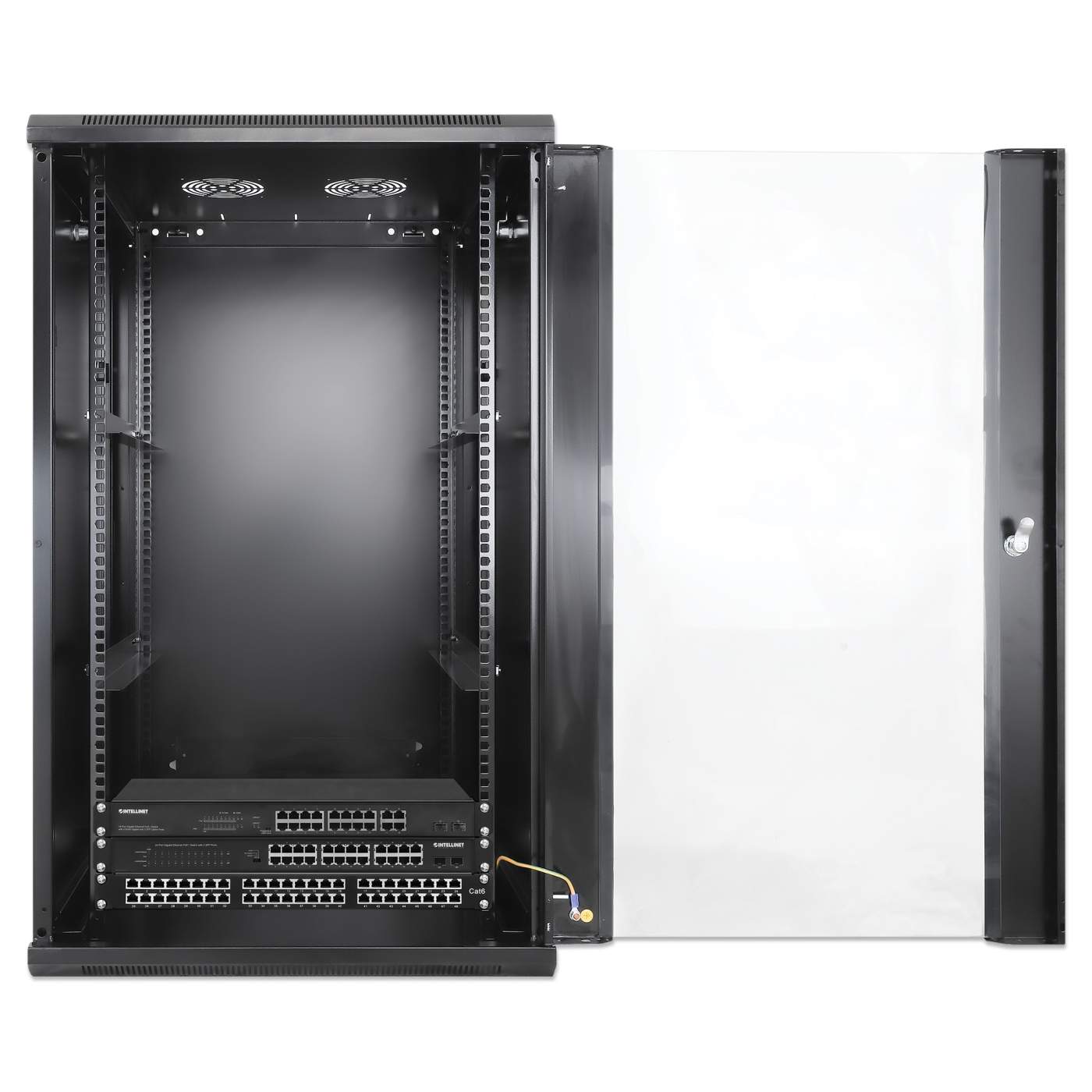

  • Ideal for 19" rackmount applications
  • Maximum static load of 60 kg
  • Usable depth: 500 mm (19.69 in.)



The Intellinet Network Solutions wall mount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flat-pack version. In terms of housing, you can choose from among the extra-compact 10″ cabinets and numerous 19″ versions, with installation depths that range from 300 to 600 mm. Heights from 6 to 20 units in black (RAL9005) or (RAL7021) & gray (RAL7035).
We offer you a solution for every need.
Various options include:
Removable side panels (some lockable).

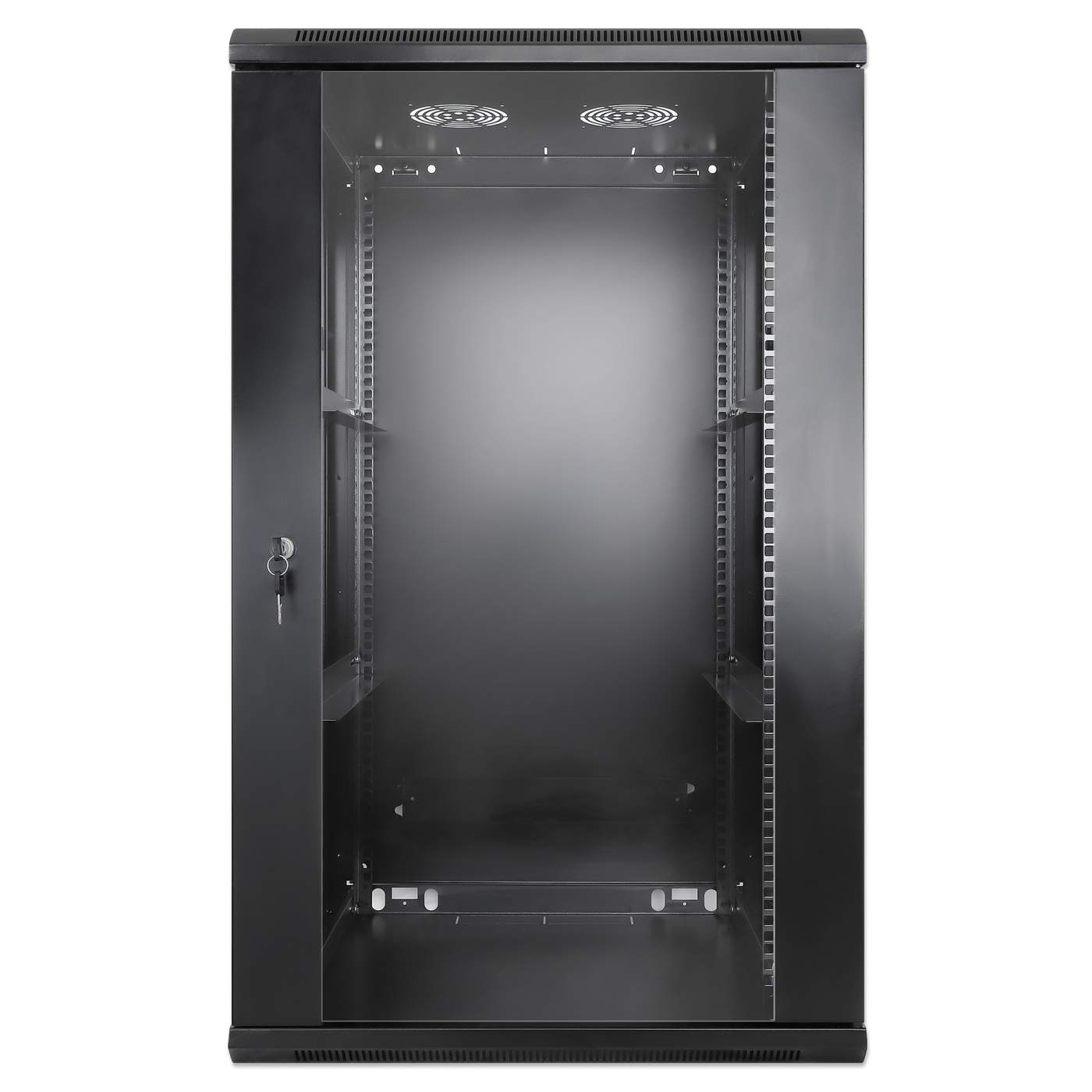

Tempered/Toughened glass doors.
Double Section, making cabling and component exchange simple.

  • Ideal for 19" rackmount applications
  • Maximum static load of 60 kg
  • Usable depth: 500 mm (19.69 in.)

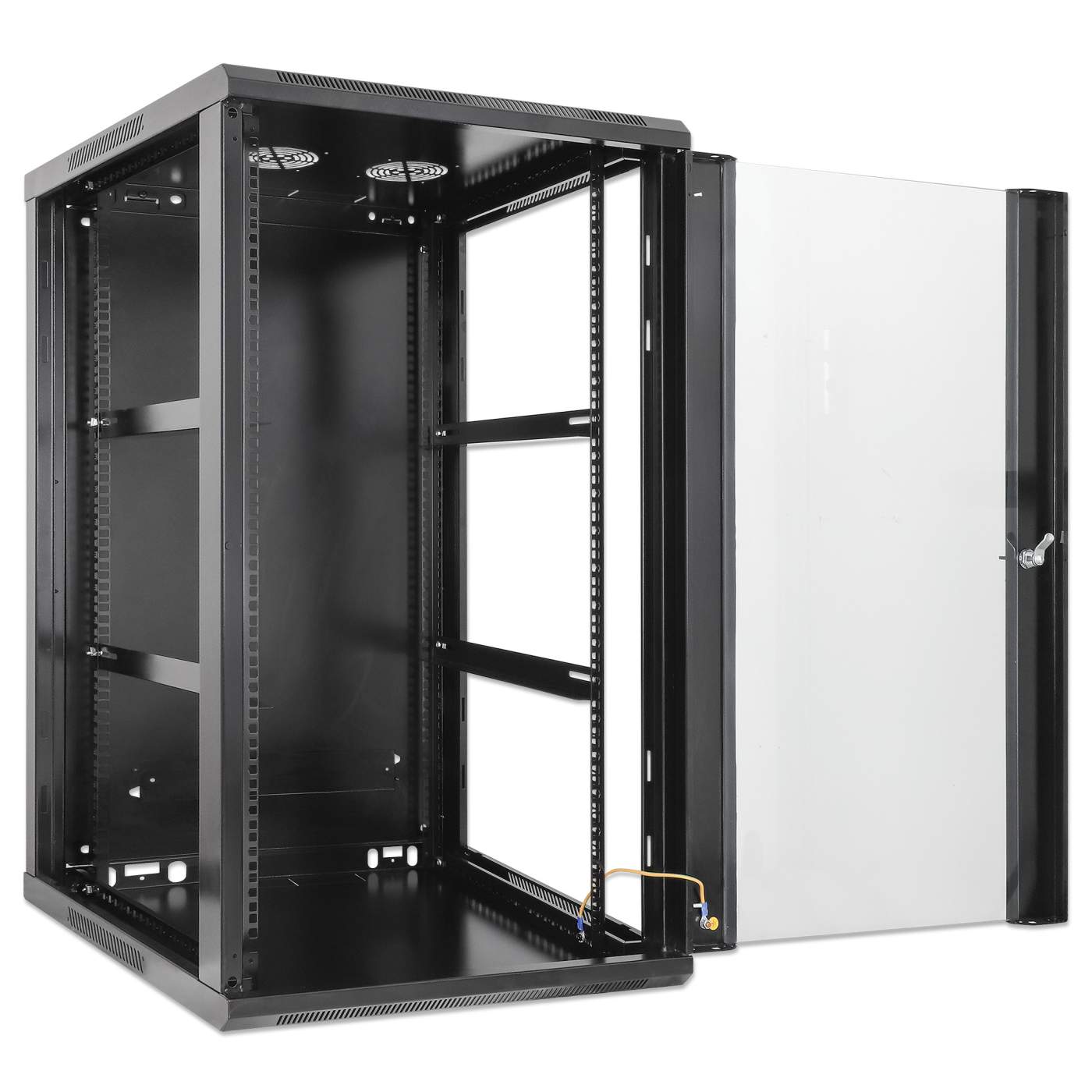

  • Tempered-glass door can be opened more than 180°

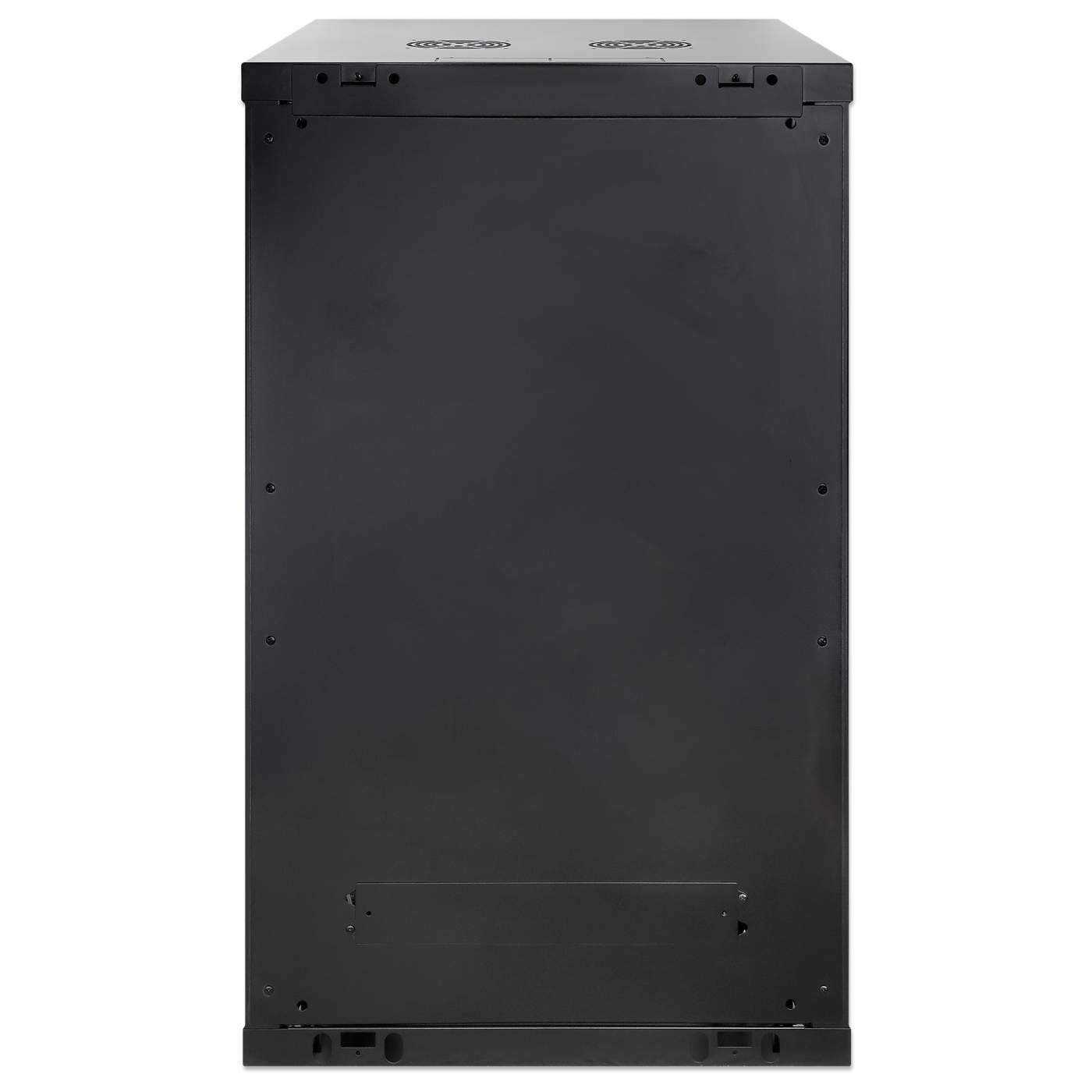

  • Cable entry via rear or top panel
  • Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
  • Reversible Front door
  • Lockable removable side panels
  • Ships assembled
  • Three-Year Warranty
    General
  • 19"
  • Height: 20U
  • Color: Black RAL9005
  • Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7

    Dimensions
  • 990 (h) x 600 (w) x 600 (d) mm
  • 39 (h) x 23.6 (w) x 23.6 (d) in.
  • Usable depth: 500 mm (19.69 in.)

    Package Contents

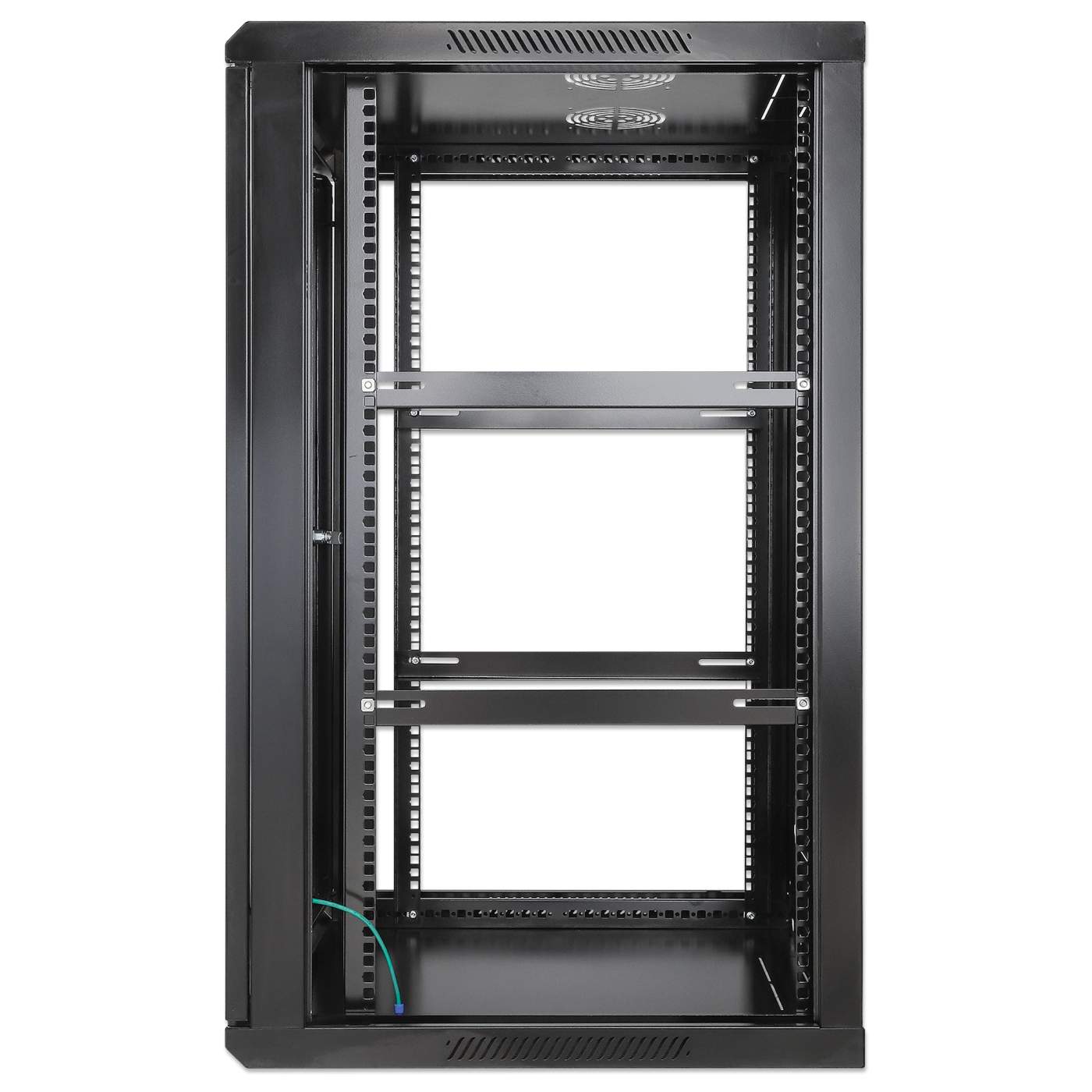

  • Wall mount Cabinet with 4 mounting rails
  • Installation hardware including tool, 20x M6 Sets and 6x Keys
  • Additional SKUs

    • Amazon ASIN: B00O4G2T28
    • EAN: 0766623712057
    • UPC: 766623712057
    • ALSO: 2282648
    • API: 155435

  • Physical Specifications

    • Weight: 36 kg
    • Dimensions: 990 x 600 x 600 (mm)
    • Packaging: Brown Box
    • Carton Quantity: 1
    • Carton Weight: 39.50 kg
  • Datasheet

    • Datasheet     » Download

    • Cabinet accessory compatibility chart EU
      Cabinet accessory chart for European Market

      English and German PDF Included     » Download

    • Technical Drawing
      Cabinet     » Download

    • Technical Drawing
      Cabinet     » Download

    • Technical Drawing     » Download
