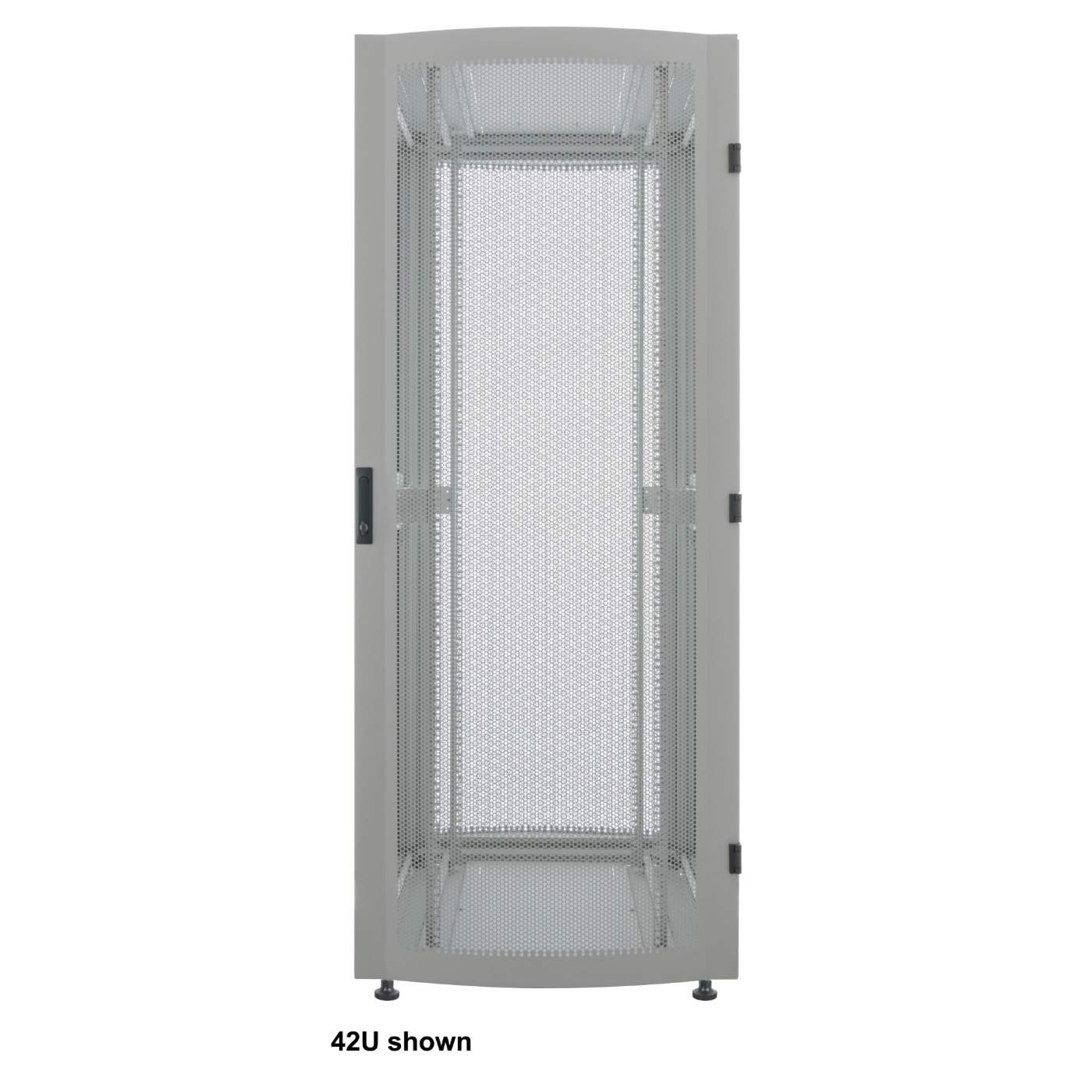

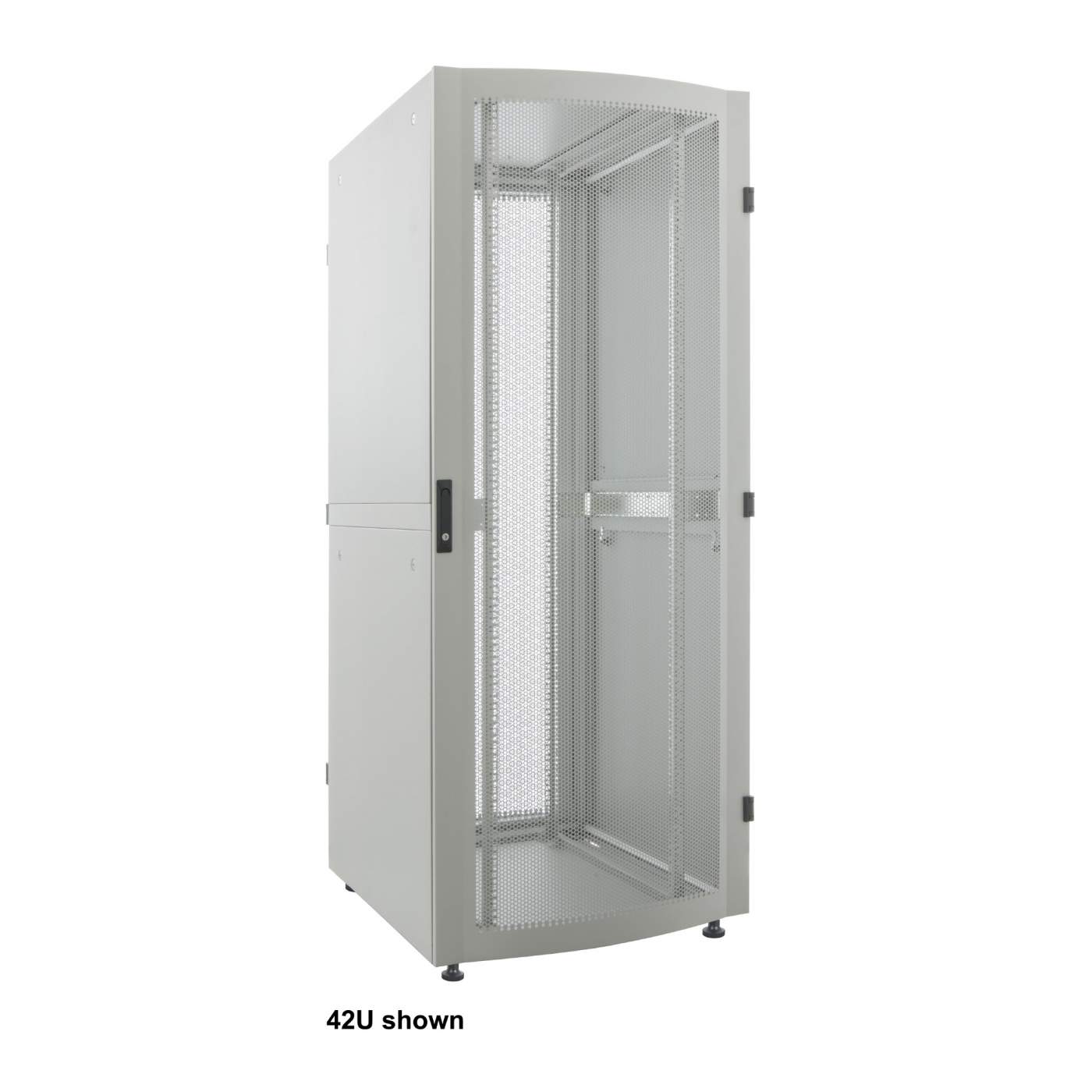

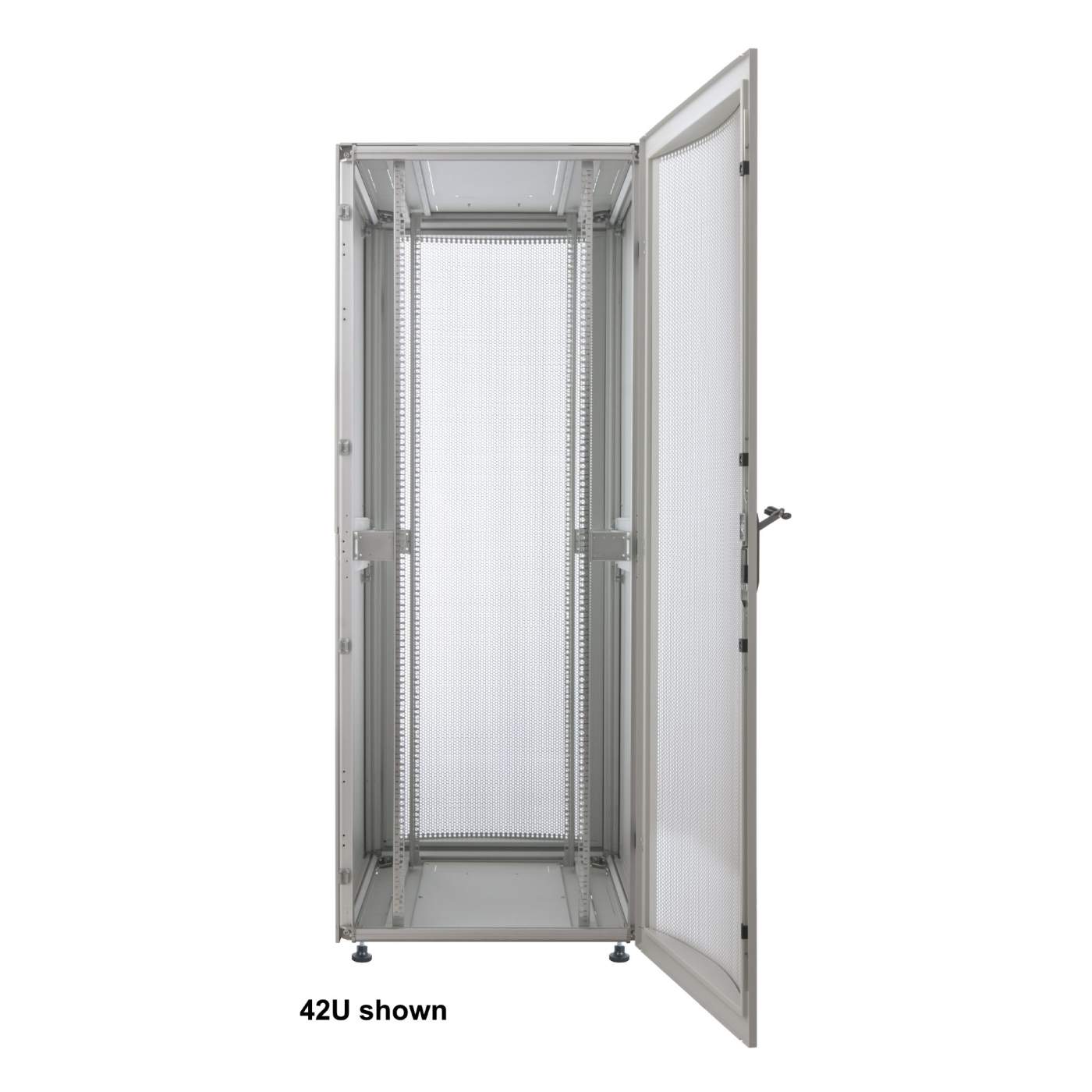

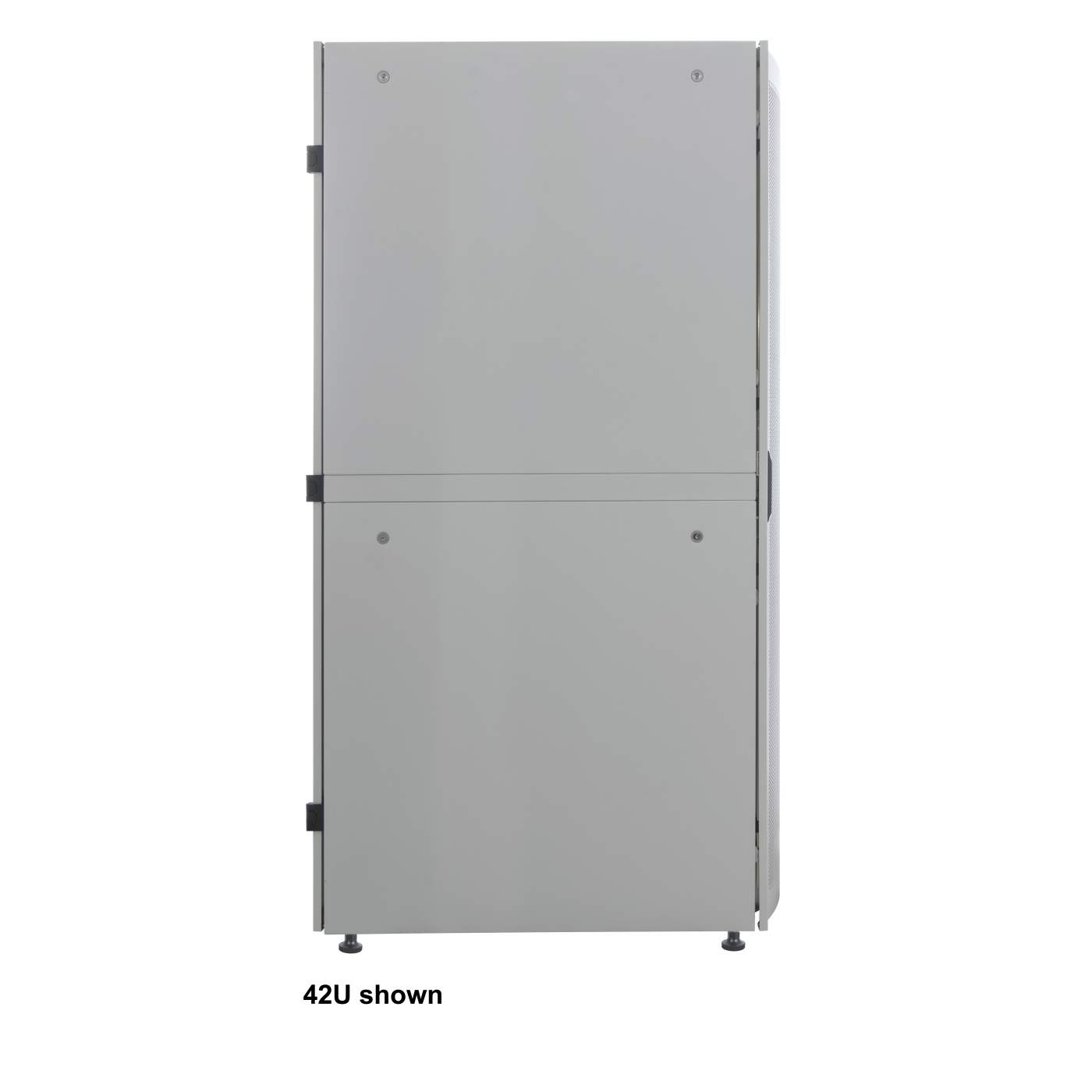

Premium 19" Server Cabinet

36U, Assembled, Gray

SKU: 715690

Where to buy:

Ship to
In Deutschland kaufen

The Intellinet Network Solutions Premium 19" Server Cabinet is designed with the data center in mind. This premium cabinet incorporates perforated front and rear doors to help ensure adequate airflow to your valuable network equipment. Its solid-steel panels are coated with electrostatic powder paint and the anodized aluminum frame helps secure and protect network equipment. Its zinc-plated, depth-adjustable mounting rails help ensure years of reliable use and sturdiness. The Intellinet Network Solutions Premium 19" Server Cabinet also features UL and RoHS certifications, reinforcing the quality of materials and construction to support networks that last.

  • Ideal for all 19" rackmount applications
  • Anodized aluminium frame
  • Maximum static load of 2000 kg (4409 lb.)
  • Perforated front and rear doors to support a free-air ratio of 67%
  • Zinc-plated 19" mounting rails
  • Antistatic powder coating on all panels
  • Easily removable locking split side panels
  • Multipoint door lock on front and rear doors
  • Cable-entry and ventilation slots
  • Ships fully assembled
  • Three-year warranty
  • 19"
  • Height: 36U
  • Color: Gray RAL7035
  • Certifications: RoHS, UL

  • 1000 (L) x 800 (W) x 1767 (H) [mm] / 39.37 (L) x 31.5 (W) x 69.57 (H) [in.]

    Package Contents
  • Premium 19" Server Cabinet
  • Four depth-adjustable mounting rails
  • Four adjustable supporting feet
  • Installation hardware
  • Additional SKUs

    • EAN: 0766623715690
    • UPC: 766623715690

  • Physical Specifications

    • Weight: 95 kg
    • Dimensions: 1000 (L) x 800 (W) x 1767 (H) [mm]
    • Packaging: Brown Box
    • Carton Quantity: 2
    • Carton Weight: 210.00 kg
  • Datasheet

  • Manual

    • Assembly Instructions
      Multilingual assembly instructions English and German     » Download
