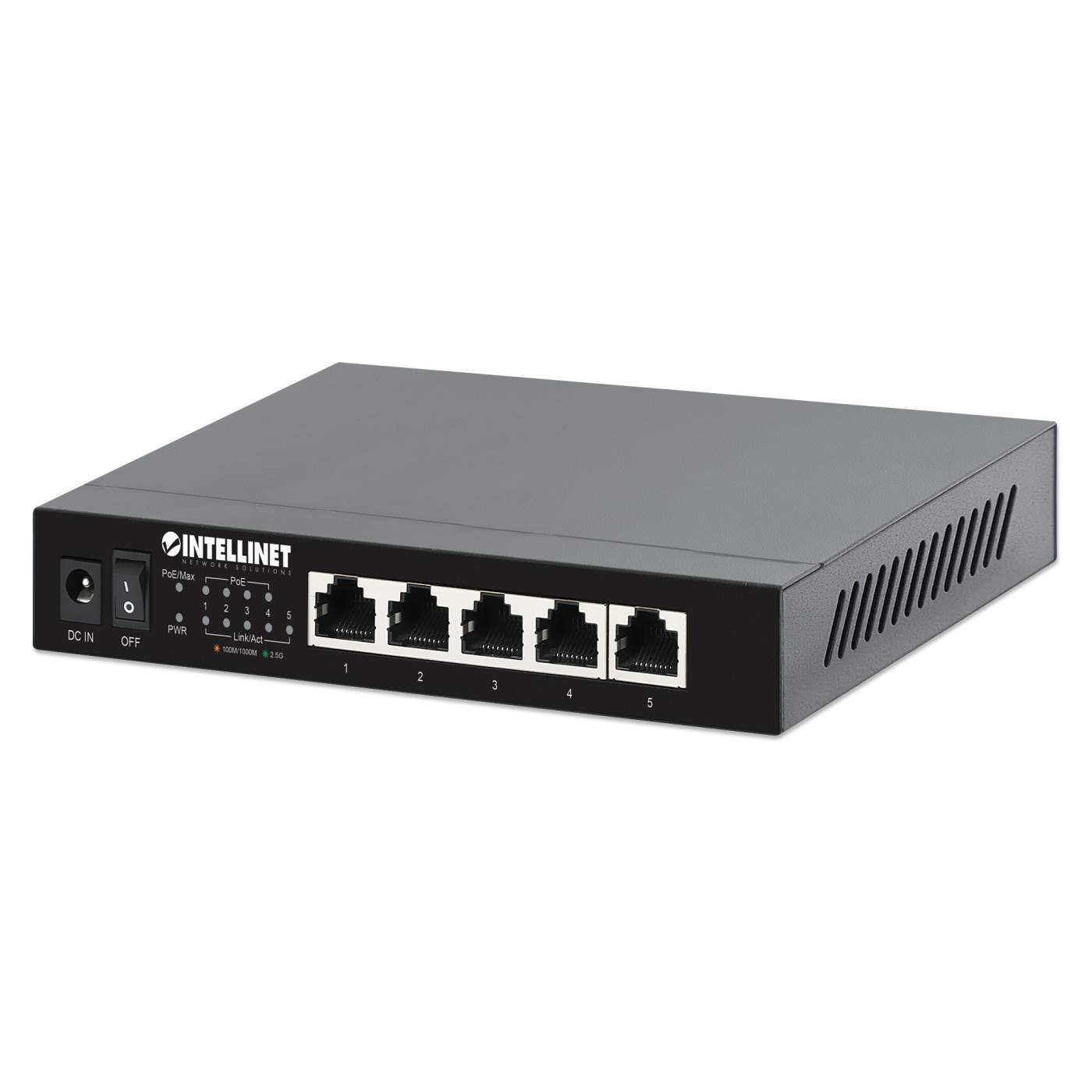

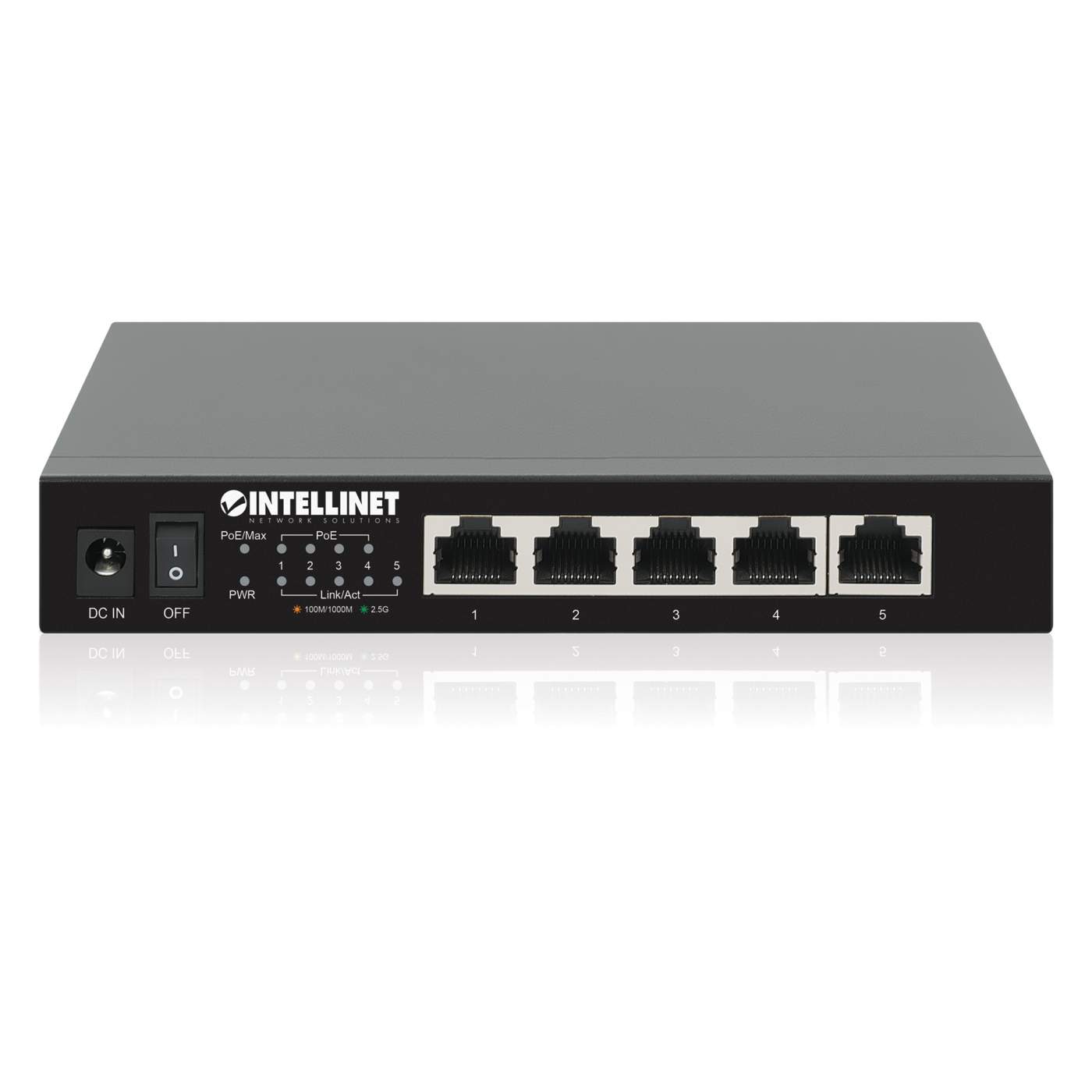

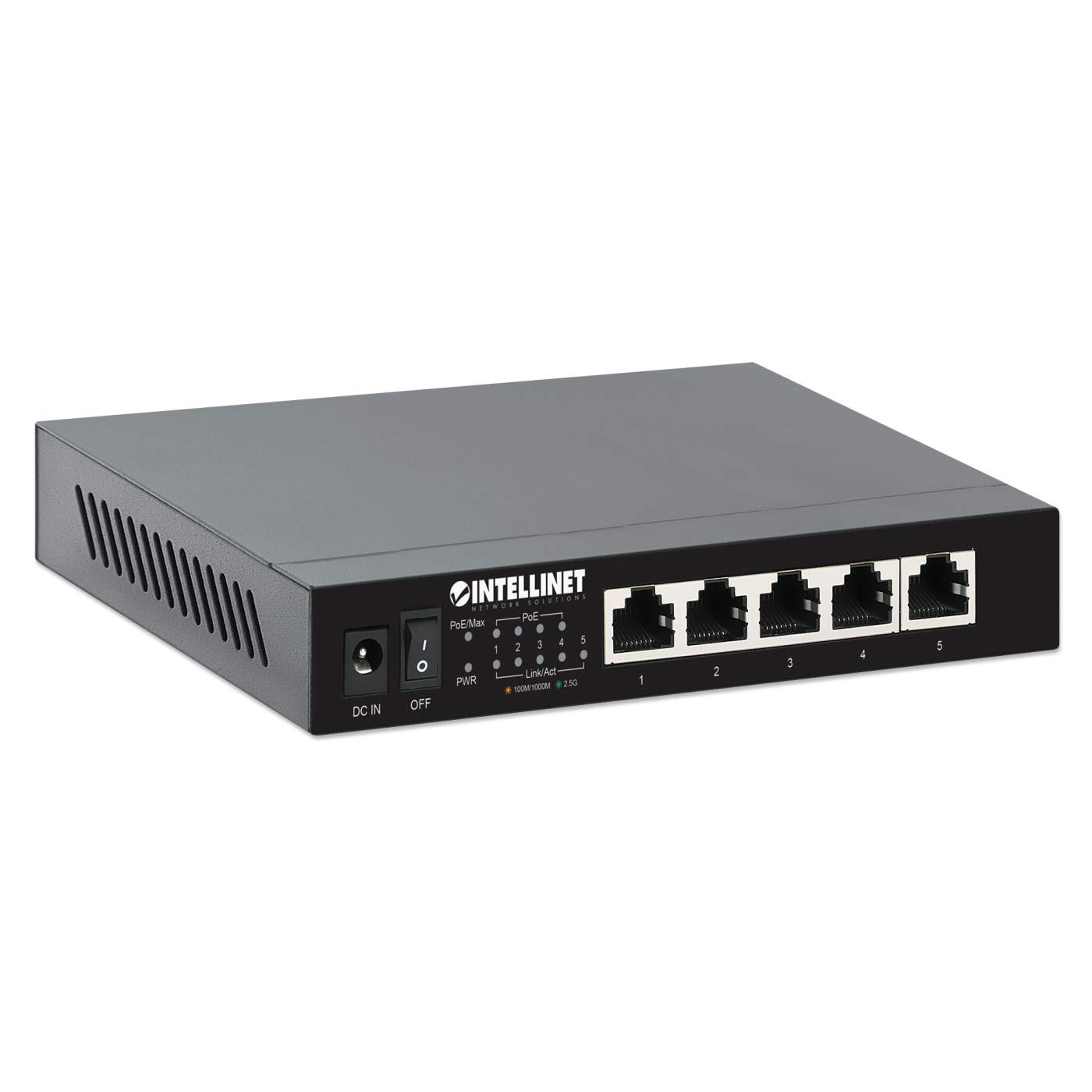

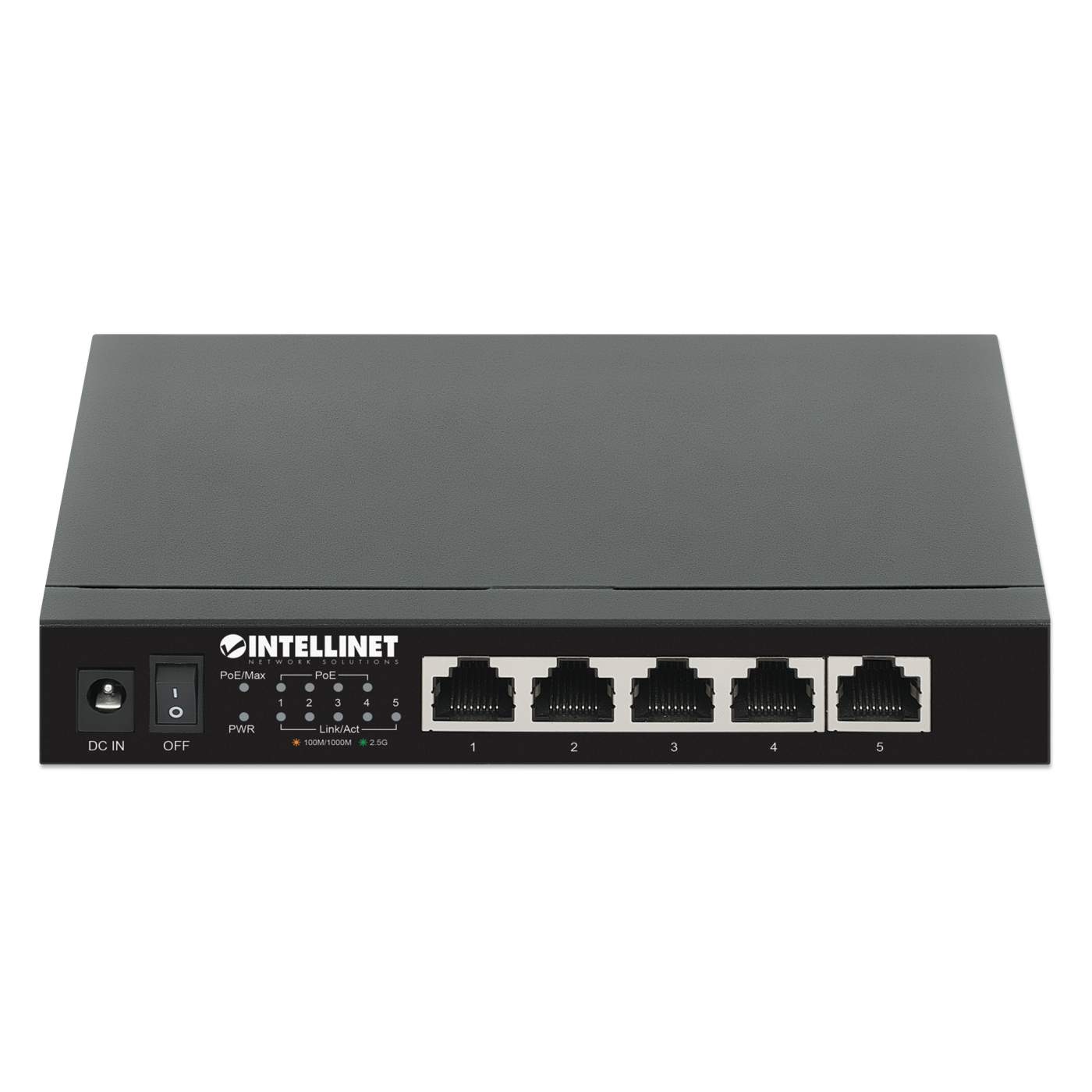

5-Port 2.5G Ethernet PoE+ Switch
5-Port 2.5G Ethernet PoE+ Switch
Four PSE PoE+ Ports, 10/100/1000/2500 Mbps on all Ports, 55 W PoE Power Budget, Unmanaged, Desktop Format, Wall-mount Option
SKU: 561921
Highlights
- Provides up to four PoE network devices with power and data
- Ultra-fast 2.5GBASE-T RJ45 Ethernet ports, IEEE 802.3bz compliant
- PoE power budget of 55 watts
[ view high resolution images ]
Where to buy:
Next-gen 2.5 Gbps Desktop 5-Port PoE Switch - Supports 10/100/1000/2500 Mbps, Power over Ethernet 802.3at
The 5-Port 2.5G Ethernet Unmanaged PoE+ Switch from Intellinet Network Solutions passes both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five multi-gigabit Ethernet PoE+ copper ports, this Switch can power wireless LAN bridges, VoIP phones and more while delivering network speeds up to 2500 Mbps.
Eliminate bottlenecks with 2.5G capability - great for high-bandwidth Wi-Fi 6 IEEE 802.11ax Access Points and more
Since at least the arrival of Wi-Fi 6 (but even with legacy Wi-Fi 5 [802.11ac]), "regular" Gigabit Ethernet ports have been at their bandwidth limits when connecting to wireless networks. This Switch's ability to support 2.5GBASE-T means it can deliver data to wireless APs faster and better accommodate other higher-bandwidth devices in your enterprise network.
High-power PoE+ with output up to 30 watts
This switch supports the IEEE 802.3at protocol and can inject up to 30 watts of power per port. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, which eliminates the time and expense of electrical rewiring and minimizes the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected.
- Provides up to four PoE network devices with power and data
- Ultra-fast 2.5GBASE-T RJ45 Ethernet ports, IEEE 802.3bz compliant
- PoE power budget of 55 watts
- Power output up to 30 watts on each PoE-capable port
- 10/100/1000/2500 Mbps auto-sensing ports that automatically detect optimal network speeds
- 25 Gbps switch fabric
- Backward compatible with 10/100/1000 Mbps devices
- Saves installation costs by delivering data and power over existing network cables
- Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras)
- Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
- Auto-MDIX and NWay auto-negotiation support on all RJ45 ports
- Supports jumbo frames up to 12 kBytes
- Store and forward switching architecture
- IEEE 802.3x flow control for full duplex
- Supports 16k MAC address entries with Auto-learning and Auto-aging
- Buffer memory of 12 MBits
- Compact desktop format with rugged metal housing
- Fanless design for silent operation
- Desktop-size metal case

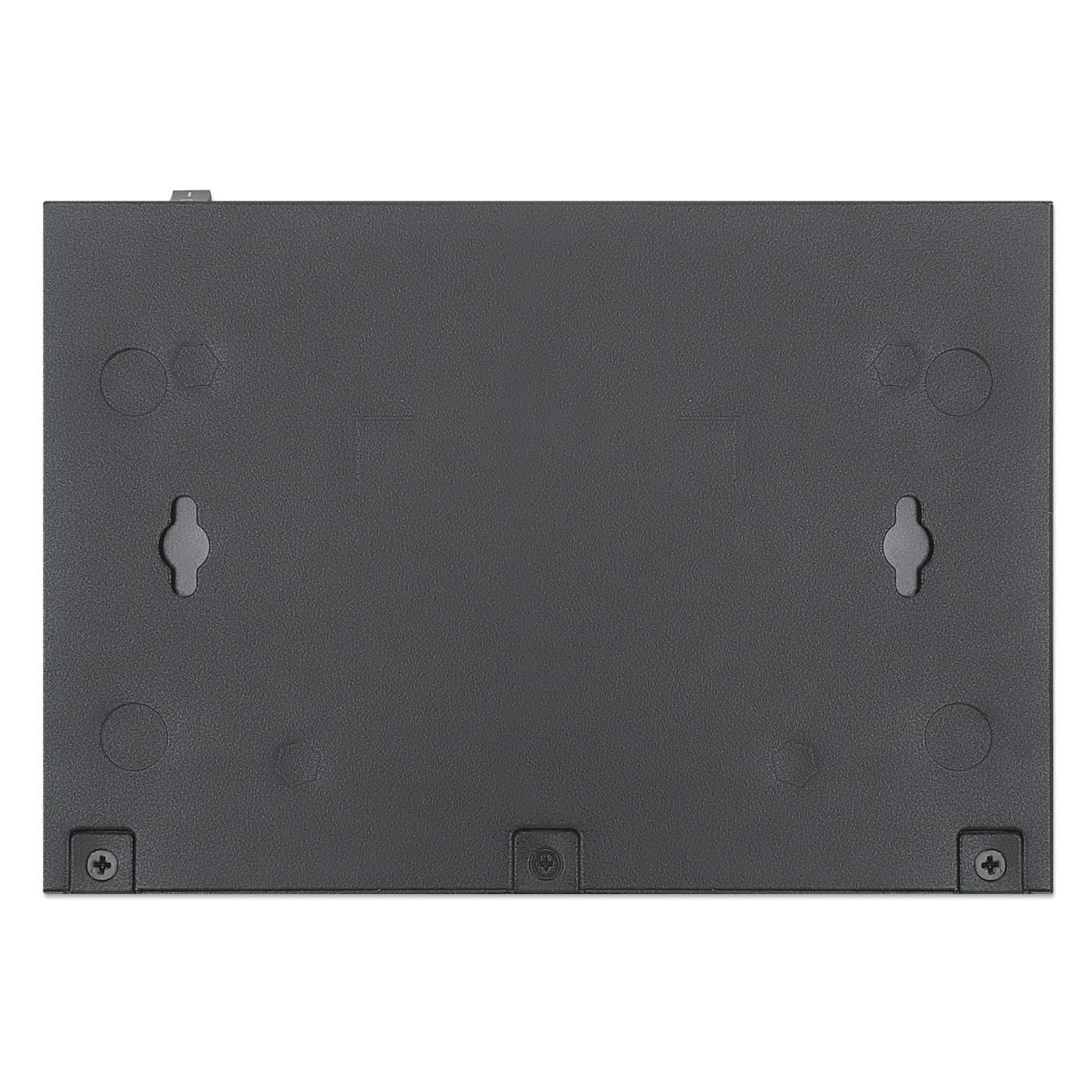

- Wall mountable for installation flexibility
- Fully NDAA-compliant
- Three-year warranty
