Intellinet

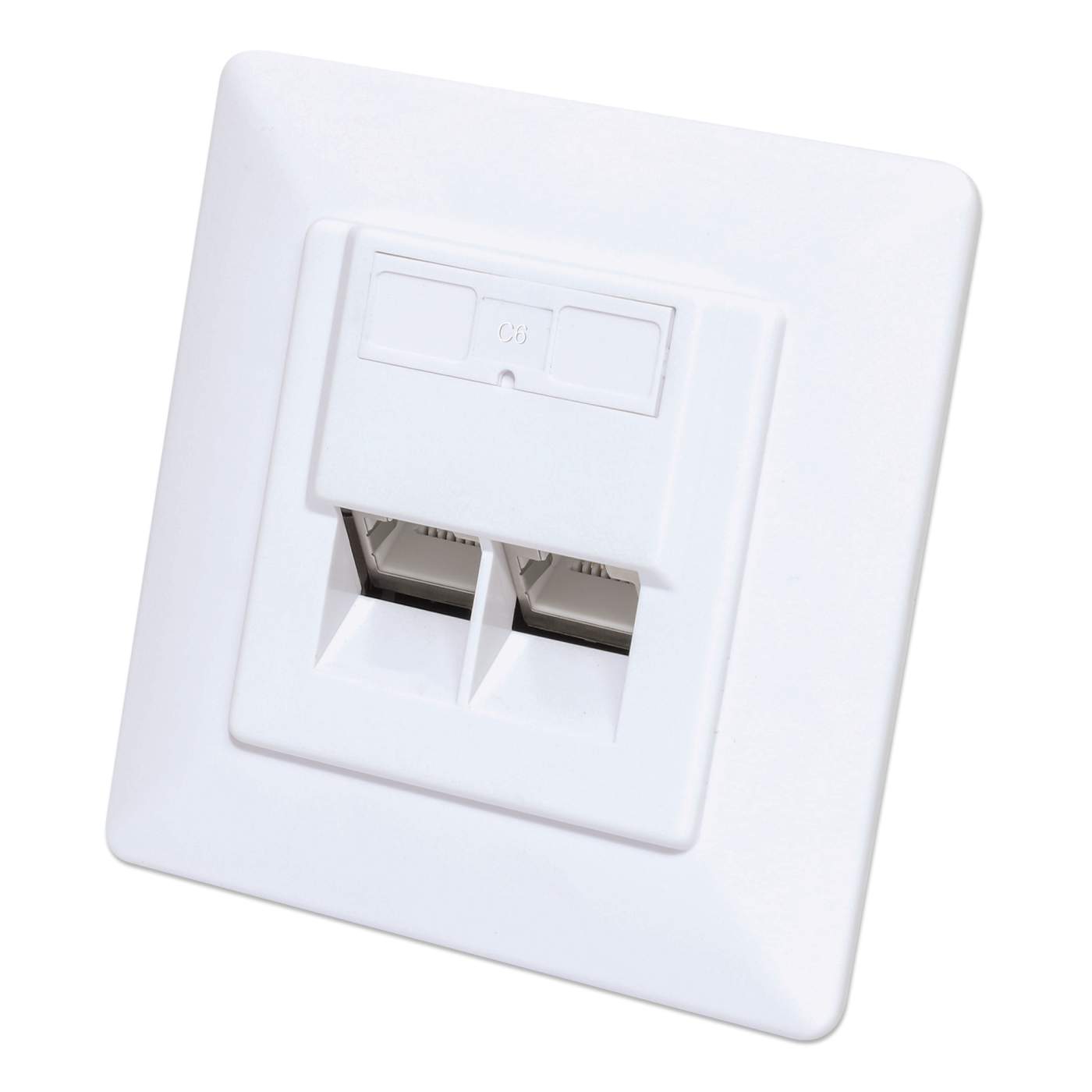

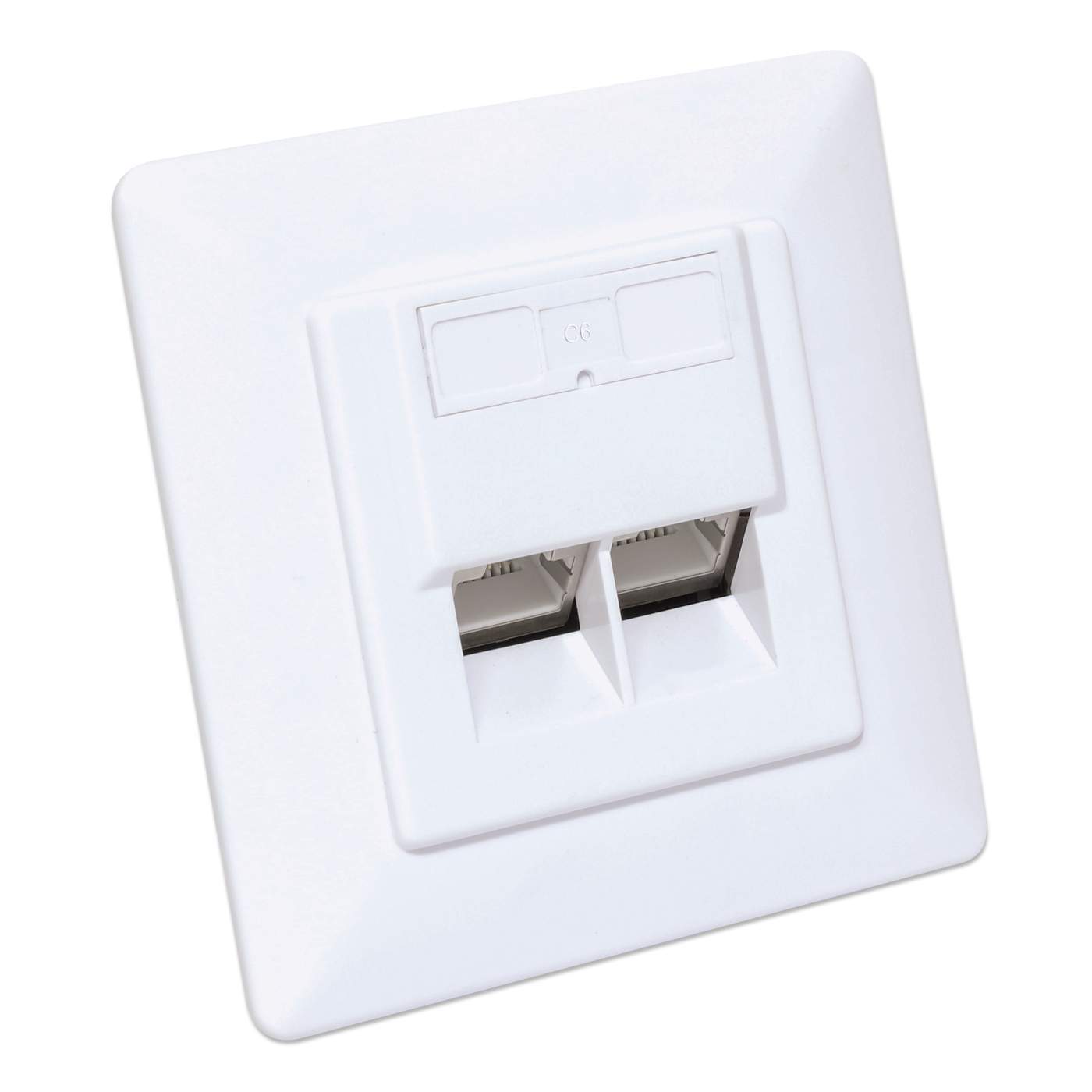

2-Port Cat6 10G Shielded RJ45 Wall Plate

2-Port Cat6 10G Shielded RJ45 Wall Plate

Flush Mount with Faceplate, STP, Signal White RAL9003

SKU: 771900

Highlights

  • Cat6 STP 360° shielded RJ45 wall plate for 10G, HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE

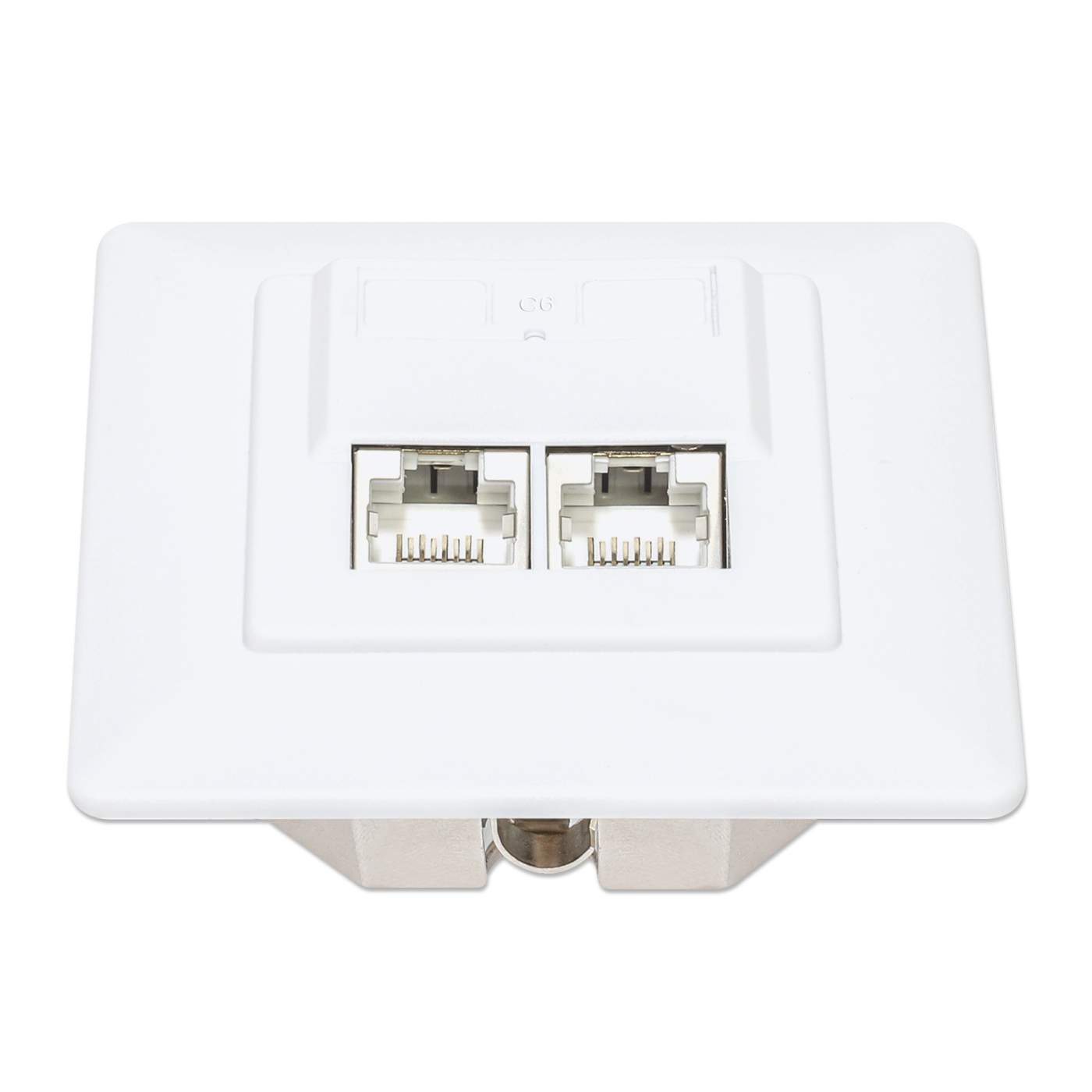

  • Two 40° angled outlet jacks
  • Mounts flush against the wall

[ view high resolution images ] Ver todos los detalles

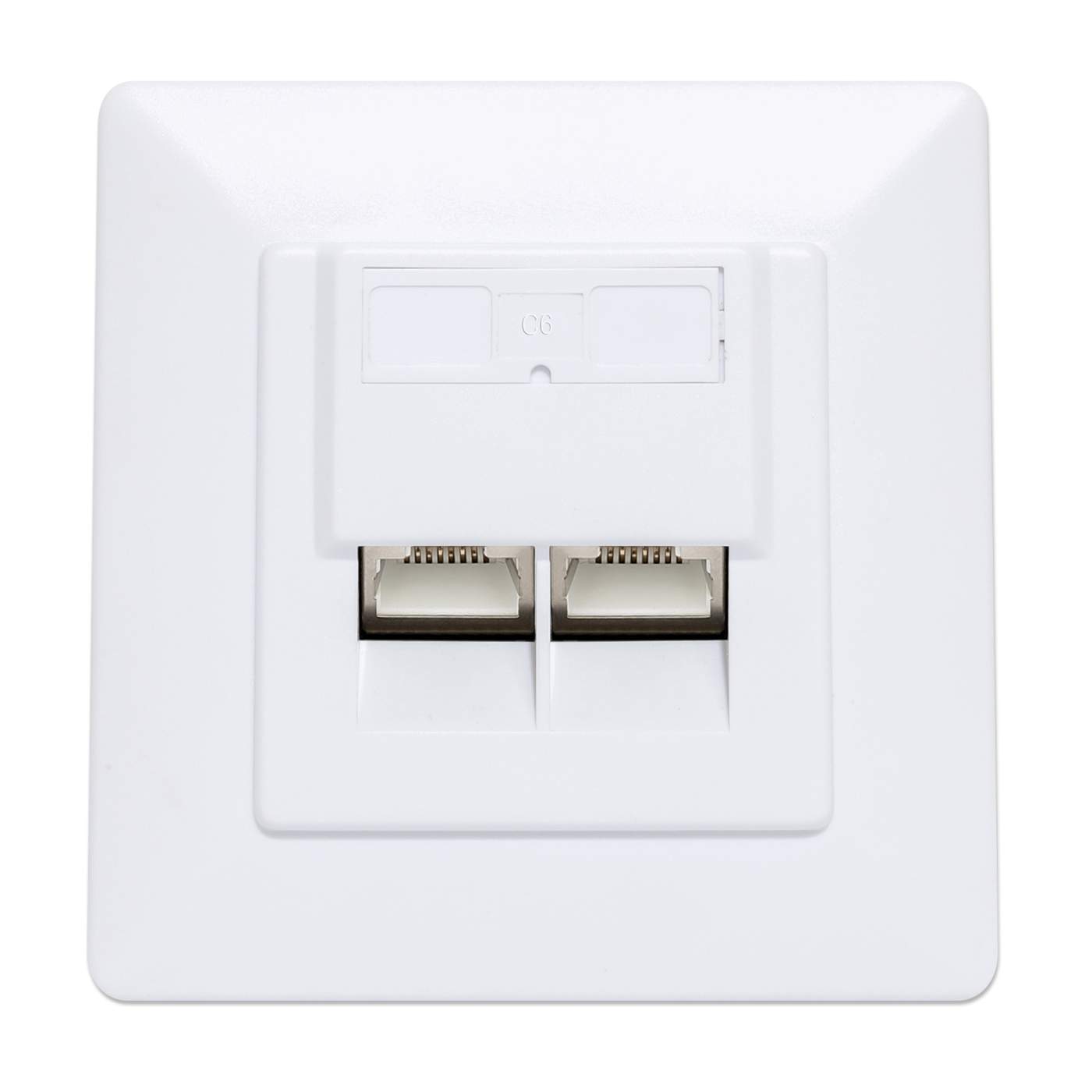

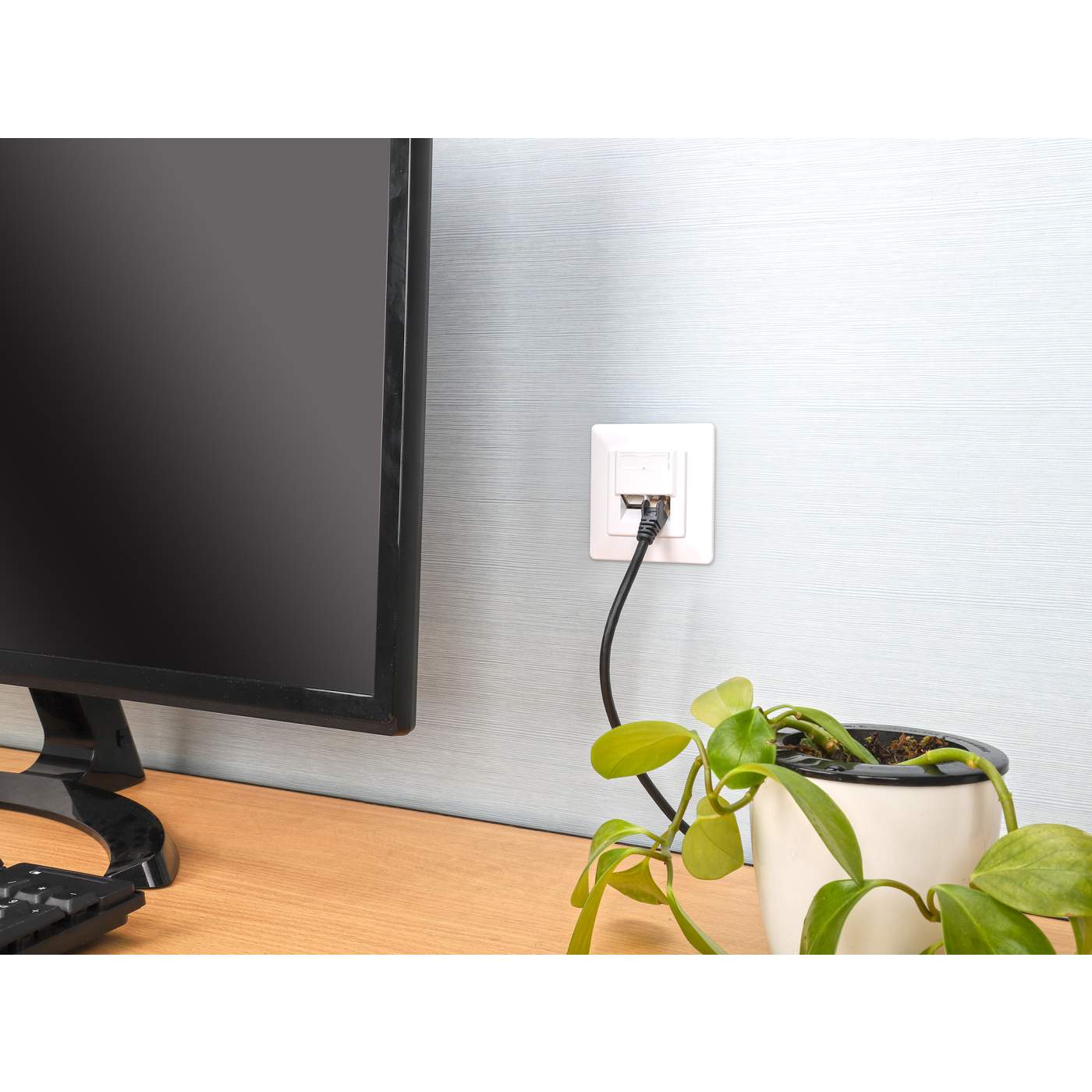

Cat6 Wall Plate - Flush-mount with 2 ports and faceplate for in-wall wiring projects

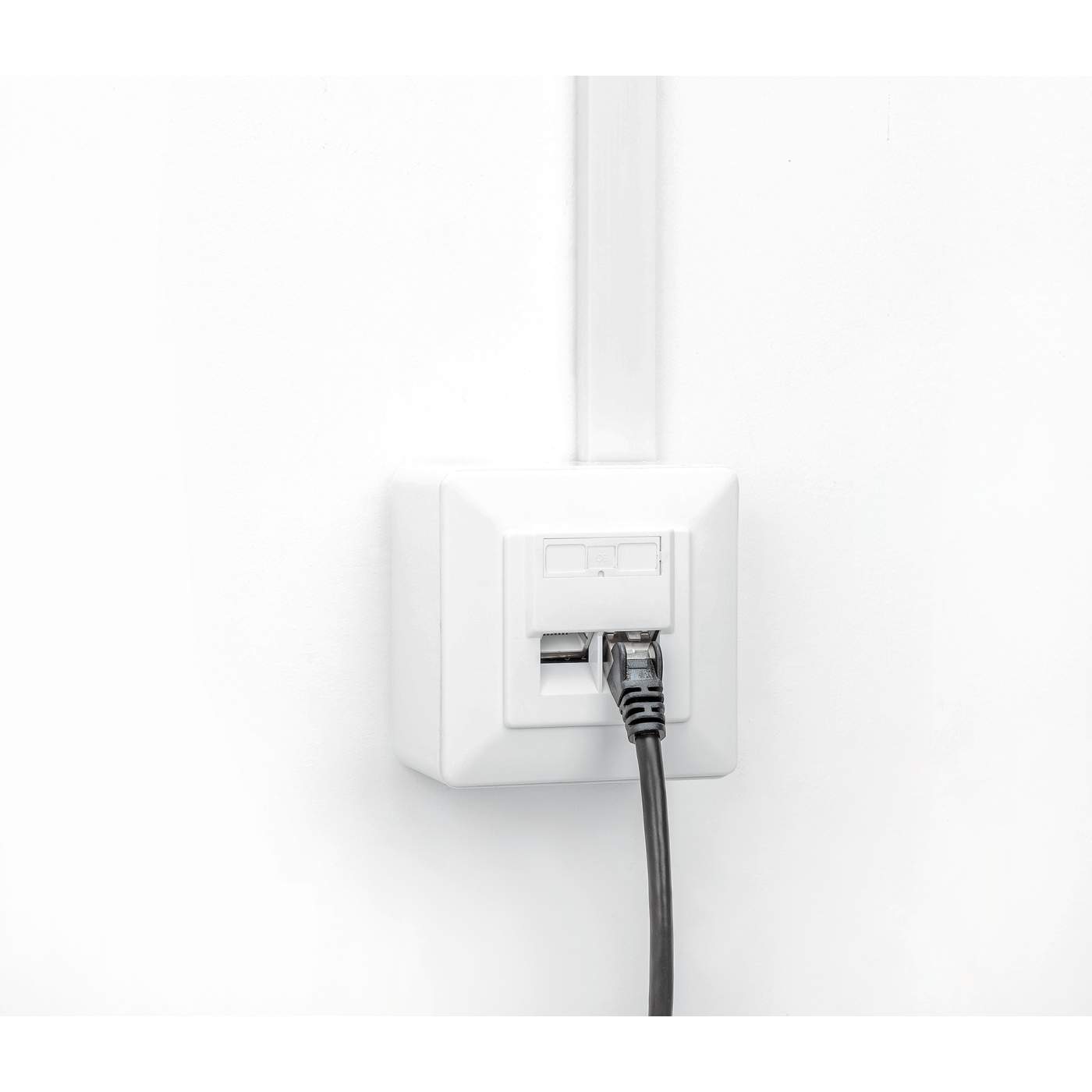

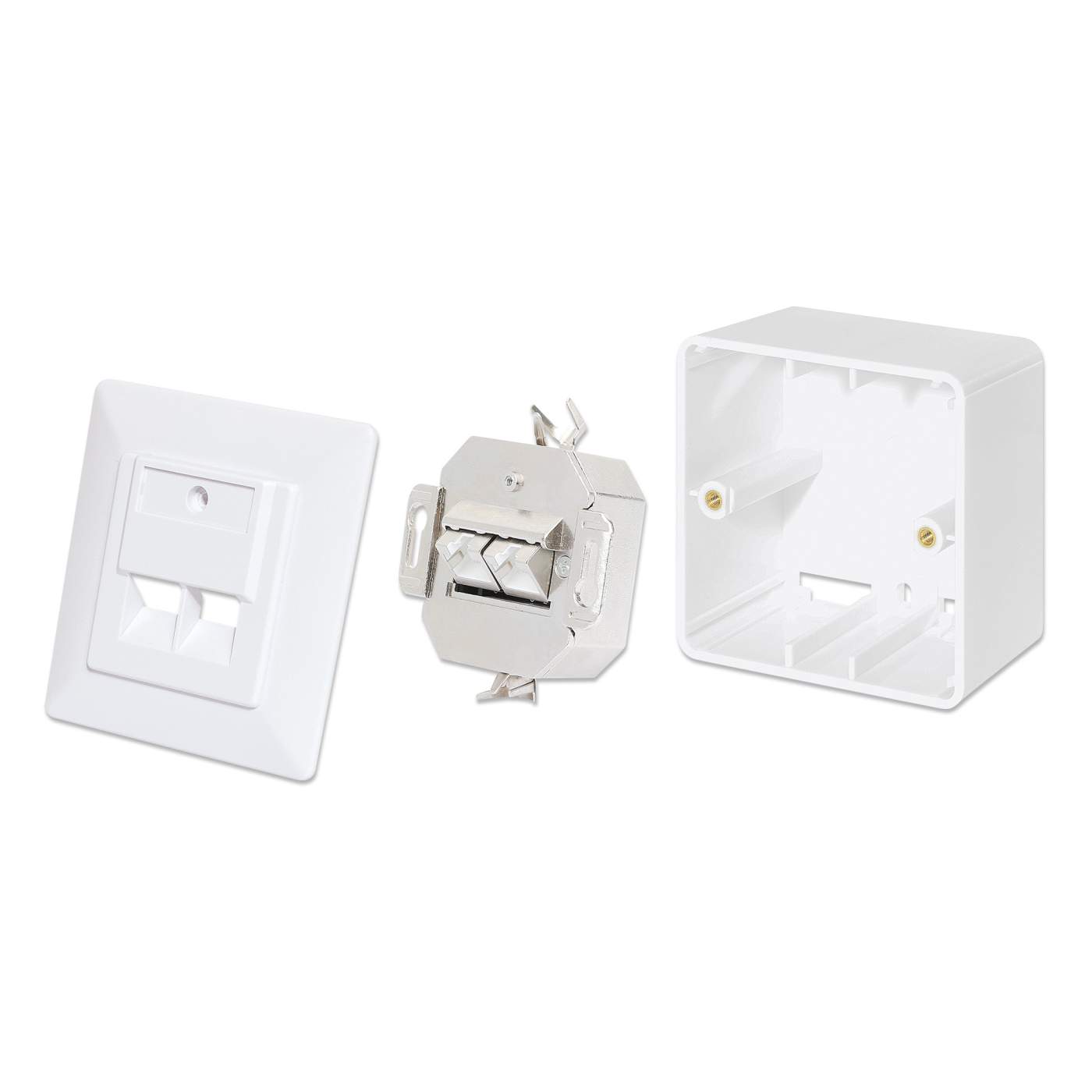

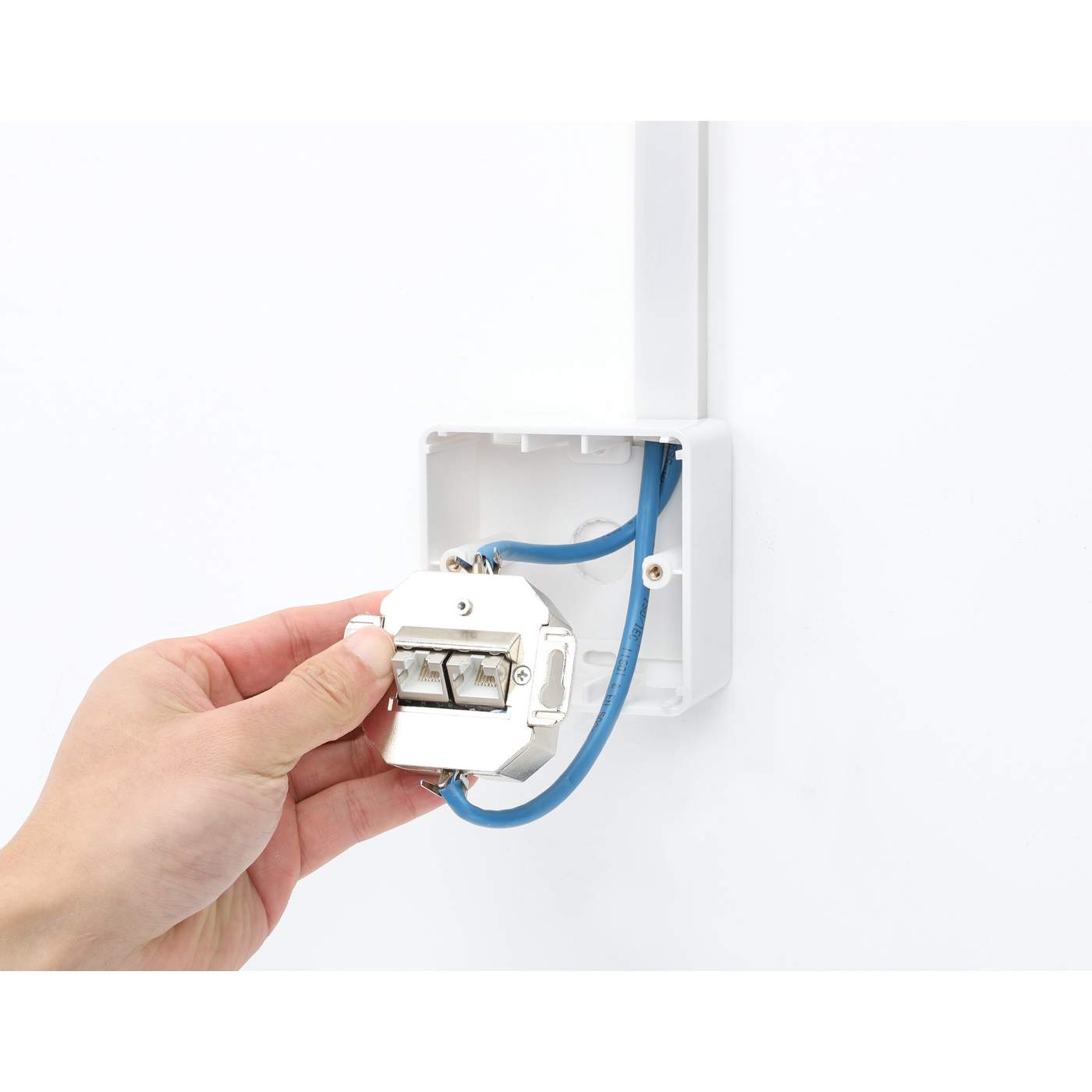

The 2-Port Cat6 10G Shielded RJ45 Wall Plate from Intellinet Network Solutions is the flush-mount outlet you need for your next network-wiring installation. Its clean faceplate provides cover for the 40°-angled outlet jacks that help keep cables close to the wall for a more professional look. This Wall Plate's Cat6 ports support 10G data transmissions with frequencies up to 250 MHz and all PoE applications up to PoE++. For an optional surface mount, use the pattress box #771894.


  • Cat6 STP 360° shielded RJ45 wall plate for 10G, HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
  • Two 40° angled outlet jacks
  • Mounts flush against the wall
  • Gold-plated contacts for corrosion-free connections
  • Supports solid wire with AWG 26/1 to 22/1
  • Compliant with ISO/IEC 11801, DIN EN 50173-1, and ANSI/TIA-568
  • European 80 x 80 mm faceplate design

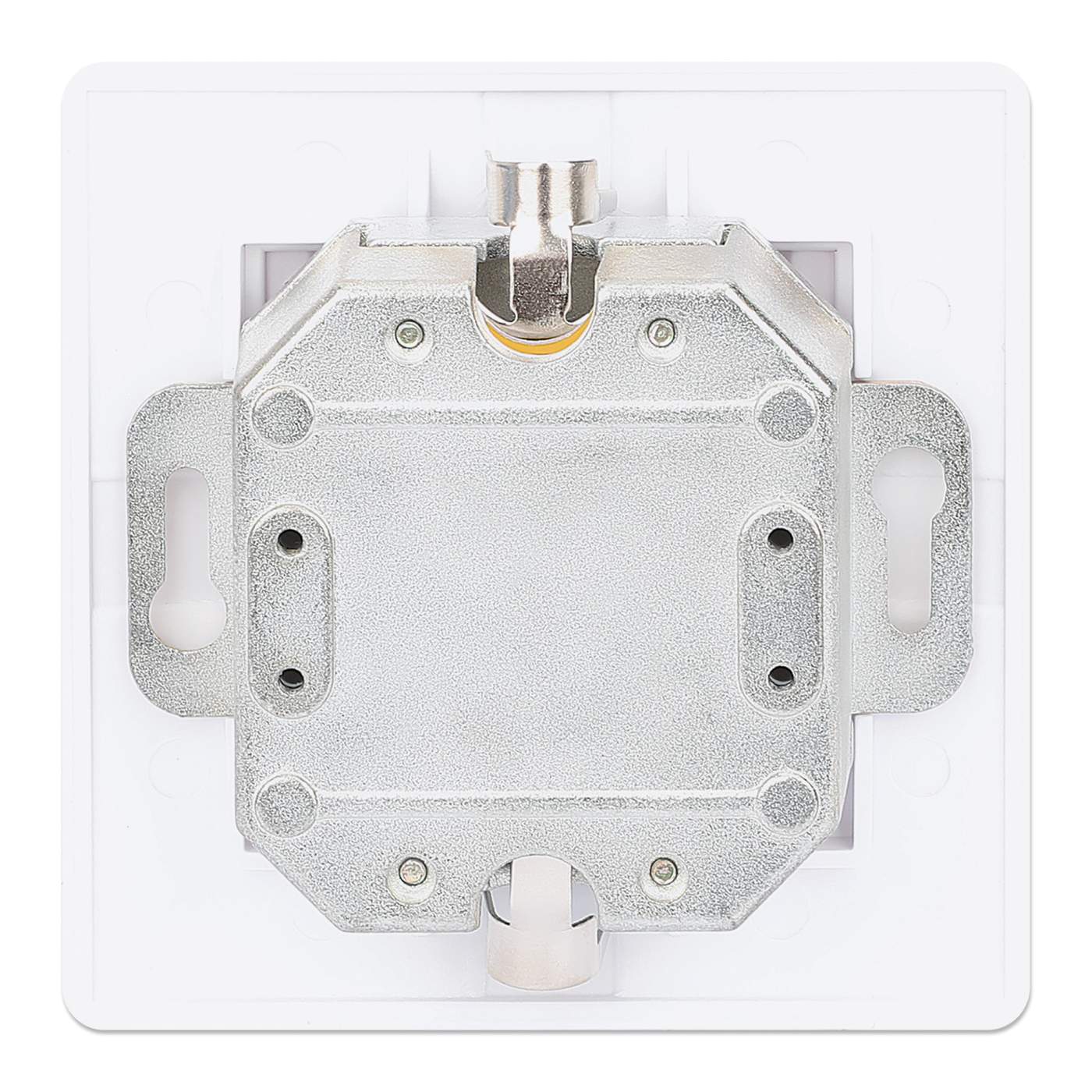

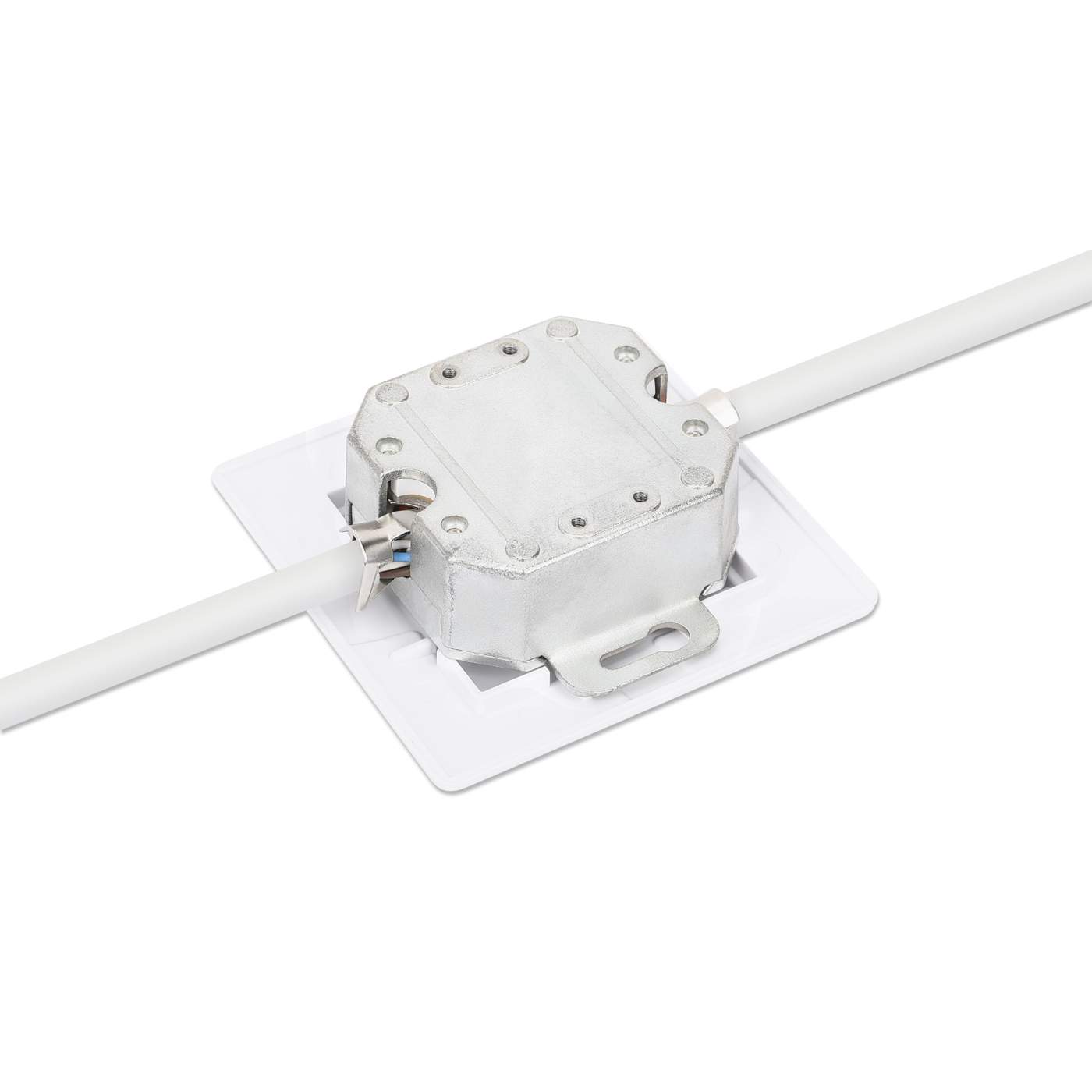

  • Adjustable strain relief
  • Standard 8P8C design, compatible with all network RJ45 connections
  • Integrated writable label
  • LSA punch-down type, compatible with 110, Krone, and other punch-down tools
  • Fits round cable
  • Lifetime warranty
