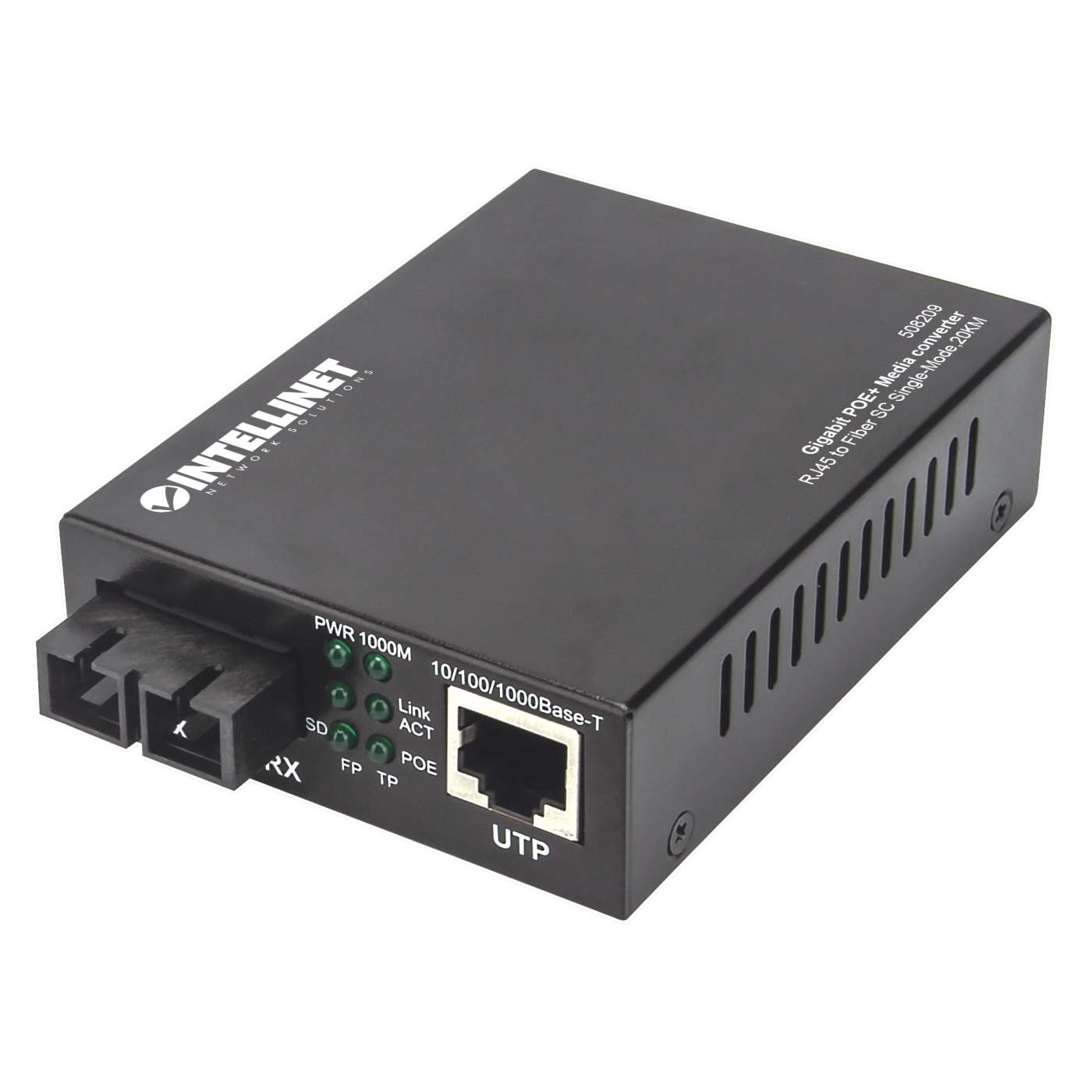

Gigabit PoE+ Media Converter
Gigabit PoE+ Media Converter
1000Base-T RJ45 Port to 1000Base-LX (SC) Single-Mode, 20 km (12.4 mi.), PoE+ Injector
SKU: 508209
Highlights
- One 10/100/1000 RJ45 port supporting a maximum distance of 100 m (300 ft.)
- Fiber SC single-mode port connects distances up to 20 km (12.4 miles)
- Link Fault Passthrough (LFP) function for easier network maintenance
[ view high resolution images ]
Where to buy:
The Intellinet Network Solutions Gigabit PoE+ Media Converter offers simplified migration from copper-based Ethernet to Fiber Ethernet while providing power to a compatible device at up to 30 watts. The device creates the easy expansion of existing networks with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before – only now it can support both copper and fiber mediums.
Expand the Size of an Existing Network.
The converter provides fiber connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Since it offers building-to-building connectivity without the cost and disruption associated with the installation of additional routers, network admins can quickly incorporate this converter into their current setup and keep the network running like it should.
Power-over-Ethernet-Plus Capable
The Intellinet Gigabit PoE+ Media Converter brings power to where there is none, obviating the need to hire an electrician and run electrical lines. And because the converter supports the IEEE 802.3at / 802.3af standard, up to 30 watts is available for any compatible device.
Cabling Flexibility
Network managers can install fiber cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19" rack-mountable chassis.
- One 10/100/1000 RJ45 port supporting a maximum distance of 100 m (300 ft.)
- Fiber SC single-mode port connects distances up to 20 km (12.4 miles)
- Link Fault Passthrough (LFP) function for easier network maintenance
- Supports an IEEE 802.3at and IEEE 802.3af-compliant PoE device (e.g., wireless access point, VoIP phone, IP camera, etc.)
- Provides power output up to 30 watts for one PoE-compliant device
- Supports full-duplex and half-duplex modes with autonegotiation

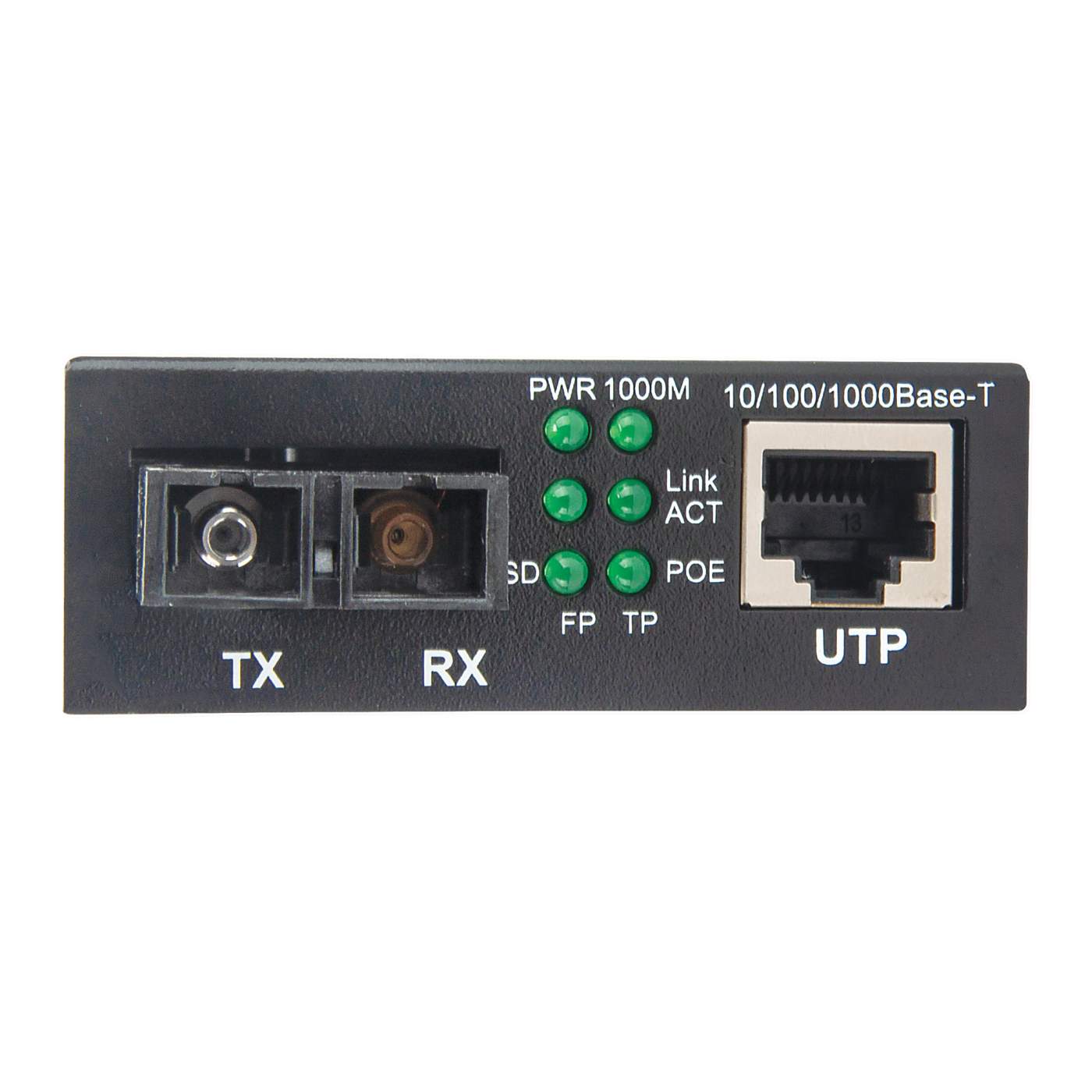

- Status LEDs for power and Link/TX for both ports
- Supports jumbo frames up to 9 kBytes
- IP30 slim-type metal case
- Fully NDAA-compliant
- Three-year warranty
