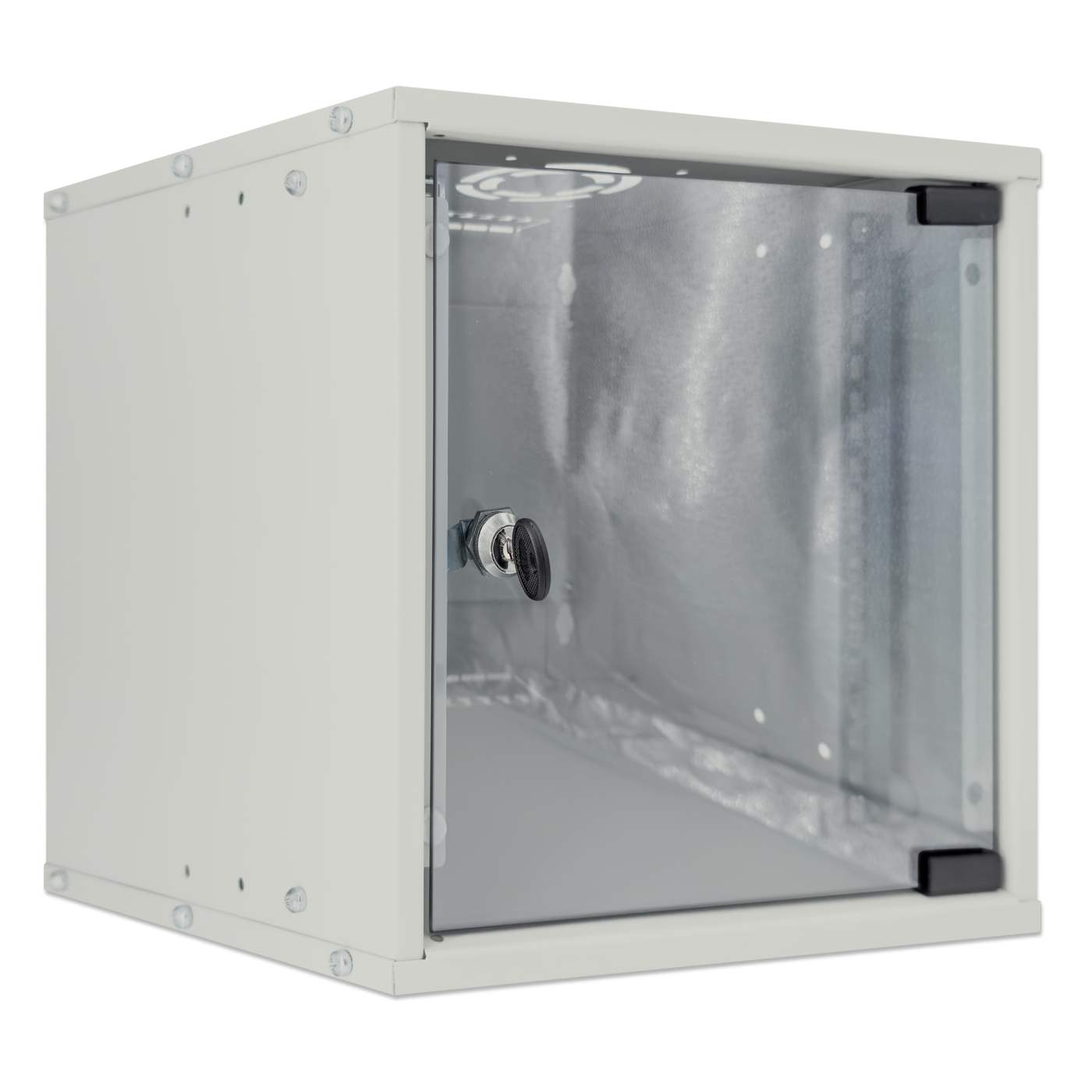

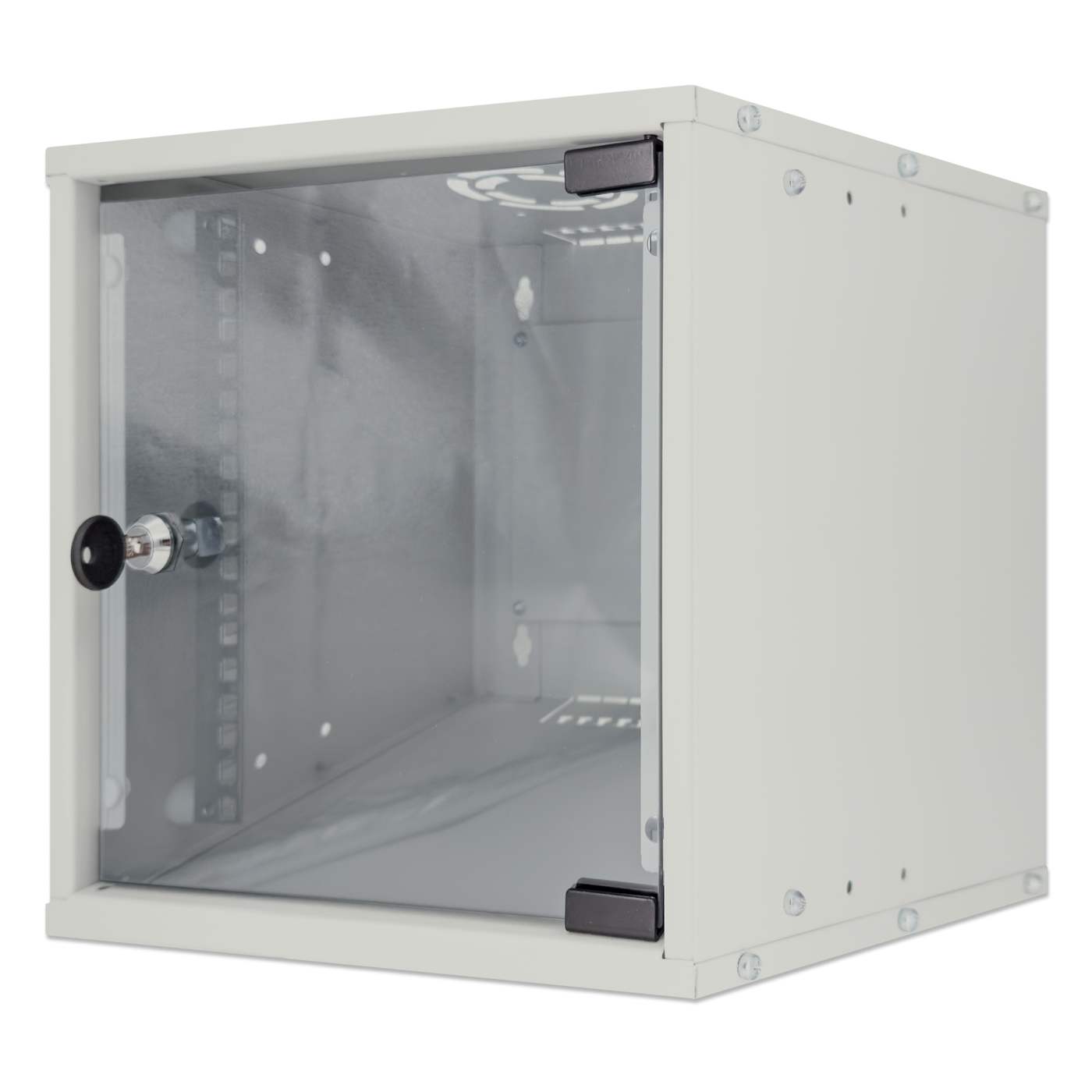

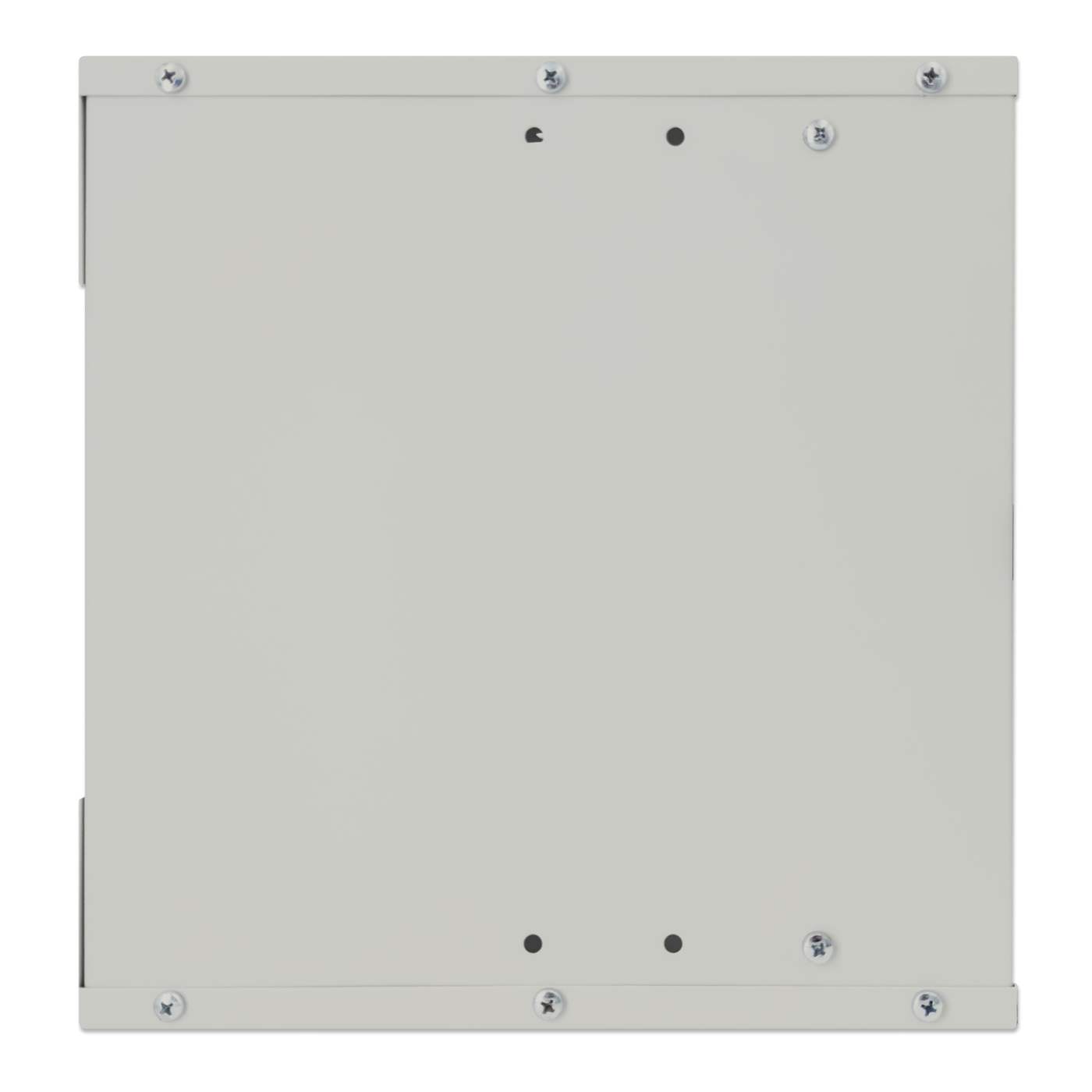

10" Wallmount Cabinet

6U, Assembled, Gray

SKU: 711708

Highlights

  • Ideal for 10" rackmount applications
  • Maximum static load of 60 kg
  • Usable depth: 265 mm (10.43 in.)

Where to buy:

Country
Ship to
Purchase
In Deutschland kaufen
Deutschland


The Intellinet Network Solutions wall mount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flat-pack version. In terms of housing, you can choose from among the extra-compact 10″ cabinets and numerous 19″ versions, with installation depths that range from 300 to 600 mm. Heights from 6 to 20 units in black (RAL9005) or (RAL7021) & gray (RAL7035).
We offer you a solution for every need.
Various options include:

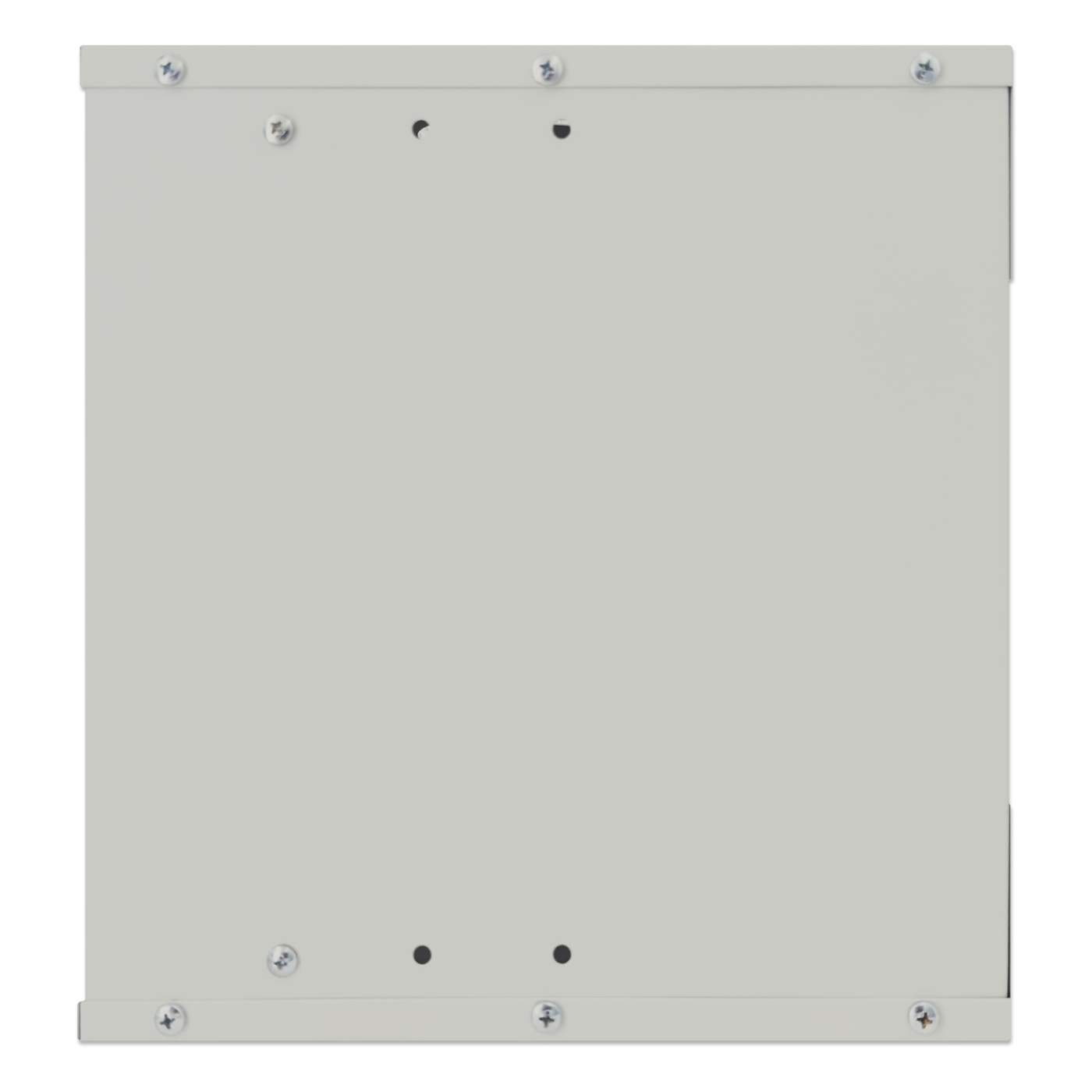

Removable side panels (some lockable).
Tempered/Toughened glass doors.
Double Section, making cabling and component exchange simple.

  • Ideal for 10" rackmount applications
  • Maximum static load of 60 kg
  • Usable depth: 265 mm (10.43 in.)

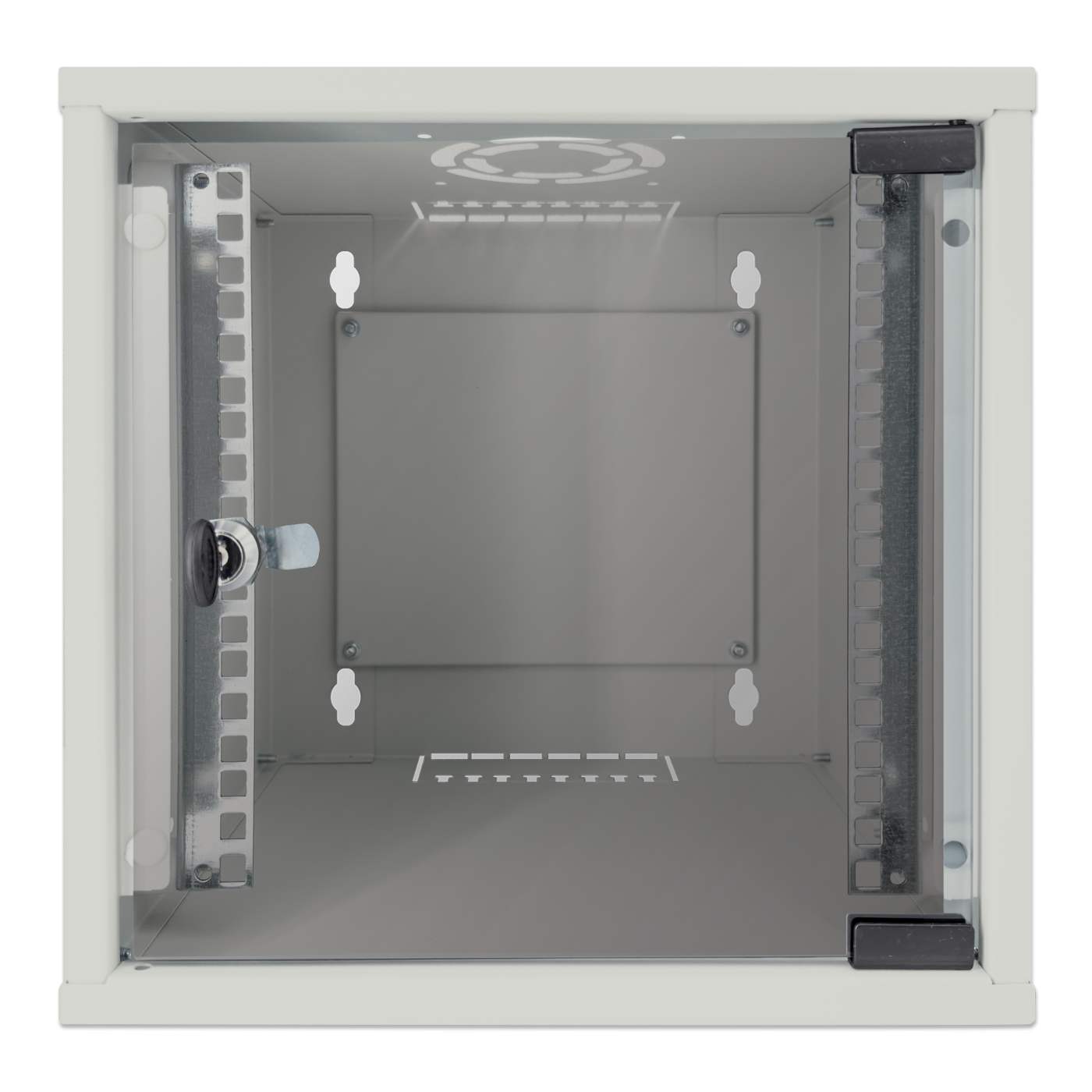

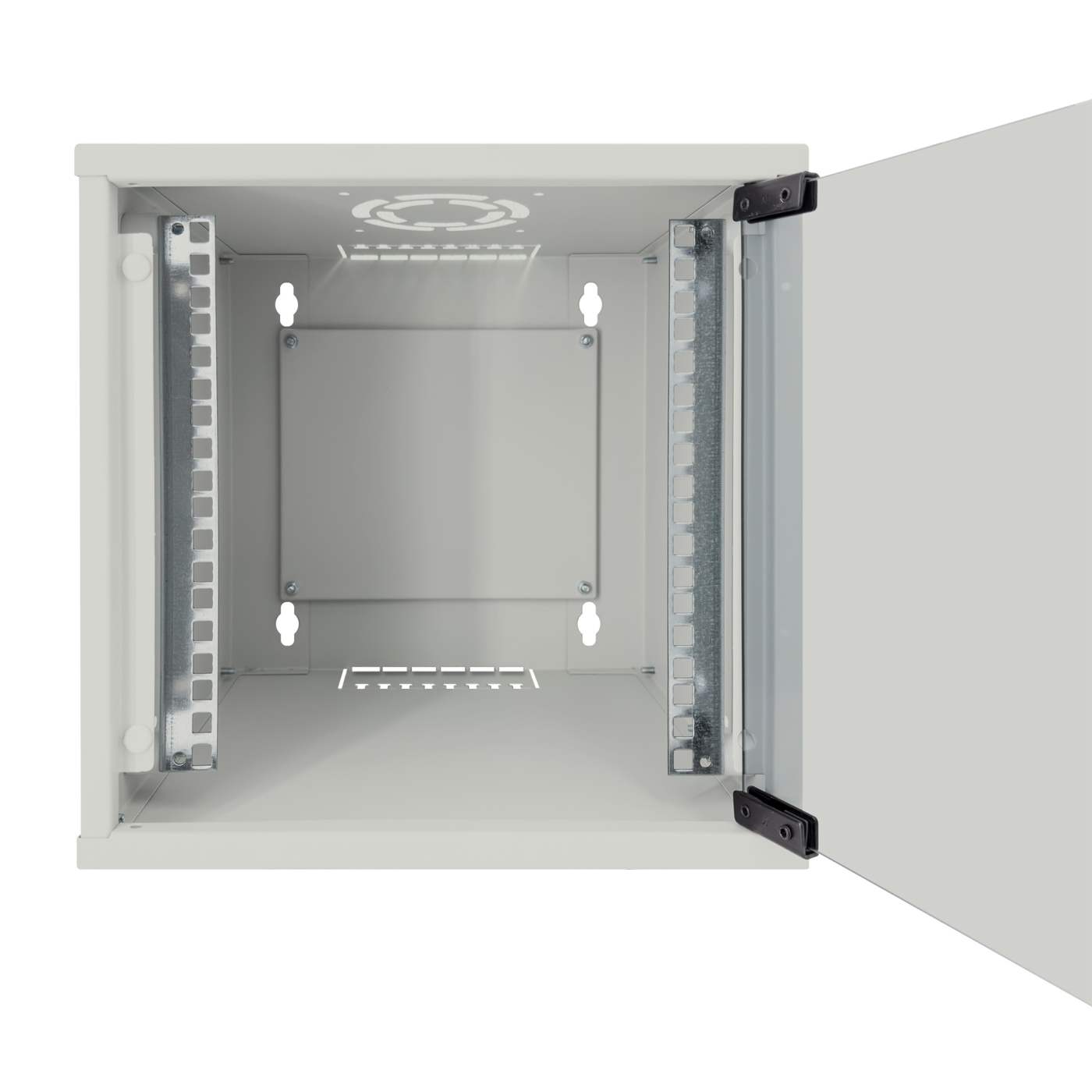

  • Tempered-glass door can be opened more than 180°

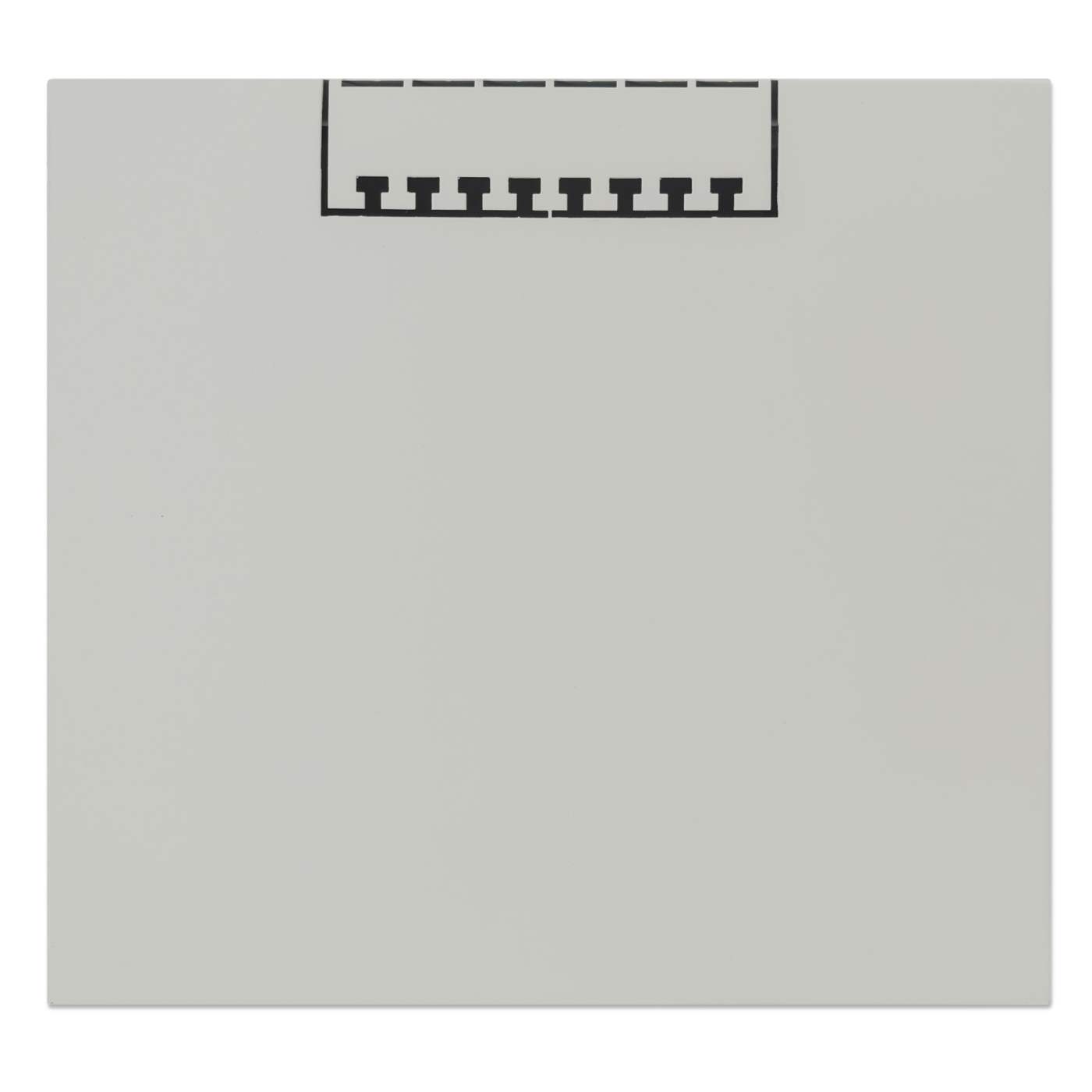

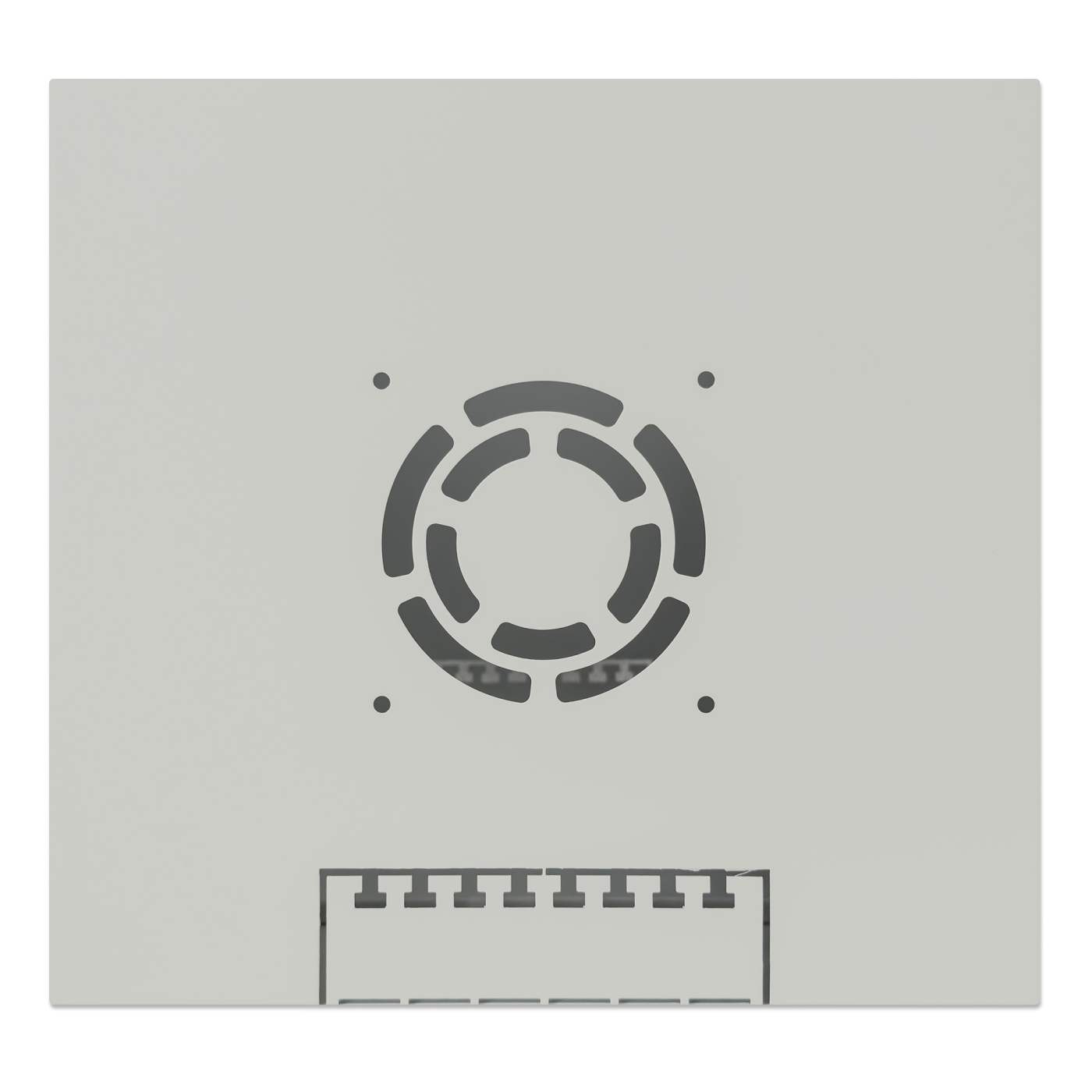

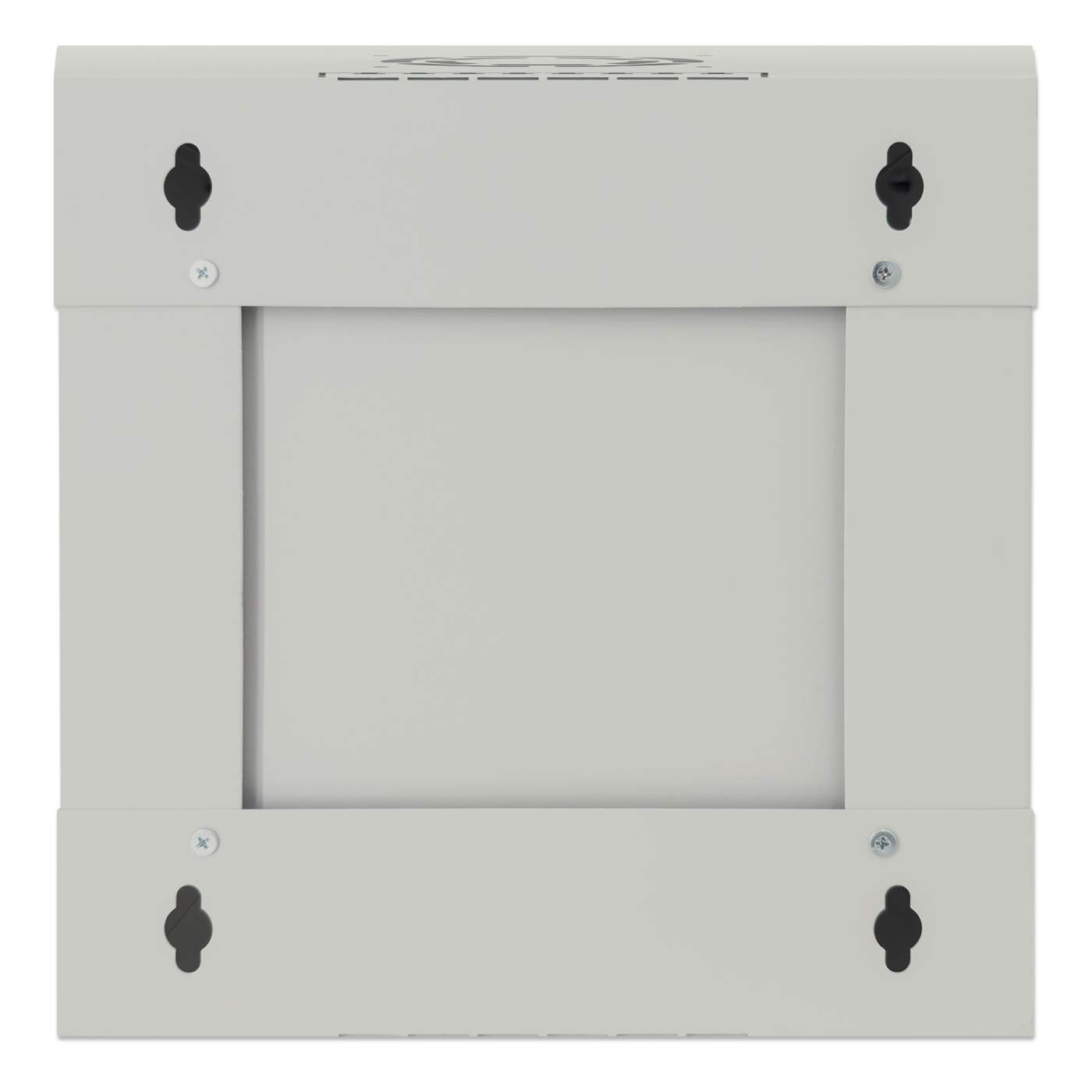

  • Cable entry via rear or top panel
  • Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
  • Ships assembled
  • Three-Year Warranty
    General
  • 10"
  • Height: 6U
  • Color: Gray RAL7035
  • Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7

    Dimensions
  • 320 (h) x 300 (w) x 300 (d) mm
  • 12.6 (h) x 11.81 (w) x 11.81 (d) in.
  • Usable depth: 265 mm (10.43 in.)

    Package Contents
  • 2 depth-adjustable mounting rails
  • Installation hardware
  • Additional SKUs

    • Amazon ASIN: B00NYQQ2G8
    • EAN: 0766623711708
    • UPC: 766623711708
    • ALSO: 2282613
    • API: 155164

  • Physical Specifications

    • Weight: 6.7 kg
    • Dimensions: 320 x 300 x 300 (mm)
    • Packaging: Brown Box
  • Datasheet

    • Datasheet     » Download

    • Cabinet accessory compatibility chart EU
      Cabinet accessory chart for European Market

      English and German PDF Included     » Download

    • Technical Drawing
      Cabinet     » Download
