Intellinet

100-Pack Cat5e RJ45 Modular Plugs Pro Line

100-Pack Cat5e RJ45 Modular Plugs Pro Line

STP, 3-prong, for solid & stranded wire, 100 plugs in jar

SKU: 790529

Highlights

  • 50 micro-inch gold-plated contacts
  • Three-prong terminal for solid & stranded wire
  • Supports 24 to 26 AWG
[ view high resolution images ]

Intellinet Network Solutions RJ45 8-position, 8-contact (8P8C) modular plugs provide our customers with options for CAT5e, CAT6 and CAT6a cables in unshielded and shielded varieties. We offer 15 micro-inch gold contacts for our standard plugs or a high-quality 50 micro-inch standard in our Premium and Pro lines.

  • 50 micro-inch gold-plated contacts
  • Three-prong terminal for solid & stranded wire
  • Supports 24 to 26 AWG
  • Fits round cable
  • For shielded twisted pair applications
  • Standard 8P8C design, compatible with all network RJ45 connections
  • Fully compatible with Category 3, 4, 5 and 5e applications
  • Lifetime Warranty
    Standards
    Category 5 (ANSI/TIA/EIA-568-C)
    Category 5e (TIA/EIA-568-C)

    Material
    Insulator: polycarbonate rated UL 94V-2
    Contacts: phosphor bronze
    Contact Plating: 50 micro-inch gold

    Package Contents

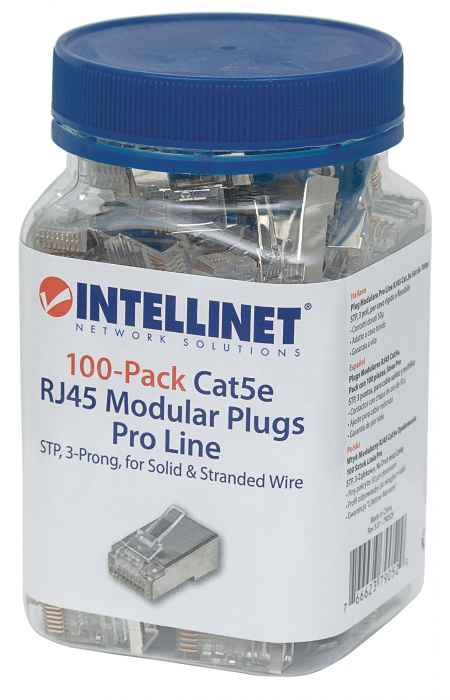

    100 Cat5e RJ45 Modular Plugs in jar
  • Additional SKUs

    • Amazon ASIN: B01L6QRCLQ
    • EAN: 0766623790529
    • UPC: 766623790529
    • ALSO: 2644650
    • API: 209304

  • Physical Specifications

    • Product net weight: 0 kg
    • Product gross weight: 0.29 kg
    • Dimensions: 21.5 (L) x 11.5 (W) x 8.2 (H) [mm]
    • Packaging dimensions: 70 x 70 x 105 [mm]
    • Master Carton Quantity: 70
    • Master Carton Weight: 20.00 kg
    • Master Carton Dimensions: 480 x 340 x 240 [mm]
  • Datasheet
