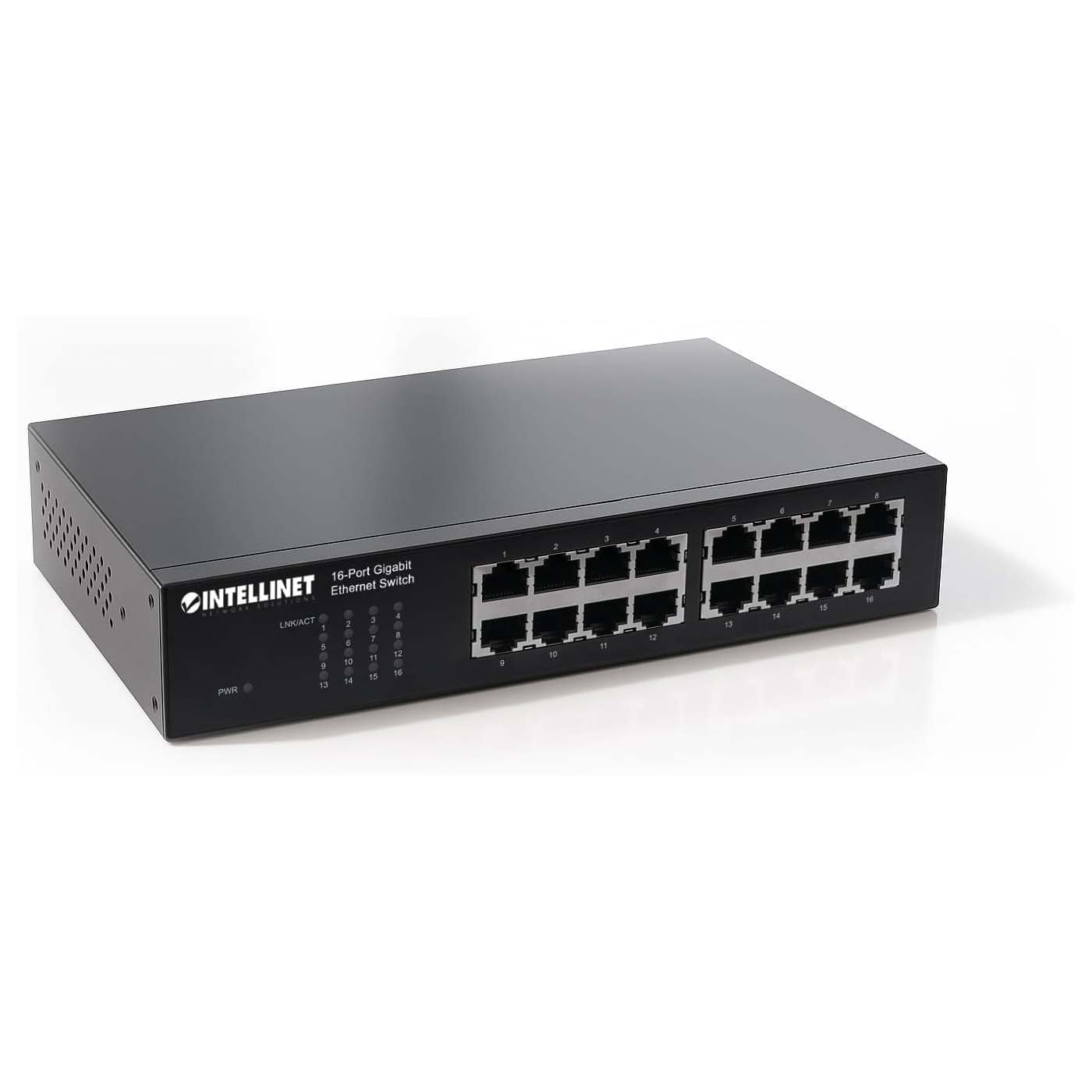

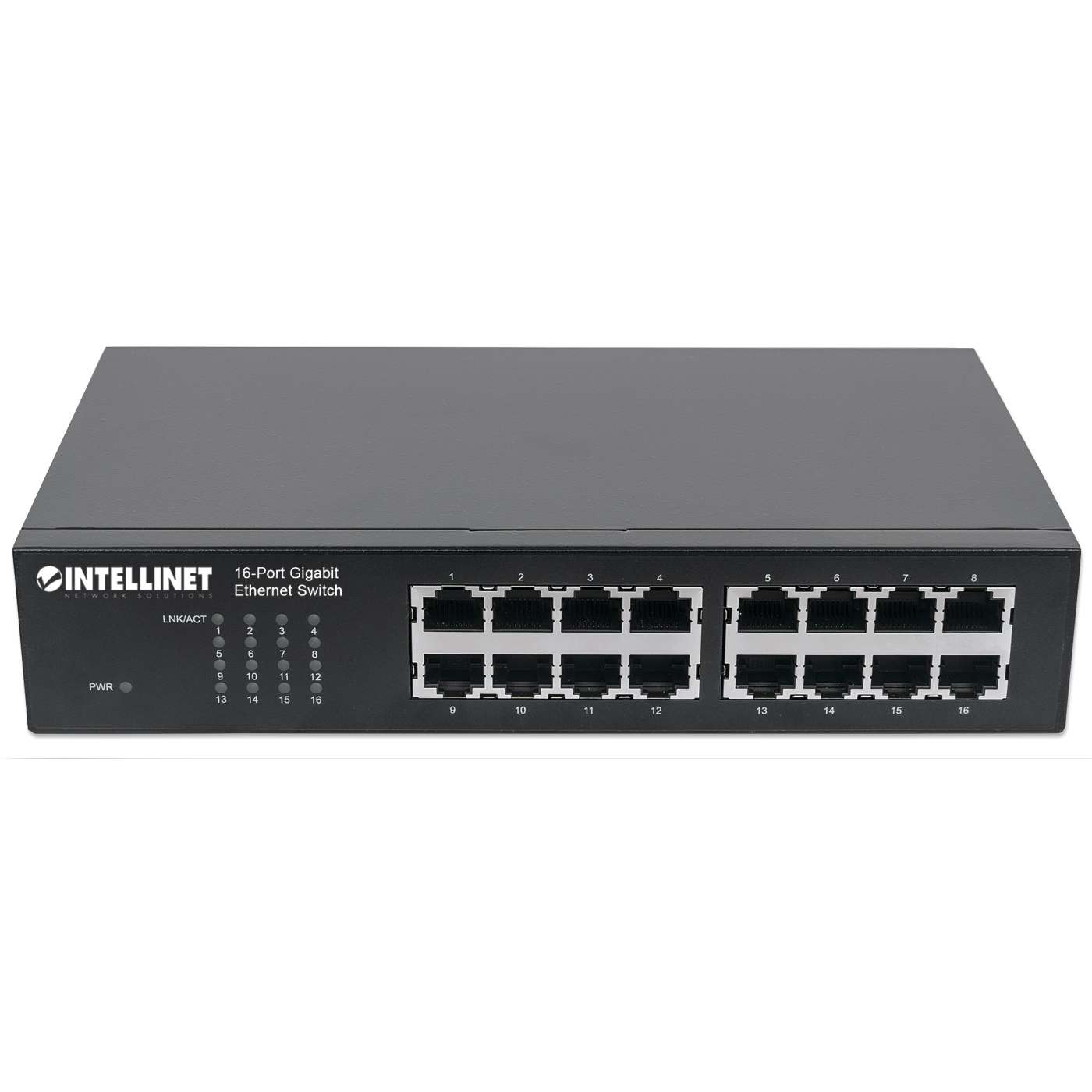

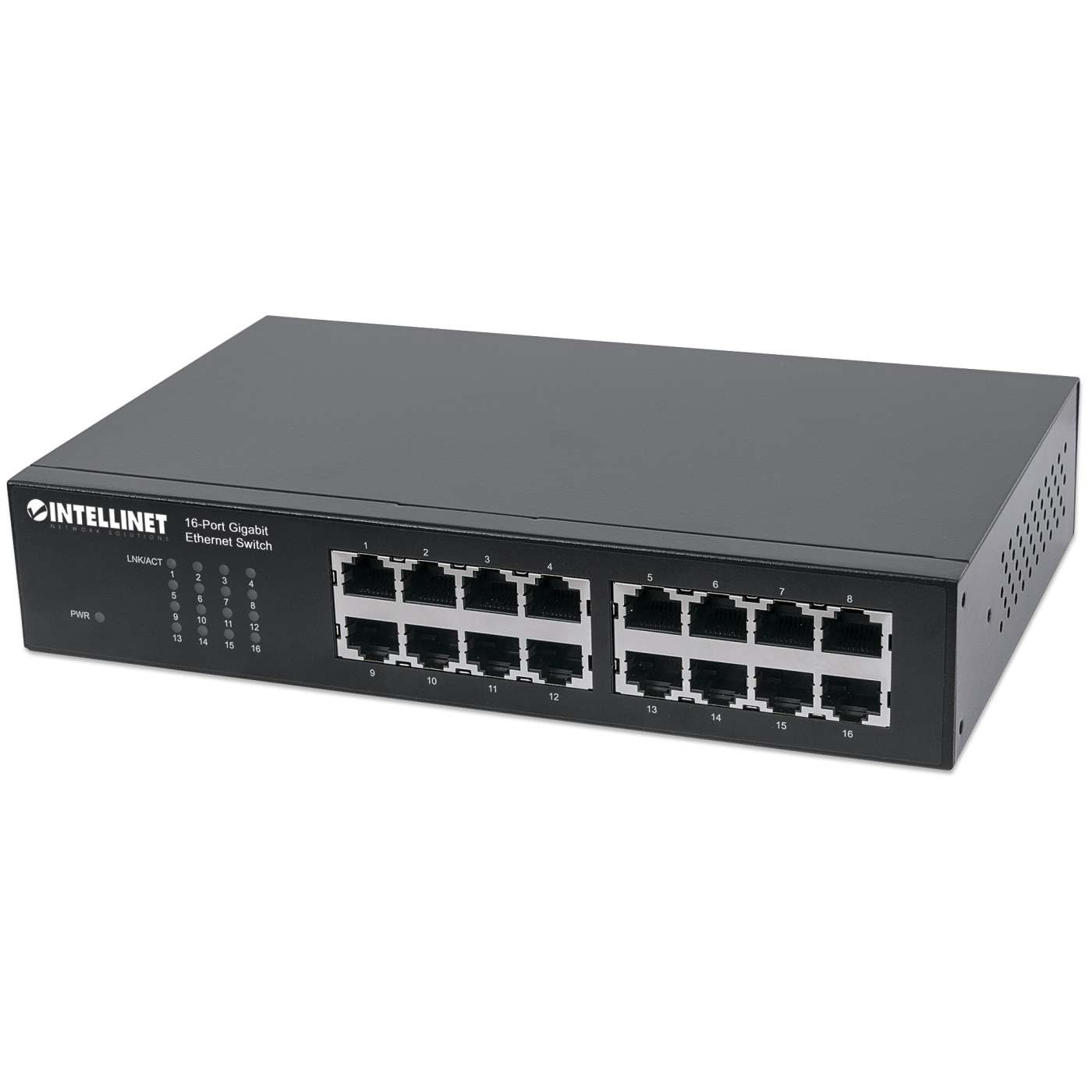

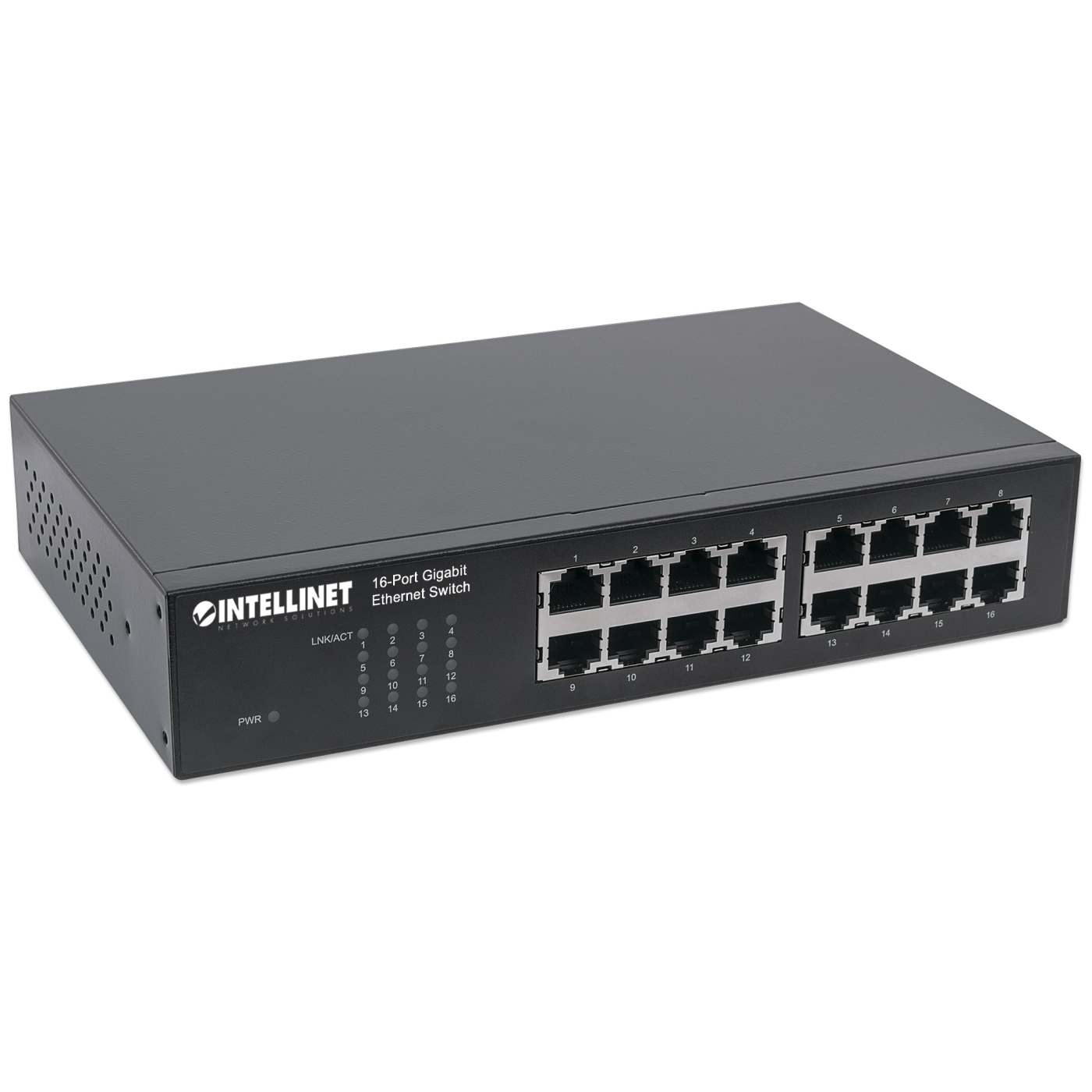

16-Port Gigabit Ethernet Switch

16-Port RJ45 10/100/1000 Mbps, IEEE 802.3az Energy Efficient Ethernet, Desktop, 19" Rackmount

SKU: 561068

Highlights

  • 10/100/1000 auto-sensing ports automatically detect optimal network speeds
  • All RJ45 ports with Auto-MDIX (auto uplink) support

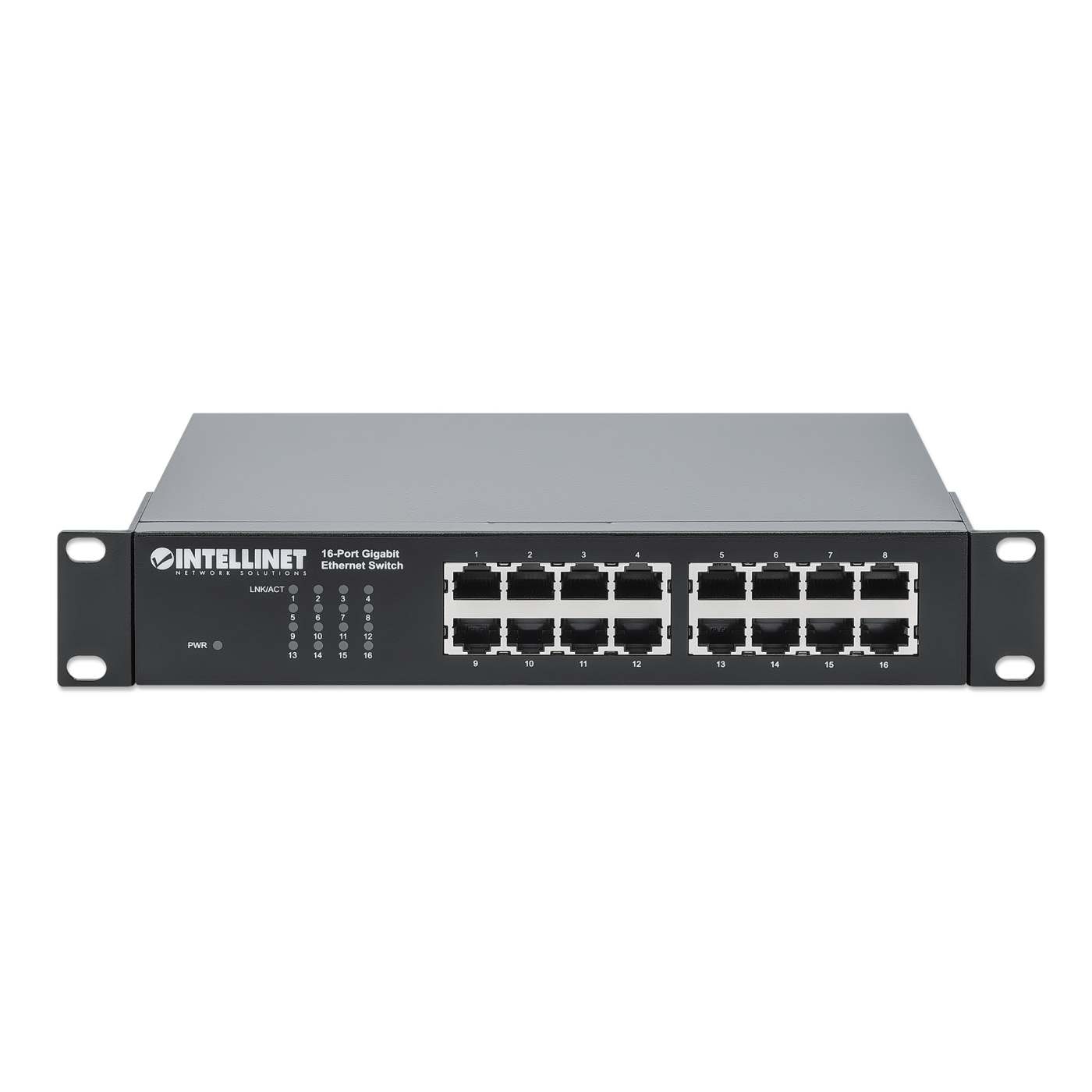

  • For use on desktop or mounted in standard 19" rack

Where to buy:

Country
Ship to
Purchase
In Deutschland kaufen
Deutschland
Ship to the US
United States


Boost your network speed.
The Intellinet Network Solutions Gigabit Ethernet Switch offers an array of features while providing superior network throughput.
Extreme Flexibility
Sixteen 10/100/1000 Mbps auto-sensing ports automatically detect optimal network speeds.
Extreme Throughput
With a backplane speed of 32 Gbps, there is plenty of performance available for your computers, servers and other networking devices.

  • 10/100/1000 auto-sensing ports automatically detect optimal network speeds
  • All RJ45 ports with Auto-MDIX (auto uplink) support

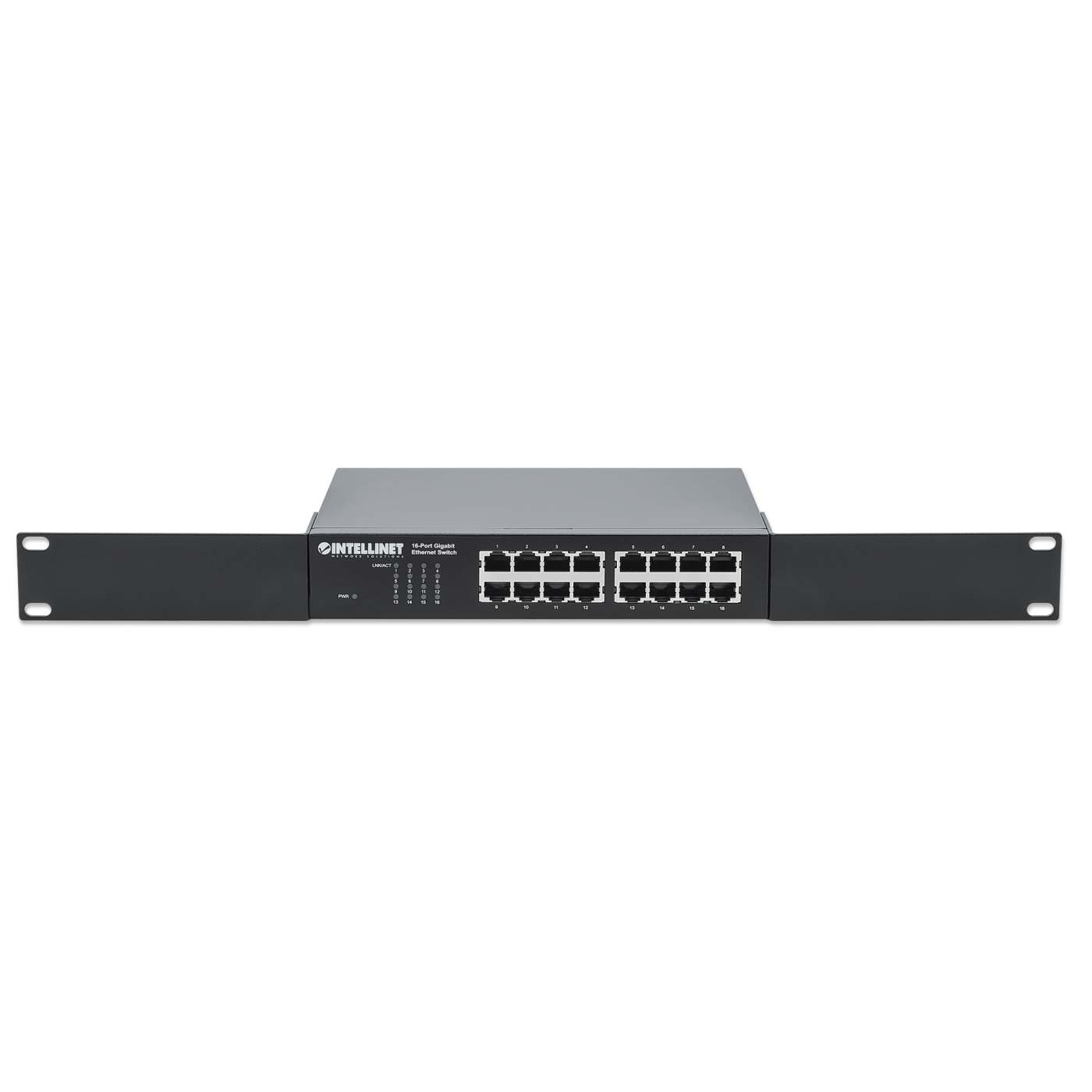

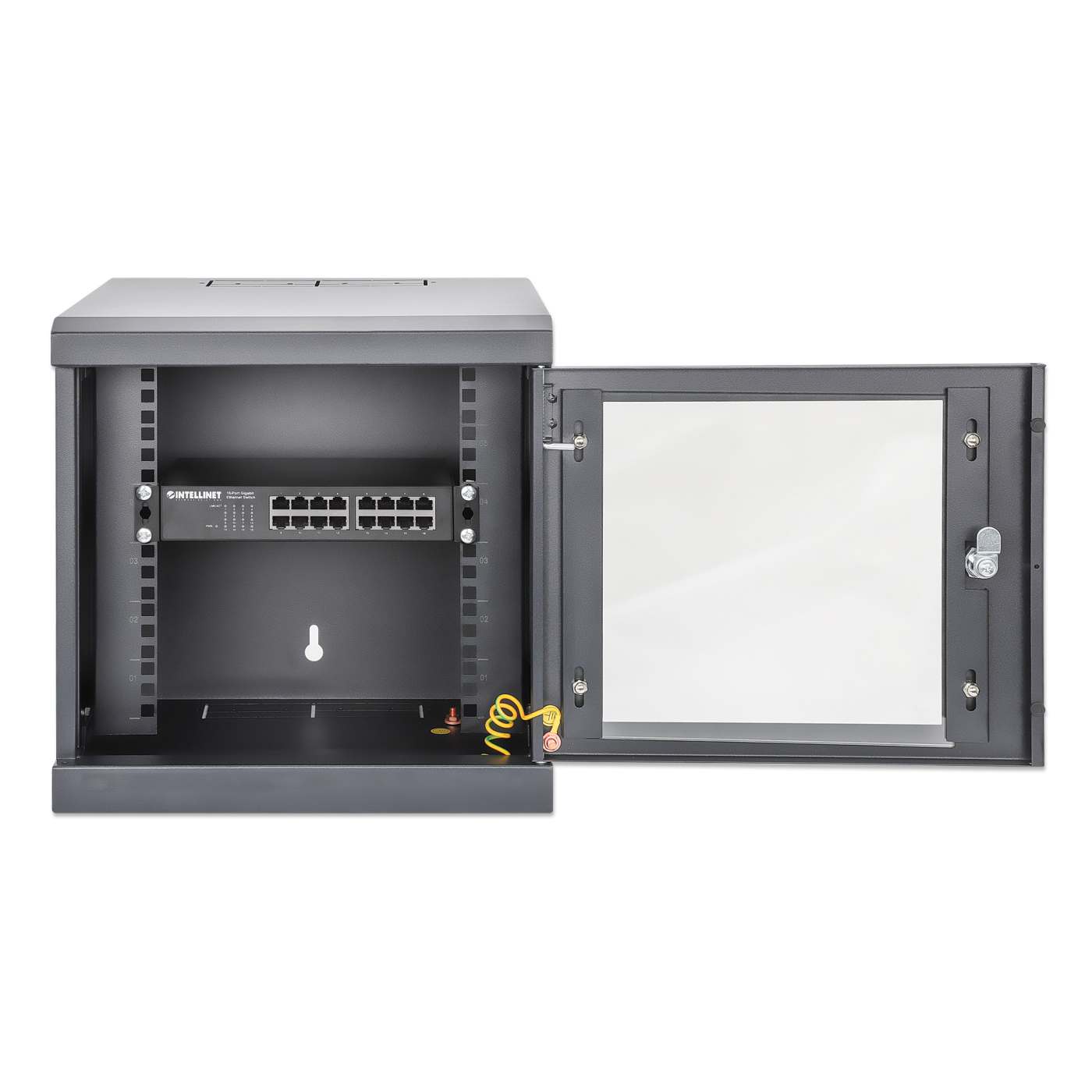

  • For use on desktop or mounted in standard 19" rack
  • Supports NWay auto-negotiation
  • Store and forward switching architecture
  • Full/half duplex operation
  • Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
  • Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
  • Supports jumbo frames up to 9 kBytes
  • Supports up to 8192 MAC address entries
  • 512 kBytes buffer memory
  • Supports MAC address auto-learning and auto-aging
  • Fanless design ideal for silent operation
  • Includes 19" rackmount brackets
  • Three-Year Warranty
    Standards
  • IEEE 802.3 (10Base-T Ethernet)
  • IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
  • IEEE 802.3az (Energy Efficient Ethernet EEE)
  • IEEE 802.3u (100Base-TX Fast Ethernet)
  • IEEE 802.3x (flow control, for full duplex mode)

    General
  • Media support:
    - 10Base-T Cat3, 4, 5 UTP/STP RJ45
    - 100Base-TX Cat5 UTP/STP RJ45
    - 1000Base-T Cat5e UTP/STP RJ45
  • Packet filter/forwarding rate:
    - 1,488,000 pps (1000 Mbps)
    - 148,800 pps (100 Mbps)
    - 14,880 pps (10 Mbps)
  • MAC address table: 8192 entries
  • Backplane speed: 32 Gbps
  • Switch architecture: store and forward
  • 16 RJ45 Gigabit Ethernet ports
  • Certifications: FCC Class A, CE

    LEDs
  • Power
  • Link Speed per port: 1000 Mbps
  • Link/Activity per port

    Power

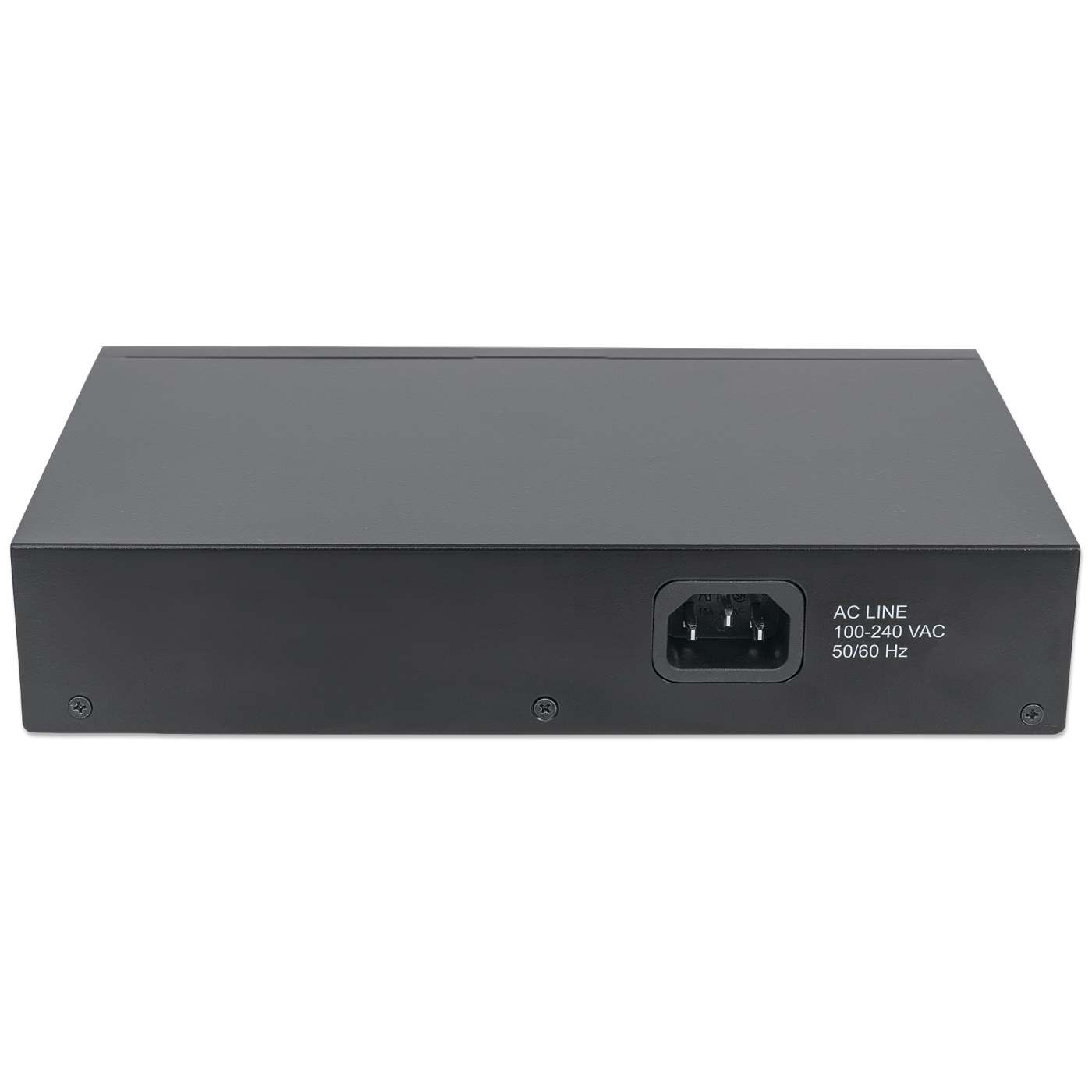

  • Internal power supply: 100 – 240 VAC, 50/60 Hz
  • Power consumption: 9.1 watts (maximum)

    Environmental
  • Metal housing
  • Dimensions: 215 (W) x 133 (L) x 44 (H) [mm] / 8.46 (W) x 5.24 (L) x 1.73 (H) [in.]
  • Weight: 0.94 kg (2 lbs.)
  • Operating temperature: 0 – 40°C (32 – 104°F)
  • Operating humidity: 10 – 90% RH, non-condensing
  • Storage temperature: -20 – 70°C (-4 – 158°F)

    Package Contents
  • 16-Port Gigabit Ethernet Switch

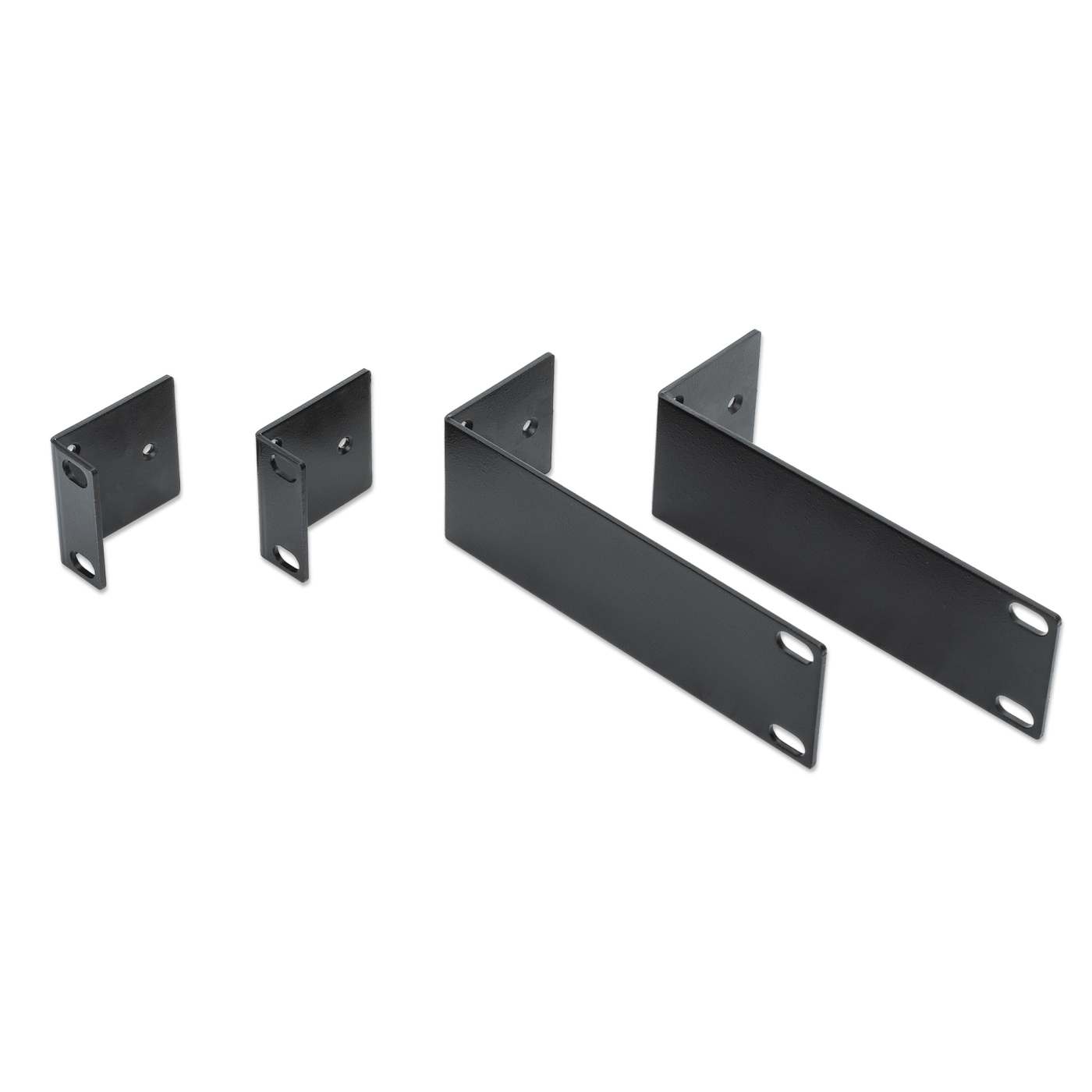

  • 19" rackmount brackets
  • Power cable
  • Instructions
  • Additional SKUs

    • Amazon ASIN: B018X9RU0W
    • EAN: 0766623561068
    • UPC: 766623561068
    • ALSO: 2535112
    • API: 195151

  • Physical Specifications

    • Weight: 1.35 kg
    • Dimensions: 133 (L) x 215 (W) x 44 (H) [mm]
    • Packaging: Retail Box
  • Datasheet


  • Manual

    • Quick Install Guide (multilanguage)
      English, Deutsch, Español, Polski, Italiano, Français     » Download

    • Declaration of Conformity     » Download
