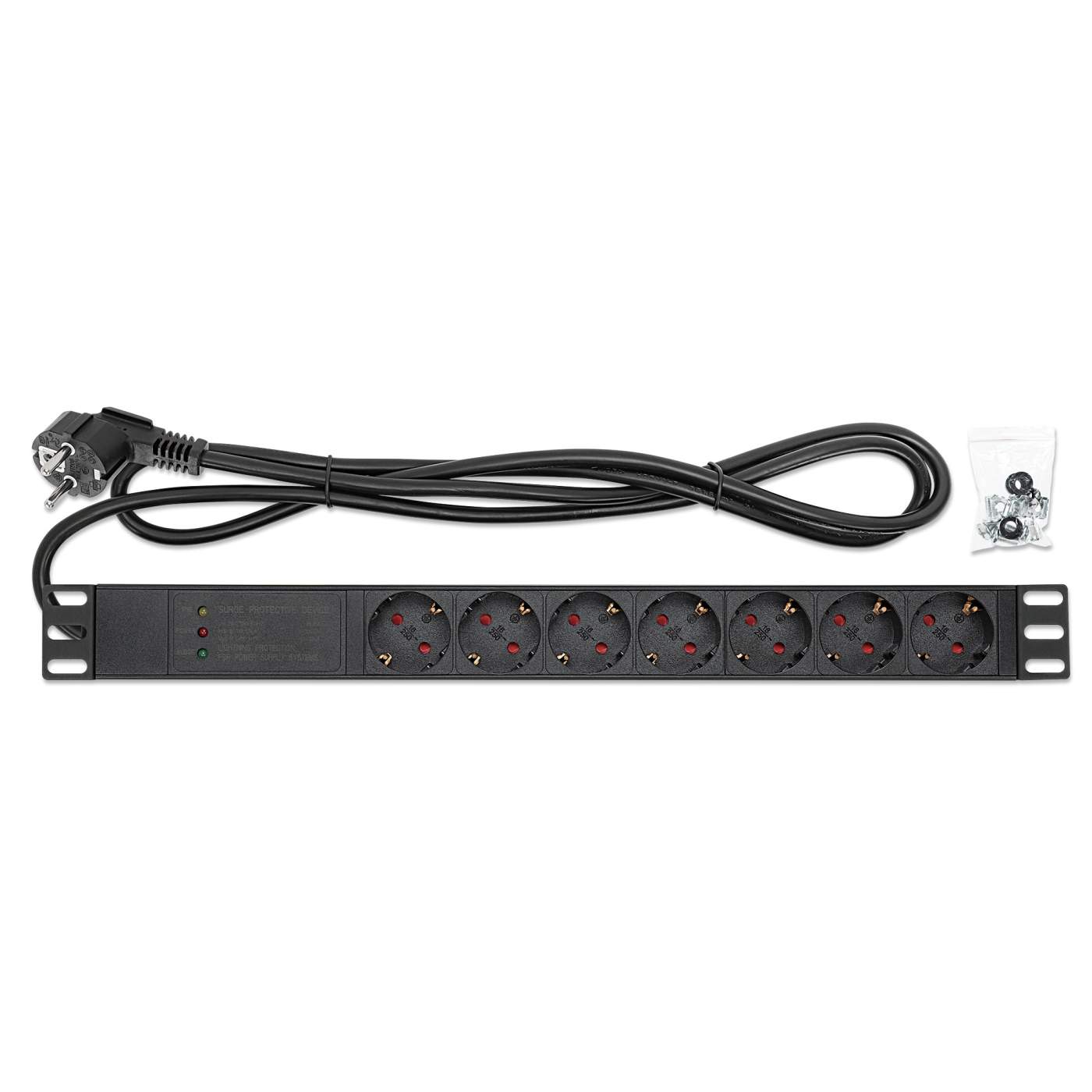

19" 1U Rackmount 7-Output Power Distribution Unit (PDU) / Surge Protector
19" 1U Rackmount 7-Output Power Distribution Unit (PDU) / Surge Protector
EU CEE 7/3 Outlets, 500 Joule/19,500 A Surge Protection, Built-in 3 m Power Cord with EU CEE 7/7 Plug, 16 A, Horizontal Mount, Aluminum, Black
SKU: 715140
Highlights
- 7-way single-phase PDU for electrical equipment, ideal for networking, telecom, security and audio/video
- 500 joule surge protection and 19,500 A surge current against dangerous power surges, line noise and spikes
- Built-in 3 m power cord with EU CEE 7/7 (Type E+F) plug
Rack mount 7-way 19" surge protector power strip - power up to seven devices in your network
Plug your networking, telecom, surveillance, AV or other electronics into this 7-outlet 19” PDU from Intellinet Network Solutions. It is compatible with standard electrical equipment and features seven EU Type E+F outlets in a durable black aluminum housing. This PDU mounts in 1U of space in 19-inch racks. For even more safety, it features a surge suppression rating of 500 joules and 19,500 A surge current.
- 7-way single-phase PDU for electrical equipment, ideal for networking, telecom, security and audio/video
- 500 joule surge protection and 19,500 A surge current against dangerous power surges, line noise and spikes
- Built-in 3 m power cord with EU CEE 7/7 (Type E+F) plug
- Sockets with increased touch protection through contact shutters
- Horizontal 1U 19" rack-mount installation
- Angled outlet orientation
- Durable aluminum construction
- Grounding point to protect equipment from external electrical surges
- Bracket installation style: frontal
- For indoor use only
- Three-year warranty
- Standards and Certifications
- CE
- RoHS
- REACH
- IEC 60297
- IEC 60884
Electrical
- AC input: 220.0 - 250.0 V; 50 - 60 Hz
- Operating voltage: 230.0 V
- Plug standard: EU CEE 7/7 (Type E+F); IEC 60884
- Socket/outlet standard: EU CEE 7/3 (Type F); IEC 60884
- Maximum load: 4,000.0 W
- Overload protection: 16.0 A maximum load current
- Surge protection: AC suppression with 500 joules and 19,500 A surge current
Physical
- Dimensions (L x W x H): 45 x 483 x 45 mm
- 1U rack mount
- Cable length: 3 m
- Cable type: H05VV-F 3G 1.5 mm²
- Socket angle: 35°
- Net weight: 950 g
- Gross weight: 1.05 kg
- Housing: aluminum
Package Contents
- 19" 1U Rack Mount 7-Output Power Distribution Unit (PDU) / Surge Protector
This product is part of a group; the complete list of variations follows:
- #714914 - 1U 6-Way with On/Off Switch
- #711432 - 1.5U 6-Way with Double Air Switch
- #713962 - 1.5U 6-Way with On/Off Switch and Surge Protection
- #715140 - 1U 7-Way with Surge Protection
- #714006 - 1.5U 7-Way with Surge Protection
- #714037 - 1U 8-Way
- #715126 - 1U 8-Way with On/Off Switch
- #713986 - 1U 8-Way with On/Off Switch and Overload Protection
- #715133 - 1U 9-Way with On/Off Switch
- #714044 - Vertical Rack Mount 12-Way with On/Off Switch and Overload Protection
- #711449 - Vertical Rack Mount 12-Way with Single Air Switch
- #714051 - 2U 15-Way with Double Air Switch
Additional SKUs
- EAN: 0766623715140
- UPC: 766623715140
Physical Specifications
- Product net weight: 0.95 kg
- Product gross weight: 1.05 kg
- Dimensions: 45 (L) x 483 (W) x 45 (H) [mm]
- Packaging type: Brown Box
- Packaging dimensions: 510 x 97 x 58 [mm]
- Master Carton Quantity: 10
- Master Carton Weight: 11.00 kg
- Master Carton Dimensions: 515 x 295 x 195 [mm]
