Intellinet

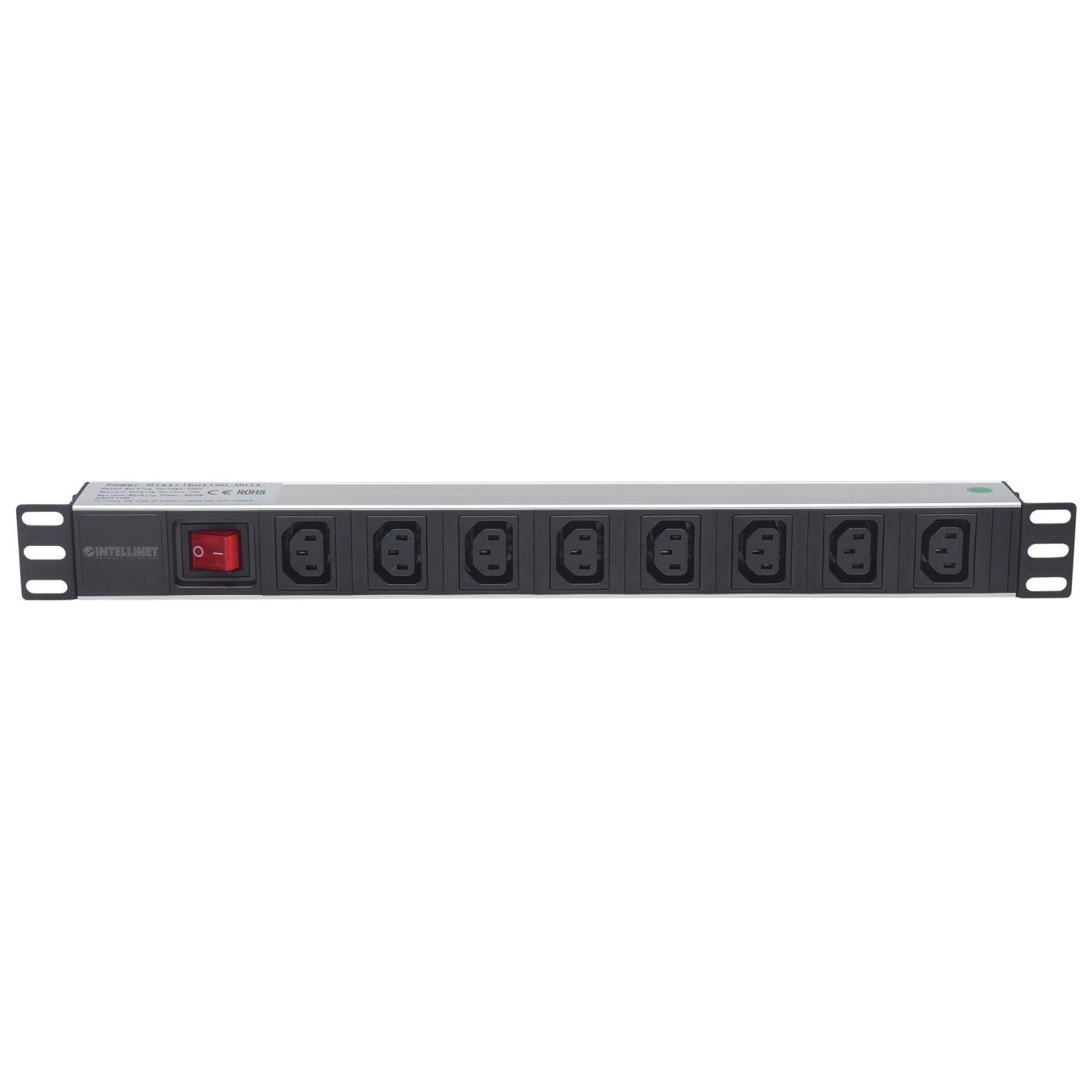

19" 1U Rackmount 8-Output C13 Power Distribution Unit (PDU)

19" 1U Rackmount 8-Output C13 Power Distribution Unit (PDU)

With Removable Power Cable and Rear C20 Input

SKU: 163620

Highlights

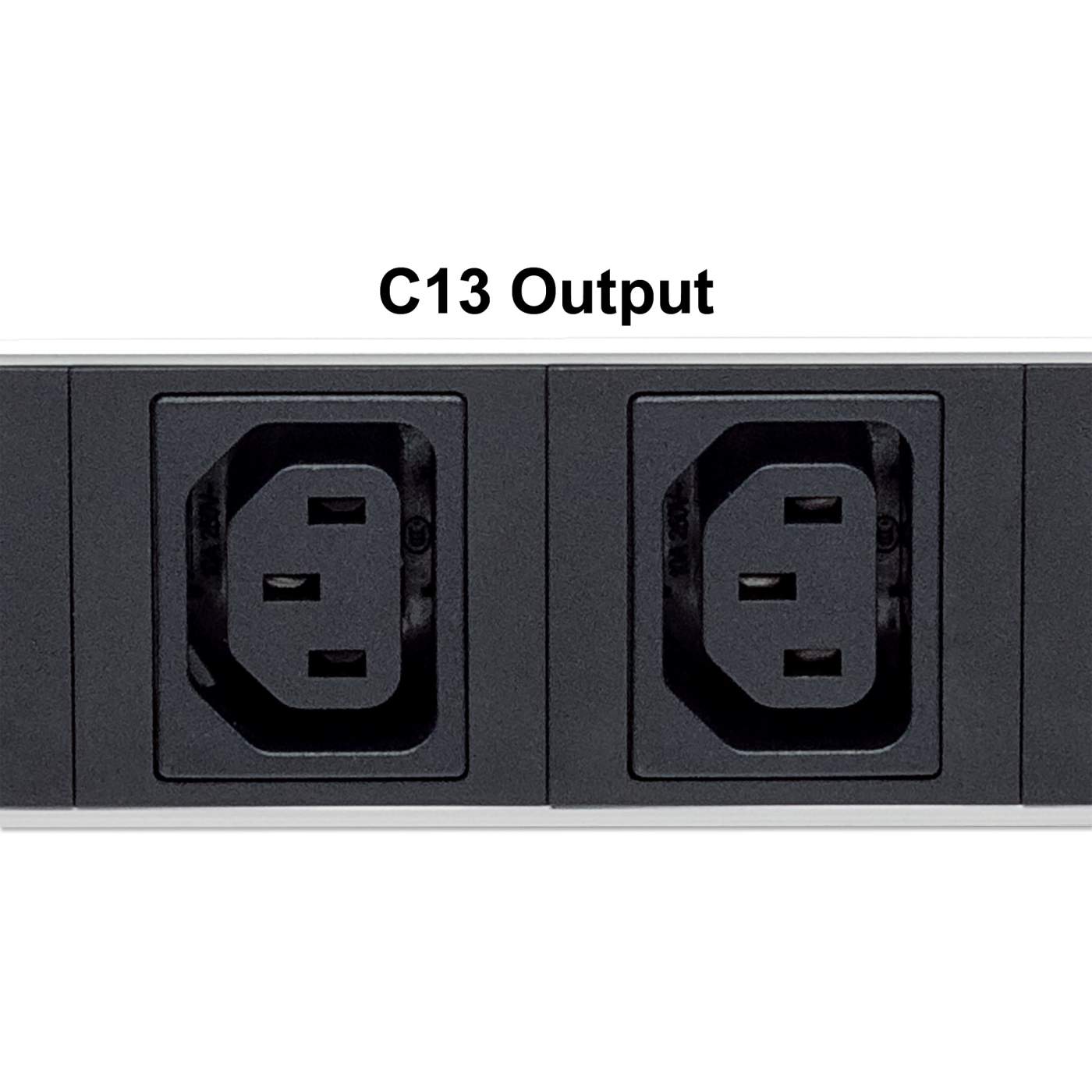

  • Socket outlet standard IEC320 C13

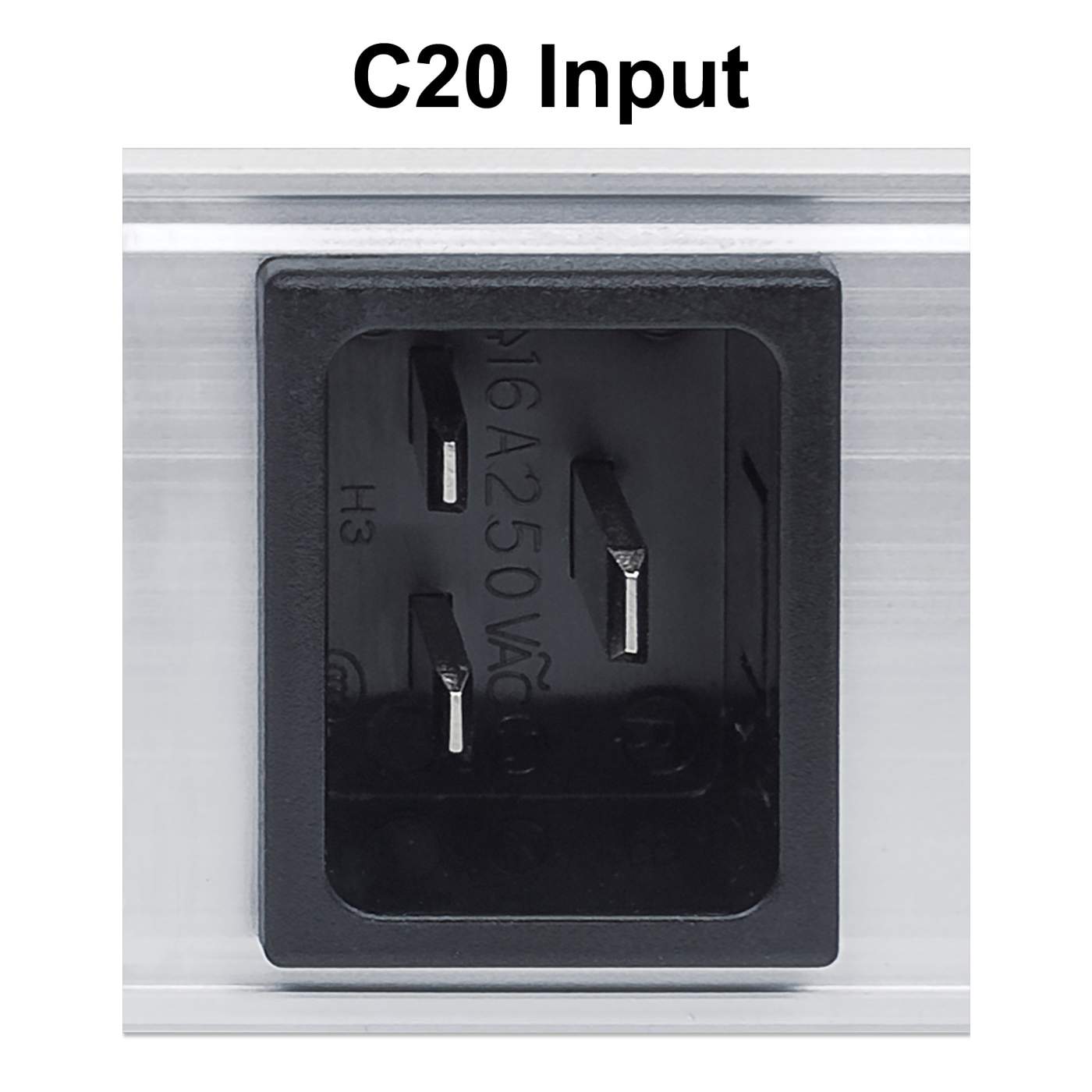

  • Socket input standard IEC320 C20
  • Cable specification: standard 2 m (6.6 ft.) removable power cord
[ view high resolution images ]

Our new 19" rackmountable PDU range puts Intellinet Network Solutions innovation and practicality on display. This comprehensive line offers a wide selection of tools to protect your valuable I.T. equipment. An integrated, removable cable plugs conveniently into the rear C20 input of the unit.

  • Socket outlet standard IEC320 C13
  • Socket input standard IEC320 C20
  • Cable specification: standard 2 m (6.6 ft.) removable power cord
  • Three-Year Warranty
    General
  • 1U rackmount
  • Socket/outlet standard: IEC320 C13
  • Outlets: 8
  • Cable specification: standard 2 m (6.6 ft.) power cord
  • Size: 45 (L) x 485.2 (W) x 45 (H) [mm] 1.77 (L) x 19.1 (W) x 1.77 (H) [in]
  • Electrical rating: 110 - 250 V AC
  • Maximum load current: 16 A (IEC 60320 16 A, North America 15 A)
  • Flammability: Tested and rated in accordance with UL 94 V-0


    Package Contents
  • 19" 1U Rackmount 8-Output C13 Power Distribution Unit
  • 2 m (6.6 ft.) power cord
  • Additional SKUs

    • Amazon ASIN: B072LW2GPF
    • EAN: 0766623163620
    • UPC: 766623163620
    • ALSO: 2965542
    • API: 249199

  • Physical Specifications

    • Product net weight: 0.87 kg
    • Product gross weight: 0.98 kg
    • Dimensions: 45 (L) x 482.6 (W) x 45 (H) [mm]
    • Packaging type: Brown Box
    • Packaging dimensions: 515 x 97 x 58 [mm]
    • Master Carton Quantity: 10
    • Master Carton Weight: 9.90 kg
    • Master Carton Dimensions: 515 x 295 x 195 [mm]
  • Datasheet
    • Datasheet     » Download

    • Declaration of Conformity     » Download


  • Manual
    • Quick Instruction Guide     » Download
