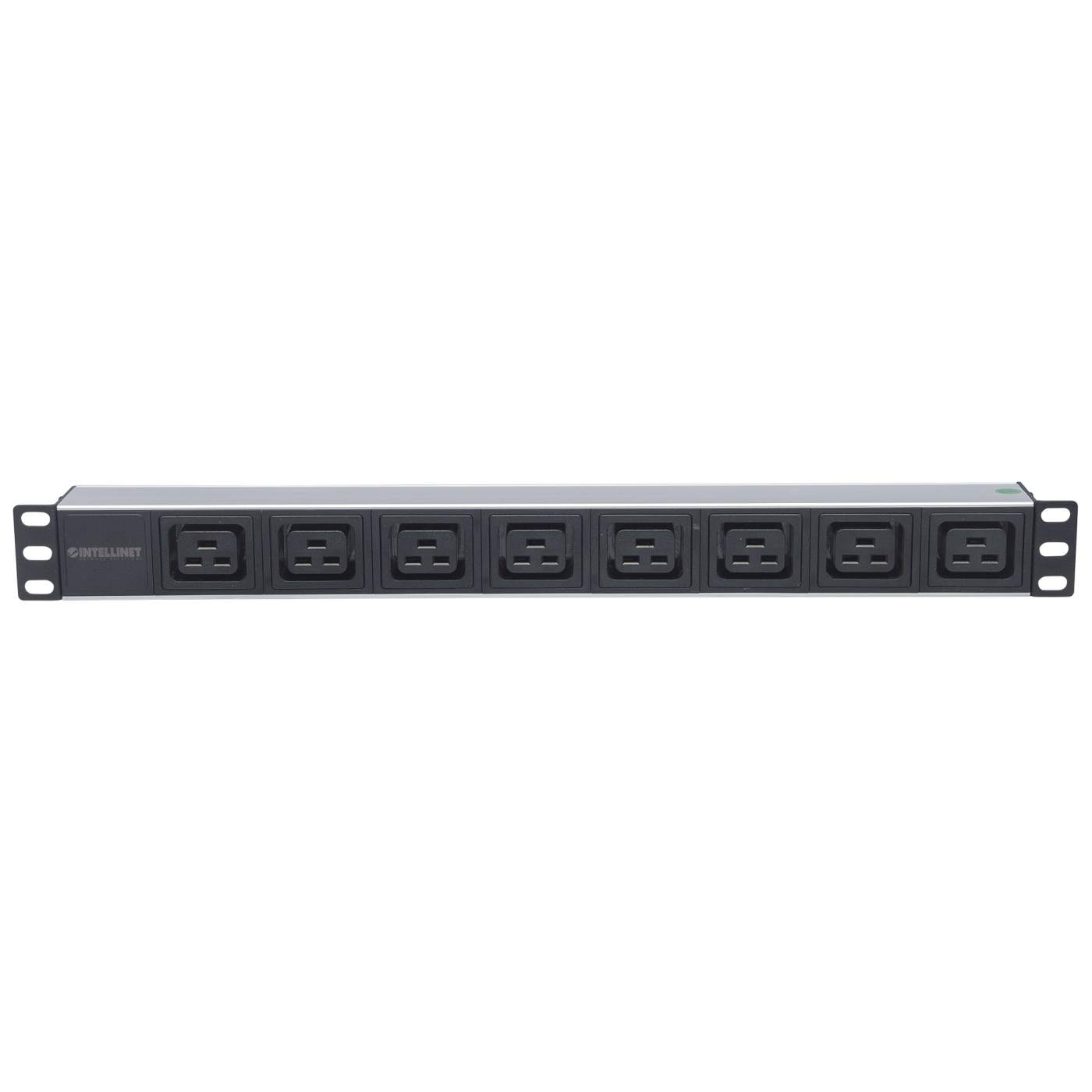

19" 1U Rackmount 8-Output C19 Power Distribution Unit (PDU)

With Removable Power Cable and Rear C20 Input

SKU: 163613

Highlights

  • 1U 19" rackmountable Power Distribution Unit

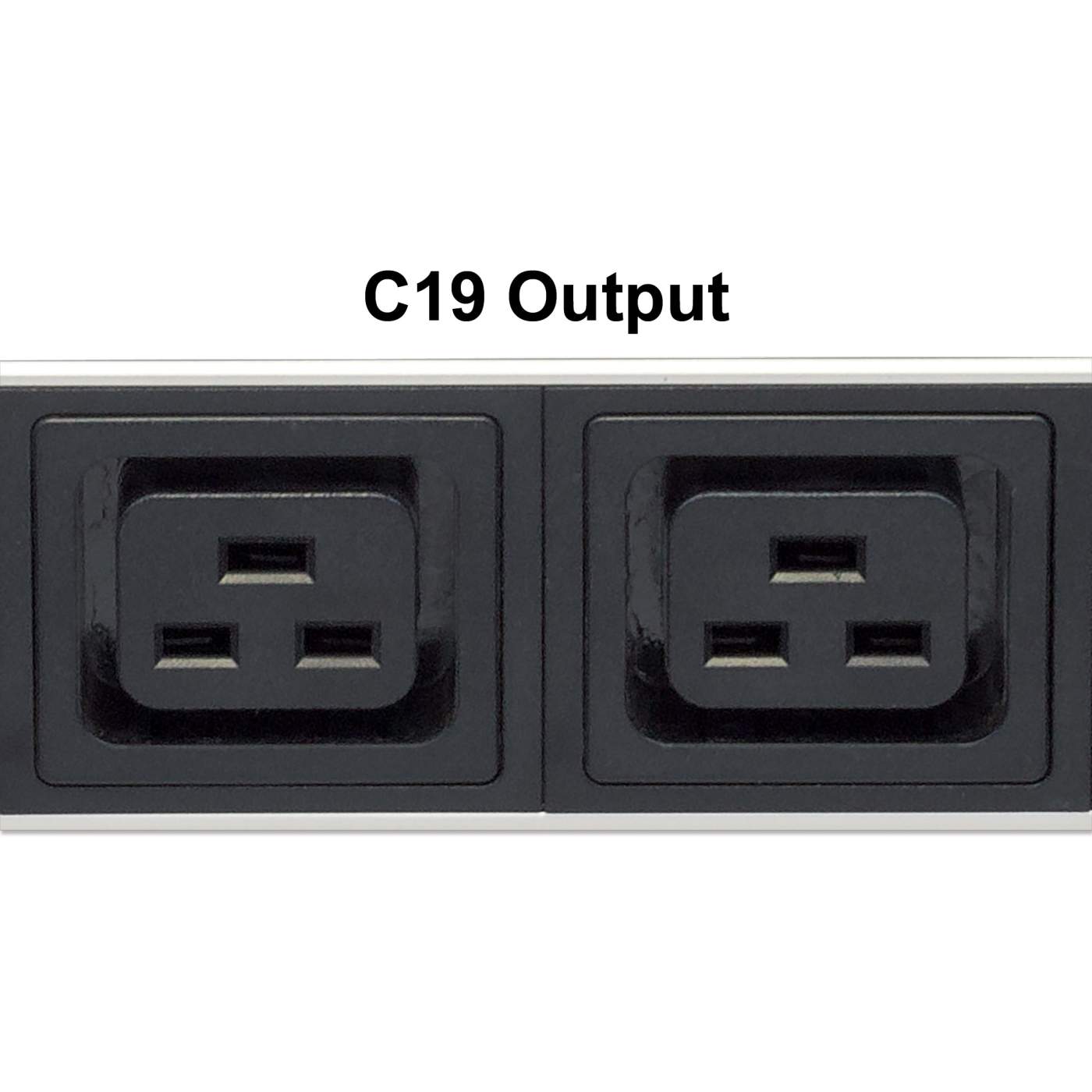

  • Socket outlet standard IEC320 C19
  • Socket input standard IEC320 C20
  • Available in: 06/2023

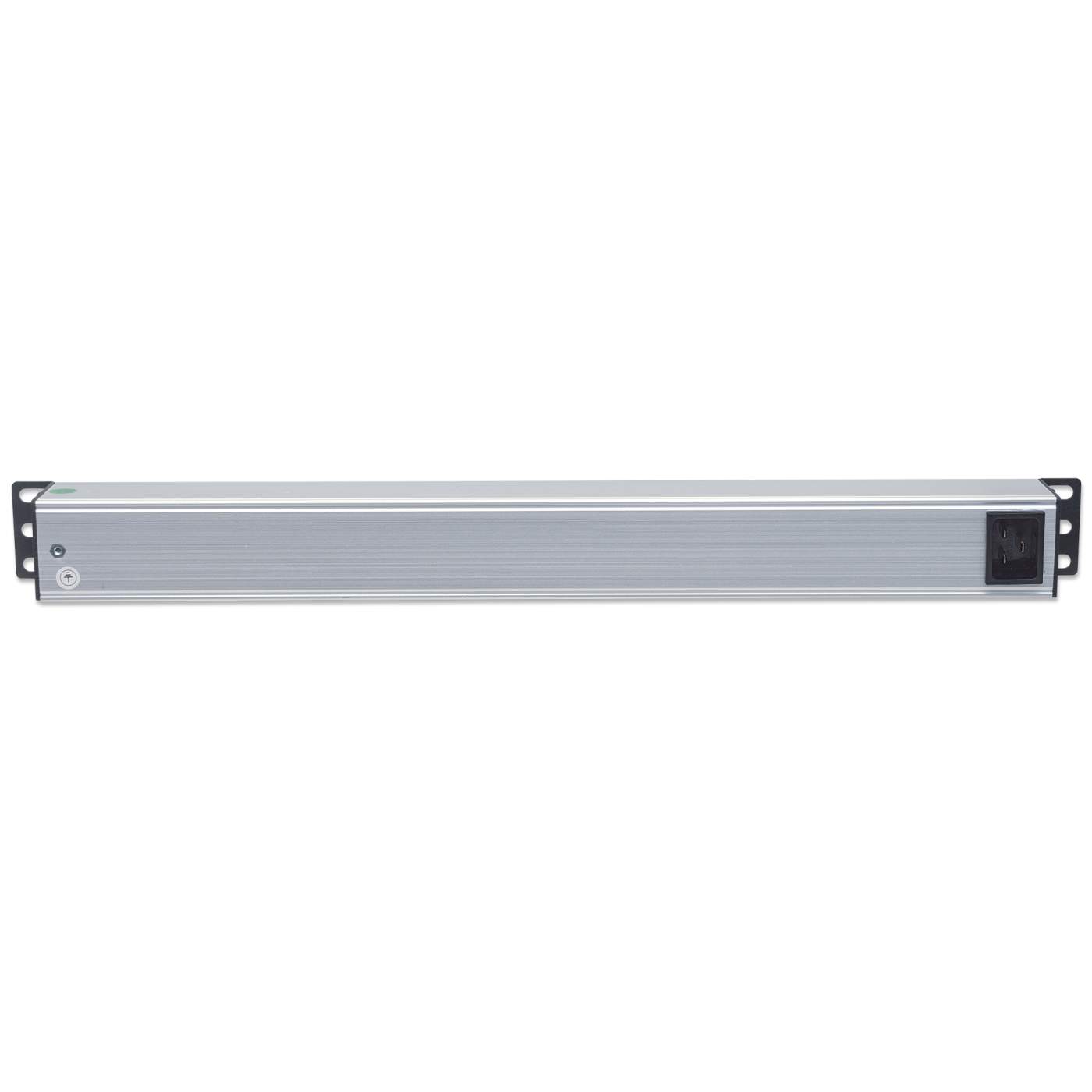

Our new 19" rackmountable PDU range puts Intellinet Network Solutions innovation and practicality on display. This comprehensive line offers a wide selection of tools to protect your valuable I.T. equipment. An integrated, removable cable plugs conveniently into the rear C20 input of the unit.

  • 1U 19" rackmountable Power Distribution Unit
  • Socket outlet standard IEC320 C19
  • Socket input standard IEC320 C20
  • Cable specification: standard 2 m (6.6 ft.) removable power cord
  • Three-Year Warranty
    General
  • 1U rackmount
  • Socket/outlet standard: IEC320 C19
  • Outlets: 8
  • Cable specification: standard 2 m (6.6 ft.) power cord
  • Size: 45 (L) x 485.2 (W) x 45 (H) [mm] 1.77 (L) x 19.1 (W) x 1.77 (H) [in]
  • Electrical rating: 110 - 250V AC
  • Maximum load current: 16 A (North America 20 A)
  • Flammability: Tested and rated in accordance with UL 94 V-0

    Package Contents
  • 19" 1U Rackmount 8-Output C19 Power Distribution Unit
  • 2 m (6.6 ft.) power cord
  • Additional SKUs

    • Amazon ASIN: B071FGZXJ3
    • EAN: 0766623163613
    • UPC: 766623163613
    • ALSO: 2957318
    • API: 249201

  • Physical Specifications

    • Weight: 0.1 kg
    • Dimensions: 45 (L) x 485.2 (W) x 45 (H) [mm]
    • Packaging: Brown Box
    • Carton Quantity: 10
    • Carton Weight: 10.30 kg
  • Datasheet


  • Manual

    • Quick Instruction Guide     » Download
