Intellinet

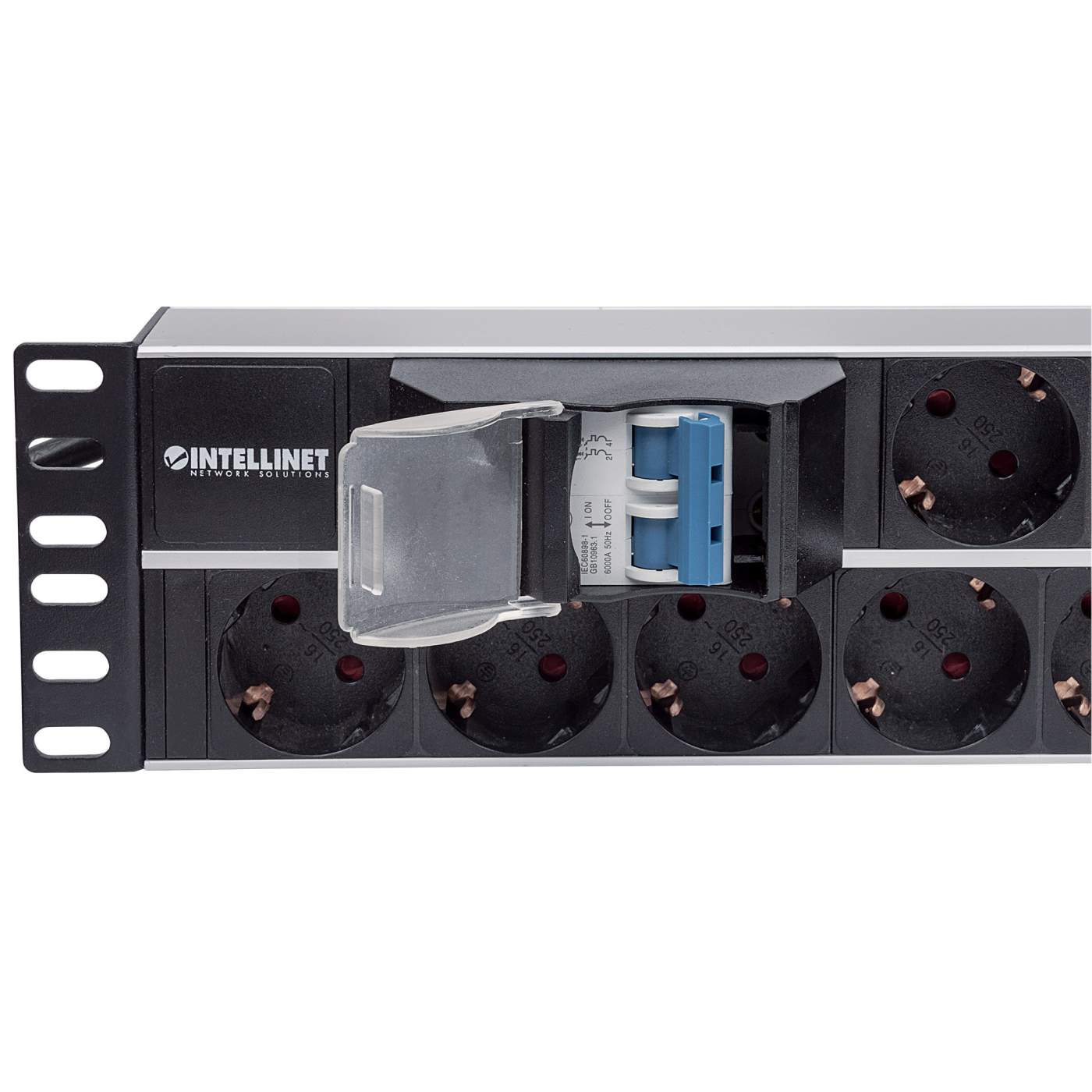

19" 2U Rackmount 15-Output Power Distribution Unit (PDU)

19" 2U Rackmount 15-Output Power Distribution Unit (PDU)

EU CEE 7/3 Outlets, With Double Air Switch, Built-in 3 m (10 ft.) Power Cord with EU CEE 7/4 Plug

SKU: 714051

Highlights

  • 2U 19" Rackmount unit
  • Bracket installation style: frontal
  • Control & Protection functions: Double Air Switch
[ view high resolution images ]

Intellinet Network Solutions basic rack PDUs (Power Distribution Units) provide reliable power distribution via a single input with multiple output receptacles. Our current range is designed to distribute power from low amperage single phase electrical circuits.

  • 2U 19" Rackmount unit
  • Bracket installation style: frontal
  • Control & Protection functions: Double Air Switch
  • Shell color & material: black aluminum
  • Three-year warranty
  • 2U Rackmount
  • Socket/outlet standard: IEC60884
  • Outlets: 15
  • Cable specification: standard 3 m (10 ft.) power cord
  • Size: 482.6 (L) x 44.4 (W) x 88.8 (H) [mm] / 19 (L) x 1.75 (W) x 3.5 (H) [in]
  • Electrical rating: 250V AC
  • Maximum load current: 16 A
  • Flammability: Tested and rated in accordance with UL 94 V-0

    This product is part of a group; the complete list of variations follows:
  • #714914 - 1U 6-Way with On/Off Switch
  • #711432 - 1.5U 6-Way with Double Air Switch
  • #713962 - 1.5U 6-Way with On/Off Switch and Surge Protection
  • #715140 - 1U 7-Way with Surge Protection
  • #714006 - 1.5U 7-Way with Surge Protection
  • #714037 - 1U 8-Way
  • #715126 - 1U 8-Way with On/Off Switch
  • #713986 - 1U 8-Way with On/Off Switch and Overload Protection
  • #715133 - 1U 9-Way with On/Off Switch
  • #714044 - Vertical Rack Mount 12-Way with On/Off Switch and Overload Protection
  • #711449 - Vertical Rack Mount 12-Way with Single Air Switch
  • #714051 - 2U 15-Way with Double Air Switch
  • Additional SKUs

    • Amazon ASIN: B01GUXUX7A
    • EAN: 0766623714051
    • UPC: 766623714051
    • ALSO: 2596858
    • API: 200742

  • Physical Specifications

    • Product net weight: 1.55 kg
    • Product gross weight: 1.7 kg
    • Dimensions: 482.6 (L) x 44.4 (W) x 88.8 (H) [mm]
    • Packaging type: Brown Box
    • Packaging dimensions: 507 x 106 x 95 [mm]
    • Master Carton Quantity: 10
    • Master Carton Weight: 18.50 kg
    • Master Carton Dimensions: 535 x 535 x 220 [mm]
  • Datasheet
    • Datasheet     » Download

    • PDU Flyer
      PDU Range Flyer     » Download

    • Declaration of Conformity     » Download

    • Technical Drawing     » Download


  • Manual
    • Quick Instruction Guide     » Download
