Intellinet

19" Basic Wallmount Cabinet

19" Basic Wallmount Cabinet

9U, 400 mm Depth, IP20-Rated Housing, Flat Pack, Black

SKU: 714174

Highlights

  • Ideal for 19" rackmount applications
  • Protection grade: IP20
  • Maximum static load of 50 kg
  • Available in: 06/2024
[ view high resolution images ]

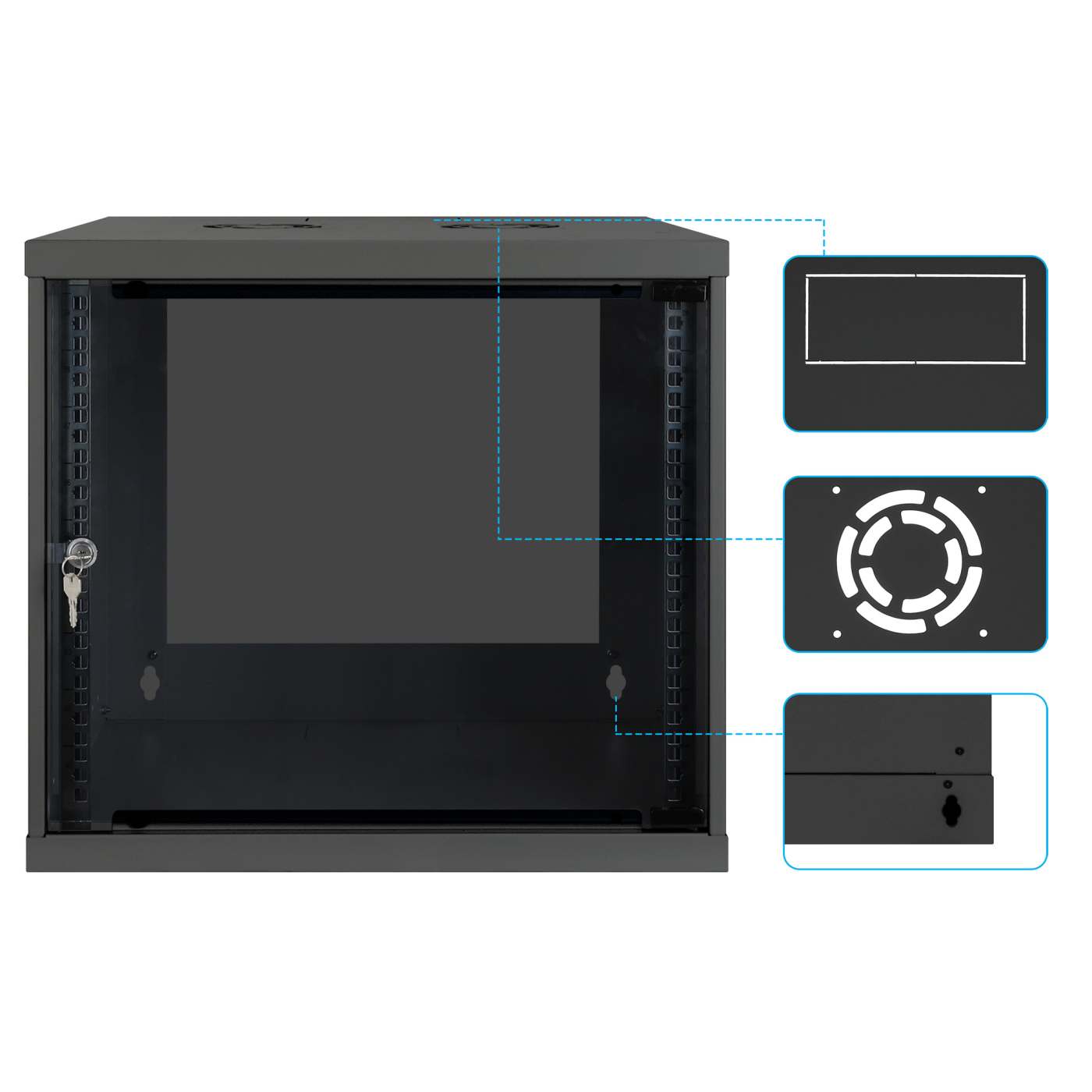

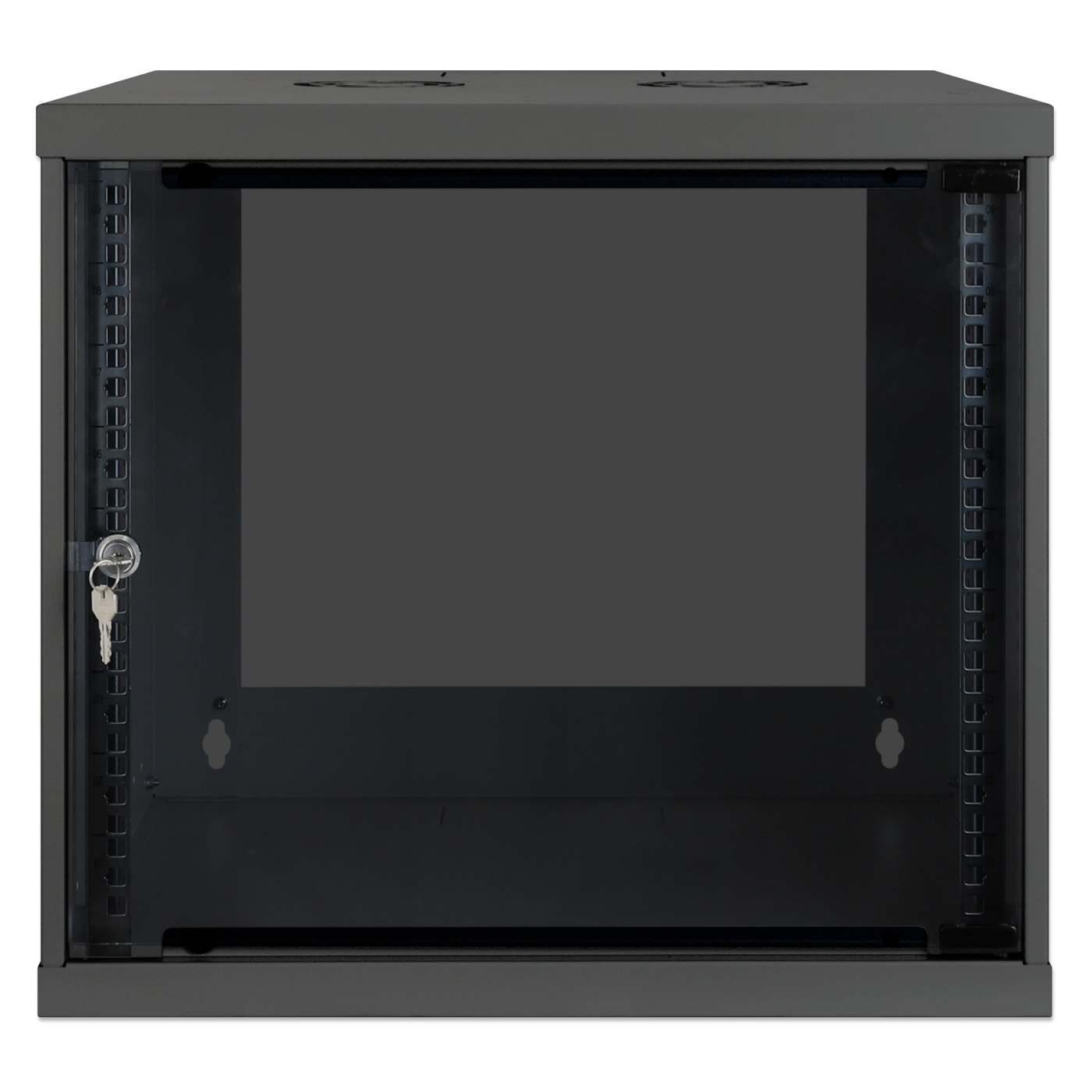

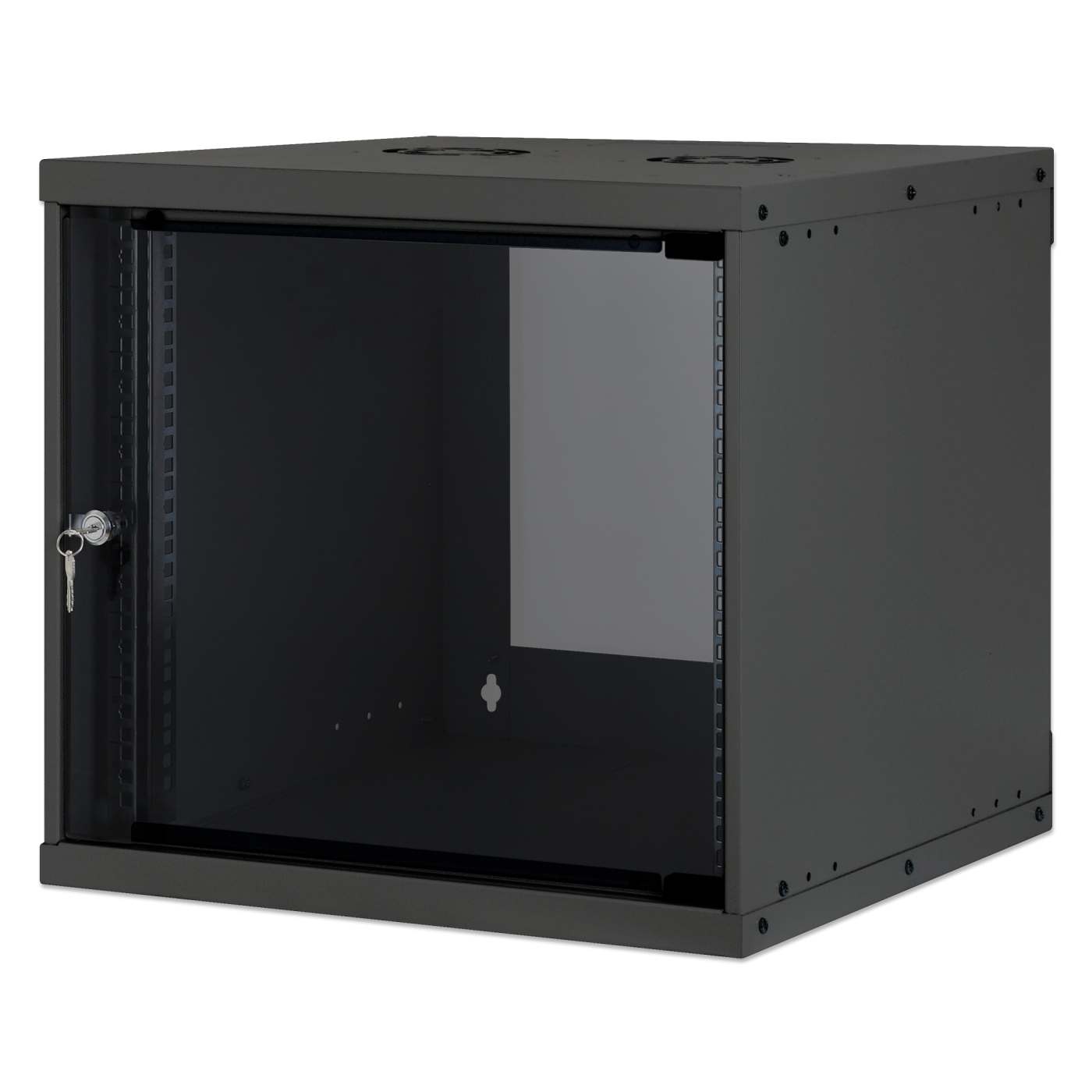

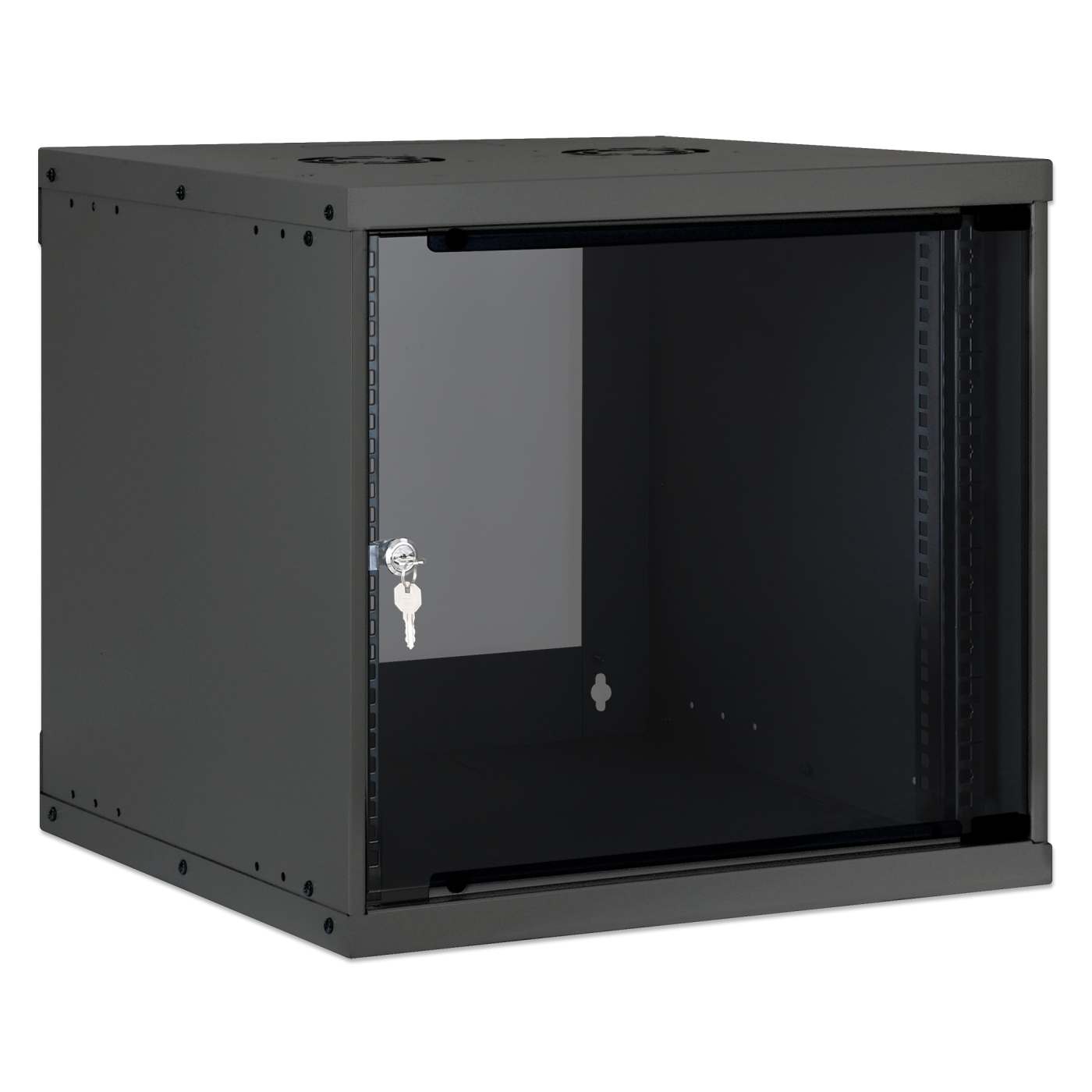

The Intellinet Network Solutions Basic Wallmount Cabinet provides a low-cost yet highly effective solution for protecting network equipment and securing its installation. An IP20 rating is achieved with cold-rolled, galvanized steel and a reversible, tempered-glass door that allows for easy access in limited-space environments. Available in black or gray at 6U or 9U heights and common, device-friendly depths, the Intellinet Network Solutions Basic Wallmount Cabinet is sure to accommodate and protect network equipment while complementing the network space and its surrounding environment.

  • Ideal for 19" rackmount applications
  • Protection grade: IP20
  • Maximum static load of 50 kg
  • Usable depth: 340 mm (13.39 in.)

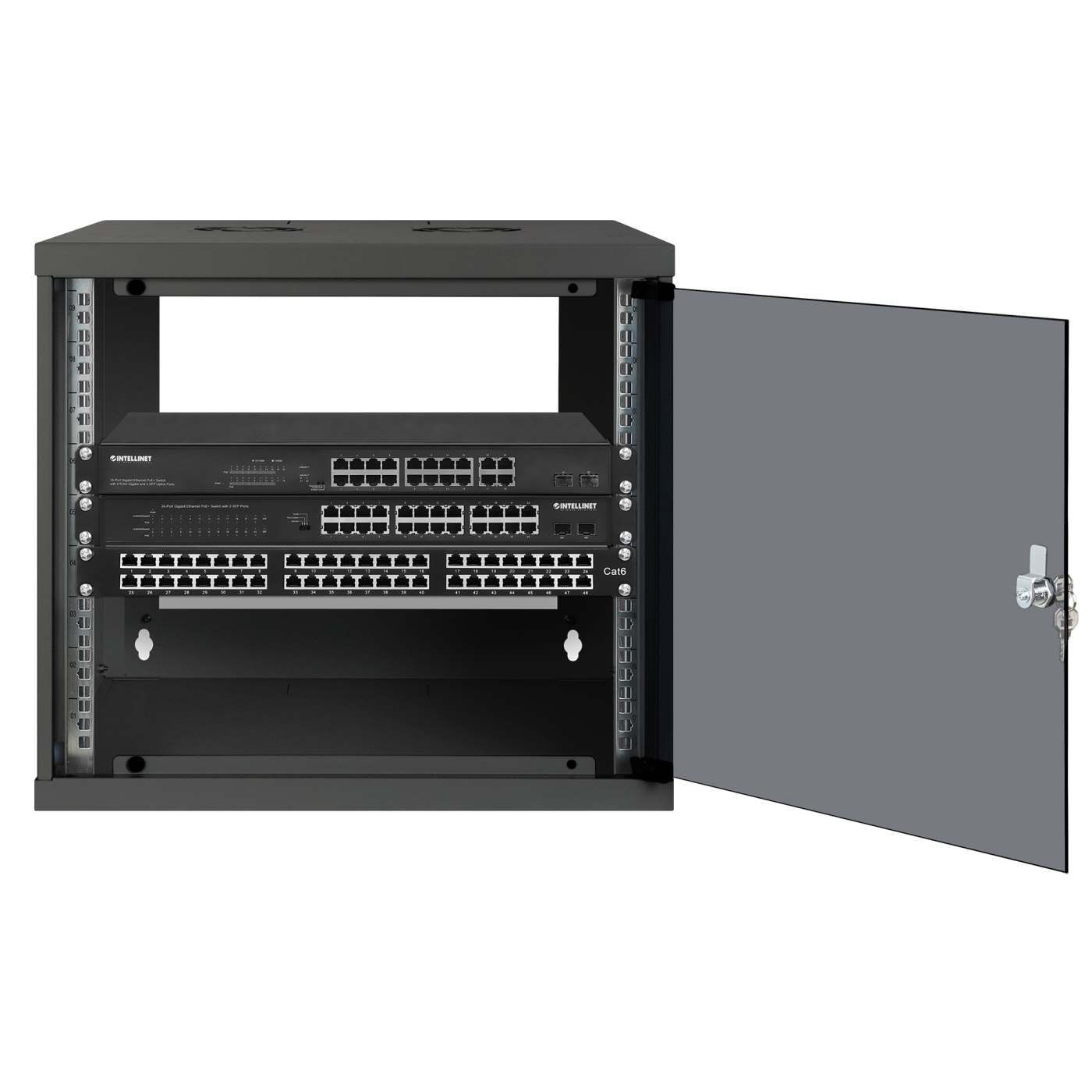

  • Reversible Front door
  • Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
  • Ships flatpacked
  • Three-Year Warranty
    General
  • 19 in.
  • Height: 9U
  • Color: Black RAL9005
  • Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7

    Dimensions
  • 400 (L) x 540 (W) x 487 (H) [mm]
  • 15.75 (L) x 21.26 (W) x 19.17 (H) [in]

    Package Contents
  • Flat Pack Wallmount
  • Installation Instructions
  • Additional SKUs

    • Amazon ASIN: B07556VPX3
    • EAN: 0766623714174
    • UPC: 766623714174
    • ALSO: 2893959
    • API: 240555

  • Physical Specifications

    • Product net weight: 10.67 kg
    • Dimensions: 400 (L) x 540 (W) x 487 (H) [mm]
    • Packaging type: Brown Box
    • Packaging dimensions: 600 x 600 x 170 [mm]
    • Master Carton Quantity: 1
    • Master Carton Weight: 13.00 kg
    • Master Carton Dimensions: 600 x 600 x 170 [mm]
  • Datasheet
    • Datasheet     » Download

    • Declaration of Conformity     » Download


  • Manual
    • Quick Instruction Guide     » Download

    • Assembly instructions, English     » Download

    • Montageanleitung, deutsch     » Download
