19" Network Cabinet

22U, IP20-rated housing, Flatpack, Gray

SKU: 712941

Highlights

  • Ideal for all 19 in. rackmount applications
  • Maximum static load of 1500 kg
  • Tempered-glass door
Tax included.



  • Ideal for all 19 in. rackmount applications
  • Maximum static load of 1500 kg
  • Tempered-glass door
  • Zinc-plated 19 in. mounting rails
  • Antistatic powder coating on all panels
  • Panels with up to 2 mm steel thickness
  • IP20-rated housing
  • Easily removable side and rear panels
  • Multi-point door lock
  • Two apertures allow cable inlet from top or bottom
  • Ventilation slots provide excellent airflow
  • Ships flatpacked
  • Three-Year Warranty
    General
  • 19 in.
  • Height: 22U
  • Color: Gray RAL7035
  • Certifications: RoHS, UL, Gost-R
  • Protection rating: IP20

    Dimensions
  • 800 (L) x 600 (W) x 1144 (H) [mm]
  • 31.5 (L) x 23.62 (W) x 45.04 (H) [in]

    Package Contents:
  • 4 depth-adjustable mounting rails

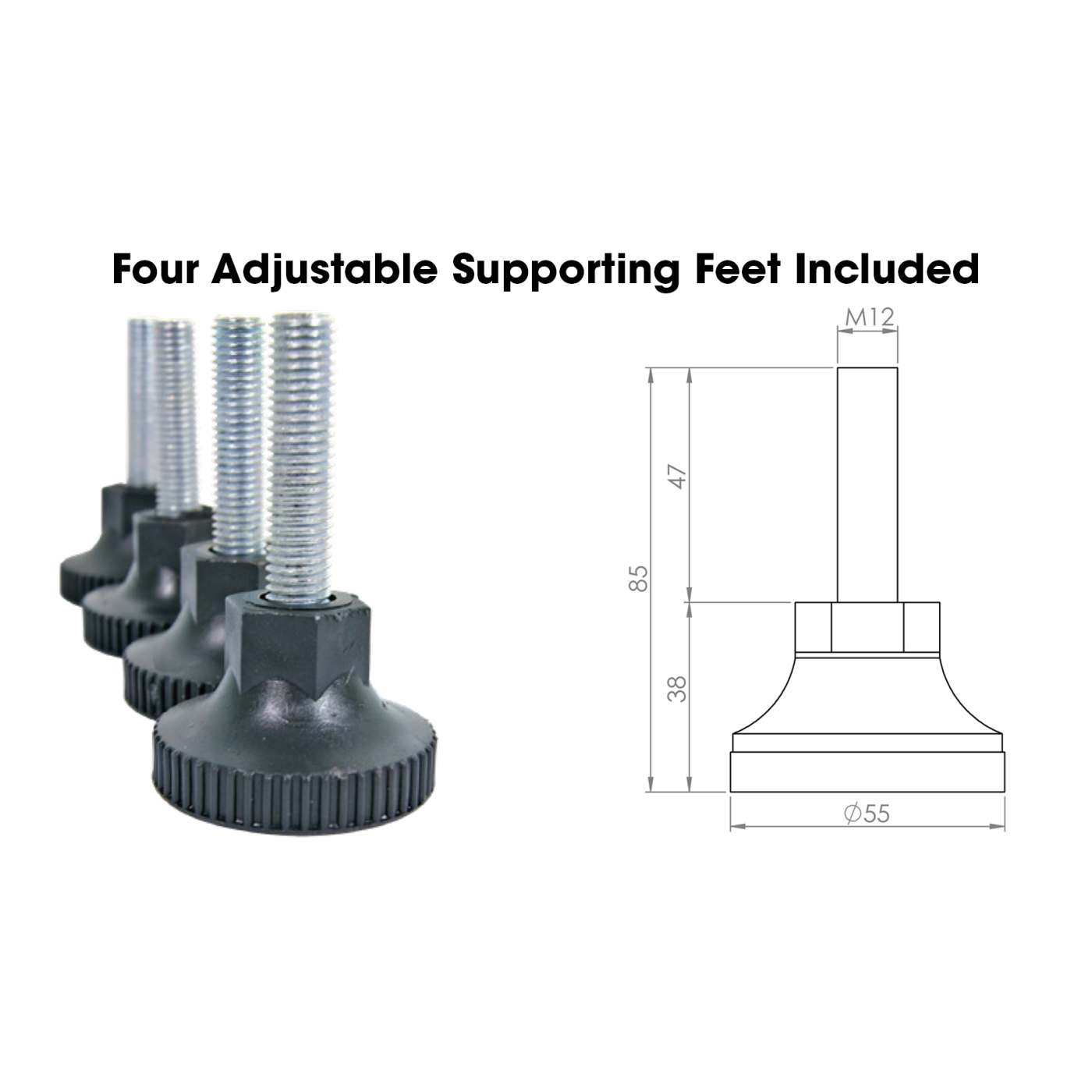

  • 4 adjustable supporting feet
  • Installation hardware
  • Additional SKUs

    • Amazon ASIN: B00NJGFKES
    • EAN: 0766623712941
    • UPC: 766623712941
    • ALSO: 2274591
    • API: 154043

  • Physical Specifications

    • Weight: 81 kg
    • Dimensions: 800 (L) x 600 (W) x 1144 (H) [mm]
  • Datasheet

    • Datasheet     » Download

    • Technical Drawing
      Technical Drawing     » Download

    • Cabinet accessory compatibility chart EU
      Cabinet accessory chart for European Market

      English and German PDF Included     » Download


  • Manual

    • Assembly Guide
      Assembly guide for Network and Server Cabinets     » Download
