Intellinet

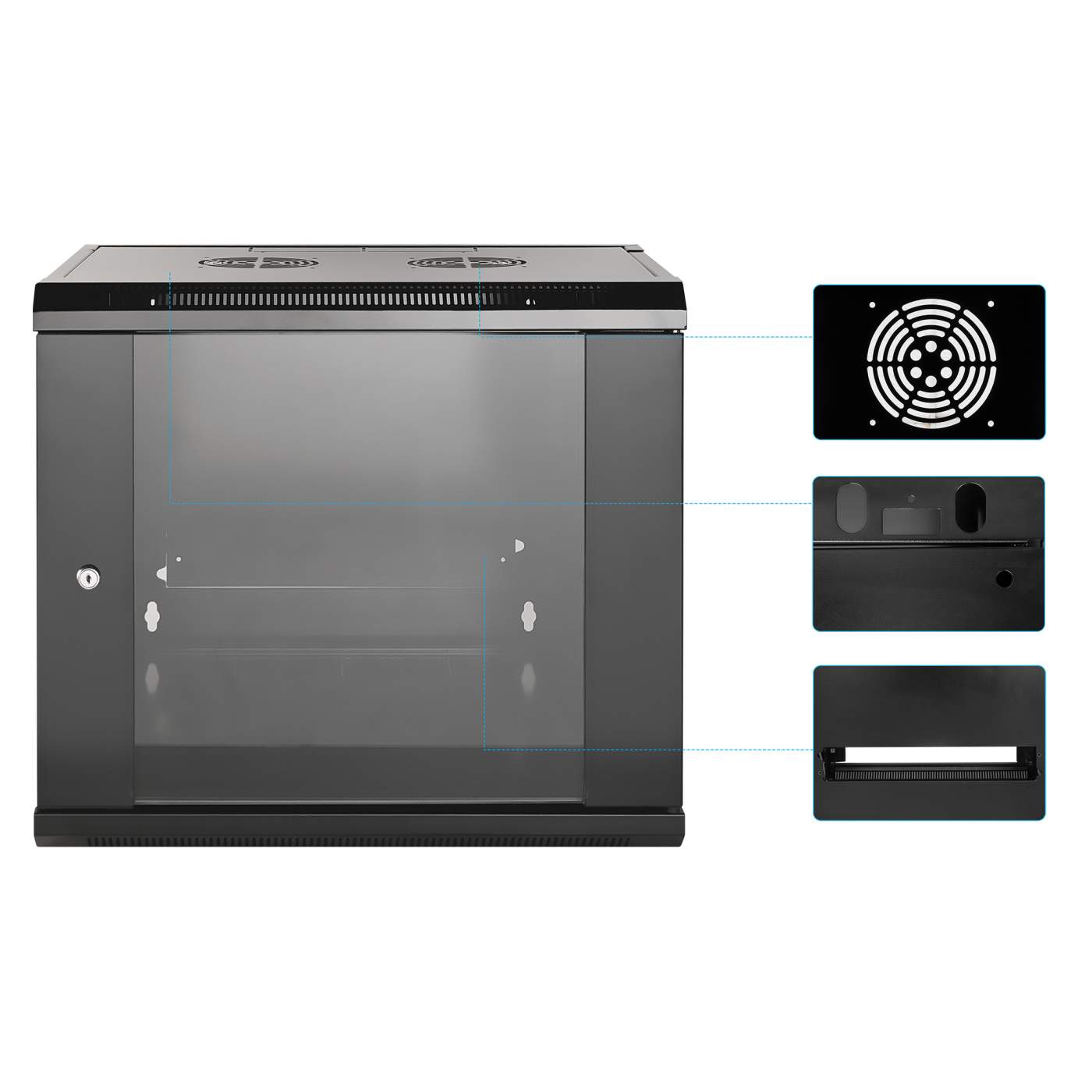

19" Wallmount Cabinet

19" Wallmount Cabinet

9U, 600 mm (23.6 in.) Depth, Flat Pack, Black

SKU: 711791

Highlights

  • Ideal for 19" rackmount applications
  • Maximum static load of 60 kg
  • Usable depth: 410 mm (16.14 in.)
  • Estimated Availability: 06/2024
[ view high resolution images ]

The Intellinet Network Solutions wall mount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flat-pack version. In terms of housing, you can choose from among the extra-compact 10″ cabinets and numerous 19″ versions, with installation depths that range from 300 to 600 mm. Heights from 6 to 20 units in black (RAL9005) or (RAL7021) & gray (RAL7035).
We offer you a solution for every need.

Various options include:

Removable side panels (some lockable).

Tempered/Toughened glass doors.

Double Section, making cabling and component exchange simple.

  • Ideal for 19" rackmount applications
  • Maximum static load of 60 kg
  • Usable depth: 410 mm (16.14 in.)
  • Tempered-glass door can be opened more than 180°
  • Cable entry via rear or top panel
  • Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
  • Reversible Front door
  • Easily removable side panels
  • Ships flatpacked
  • Three-Year Warranty
    General
  • 19"
  • Height: 9U
  • Color: Black RAL9005
  • Complies with: ANSI/EIA RS-310-D; IEC60297-2; DIN41494, Part 1; DIN41494, Part 7

    Physical
  • Dimensions (H x W x D): 500 x 570 x 600 mm (19.7 x 22.4 x 23.6 in.)
  • Usable depth: 410 mm (16.14 in.)
  • Net weight: 20.5 kg (45.19 lbs.)
  • Gross weight: 21.5 kg (47.4 lbs.)

    Package Contents
  • 2 depth-adjustable mounting rails
  • Installation hardware including tool, 10x M6 Sets and 2x Keys

    There is a 2-piece set of spare rails available for this product by the model number shown:
  • #712446
  • Additional SKUs

    • Amazon ASIN: B00NYQQEJ8
    • EAN: 0766623711791
    • UPC: 766623711791
    • ALSO: 2282620
    • API: 155375

  • Physical Specifications

    • Product net weight: 20.5 kg
    • Product gross weight: 21.5 kg
    • Dimensions: 500 x 570 x 600 (mm)
    • Packaging type: Retail Box
    • Packaging dimensions: 533 x 600 x 230 [mm]
    • Master Carton Quantity: 1
    • Master Carton Weight: 21.50 kg
    • Master Carton Dimensions: 533 x 600 x 230 [mm]
  • Datasheet
    • Datasheet     » Download

    • Cabinet accessory compatibility chart EU
      Cabinet accessory chart for European Market

      English and German PDF Included     » Download

    • Technical Drawing
      Packaging     » Download

    • Technical Drawing
      Cabinet     » Download


  • Manual
    • Wallmount Assembly Guide
      Wallmount assembly guide.     » Download
