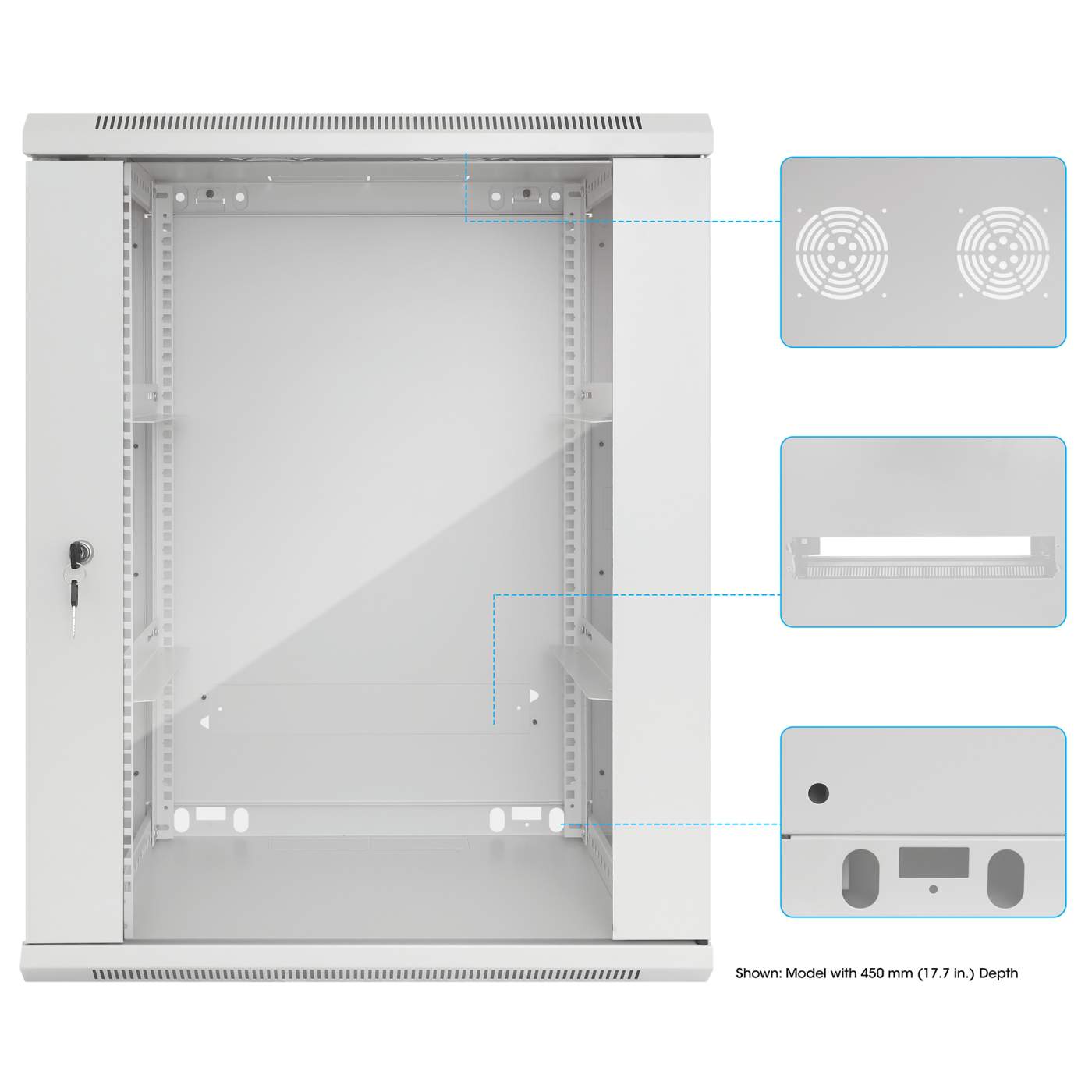

The Intellinet Network Solutions wall mount cabinets offer you a flexible and comprehensive solution for your network installations. Our service starts with the shipping condition – get the completely assembled cabinet delivered or save space and money with the flat-pack version. In terms of housing, you can choose from among the extra-compact 10″ cabinets and numerous 19″ versions, with installation depths that range from 300 to 600 mm. Heights from 6 to 20 units in black (RAL9005) or (RAL7021) & gray (RAL7035).
We offer you a solution for every need.
Various options include:
Removable side panels (some lockable).
Tempered/Toughened glass doors.
Double Section, making cabling and component exchange simple.
- Ideal for 19" rackmount applications
- Maximum static load of 60 kg
- Usable depth: 212 mm (8.35 in.) to 519 mm (20.43 in.)
- Tempered-glass door can be opened more than 180°
- Cable entry via rear or top panel
- Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
- Reversible Front door
- Lockable removable side panels
- Ships assembled
- Three-Year Warranty
What is your cabinet's part number?
Enter the digits only, for example 716697.
Compatible Accessories for This Cabinet
Only categories with compatible products for this cabinet are shown.
Direct links to all compatible products
Compatible Accessories
Directly Compatible
These accessories are explicitly assigned to the selected part number.
Compatible by Design and Dimensions
These products match the detected rack profile, dimensions and cabinet characteristics.
No compatible accessories were found for this selection.
Check the part number or choose another accessory type.
