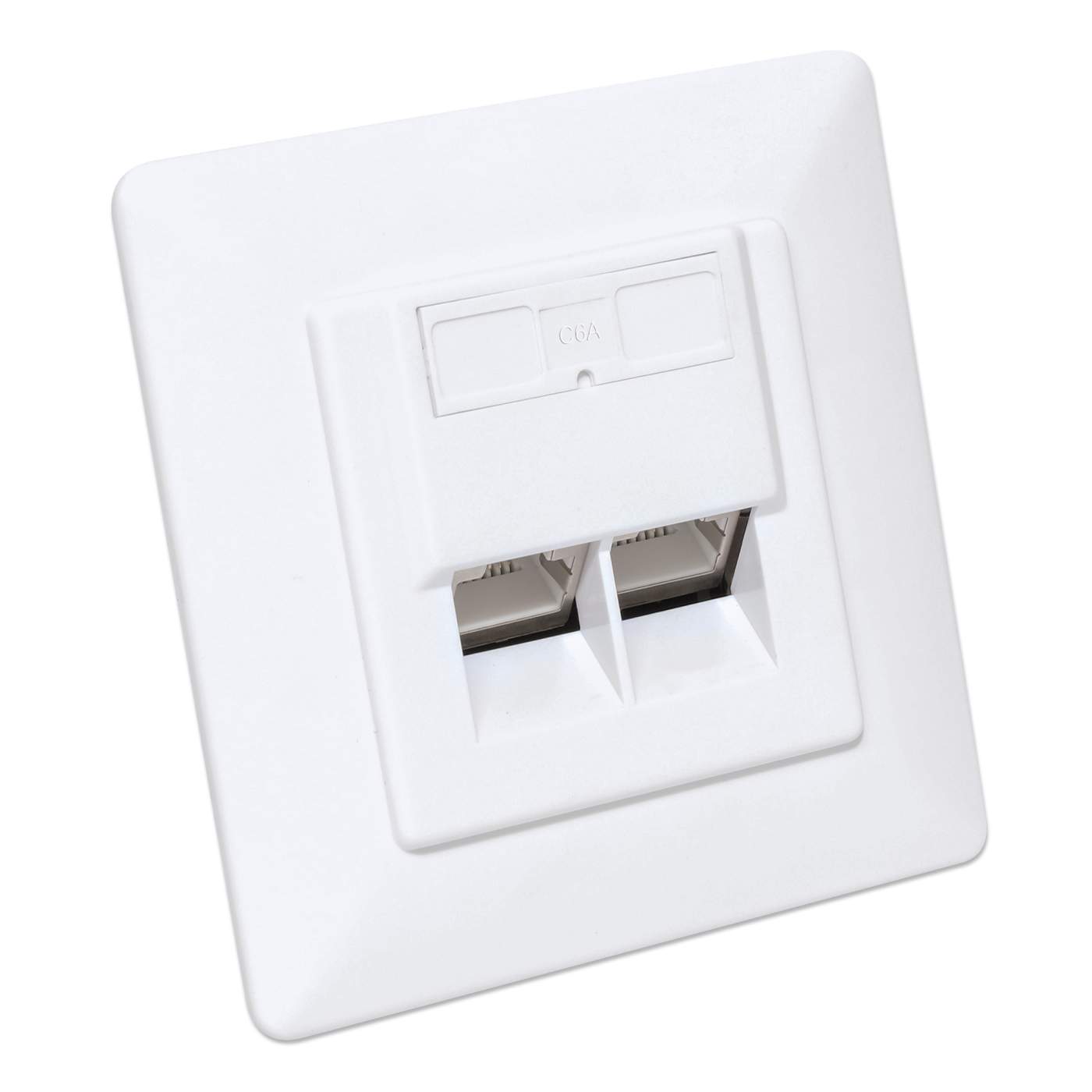

2-Port Cat6a 10G Shielded RJ45 Wall Plate

Cat6a Wall Plate - Flush-mount with 2 ports and faceplate for in-wall wiring projects

The 2-Port Cat6a 10G Shielded RJ45 Wall Plate from Intellinet Network Solutions is the flush-mount outlet you need for your next network-wiring installation. Its clean faceplate provides cover for the 40°-angled outlet jacks that help keep cables close to the wall for a more professional look. This Wall Plate's Cat6a ports support 10G data transmissions with frequencies up to 500 MHz and all PoE applications up to PoE++. For an optional surface mount, use the pattress box #771894.

• Cat6a STP 360° shielded RJ45 wall plate for 10G, HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• Two 40° angled outlet jacks
• Mounts flush against the wall
• 3 micro-inch gold-plated contacts
• Supports solid wire with AWG 26/1 to 22/1
• Compliant with ISO/IEC 11801, DIN EN 50173-1, and ANSI/TIA-568
• European 80 x 80 mm faceplate design
• Adjustable strain relief
• Standard 8P8C design, compatible with all network RJ45 connections
• Integrated writable label
• LSA punch-down type, compatible with 110, Krone, and other punch-down tools
• Fits round cable
• Lifetime warranty

Standards and Certifications

• CE

• RoHS

• ISO/IEC 11801

• DIN EN 50173-1

  General

• Supports transfer speeds up to 10 Gbps

• Max. operating frequency: 500 MHz

• Supports all PoE standards up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE

• Mating cycles: ≥750

  Material

• Contacts: phosphor bronze, zinc-plated

• Contact plating: 3 micro-inch gold

• IDC: phosphor bronze

• Shielding: zinc alloy

• Housing: ABS plastic

  Electrical

• Insulation resistance: ≤ 250 MOhm

• Dielectric withstanding voltage: 1,000 V DC/700 V AC, 60 Hz for 1 minute

• Contact resistance: 20 MOhm

  Physical

• Dimensions (L x W x H): 80 x 80 x 31 mm (3.15 x 3.15 x 1.22 in.)

• Net weight: 150 g (5.29 oz.)

• Gross weight: 160 g (5.64 oz.)

  Environmental

• Operating temperature: -10 - 60°C (14 - 140°F)

• Storage temperature: -40 - 70°C (-40 - 158°F)

• Operating humidity (non-condensing): 10 - 90% RH

  Package Contents

• 2-Port Cat6a 10G Shielded RJ45 Wall Plate

• Two screws for surface mount trunking; suitable for #771894 Surface Mount Pattress Box

  Also available for this product:

• #771900 - Cat6 version

• #771894 - Surface Mount Pattress Box

• Additional SKUs

• EAN: 0766623771917
• UPC: 766623771917



• Physical Specifications

• Product net weight: 0.15 kg
• Product gross weight: 0.16 kg
• Dimensions: 80 (L) x 80 (W) x 31 (H) [mm]
• Packaging type: White Box
• Packaging dimensions: 90 x 90 x 50 [mm]
• Master Carton Quantity: 100
• Master Carton Weight: 17.00 kg
• Master Carton Dimensions: 460 x 370 x 270 [mm]
