Intellinet

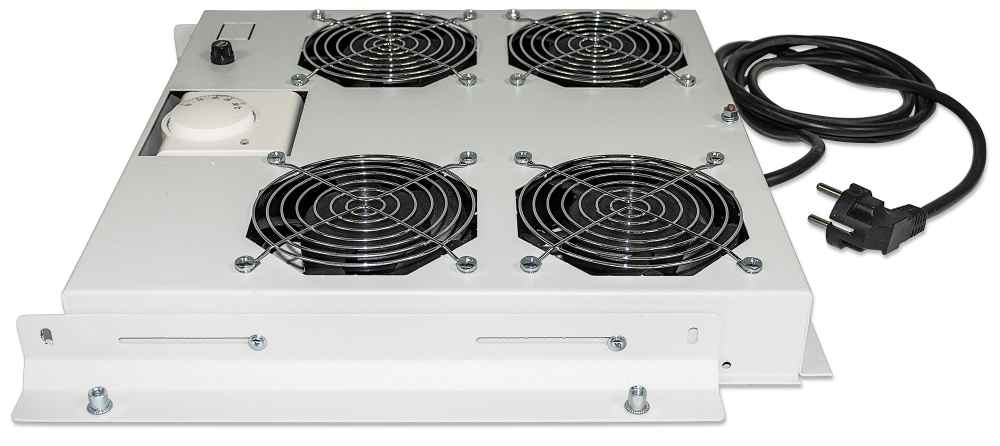

4-Fan Ventilation Unit for 19" Racks
4-Fan Ventilation Unit for 19" Racks
Roof Mount, with Thermostat, Gray
SKU: 712798
Highlights
- Antistatic powder coating
- 1.5 mm steel thickness
- Suitable for 19" standing cabinets in the Intellinet Network Solutions Standard and Basic cabinet line (not suitable for the Premium line)
The Intellinet Network Solutions ventilation units provide reliable cooling and ideal air circulation in 19″ cabinets for improved performance and longer life of your networking components.
High-quality workmanship that includes antistatic powder coating as well as silent fans completes this cooling system. For server and network cabinets, choose the roof-mount ventilation units. If you require cooling for components in wallmount cabinets, use the rail-mount versions.
- Antistatic powder coating
- 1.5 mm steel thickness
- Suitable for 19" standing cabinets in the Intellinet Network Solutions Standard and Basic cabinet line (not suitable for the Premium line)
- Three-Year Warranty
- Operating Voltage: 220.0 - 240.0 V, 50 - 60 Hz
- Air flow: 144 - 165 m³/h (85 - 97 cfm)
- Fan Speed: 2600 - 2900 rpm
- Noise level: 42.2 - 44.5 db/A
- Complies with: IEC 297-1
- Dimensions: 375 (L) x 363 (W) x 47 (H) [mm] 14.76 (L) x 14.29 (W) x 1.85 (H) [in]
- Color: Gray RAL9005
Additional SKUs
- Amazon ASIN: B00NW47G4Y
- EAN: 0766623712798
- UPC: 766623712798
- ALSO: 2279073
- API: 155463
Physical Specifications
- Product net weight: 3.95 kg
- Dimensions: 375 (L) x 363 (W) x 47 (H) [mm]
