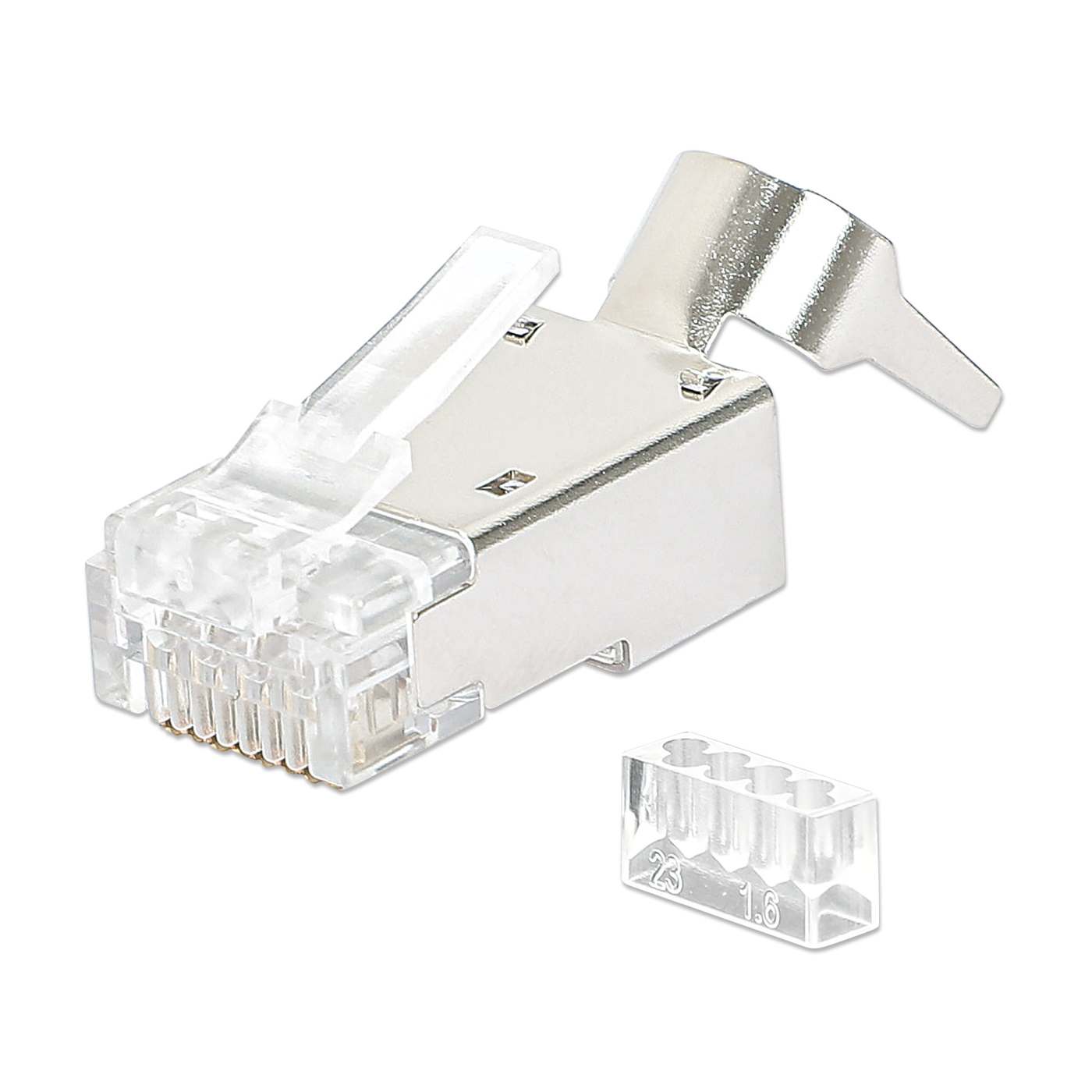

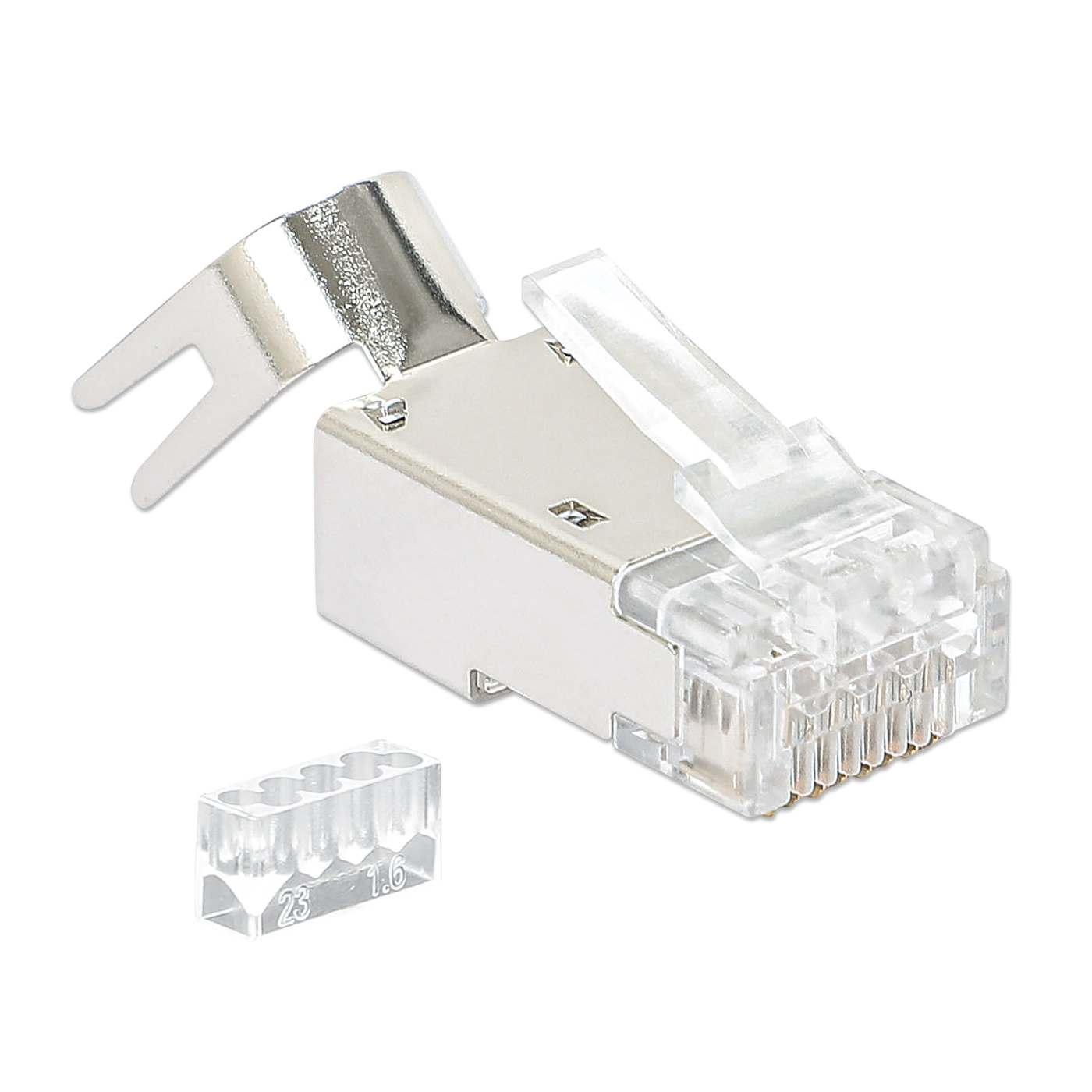

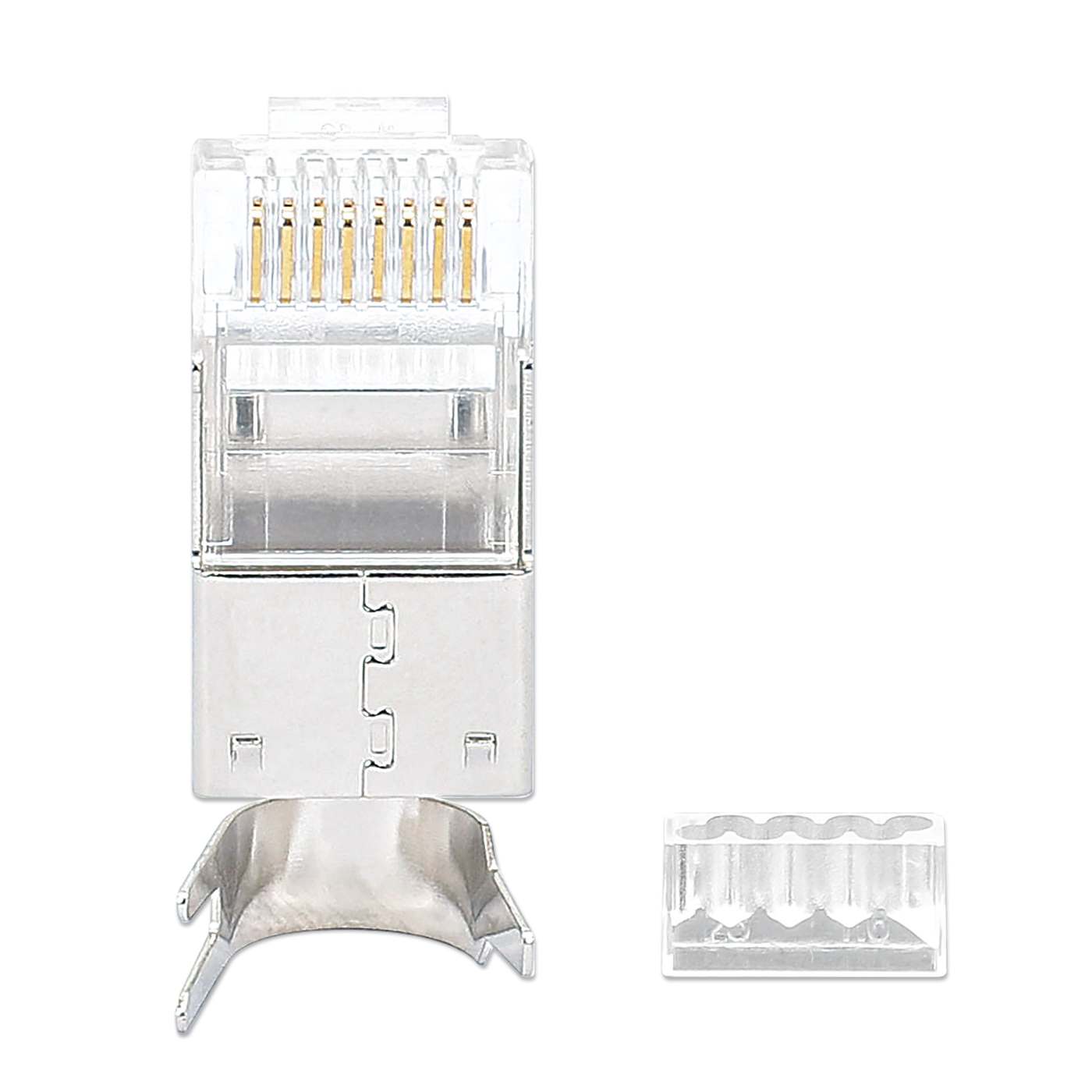

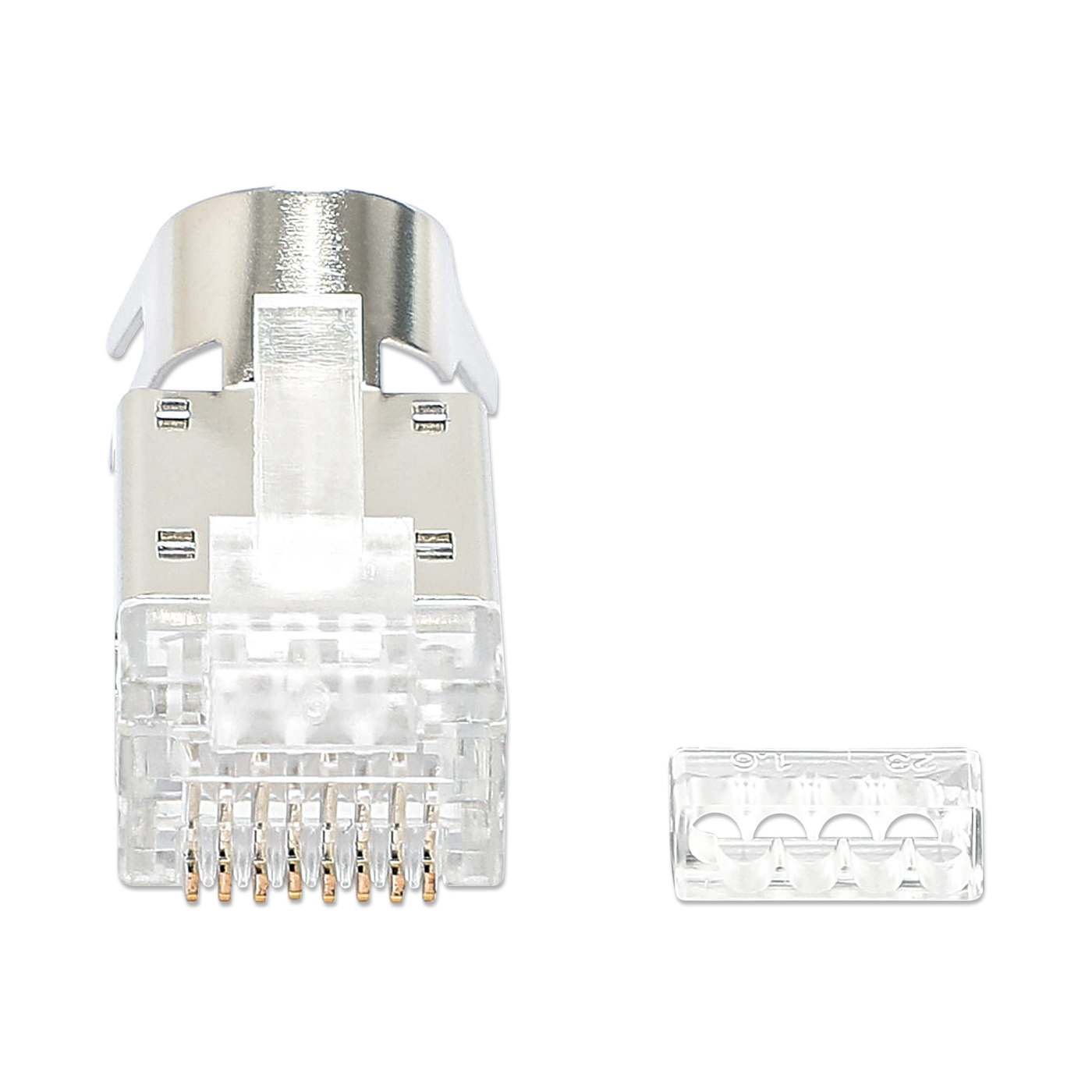

50-Pack Cat6A RJ45 Modular Plugs Pro Line

STP, 3-prong, for solid & stranded wire, 50 plugs in jar

SKU: 790505

Highlights

  • Cat6A RJ45 modular plug
  • 50 µ gold-plated contacts
  • Three-prong terminal for solid & stranded wire

Where to buy:

Country
Ship to
Purchase
In Deutschland kaufen
Deutschland


Intellinet Network Solutions RJ45 8-position, 8-contact (8P8C) modular plugs provide our customers with options for CAT5e, CAT6 and CAT6a cables in unshielded and shielded varieties. We offer 15 micron gold contacts for our standard plugs or a high-quality 50 micron standard in our Premium and Pro lines.

  • Cat6A RJ45 modular plug
  • 50 µ gold-plated contacts
  • Three-prong terminal for solid & stranded wire
  • Supports 22 to 23 AWG
  • Heavy-duty strain relief
  • Fits round cable
  • For shielded twisted pair applications
  • Suitable for extreme operating temperatures of -40 to 85ºC (-40 to 185ºF)
  • Standard 8P8C design, compatible with all network RJ45 connections
  • Fully compatible with Category 3, 4, 5, 5e, 6 and 6A applications
  • Lifetime Warranty
    Standards
    Category 5 (ANSI/TIA/EIA-568-C)
    Category 5e (TIA/EIA-568-C)
    Category 6 (ANSI/TIA-568-C)
    Category 6A (ANSI/TIA-568-C)

    Material
    Insulator: polycarbonate rated UL 94V-2
    Contacts: phosphor bronze
    Contact Plating: 50 micron gold

    Package Contents

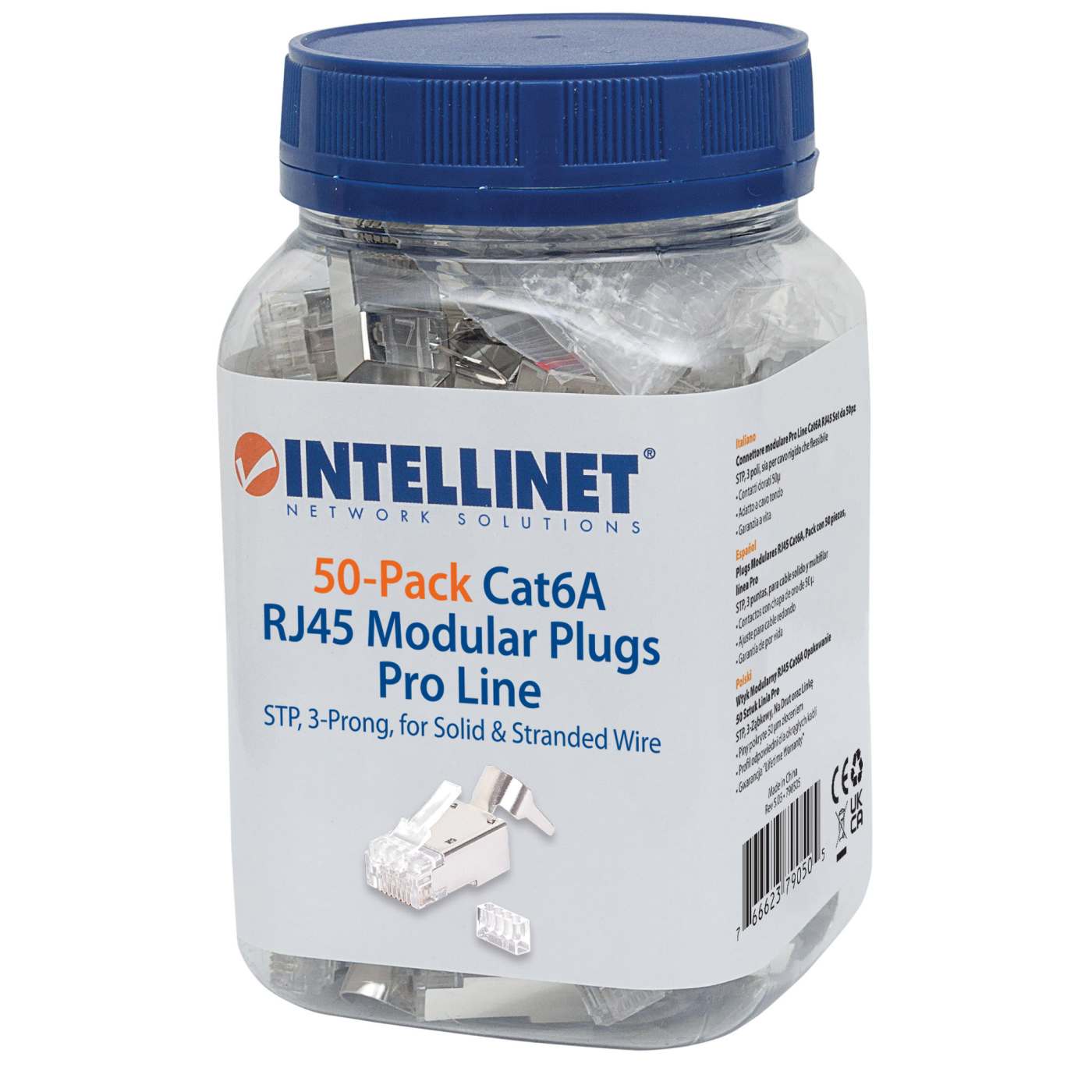

    50 Cat6A RJ45 Modular Plugs with Liners in jar
  • Additional SKUs

    • Amazon ASIN: B01CWN8DBU
    • EAN: 0766623790505
    • UPC: 766623790505
    • ALSO: 2642219
    • API: 219810

  • Physical Specifications

    • Weight: 0 kg
    • Dimensions: 21.5 (L) x 11.5 (W) x 8.2 (H) [mm]
    • Carton Quantity: 70
    • Carton Weight: 15.00 kg
  • Datasheet
