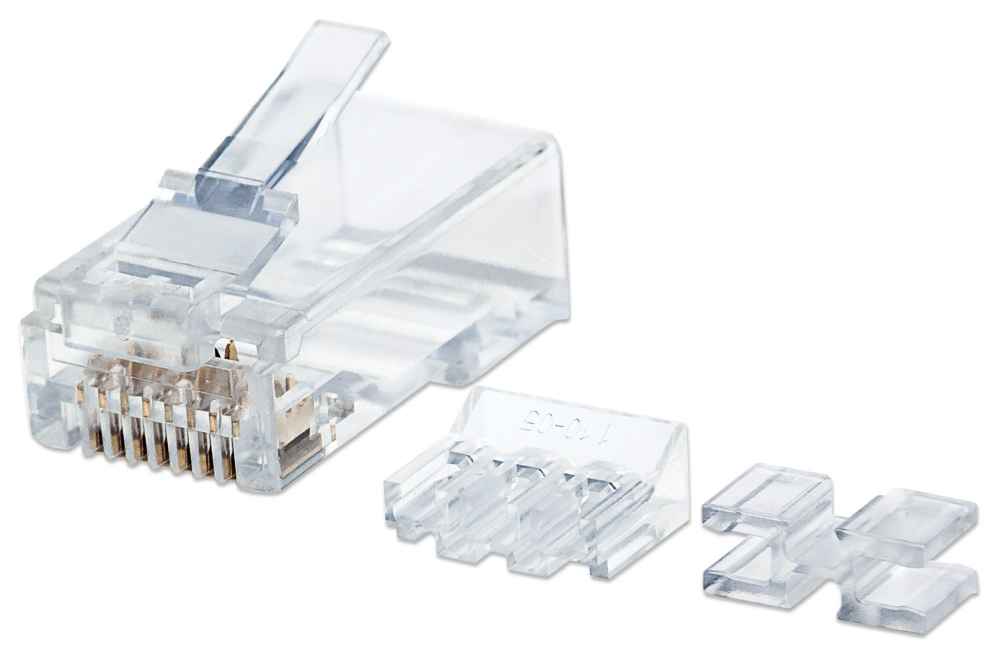

80-Pack Cat6 RJ45 Modular Plugs Pro Line

UTP, 3-prong, for solid wire, 80 plugs with liners and sleds in jar

SKU: 790536

Highlights

  • 50 µ gold-plated contacts
  • Three-prong terminal for solid wire
  • Supports 24 to 26 AWG

Where to buy:

Country
Ship to
Purchase
Ship to the US
United States


Intellinet Network Solutions RJ45 8-position, 8-contact (8P8C) modular plugs provide our customers with options for CAT5e, CAT6 and CAT6a cables in unshielded and shielded varieties. We offer 15 micron gold contacts for our standard plugs or a high-quality 50 micron standard in our Premium and Pro lines.

  • 50 µ gold-plated contacts
  • Three-prong terminal for solid wire
  • Supports 24 to 26 AWG
  • Fits round cable
  • For unshielded twisted pair applications
  • Standard 8P8C design, compatible with all network RJ45 connections
  • Fully compatible with Category 3, 4, 5, 5e and 6 applications
  • Lifetime Warranty
    Standards
    Category 5 (ANSI/TIA/EIA-568-C)
    Category 5e (TIA/EIA-568-C)
    Category 6 (ANSI/TIA-568-C)

    Material
    Insulator: polycarbonate rated UL 94V-2
    Contacts: phosphor bronze
    Contact Plating: 50 micron gold

    Package Contents

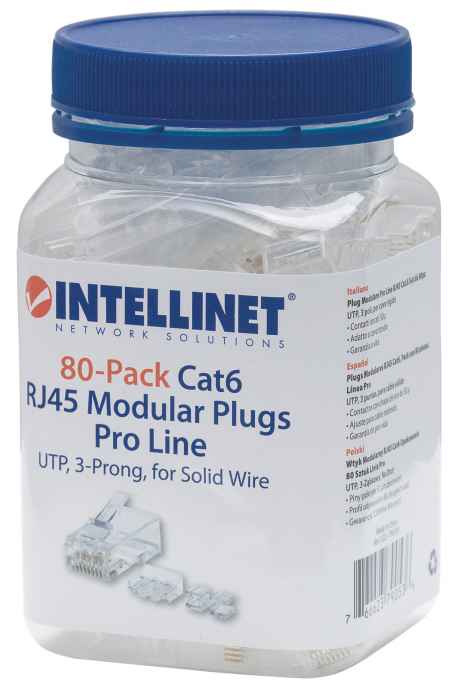

    80 Cat6 RJ45 Modular Plugs with liners and sleds in jar
  • Additional SKUs

    • Amazon ASIN: B01L6PKEVM
    • EAN: 0766623790536
    • UPC: 766623790536
    • ALSO: 2733028
    • API: 209305

  • Physical Specifications

    • Weight: 0.18 kg
    • Dimensions: 21.5 (L) x 11.5 (W) x 8.2 (H) [mm]
    • Carton Quantity: 70
    • Carton Weight: 12.50 kg
  • Datasheet
