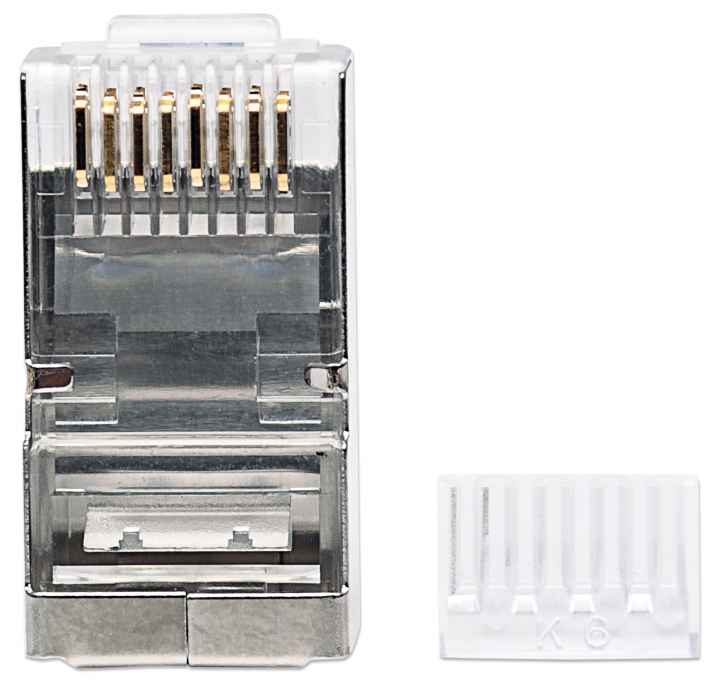

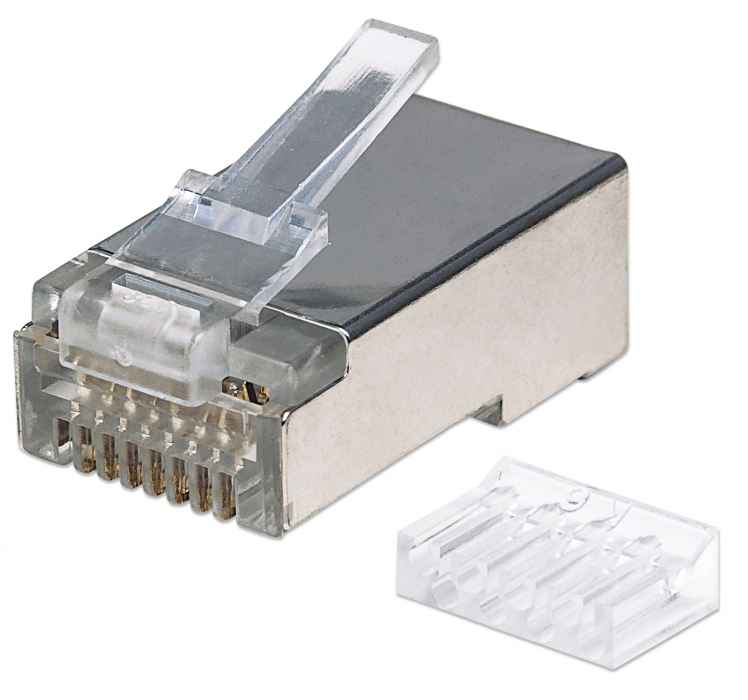

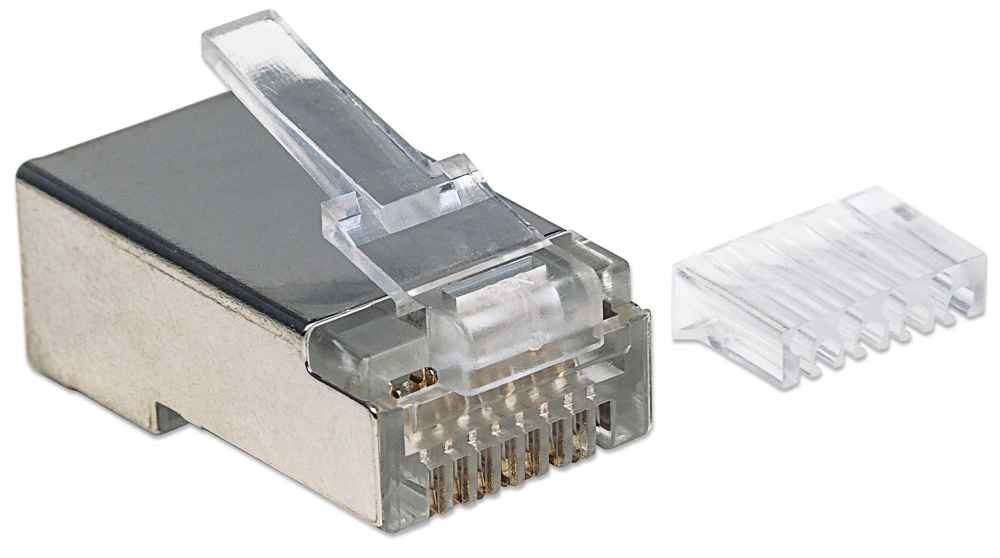

90-Pack Cat6 RJ45 Modular Plugs

STP, 2-prong, for stranded wire, 90 plugs in jar

SKU: 790635

Highlights

  • 15 micro-inch gold-plated contacts
  • Two-prong terminal for stranded wire
  • Supports 24 to 26 AWG

Where to buy:

Country
Ship to
Purchase
In Deutschland kaufen
Deutschland


Intellinet Network Solutions RJ45 8-position, 8-contact (8P8C) modular plugs provide our customers with options for CAT5e, CAT6 and CAT6a cables in unshielded and shielded varieties. We offer 15 micro-inch gold contacts for our standard plugs or a high-quality 50 micro-inch standard in our Premium and Pro lines.

  • 15 micro-inch gold-plated contacts
  • Two-prong terminal for stranded wire
  • Supports 24 to 26 AWG
  • Fits round cable
  • For shielded twisted pair applications
  • Standard 8P8C design, compatible with all network RJ45 connections
  • Fully compatible with Category 3, 4, 5, 5e and 6 applications
  • Lifetime Warranty
    Standards
    Category 5 (ANSI/TIA/EIA-568-C)
    Category 5e (TIA/EIA-568-C)
    Category 6 (ANSI/TIA-568-C)

    Material
    Insulator: polycarbonate rated UL 94V-2
    Contacts: phosphor bronze
    Contact Plating: 15 micro-inch gold

    Package Contents

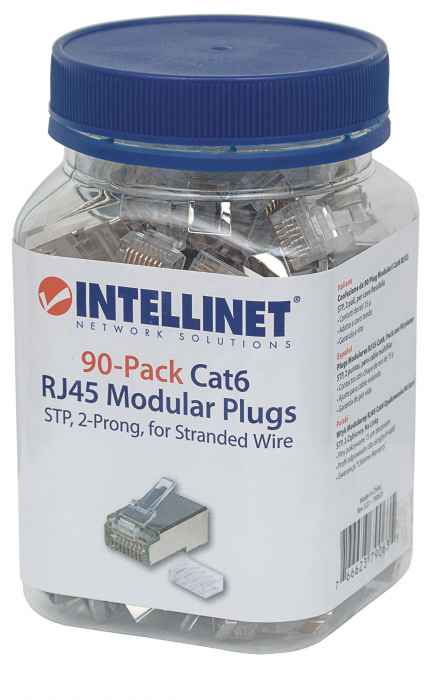

    90 Cat6 RJ45 Modular Plugs with liners in jar
  • Additional SKUs

    • Amazon ASIN: B01L6PJN14
    • EAN: 0766623790635
    • UPC: 766623790635
    • ALSO: 2645163
    • API: 209339

  • Physical Specifications

    • Weight: 0 kg
    • Dimensions: 21.5 (L) x 11.5 (W) x 8.2 (H) [mm]
    • Carton Quantity: 70
    • Carton Weight: 17.61 kg
  • Datasheet
