Intellinet

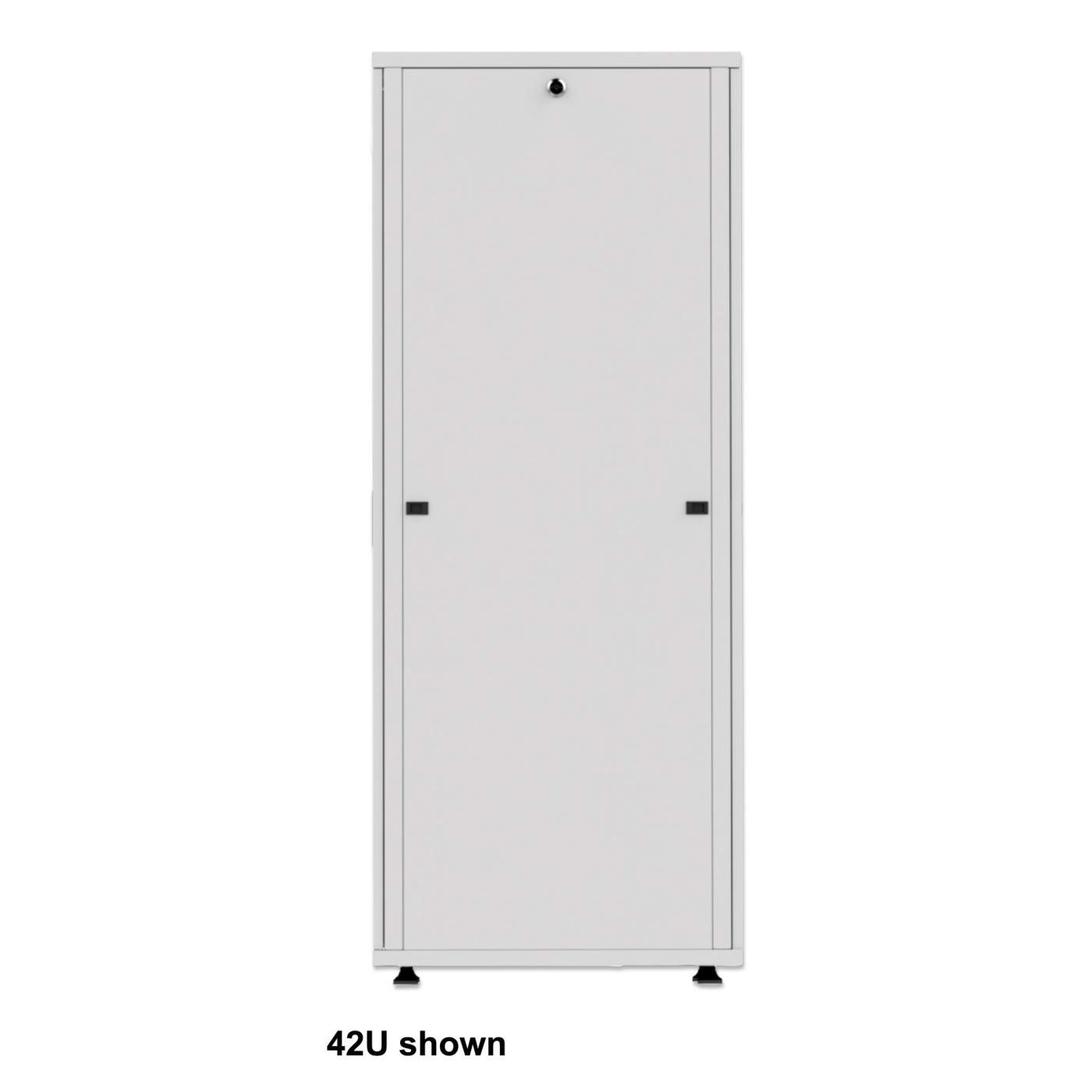

Basic 19" Server Cabinet

Basic 19" Server Cabinet

26U, 1000 (D) x 600 (W) x 1308 (H) mm, Flat Pack, Gray

SKU: 715430

Highlights

  • Ideal for all 19 in. rackmount applications
  • Maximum static load of 600 kg (1,322 lb.)
  • Perforated front and rear doors supporting a free air ratio of 65%
  • Available in: 12/2023
[ view high resolution images ]

The Intellinet Network Solutions Basic 19" Server Cabinet helps secure your crucial server and network equipment at an excellent value. Constructed from solid steel and coated with electrostatic powder paint, the cabinet incorporates heavy-duty, depth-adjustable mounting rails to help ensure that equipment stays secure as well as perforated front and rear doors to keep air circulating. UL and RoHS certifications further instill confidence that the Intellinet Network Solutions Basic 19" Server Cabinet is the right choice at the right price.

  • Ideal for all 19 in. rackmount applications
  • Maximum static load of 600 kg (1,322 lb.)
  • Perforated front and rear doors supporting a free air ratio of 65%
  • Zinc-plated 19 in. mounting rails
  • Antistatic powder coating on all panels
  • Reversible front door
  • Easily removable locking side panels
  • Multipoint door lock on front and rear doors
  • Cable-entry and ventilation slots
  • Ships flatpacked
  • Three-year warranty
    General
  • 19 in.
  • Height: 26U
  • Color: Gray RAL7035
  • Certifications: RoHS, UL

    Dimensions
  • 1000 (D) x 600 (W) x 1308 (H) [mm] / 39.37 (D) x 23.62 (W) x 51.5 (H) [in.]

    Package Contents
  • Basic 19" Server Cabinet
  • Four depth-adjustable mounting rails
  • Four adjustable supporting feet
  • Installation hardware
  • Additional SKUs

    • EAN: 0766623715430
    • UPC: 766623715430

  • Physical Specifications

    • Product net weight: 84 kg
    • Dimensions: 1000 (L) x 600 (W) x 1308 (H) [mm]
    • Packaging type: Brown Box
    • Packaging dimensions: 13500 x 2700 x 11300 [mm]
    • Master Carton Quantity: 2
    • Master Carton Weight: 190.00 kg
    • Master Carton Dimensions: 16300 x 5900 x 12700 [mm]
  • Datasheet

  • Manual
    • Assembly Instructions
      Multilingual assembly instructions English and German     » Download
