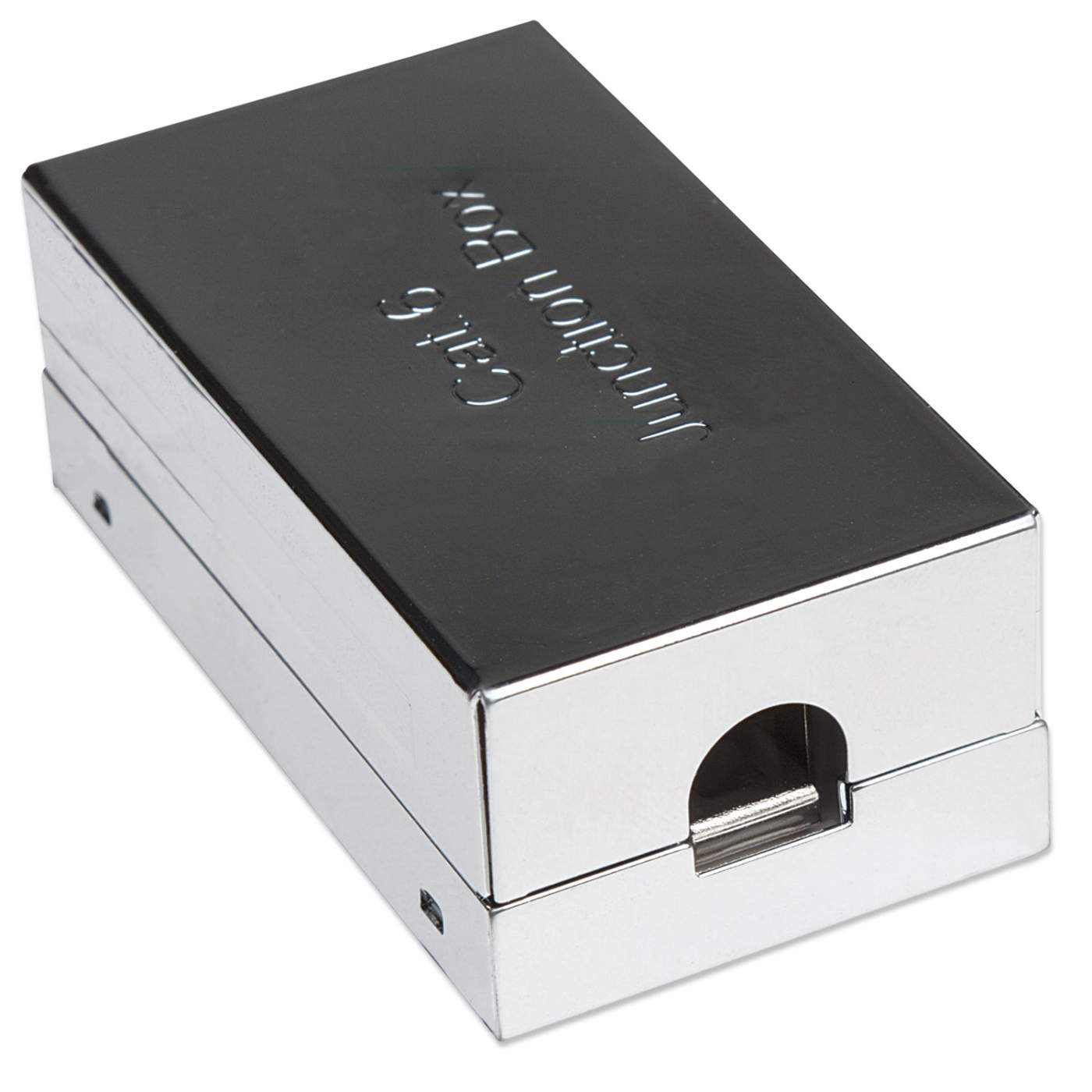

• Cat6 Junction Box Image 1

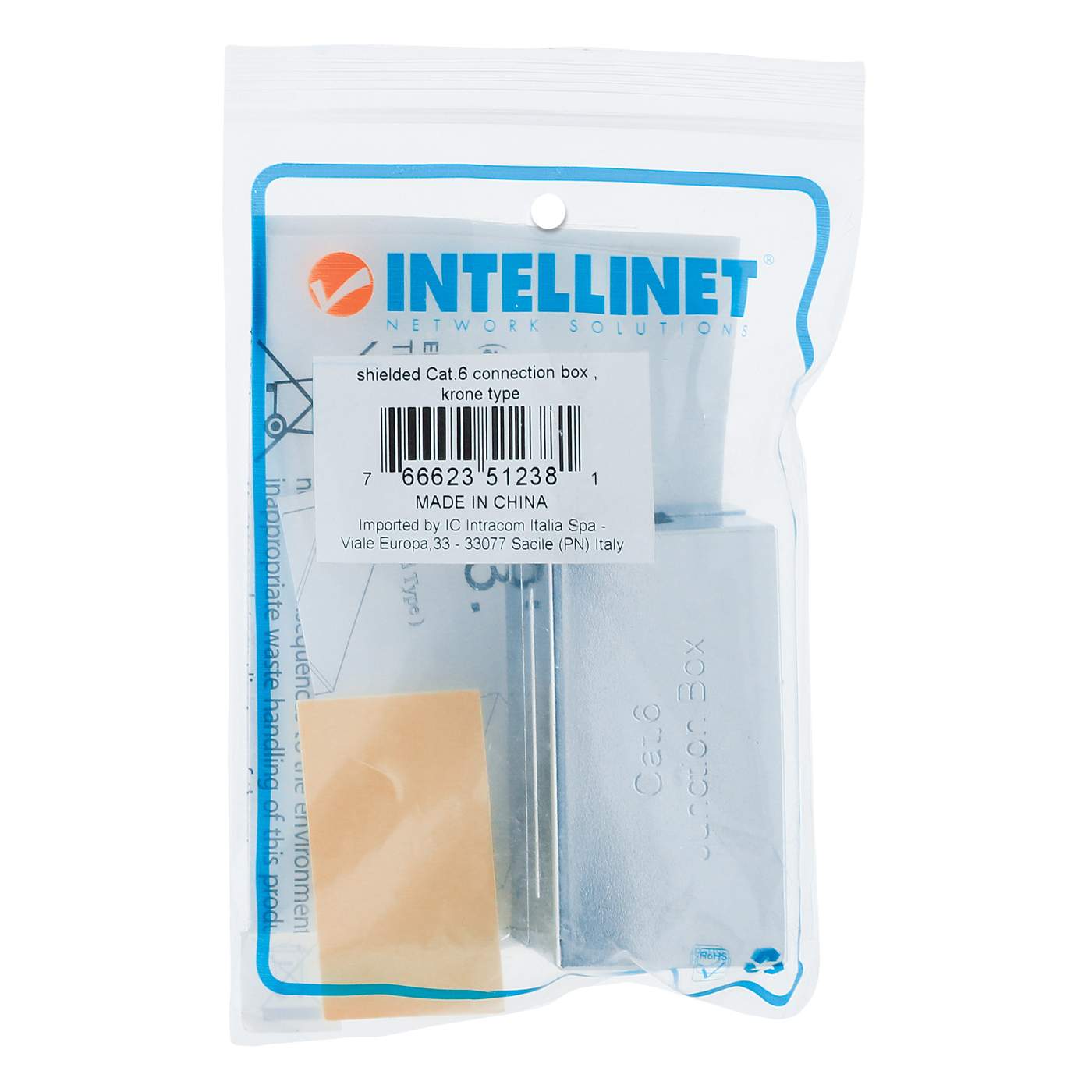

  • Cat6 Junction Box Packaging Image 2

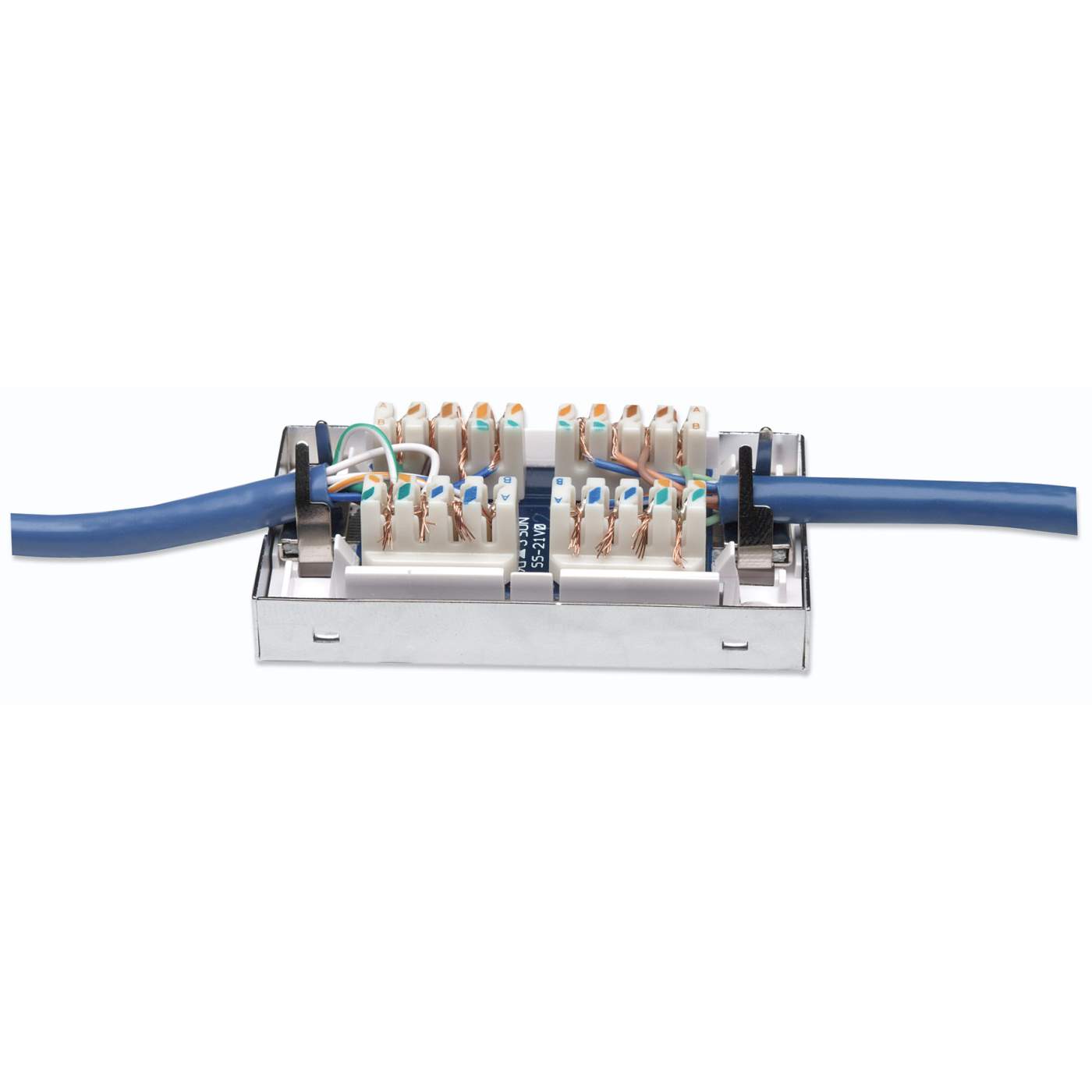

  • Cat6 Junction Box Image 3
  • Cat6 Junction Box Image 4
1 4

Intellinet

Cat6 Junction Box

Cat6 Junction Box

FTP, Silver

SKU: 512381

Highlights

  • Join two Cat6 shielded cables without the need for couplers
  • Punch-Down type
  • For use with shielded twisted pair (FTP) Cat6 cable
[ view high resolution images ]

  • Join two Cat6 shielded cables without the need for couplers
  • Punch-Down type
  • For use with shielded twisted pair (FTP) Cat6 cable
  • Compatible with 110 and Krone punch down tools
  • Cat6 performance is in compliance with ANSI/TIA/EIA 568 B.2-1 standard
  • Lifetime Warranty

  • Metal housing
  • For use with 22 to 26 AWG stranded and solid wire
  • EIA/TIA approved
  • UL Listed
  • 568 A/B color coded
  • Operating temperature: -40° to 80°C (-40° to 176°F)

  • Additional SKUs

    • EAN: 0766623512381
    • UPC: 766623512381
    • ALSO: 2348684

  • Physical Specifications

    • Product net weight: 0.07 kg
    • Product gross weight: 0.04 kg
    • Dimensions: 62.8 (H) x 35 (W) x 24 (D) mm
    • Packaging type: Bag
    • Packaging dimensions: 30 x 80 x 40 [mm]
    • Master Carton Quantity: 250
    • Master Carton Weight: 18.20 kg
    • Master Carton Dimensions: 465 x 315 x 310 [mm]
