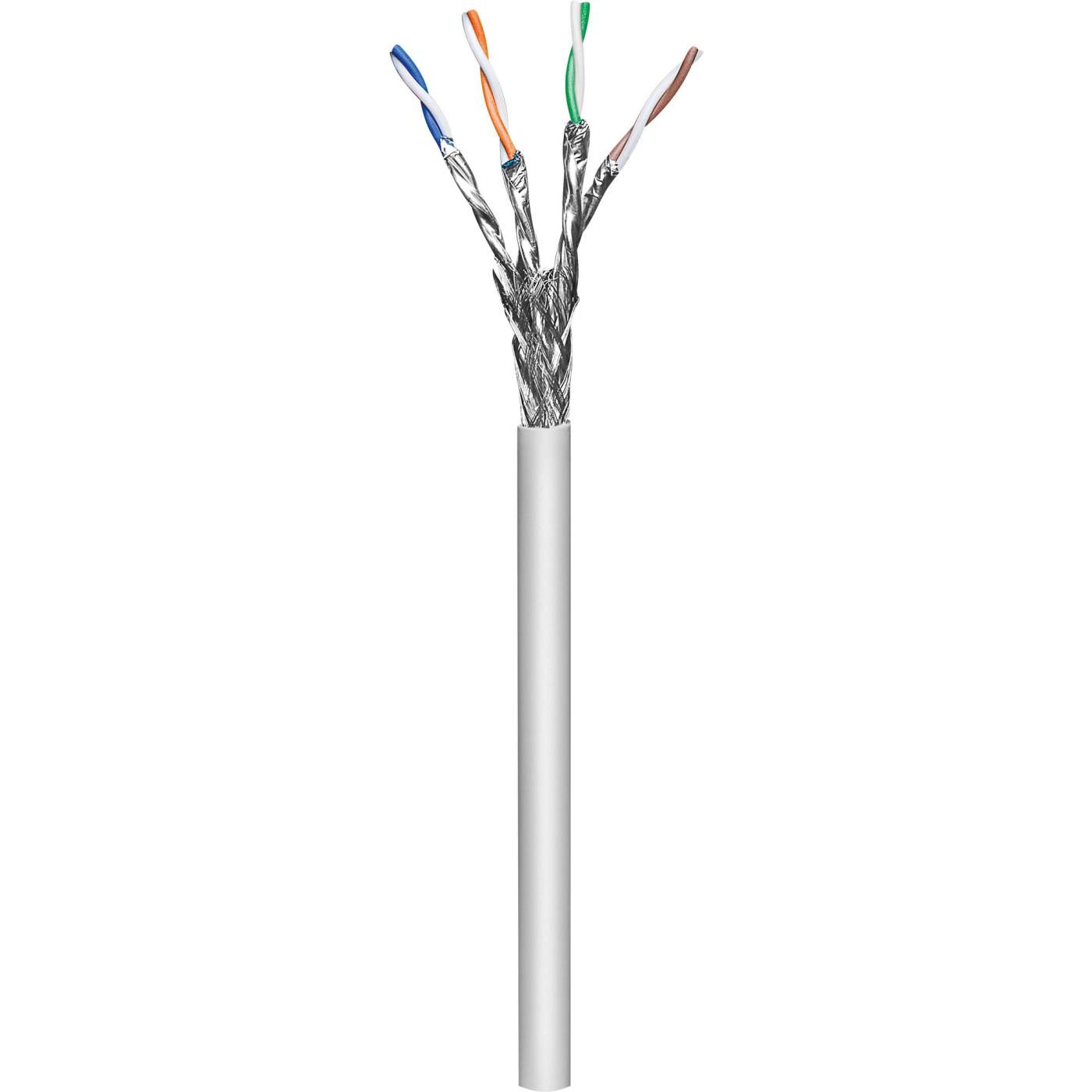

Cat6a S/FTP Bulk Cable, Solid, 23 AWG

The Intellinet Network Solutions Cat6a S/FTP installation cable has a cable construction of 4x2x AWG23/1. The halogen-free cable jacket conforms to IEC 60332-3-24, FRNC-C, LSZH-3 and EuroClass CPR-Dca standards. The cable is best suited for building-structure cabling in secondary and tertiary areas.

• S/FTP
• CPR-Dca Rated (Construction Products Regulation)
• Standards tested; meets or exceeds current Cat6a standards
• Suitable for building-structure cabling in secondary and tertiary areas
• Recommended for 10/100/1000/10GBase-T, ATM, FDDI, Video, ISDN, Multimedia and PoE applications
• 305 m cable on drum
• Lifetime warranty

Certification and Standards

• IEC61156-5

• ISO/IEC 11801

• CPR-Dca

• RoHS, REACH

  Technical Specifications

• Conductor: solid, bare copper

• AWG 23

• Conductor diameter: 1/0.56 mm ± 0.008 mm

• Insulation: FMPE

• Average thickness: 0.40 mm

• Insulation diameter: 1.35 mm ± 0.05 mm

• Aluminum foil on each pair

• Braid: tinned copper

• LSZH jacket

• Rip cord

  Performance

• Max. conductor DC resistance 20°C: 93.8 Ω/km

• Delay skew: ≤ 45 ns/100 m

• Pair-to-ground capacitance unbalance: ≤ 330 pF/100 m

• Min. insulation resistance: 5000 MΩ/km

• Resistance unbalance: ≤ 4%

• Min. bend radius: 8 mm OD

• Additional SKUs

• Amazon ASIN: B08336SX8N
• EAN: 0766623705035
• UPC: 766623705035



• Physical Specifications

• Weight: 16.78 kg
• Dimensions: 305 m
• Carton Quantity: 24
• Carton Weight: 478.60 kg
