Intellinet

Gigabit PCI Express Network Card

Name: Gigabit PCI Express Network Card
Brand: Intellinet
SKU: 522533
Price: 99.9 EUR
Availability: InStock

10/100/1000 Mbps PCI Express Ethernet Card

SKU: 522533

Highlights

Supports Gigabit speeds over existing network cable
Does not require fiber optic cabling to run Gigabit speeds
PCI Express 1.0a bus interface fits 1, 4, 8 and 16X PCI-E slots

[ view high resolution images ]

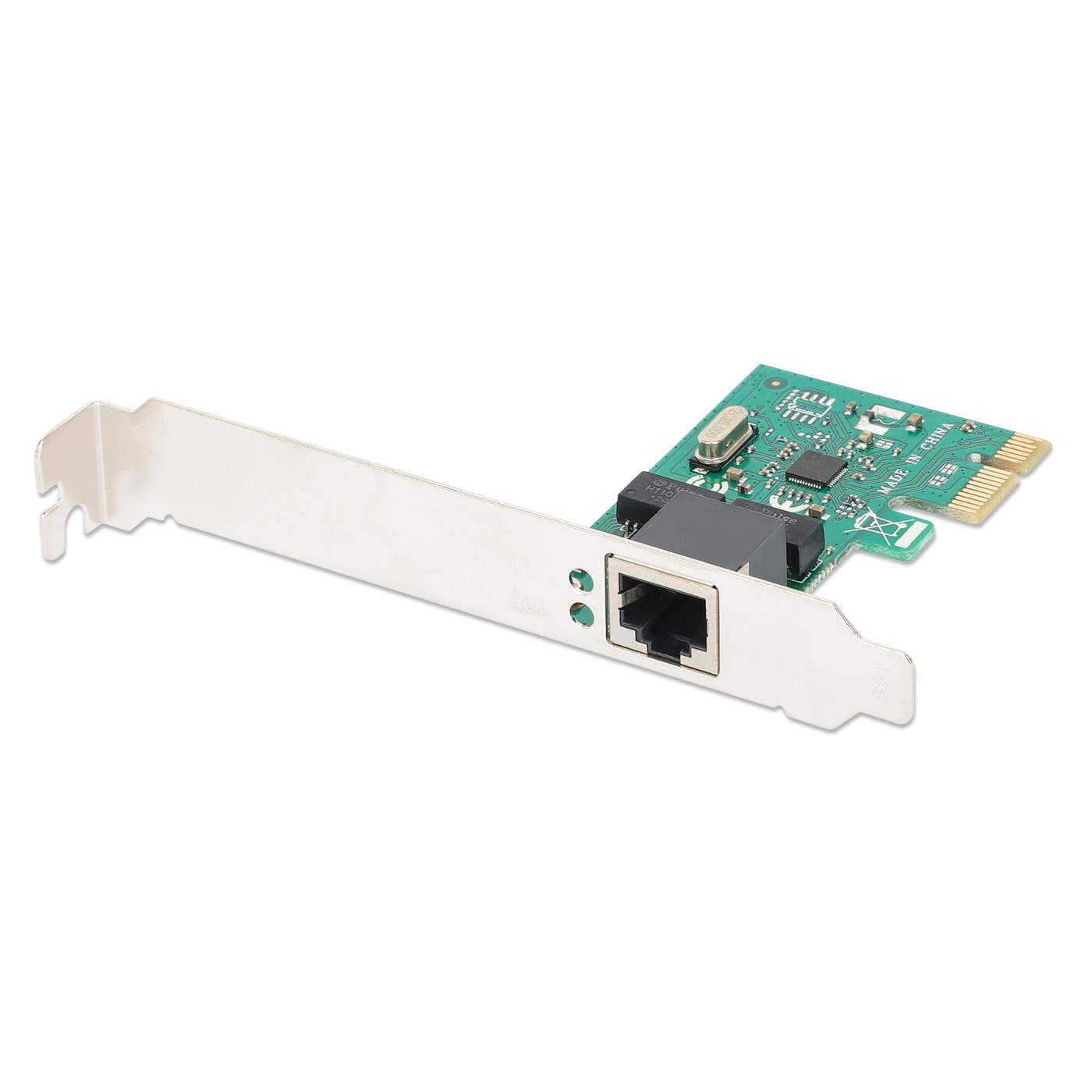

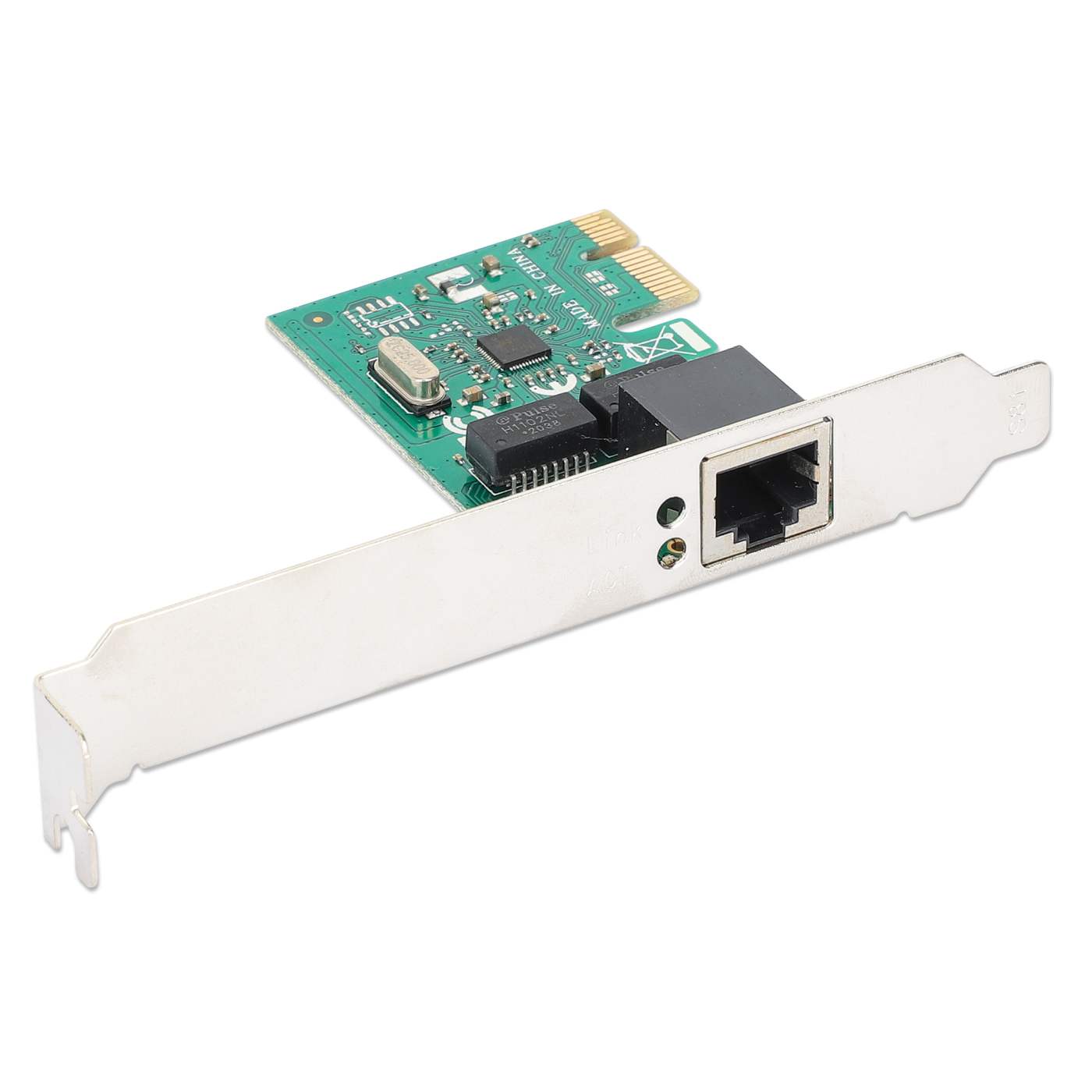

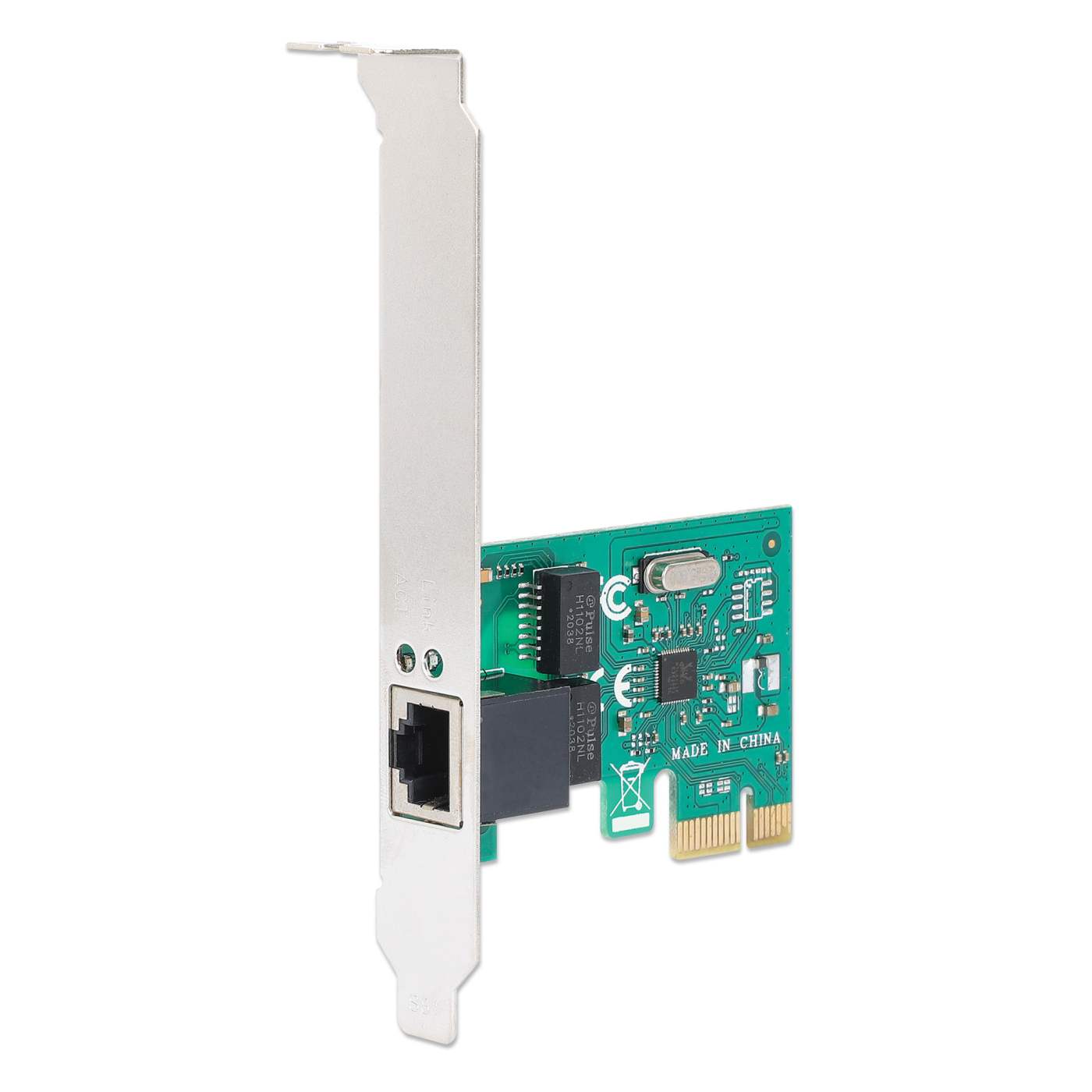

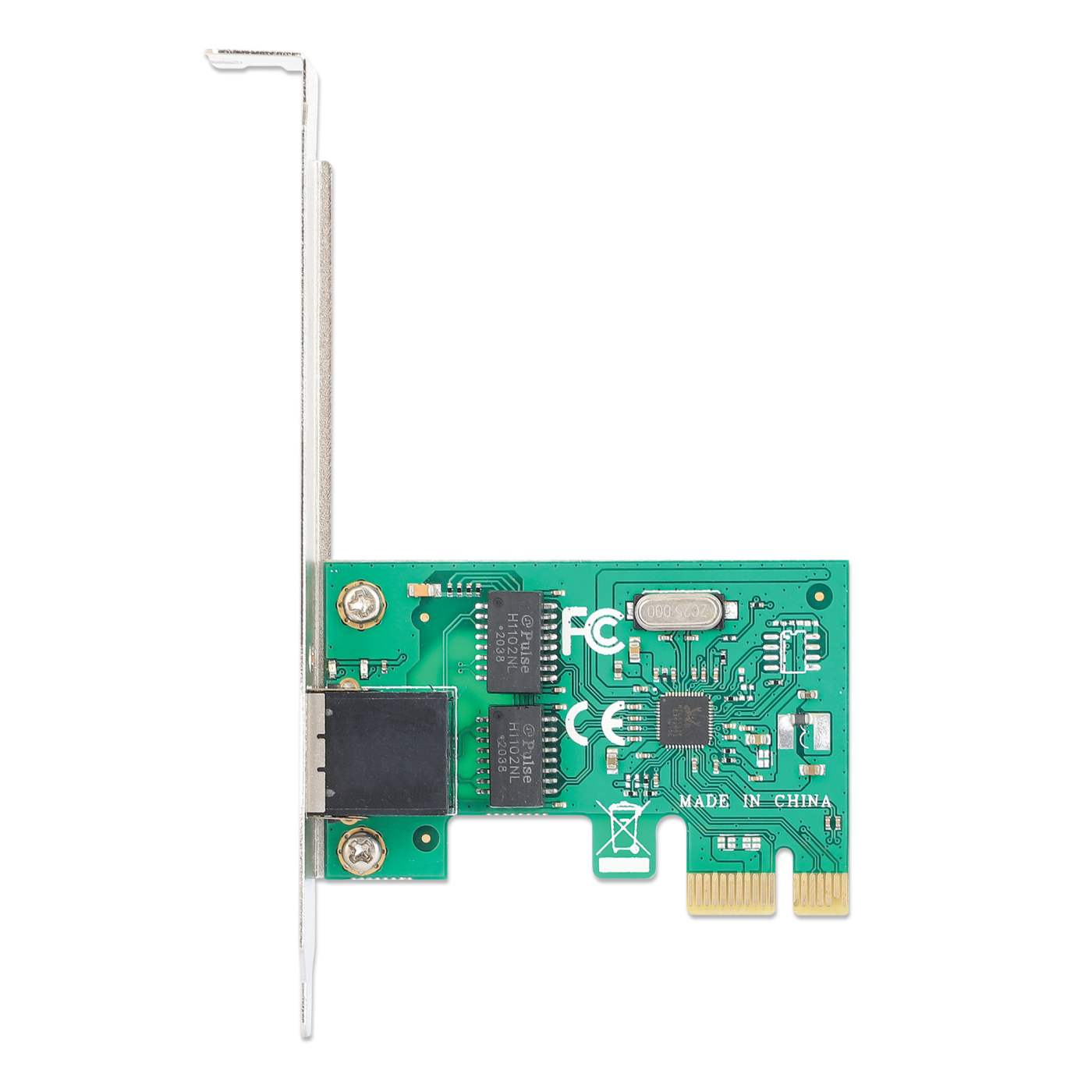

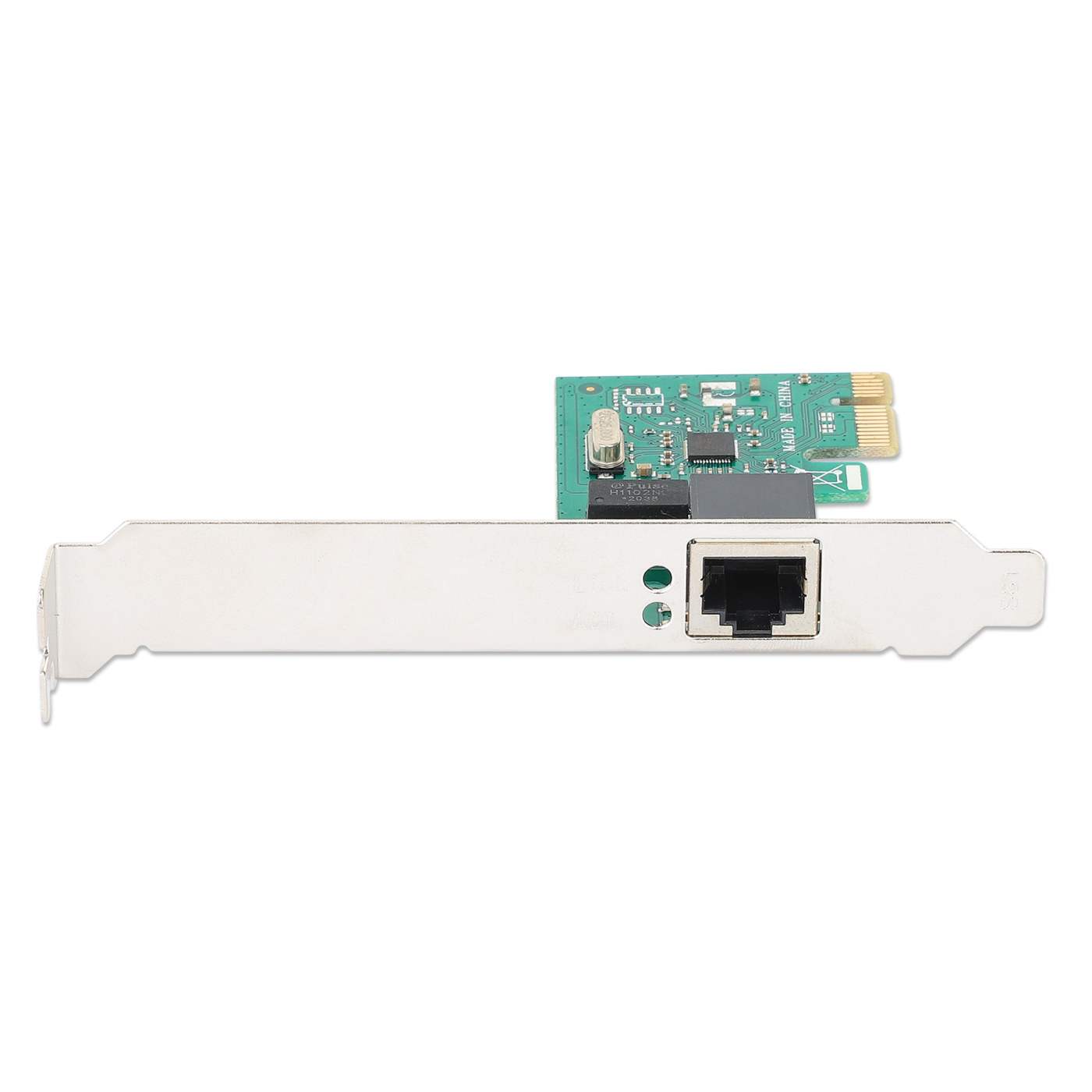

The Gigabit PCI Express Network Card is a high-performance network adapter. It supports the PCI Express bus architecture, which provides faster throughput than the current 32- and 64-bit PCI bus architectures. And there is no need to switch to fiber optic cable — the Intellinet Network Solutions Gigabit PCI Express Network Card allows you to run Gigabit speeds over your existing copper wire network cable.

Faster Throughput

The PCI Express host interface supports throughput rates of up to 2 Gbps when running in full duplex mode, ideal for resource-intensive CAD/CAM, client-server database, multimedia, pre-press, advertising graphics, server and mission-critical applications.

Auto-Negotiation

The Gigabit PCI Express Network Card will automatically detect the network speed that the LAN switch port is set to and run at the same speed. The card supports 10Base-T Ethernet, 100Base-TX Fast Ethernet and 1000Base-T Gigabit Ethernet.

Full Duplex

When running in full duplex mode, the Gigabit PCI Express Network Card provides the following throughput rates: 20 Mbps (10Base-T Ethernet), 200 Mbps (100Base-TX Fast Ethernet) and 2 Gbps (1000Base-T Gigabit Ethernet).

Built-In Diagnostics

The Gigabit PCI Express Network Card comes standard with crossover detection and auto correction capabilities that make installation and maintenance a snap.

Remote Power On

The Wake-On-LAN feature allows you to power on your desktop PC from anywhere on the network.

Supports Gigabit speeds over existing network cable
Does not require fiber optic cabling to run Gigabit speeds
PCI Express 1.0a bus interface fits 1, 4, 8 and 16X PCI-E slots
Single PCI Express lane (x1) 2.5 Gbps interface
Full duplex flow control (IEEE 802.3x)
Supports jumbo frames up to 9 kB
Full duplex speeds (20 Mbps, 200 Mbps, 2000 Mbps)

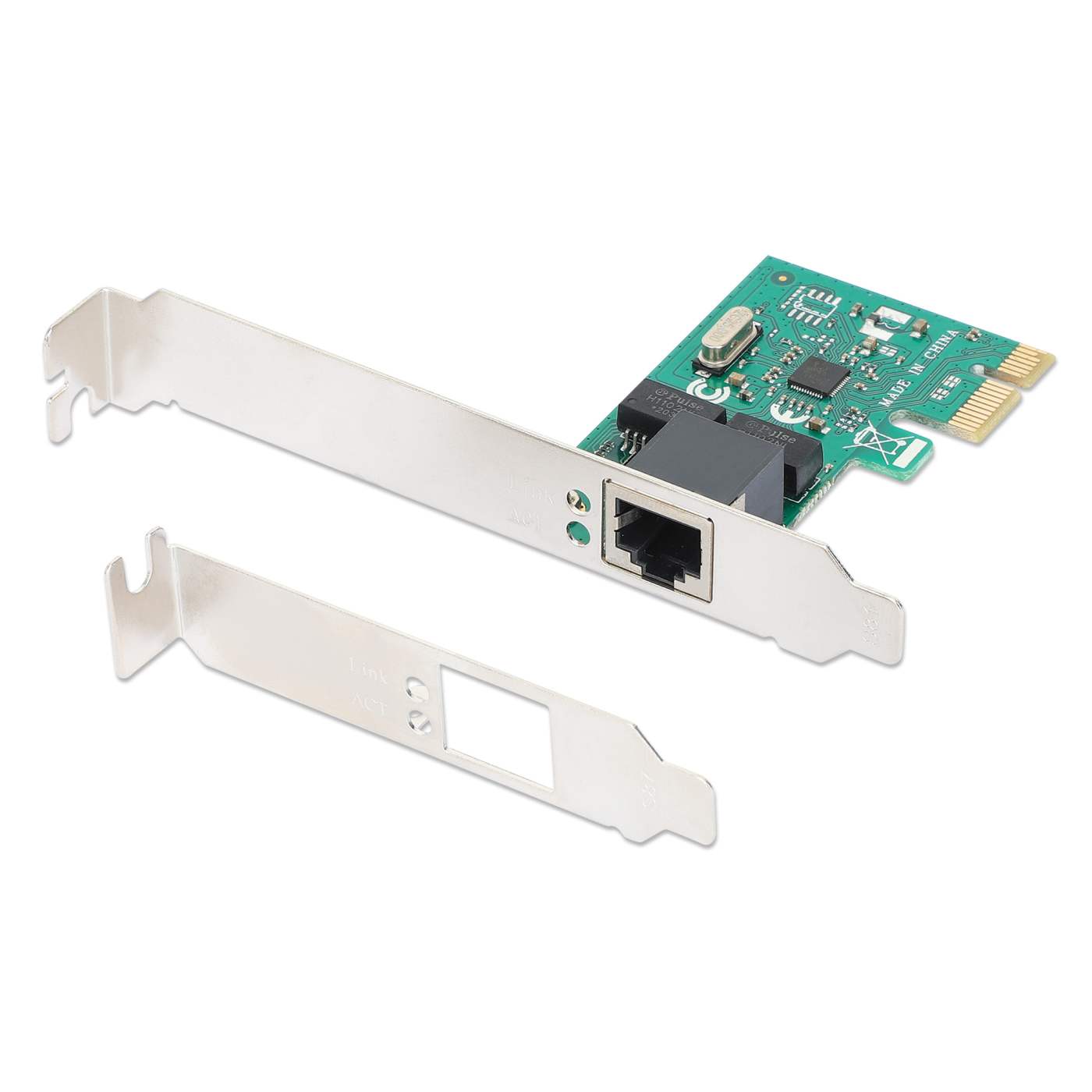

Includes low profile 8 cm bracket
Wake-On-LAN (WOL) support
Supports the most popular operating systems: Windows Vista/7/8/8.1/10/11 and Linux
Three-Year Warranty

IEEE 802.1p (Traffic Prioritization)
IEEE 802.1q (VLAN Tagging)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3ab (1000Base-T Gigabit Ethernet)

Hardware
FCC & CE compliance
Compliant with PCI-E 1.1 X1 Serial PCI Express
Link LED
Act LED

Environmental
Dimensions: 121 (L) x 68 (W) x 19 (D) mm (4.76 x 2.68 x 0.75 in.)
Weight: 39.6 g (1.4 oz.)
Operating temperature: 0 – 40°C (32 – 104°F)
Storage temperature: 0 – 65°C (32 – 149°F)
Operating humidity: 10 – 90%, non-condensing
Storage humidity: 5 – 95%, non-condensing

Supported OS
Windows Vista/7/8/8.1/10/11
Linux

Package Contents
Gigabit PCI Express Network Card
Low-profile 8cm bracket

Additional SKUs

Amazon ASIN: B001P8V50U
EAN: 0766623522533
UPC: 766623522533
ALSO: 1601872
API: 77377

Physical Specifications

Product net weight: 0.03 kg
Product gross weight: 0.1 kg
Dimensions: 121 (L) x 68 (W) x 19 (H) [mm]
Packaging type: Retail Box
Packaging dimensions: 174 x 128 x 31 [mm]
Master Carton Quantity: 50
Master Carton Weight: 5.40 kg
Master Carton Dimensions: 560 x 330 x 250 [mm]

Datasheet

Datasheet » Download

Driver

Windows 2000/XP (32-bit)
Chipset: Marvell Yukon » Download

WIndows 2003 Server/XP (64-bit)
Chipset: Marvell Yukon » Download

Windows Vista & 2008 Server (32-bit)
Chipset: Marvell Yukon » Download

Complete Windows Driver
Win 2000/XP/2003/Vista/2008 x86 and x64 Multi-Language Installer (32- and 64-bit).
Chipset: Realtek
Date: 8/18/08 » Download
