Intellinet

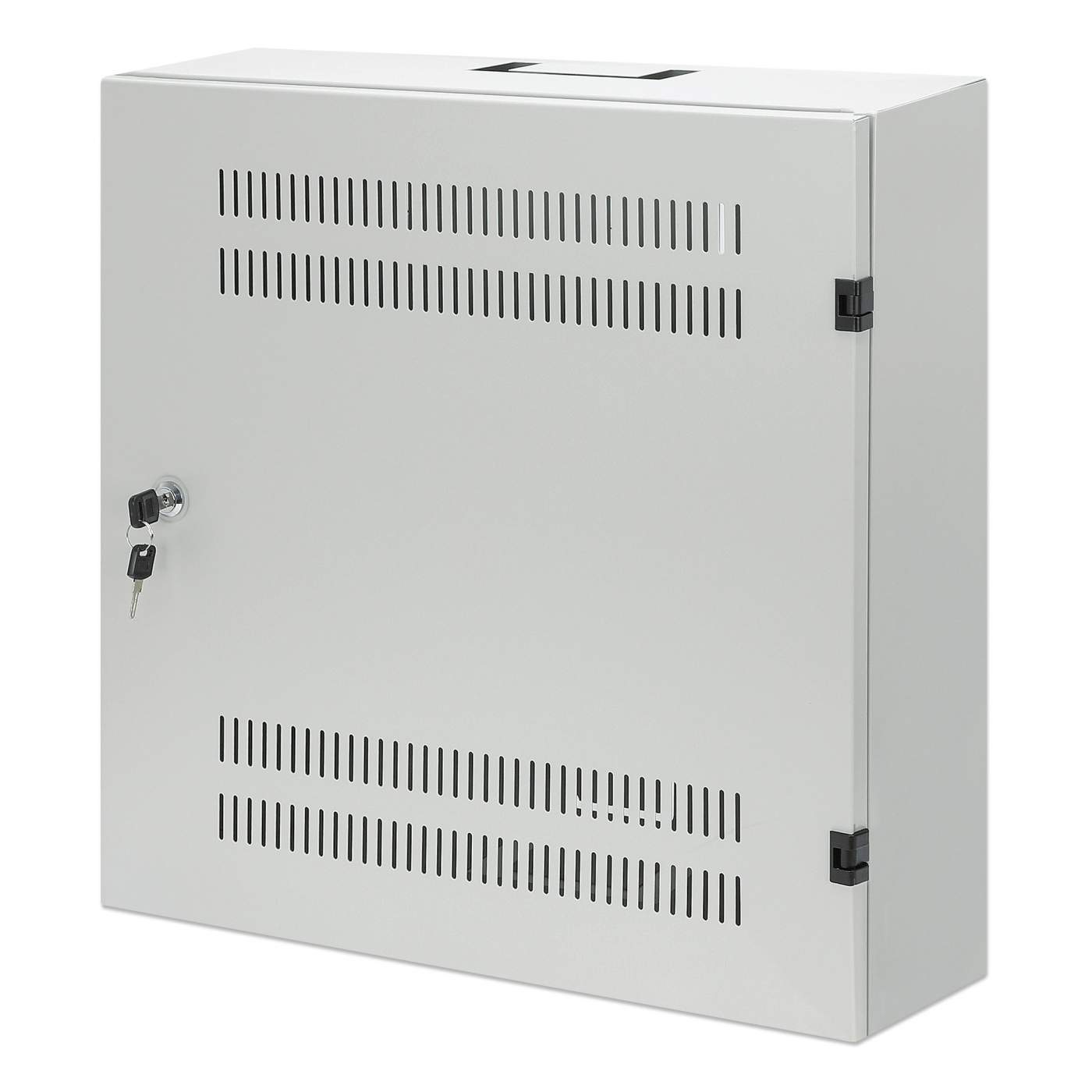

Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails

Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails

Slim, Space-saving Enclosure with Only 170 mm (6.7 in.) Depth, Ideal for AV, Multimedia and Surveillance Applications, Assembled, Gray RAL 7035

SKU: 713641

Highlights

  • Slim, space-saving design for organized, secure housing of network, multimedia, surveillance, audio/video and smart home equipment
  • Horizontal 4U 19" rackmount option for PDUs, patch panels and other equipment with a depth up to 170 mm (6.7 in.)
  • Vertical 2U 19" rackmount option for network switches and other equipment with a depth up to 280 mm (11 in.)
[ view high resolution images ]

Slim, space-saving wall-mount network enclosure rack for AV multimedia equipment and more

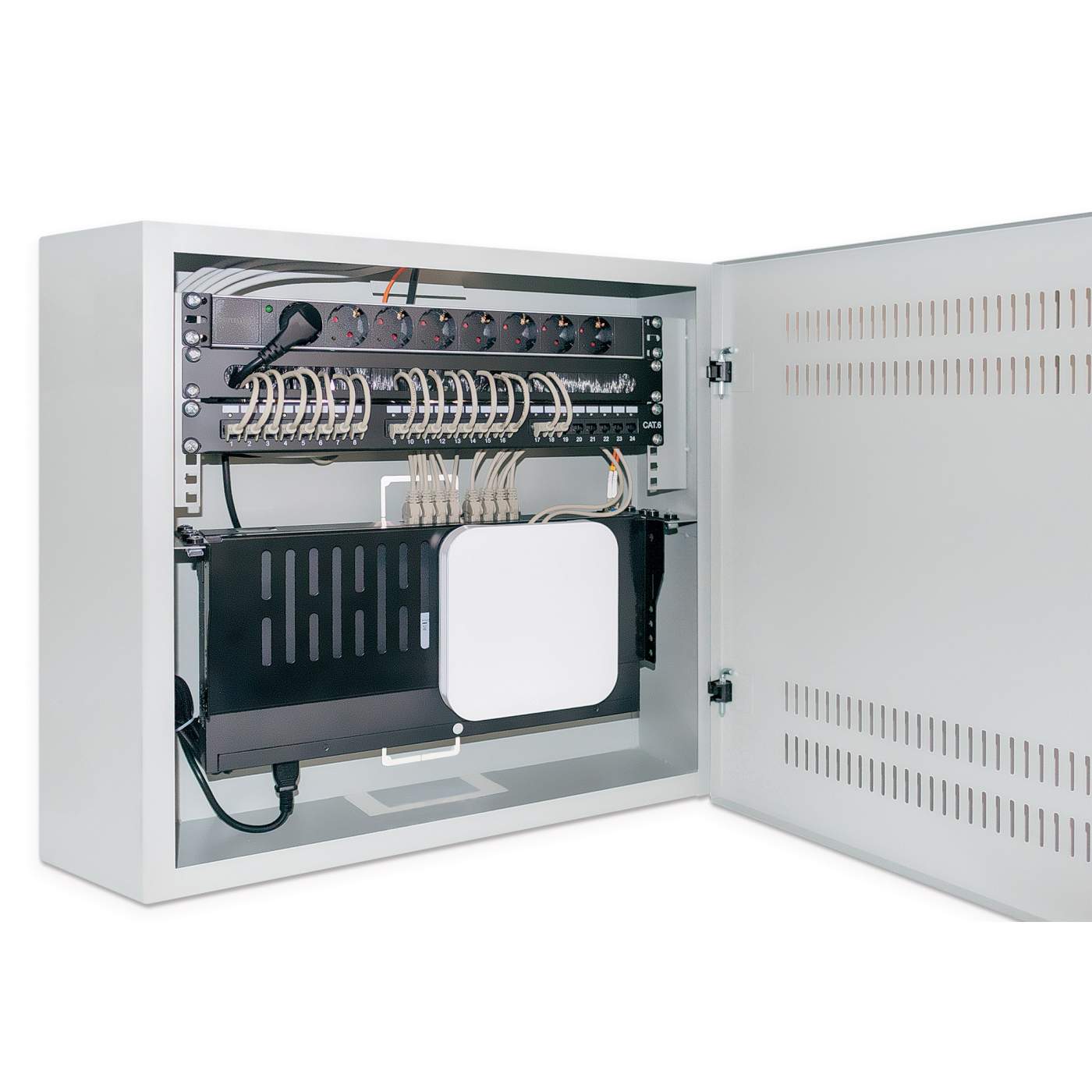

The Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails from Intellinet Network Solutions is a slim rack enclosure for residential and SOHO environments. It organizes and secures network equipment from multimedia, surveillance, audio/video and home automation while saving valuable space with its hybrid of two mounting options.

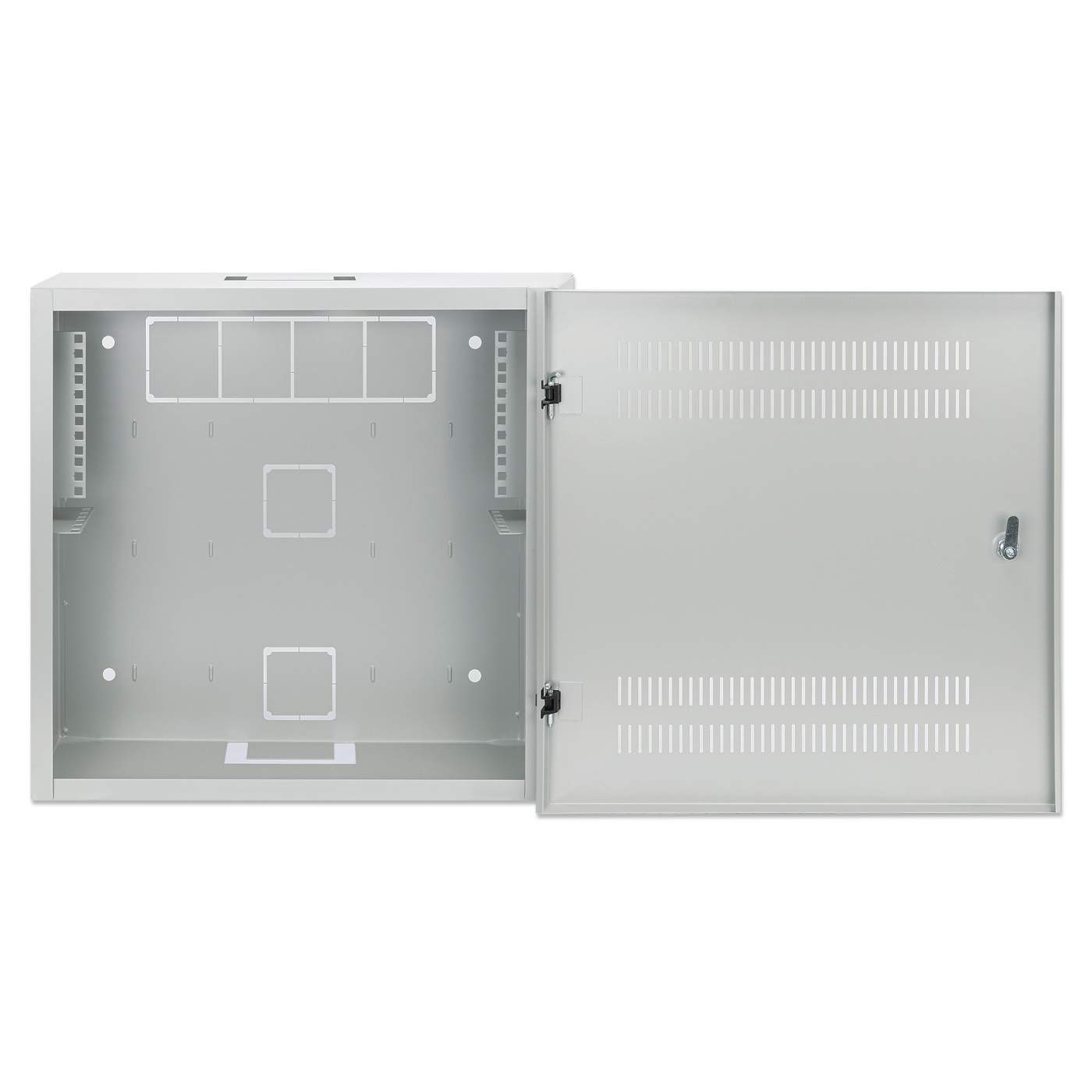

Thanks to its compact depth, it only extends 170 mm (6.7 in.) from the wall, but its vertical mounting option means you can install even bulky equipment like network switches with a depth up to 280 mm (11 in.). The sturdy IP20-rated steel housing with antistatic powder coating can be locked with a secure three-point door lock to prevent damage, tampering or theft. It carries a load capacity up to 60 kg (132 lbs.), and ventilation slots ensure maximum airflow to keep your equipment cool. Your structured cabling can enter through pre-punched holes on the top, rear or bottom. Its fully assembled shipping condition saves you the trouble of putting it together.



  • Slim, space-saving design for organized, secure housing of network, multimedia, surveillance, audio/video and smart home equipment
  • Horizontal 4U 19" rackmount option for PDUs, patch panels and other equipment with a depth up to 170 mm (6.7 in.)
  • Vertical 2U 19" rackmount option for network switches and other equipment with a depth up to 280 mm (11 in.)
  • Maximum load capacity of 60 kg (132 lbs.)
  • Extends only 170 mm (6.7 in.) from the wall
  • Sturdy, secure steel housing with antistatic powder coating

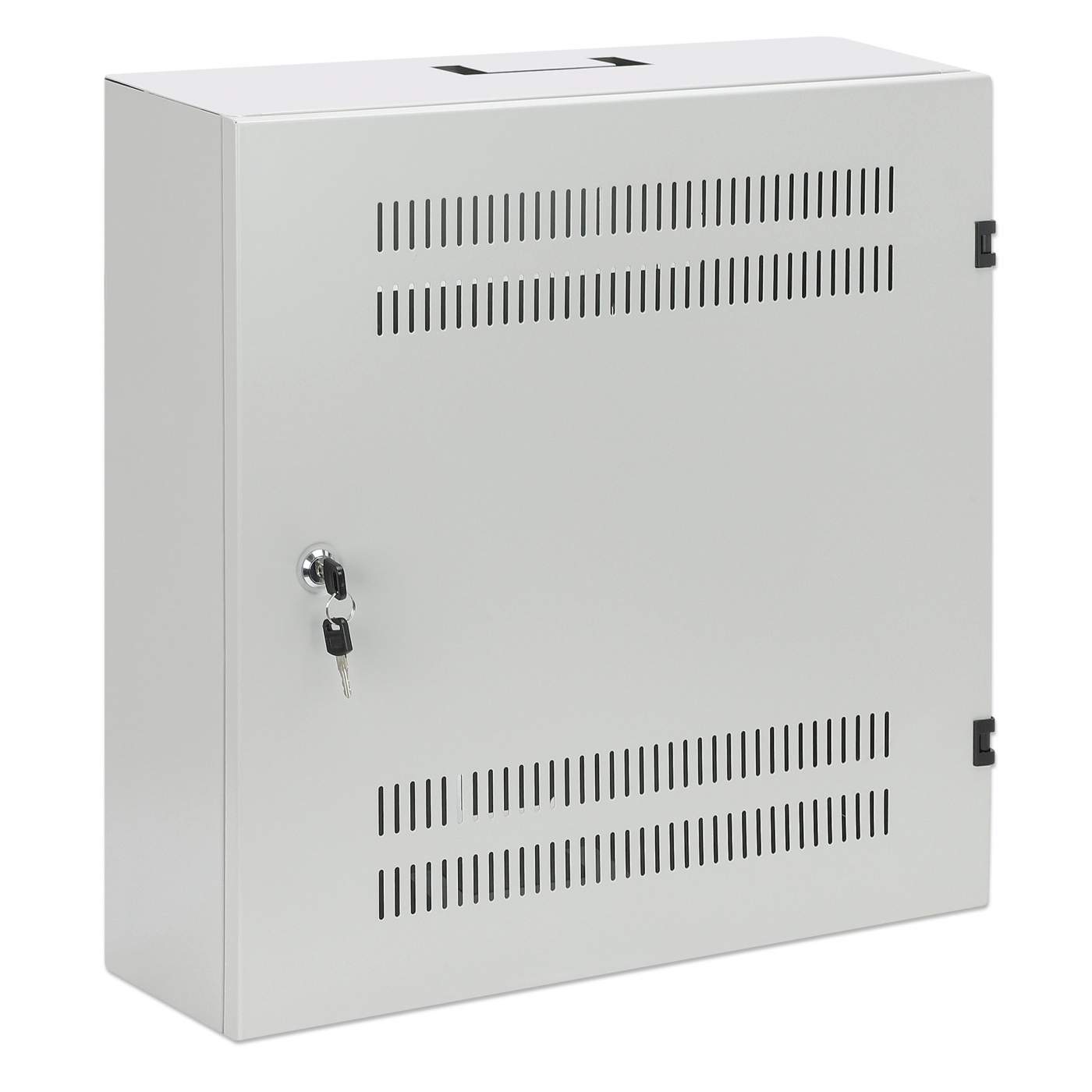

  • Three-point door lock with two included keys

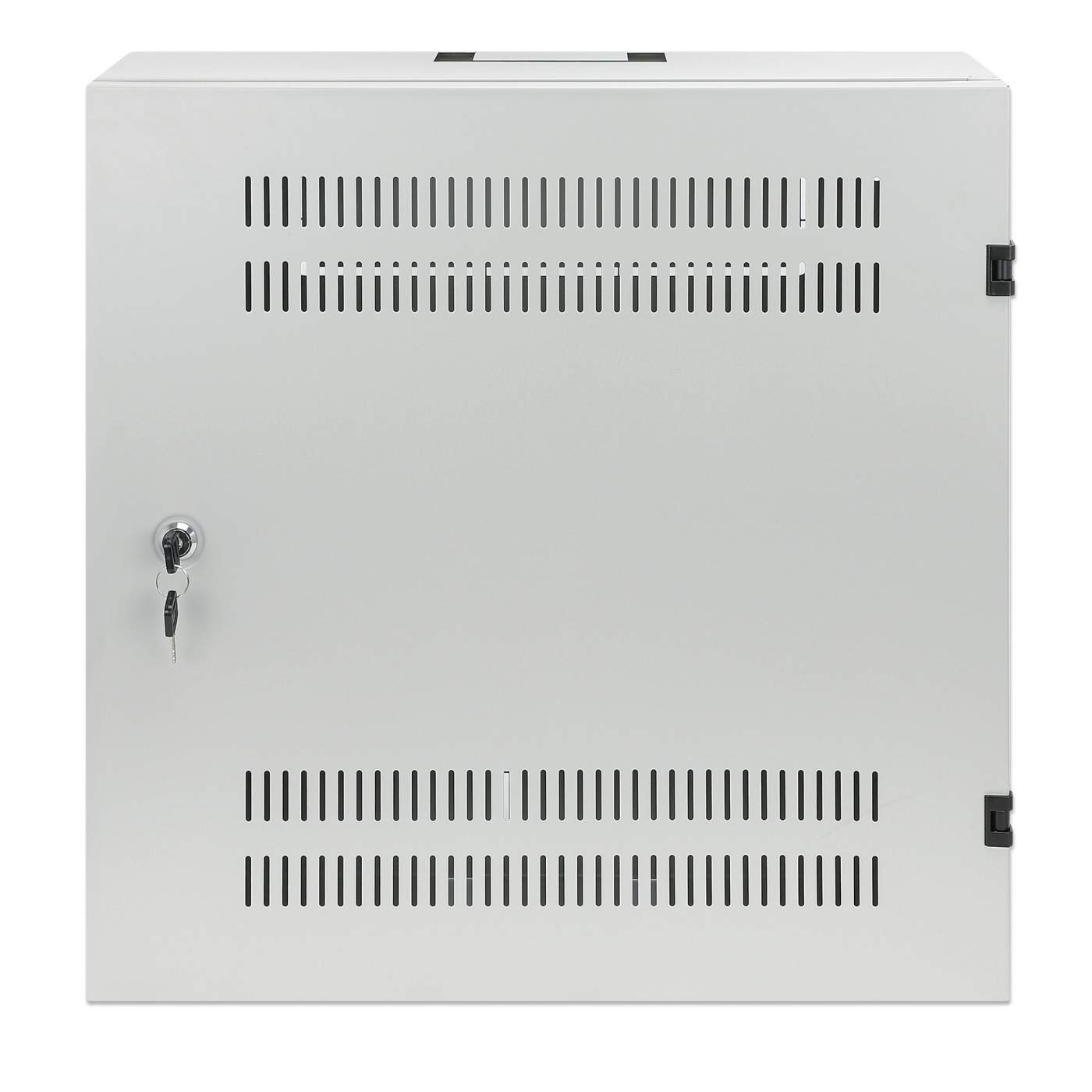

  • Ventilation slots for maximum airflow to keep your equipment cool and prevent overheating
  • IP20-rated protection

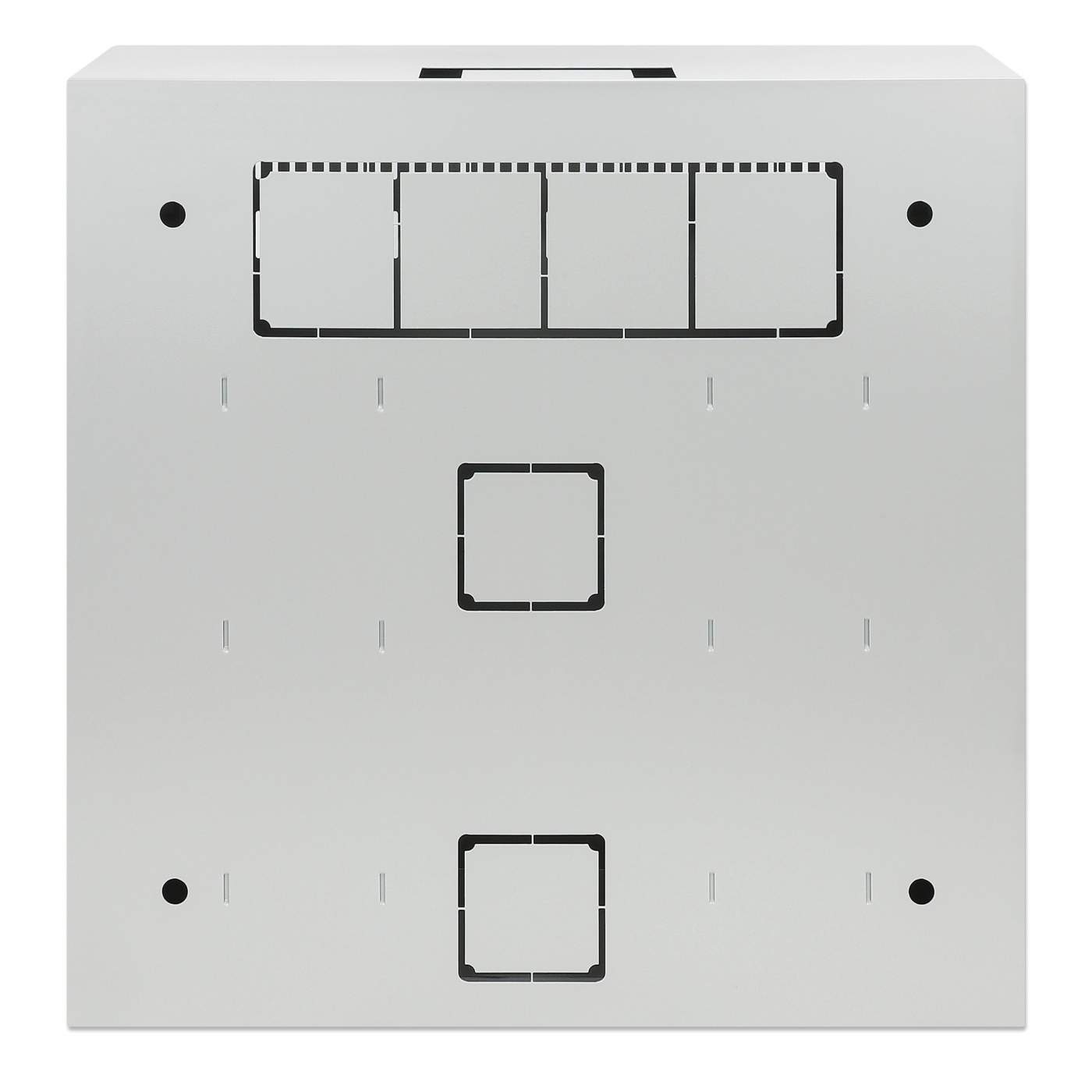

  • Pre-punched cable entry openings on top, rear and bottom
  • Ships fully assembled for quick installation
  • Three-year warranty
    Standards and Certifications
  • RoHS
  • IP20 Protection Rating
  • ANSI/EIA 310-E
  • IEC 60297-2

    General
  • Dimensions (H x W x D): 540 x 550 x 170 mm (21.26 x 21.65 x 6.69 in.)
  • Weight: 8.5 kg (18.74 lbs.)
  • Maximum static load: 60 kg (132 lbs.)
  • Material: steel
  • Color: gray RAL 7035

    Package Contents
  • Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails

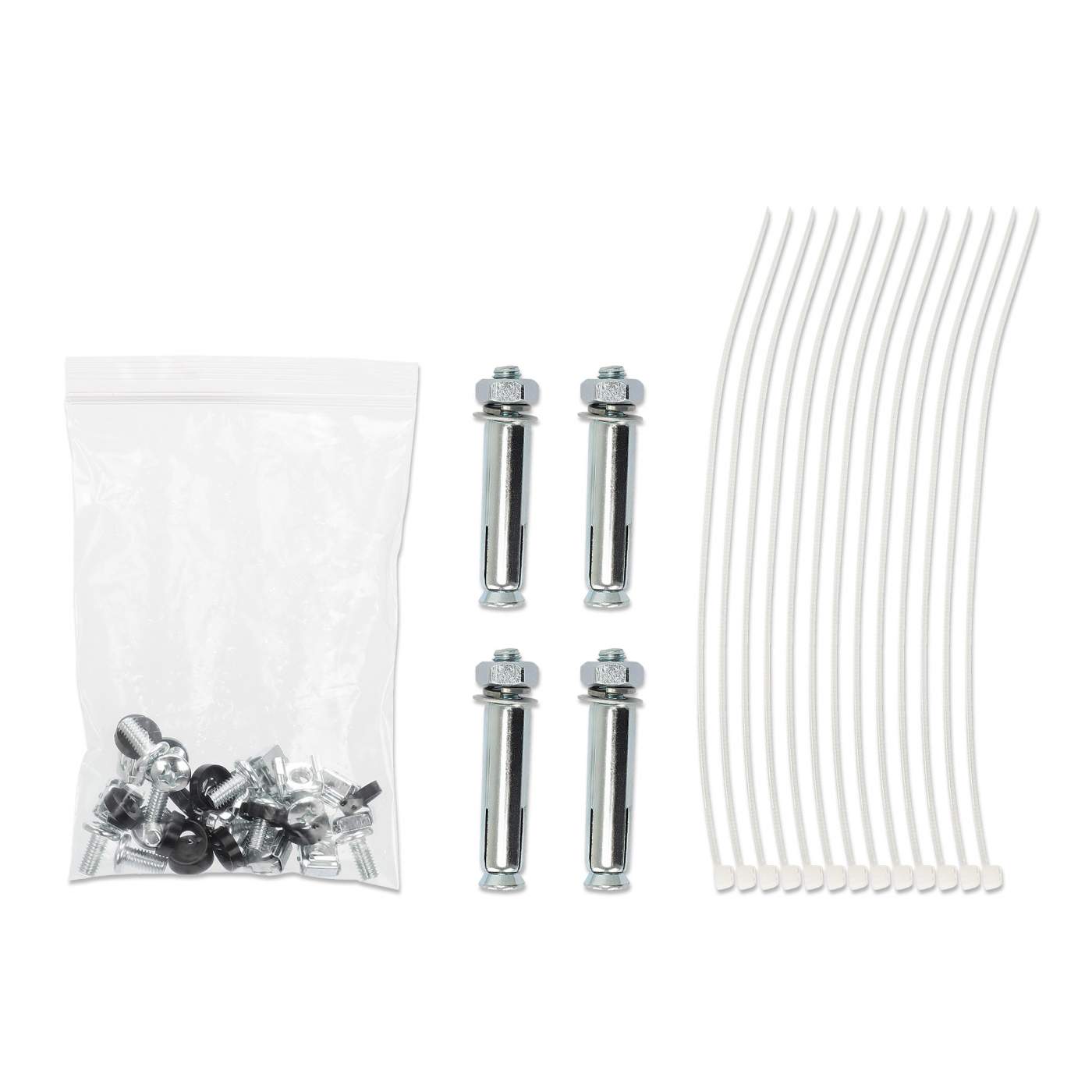

  • Cage nut set for 19" rackmount equipment (12 x M6 screw, 12 x M6 cage nut, 12 x plastic washer)
  • Two keys

    This product is part of a group; the complete list of variations follows:
  • #713689 - Slim Wall Mount Network Cabinet, Black
  • #713641 - Slim Wall Mount Network Cabinet, Gray
  • Additional SKUs

    • EAN: 0766623713641
    • UPC: 766623713641

  • Physical Specifications

    • Product net weight: 8.5 kg
    • Product gross weight: 9.5 kg
    • Dimensions: 540 (H) x 550 (W) x 170 (D) [mm]
    • Packaging type: Brown Box
    • Packaging dimensions: 555 x 545 x 205 [mm]
    • Master Carton Quantity: 1
    • Master Carton Weight: 9.50 kg
    • Master Carton Dimensions: 560 x 560 x 190 [mm]
  • Datasheet
    • Technical Drawing     » Download

    • Datasheet     » Download

    • Declaration of Conformity     » Download
