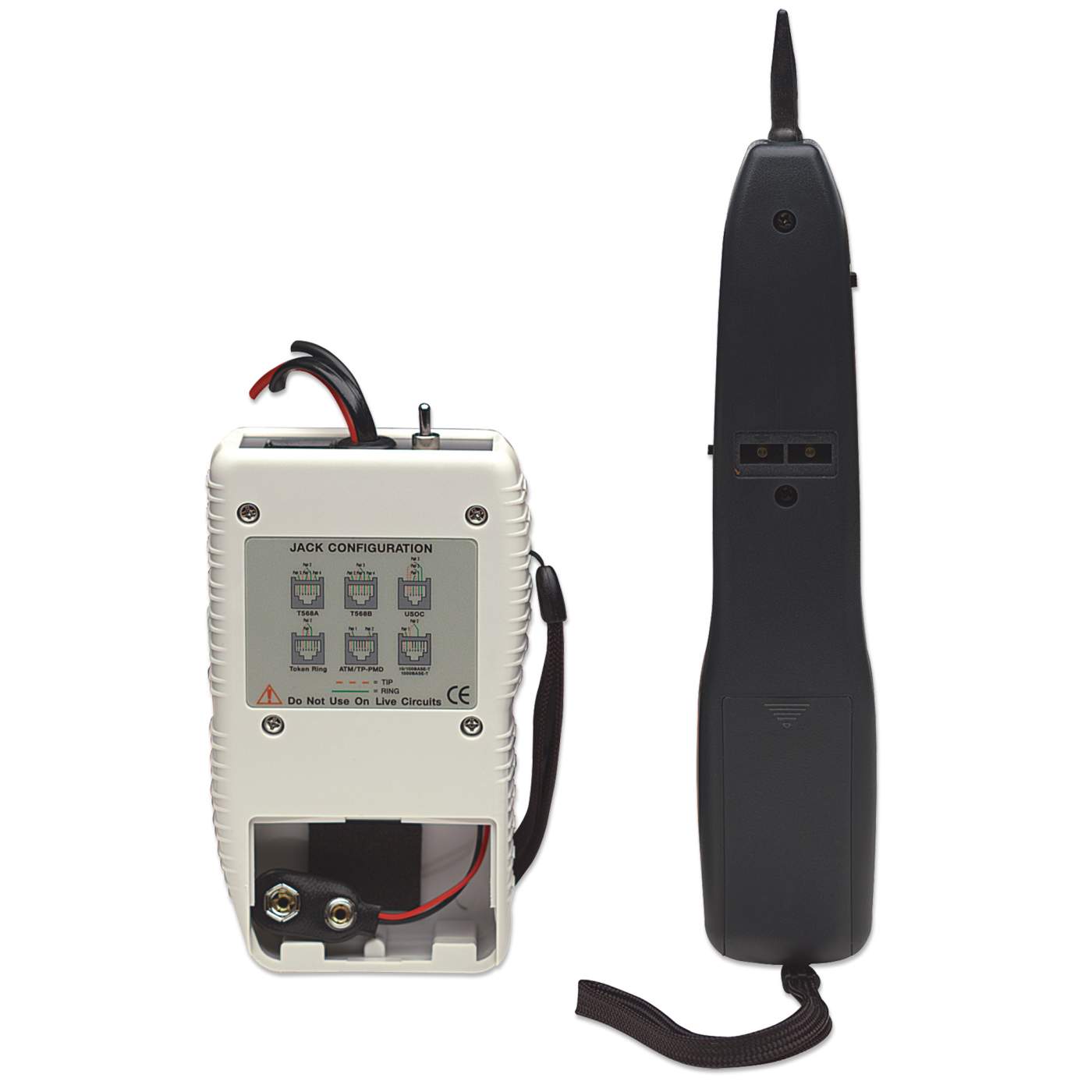

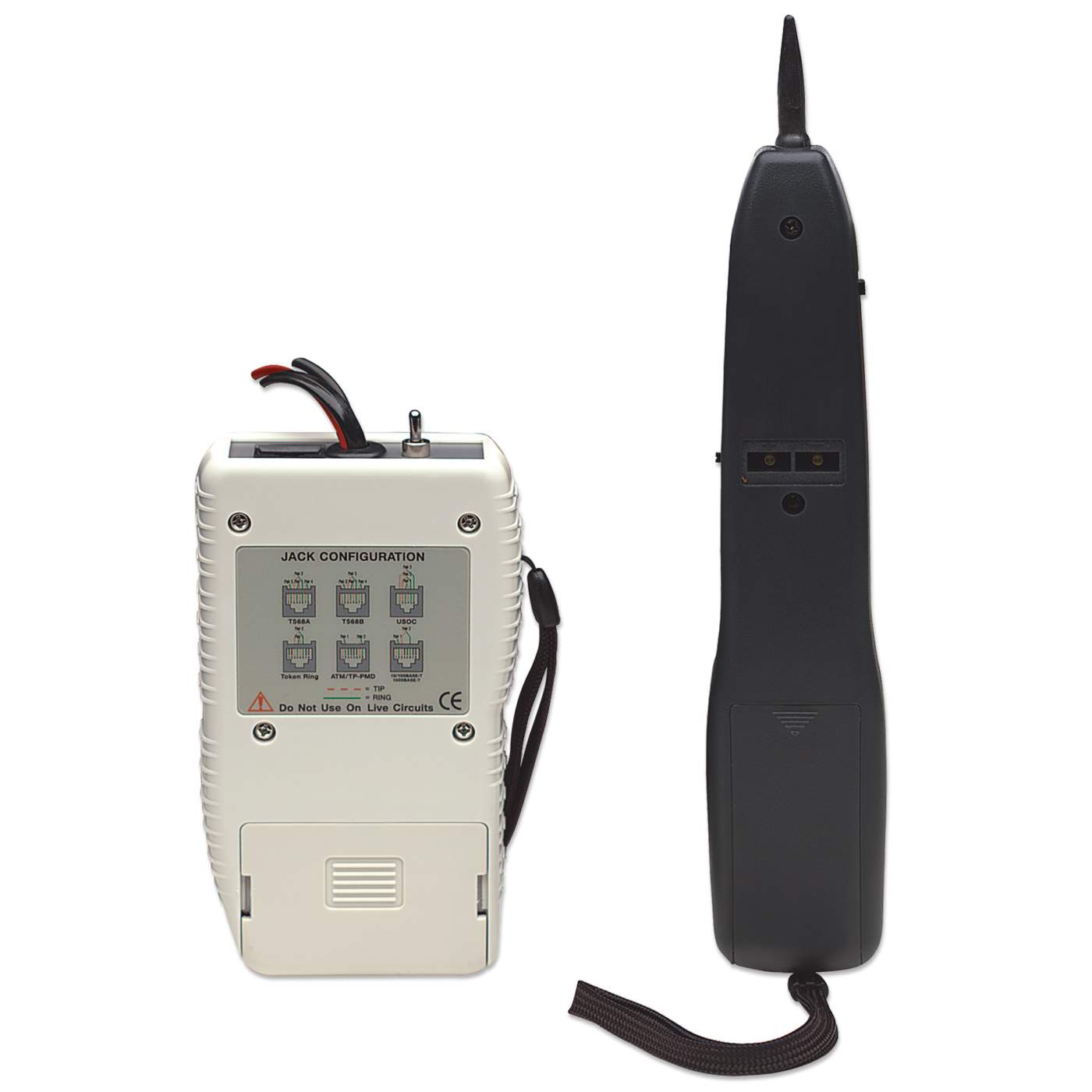

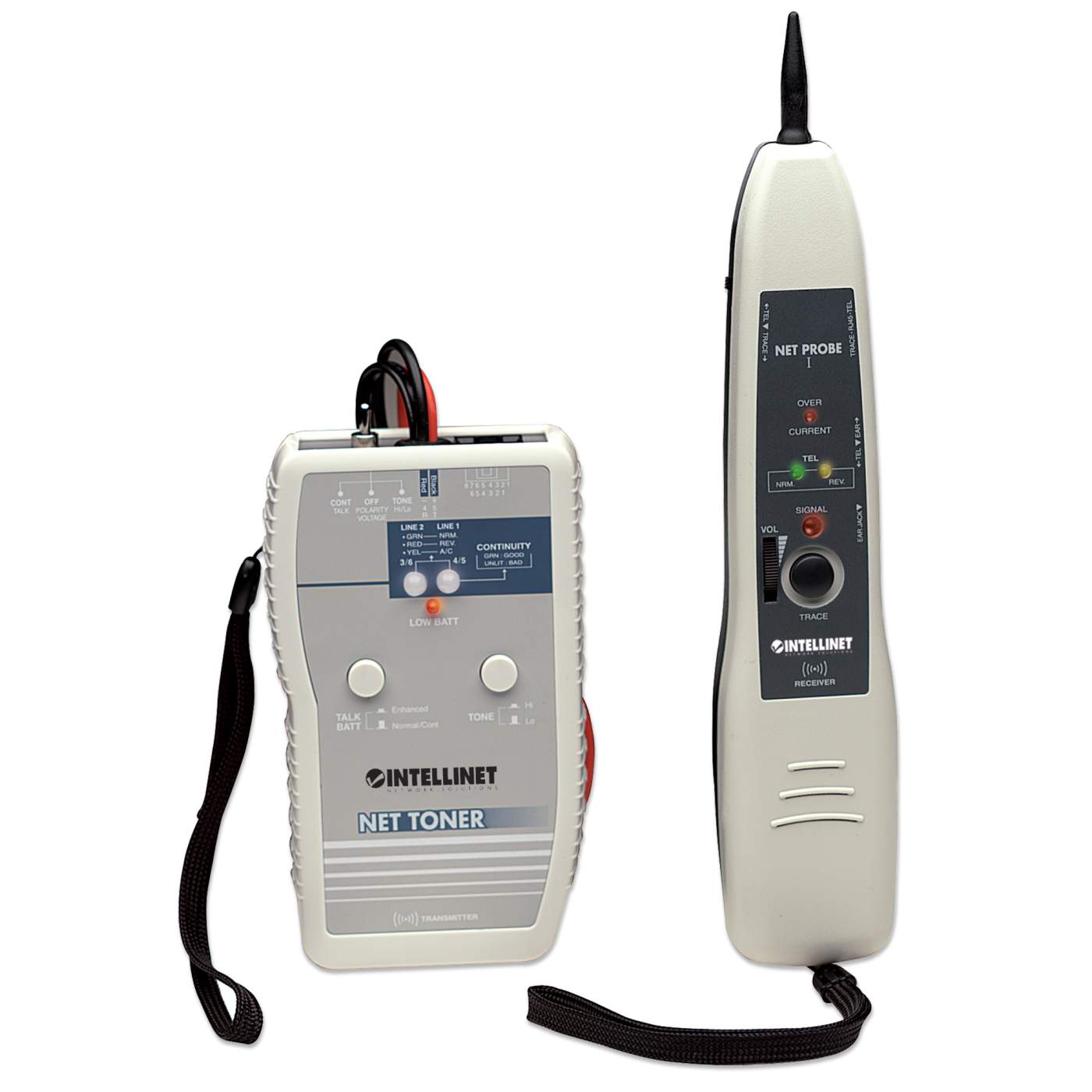

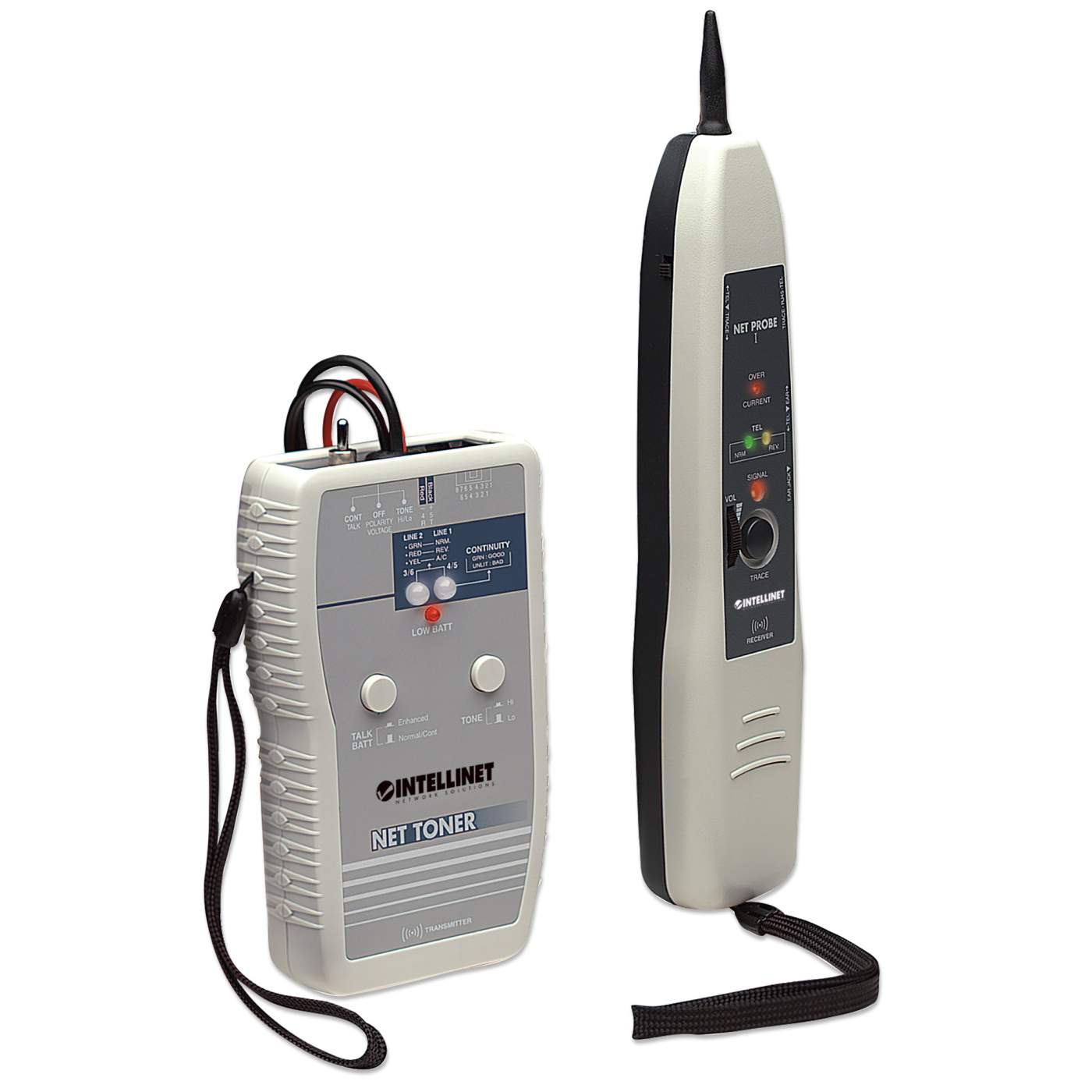

Intellinet
Net Toner and Probe Kit
Net Toner and Probe Kit
Tone Generator, Tests Datacom, Telecom, Security, Video, and Audio Networks
SKU: 515566
Highlights
- Tests datacom, telecom, security, video, and audio networks
- Two position switch for single or multi-tone signal
- LEDs for line polarity, continuity and voltage
- Tests datacom, telecom, security, video, and audio networks
- Two position switch for single or multi-tone signal
- LEDs for line polarity, continuity and voltage
- Enhanced talk battery mode provides power for voice communications over inactive pairs
- Testing leads and modular cables for individual wire tests or modular jack tests
- Replaceable plastic tip to prevent accidental shorts
- Trace or identify wire or cables in a bundle or group

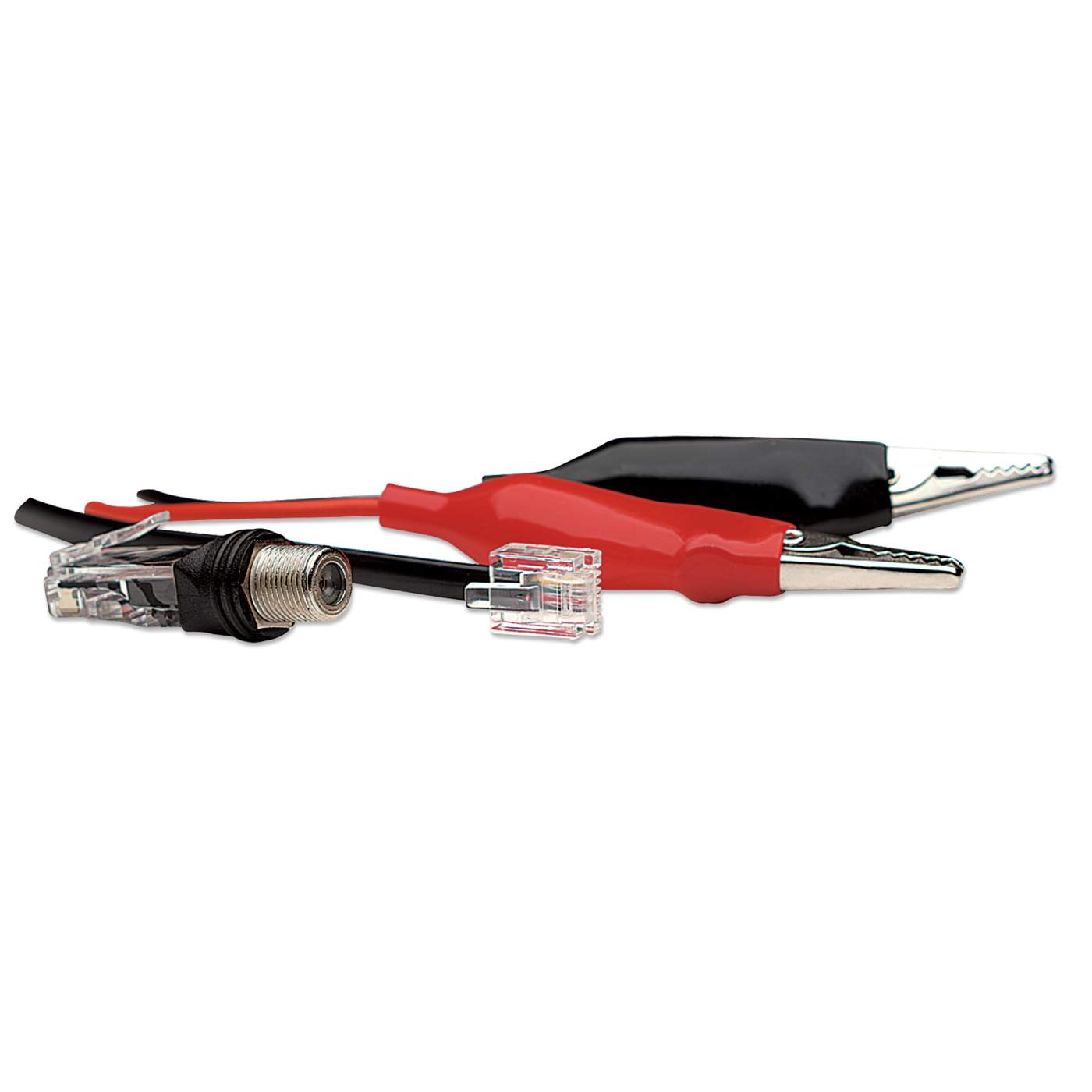

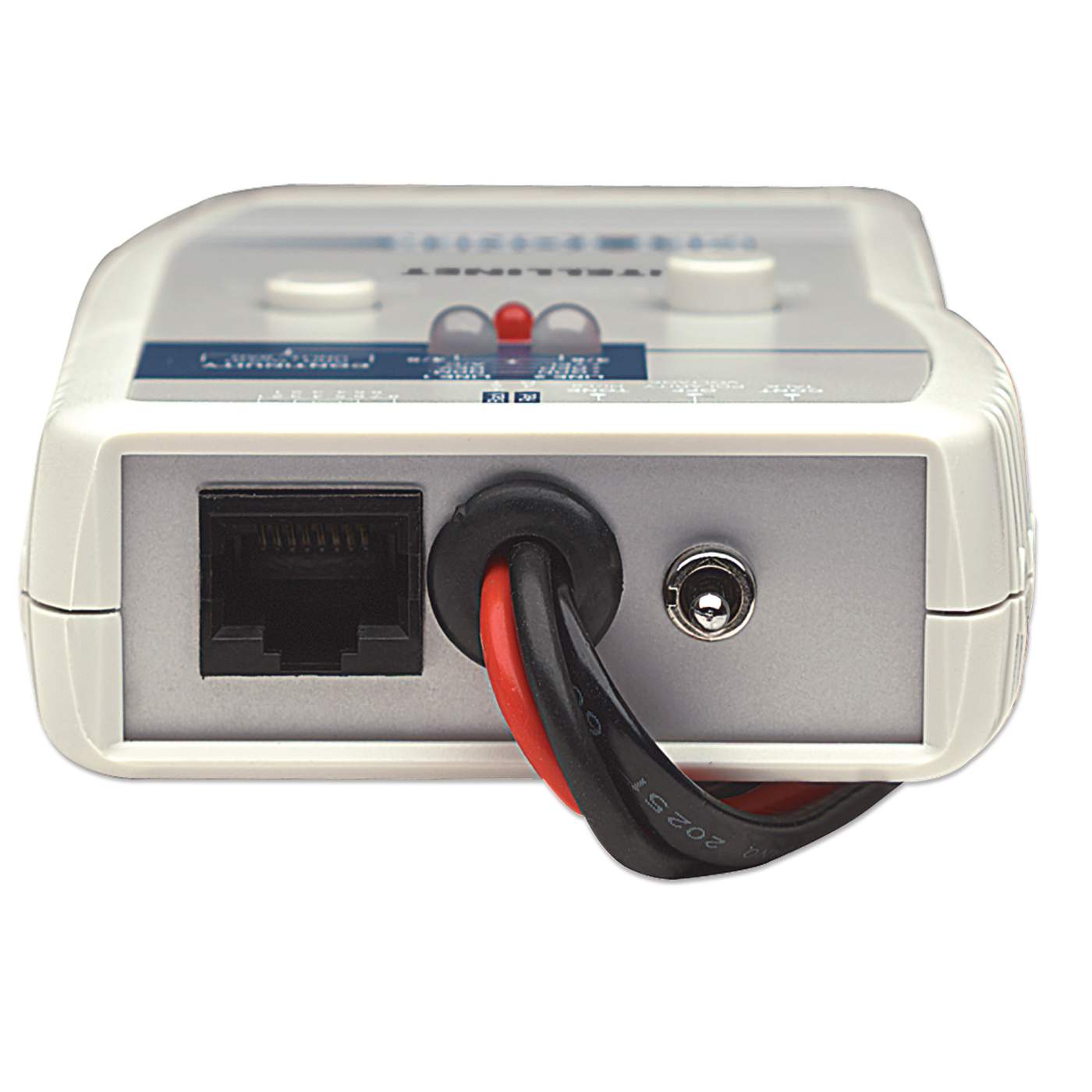

- Alligator clips, RJ45 jack, RJ12 plug, optional F-connector
- Three-year warranty
- Net Toner
- Toner Frequency: High alternating 500-781 Hz ; Low alternating 446-657 Hz
- Talk Battery: 9V into a 600 ohms circuit
- Voltage protection: 50 VDC or 24 VAC
- Battery: 9V DC standard or alkaline
- CE Approved: EN 55022 Class B for ITE and EN 55024
- Size: 125 (L) x 68 (W) x 26 (H) mm (4.9 x 2.7 x 1.2 in.)
- Weight: 120g (.37 lb)

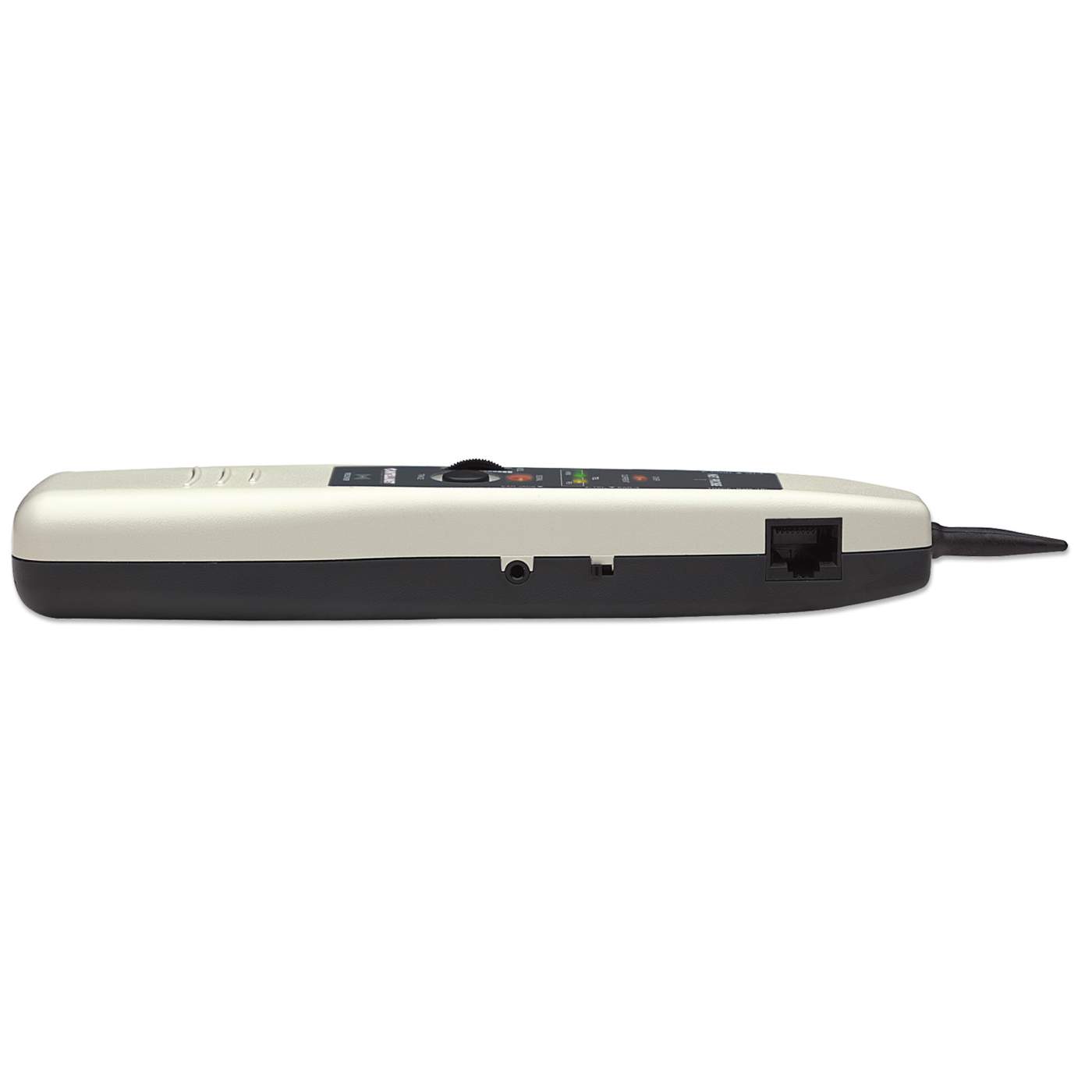

Net Probe
- Gain: 30 db
- Tip resistance: 30 ohms (Plastic tip)
- Battery: 9V DC standard or alkaline
- CE Approved: EN 55022 Class B for ITE and EN 55024
- Size: 210 (L) x 40 (W) x 28 (H) mm (8.1 x 1.6 x 1 in.)
- Weight: 140g (.30 lb)
Environmental:
- Operating temperature: 0 – 40°C (32 – 104°F)

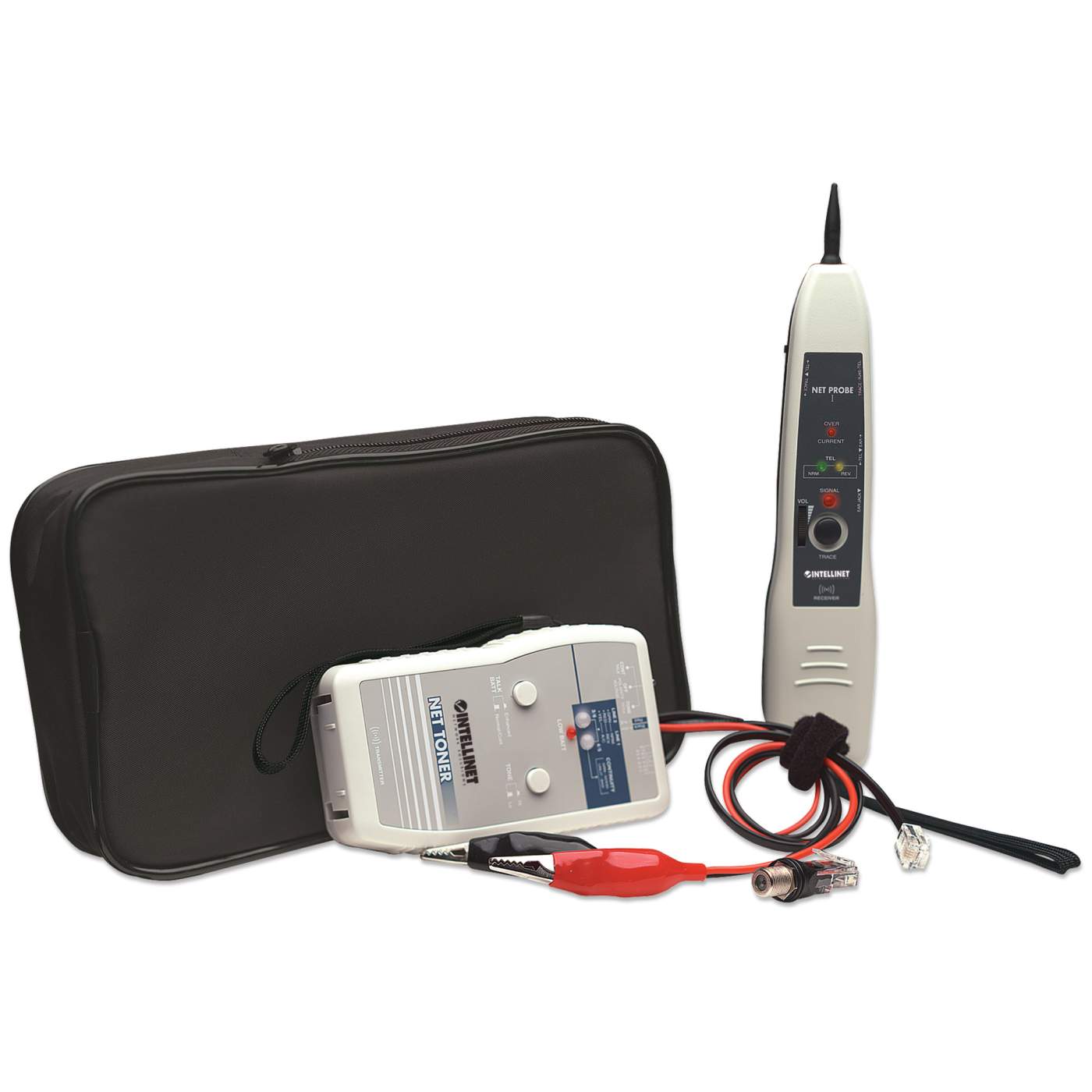

Package Contents
- Net Probe
- Net Toner w/ Alligator clips and RJ12 connector
- Female F-connector to RJ45 adapter
- Carrying pouch
- User Manual
Additional SKUs
- Amazon ASIN: B000O54P3Y
- EAN: 0766623515566
- UPC: 766623515566
- ALSO: 1602284
- API: 101352
Physical Specifications
- Product net weight: 0.48 kg
- Packaging type: Retail Box
- Packaging dimensions: 270 x 130 x 50 [mm]
- Master Carton Quantity: 20
- Master Carton Weight: 8.00 kg
- Master Carton Dimensions: 360 x 310 x 410 [mm]
