Premium 19" Server Cabinet
Premium 19" Server Cabinet
26U, 1000 (D) x 600 (W) x 1322 (H) mm, Flat Pack, Black
SKU: 715546
Highlights
- Ideal for all 19" rackmount applications
- Anodized aluminium frame
- Maximum static load of 2000 kg (4409 lb.)

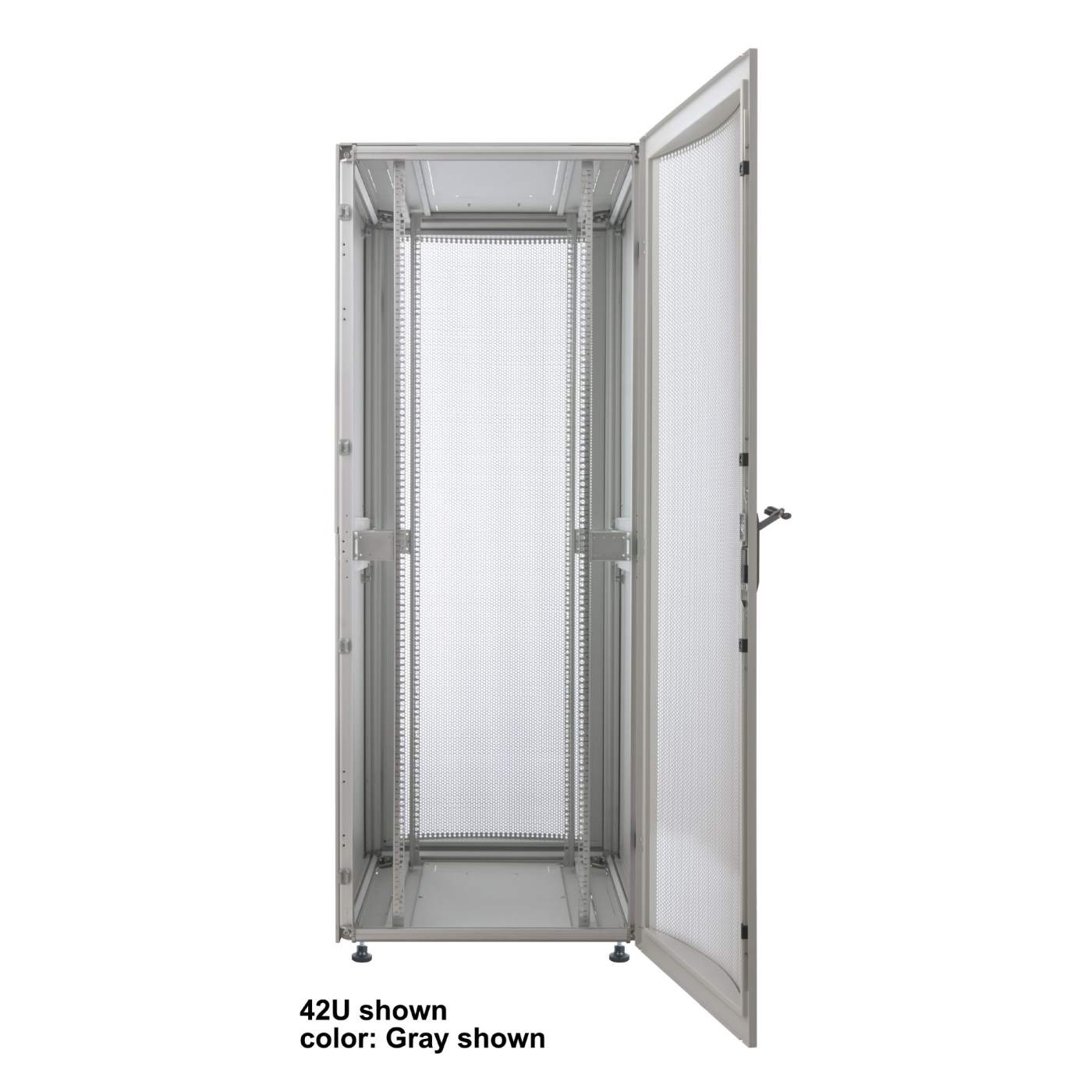

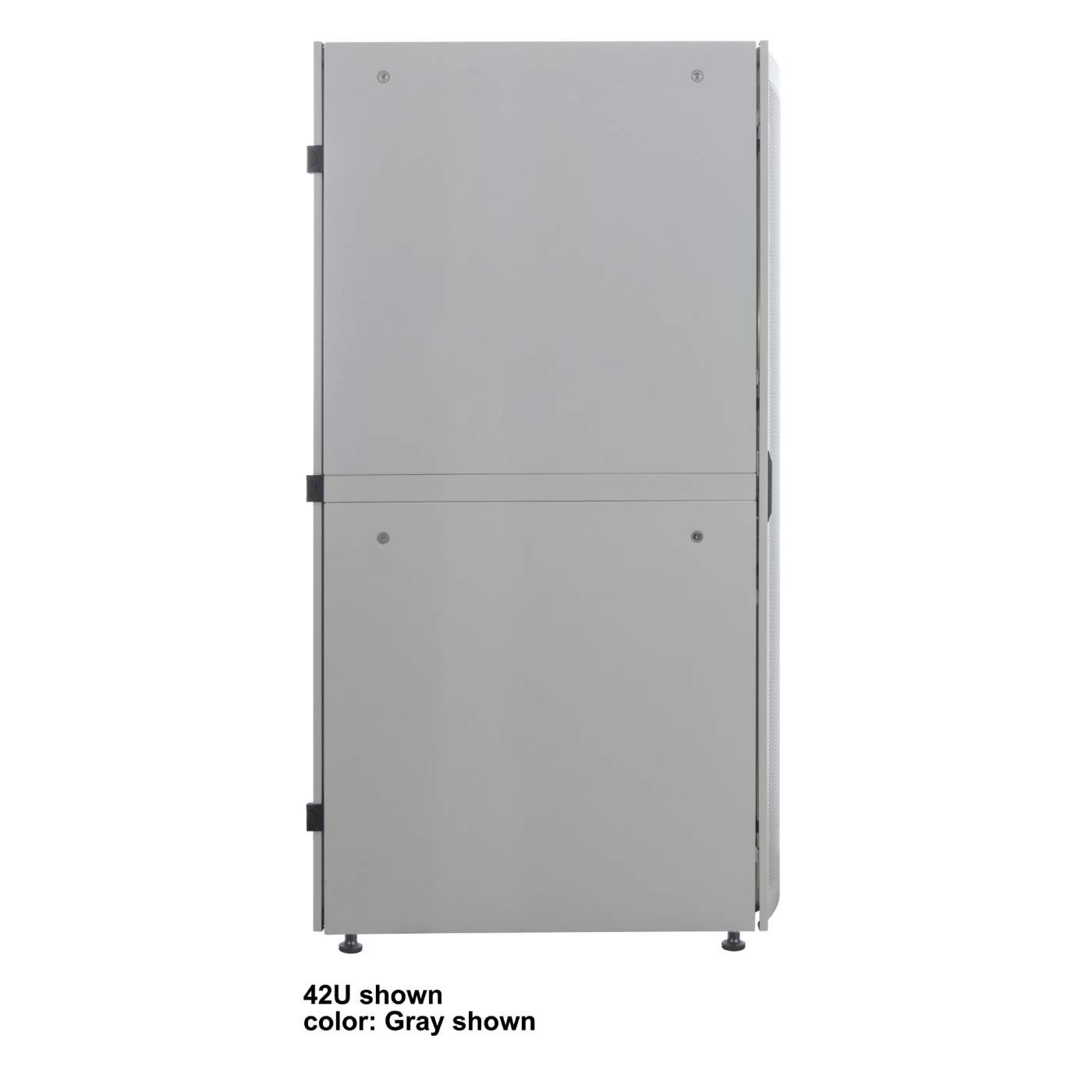

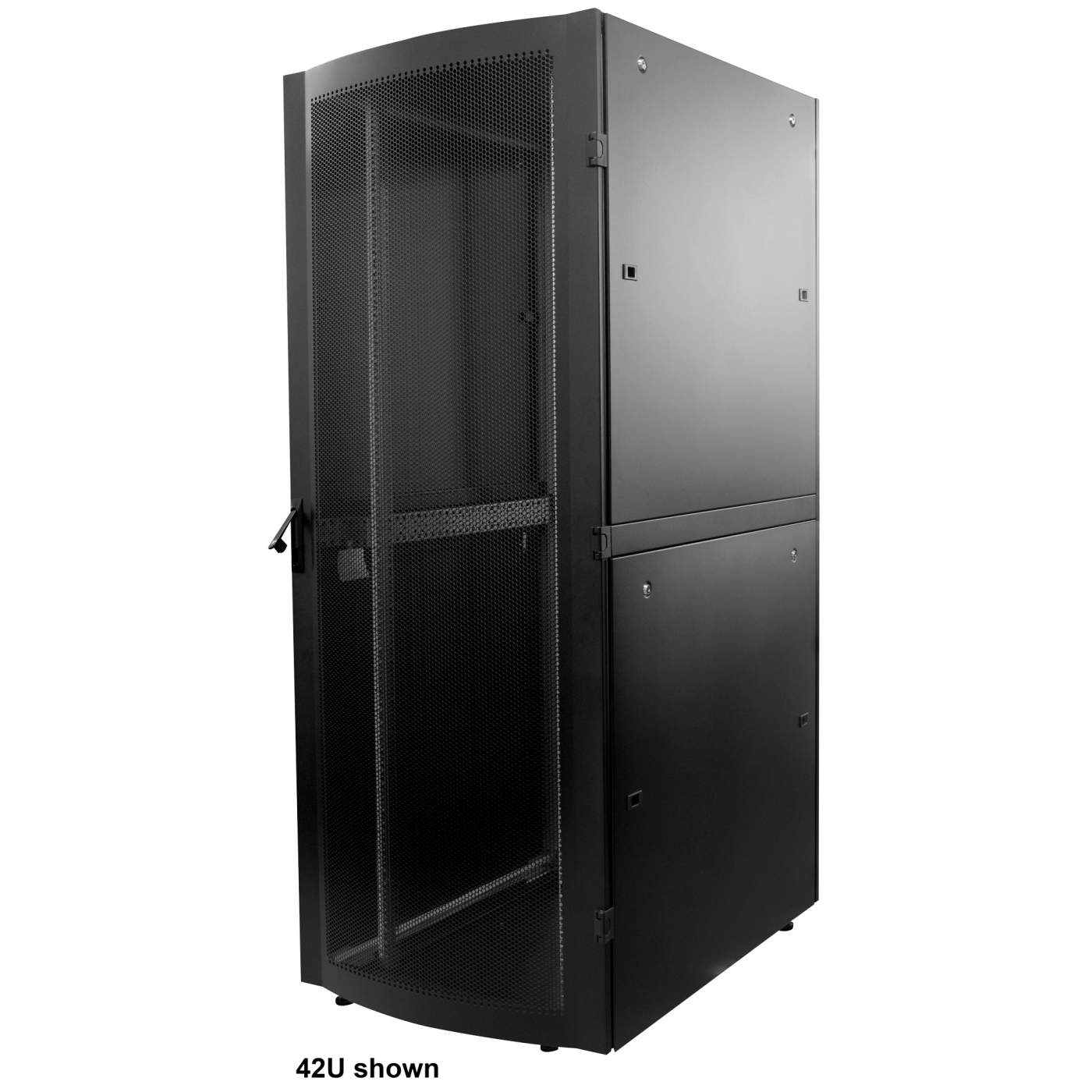

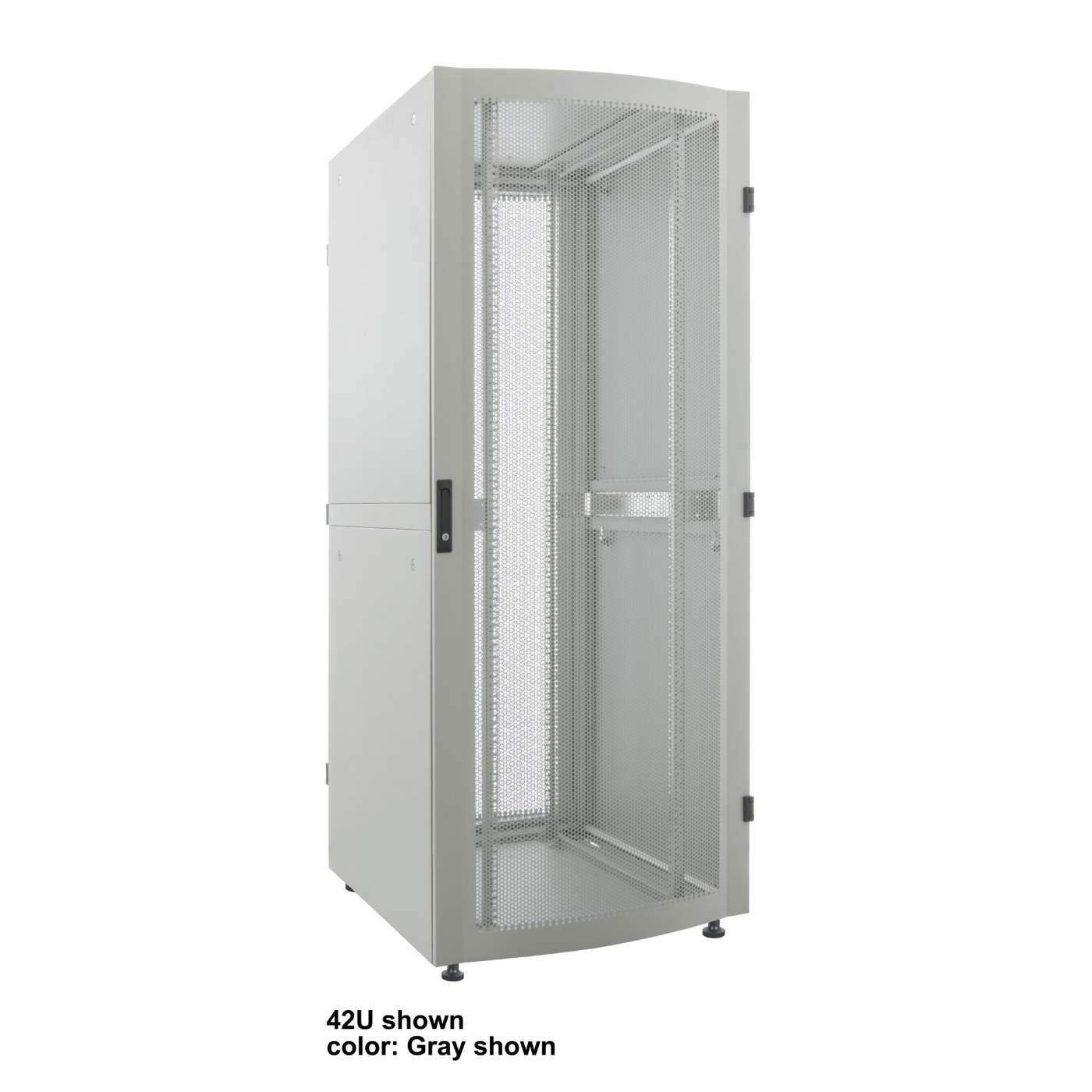

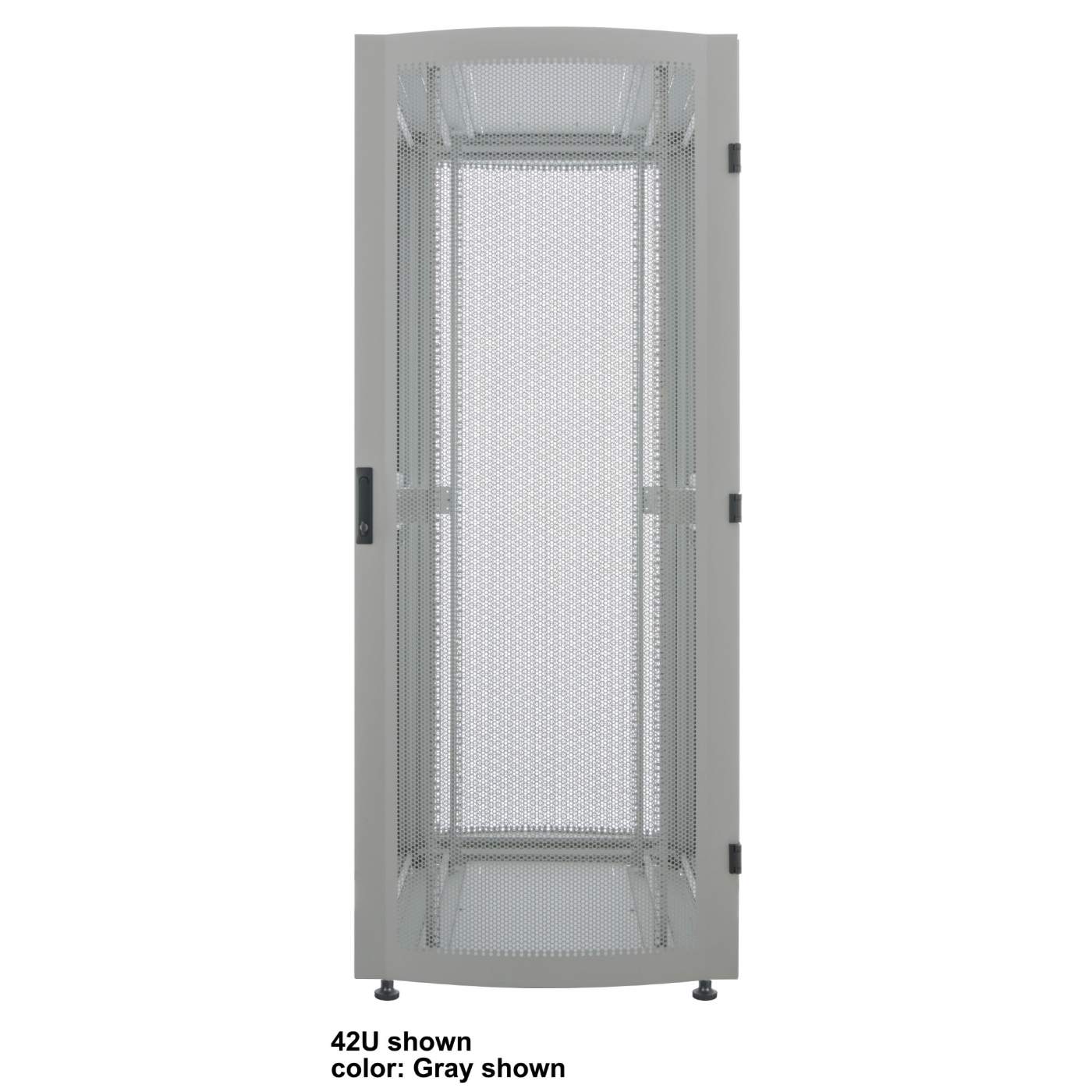

[ view high resolution images ]
The Intellinet Network Solutions Premium 19" Server Cabinet is designed with the data center in mind. This premium cabinet incorporates perforated front and rear doors to help ensure adequate airflow to your valuable network equipment. Its solid-steel panels are coated with electrostatic powder paint and the anodized aluminum frame helps secure and protect network equipment. Its zinc-plated, depth-adjustable mounting rails help ensure years of reliable use and sturdiness. The Intellinet Network Solutions Premium 19" Server Cabinet also features UL and RoHS certifications, reinforcing the quality of materials and construction to support networks that last.
- Ideal for all 19" rackmount applications
- Anodized aluminium frame
- Maximum static load of 2000 kg (4409 lb.)
- Perforated front and rear doors to support a free-air ratio of 67%
- Zinc-plated 19" mounting rails
- Antistatic powder coating on all panels
- Reversible front door
- Easily removable locking split side panels
- Multipoint door lock on front and rear doors
- Cable-entry and ventilation slots
- Ships flatpacked
- Three-year warranty
- General
- 19"
- Height: 26U
- Color: Black RAL9005
- Certifications: RoHS, UL
Dimensions
- Internal: 950 (D) x 503 (W) x 1187 (H) [mm] / 37.4 (L) x 19.8 (W) x 46.73 (H) [in.]
- External: 1000 (D) x 600 (W) x 1322 (H) [mm] / 39.37 (L) x 23.62 (W) x 52.05 (H) [in.]
- Adjustable Depth Range: 129 to 829 mm / 5.08 to 32.64 in.
Package Contents
- Premium 19" Server Cabinet
- Four depth-adjustable mounting rails
- Four adjustable supporting feet
- Installation hardware
Additional SKUs
- EAN: 0766623715546
- UPC: 766623715546
Physical Specifications
- Product net weight: 80 kg
- Product gross weight: 85 kg
- Dimensions: 1000 (L) x 600 (W) x 1322 (H) [mm]
- Packaging type: Brown Box
- Packaging dimensions: 1360 x 265 x 1135 [mm]
- Master Carton Quantity: 2
