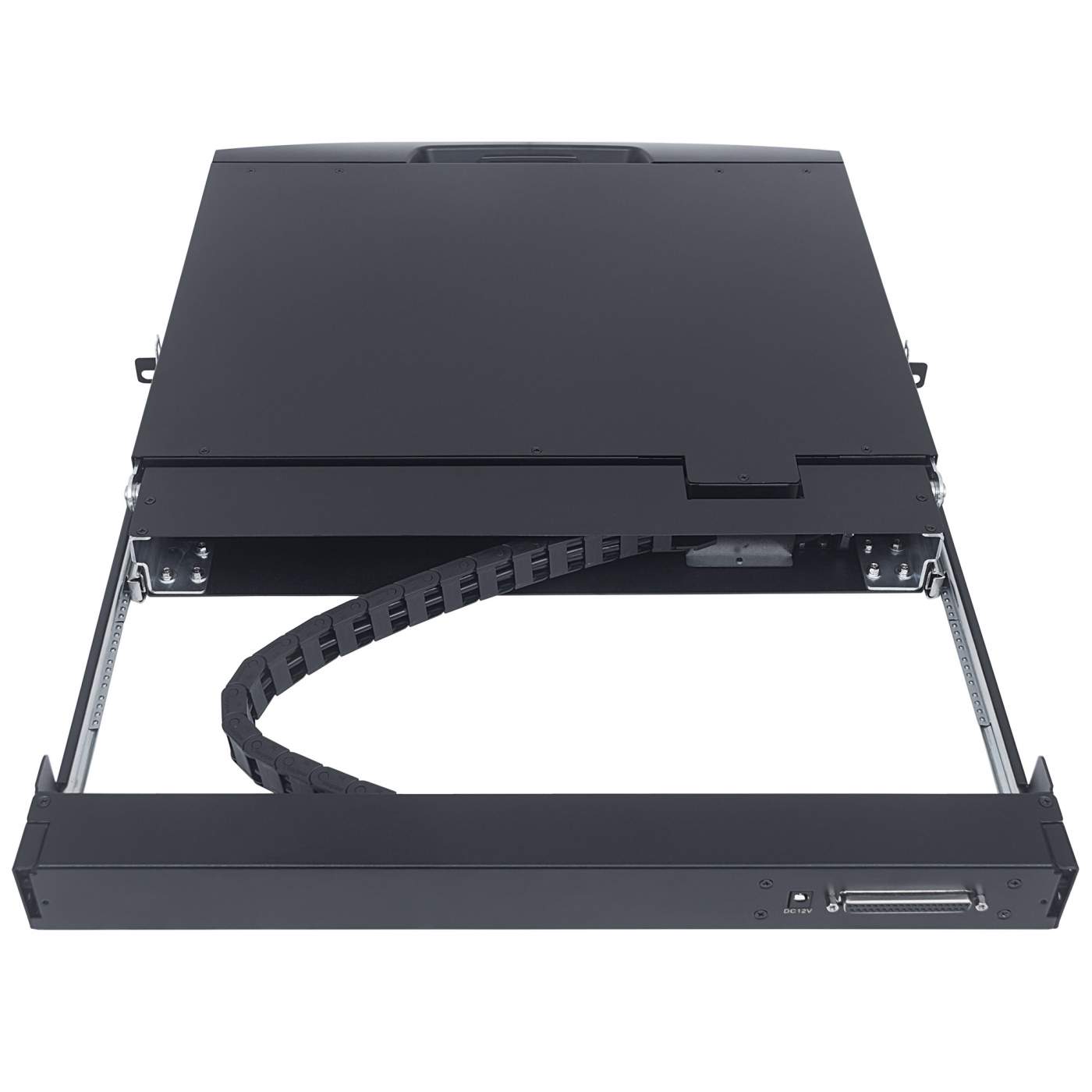

Rackmount 19" LCD Console

19-Inch LCD Panel, 1U, Modular system, US English Layout

SKU: 507738

Highlights

  • Integrated LCD console, keyboard & mouse
  • Manage/control PS/2 or USB computers from one keyboard, monitor and mouse (KVM Module needed)
  • Standard 19 inch 1U rack drawer



This console must be used in conjunction with the singular connection VGA cable set (507769) or one of the following modular KVM switches: 507776, 507844, 507882 or 507899.

  • Integrated LCD console, keyboard & mouse
  • Manage/control PS/2 or USB computers from one keyboard, monitor and mouse (KVM Module needed)
  • Standard 19 inch 1U rack drawer
  • Flip-open 19 inch LCD panel supports 1366 x 768 resolution
  • Gain complete control with easy-to-use OSD interface
  • Adjustable - for rack cabinets with depths from 600 mm to 1000 mm (23.6 to 39.37 in.)
  • 100 key, low-profile, sturdy keyboard included
  • Ergonomic hand rest design
  • Ultra sturdy rear bracket and extension design
  • OSD control and adjustment
  • Auto-scan automatically selects computers sequentially
  • Supports both PS/2 and USB mouse
  • Operating system independent, transparent to all applications
  • Three-Year Warranty
    Standards
  • PS/2
  • USB
  • Compatible with Windows, MAC and Unix

    General
  • PC connections: Dependent on KVM module purchased alongside
  • Computer selection:
    - Via buttons
    - Via hotkeys
  • OSD: yes
  • FCC Class B, CE, RoHS

    Power
  • Power input (AC): approx. 100 - 240 V

    LCD Panel
  • Active display area: 337.9 x 270.3 (mm)
  • Pixel pitch: 0.264 (H) x 0.264 (W)
  • Resolution: 1366*768@60HZ
  • Brightness: 250 (Typ)
  • Contrast ratio: 1000:1 (Typ)
  • Display color: 16.7M colors
  • User control: OSD control (auto saving)
  • Backlight unit: LED
  • MTBF: 100,000 hours

    Keyboard
  • Ultra-thin US100 key, stand-alone removable keyboard (keyboard language format optional)
  • Microsoft Windows9、Me/NT/2000/XP、WIN7、Server2003、WIN8、WIN10
  • Service life > 1,000,000 times

    Mouse
  • Touch Mouse
  • 1000 point/inch(40x40/mm)
  • Service life > 1,000,000 times

    Environmental
  • Operating temperature: 0 – 50°C
  • Storage temperature: -20 – 60°C (-4 – 140°F)

    Package Contents
  • 19" Rackmount Console
  • Rear bracket and extension kit
  • Power adapter
  • User manual
  • Additional SKUs

    • EAN: 0766623507738
    • UPC: 766623507738

  • Physical Specifications

    • Weight: 6.07 kg
    • Dimensions: 407 (L) x 445 (W) x 44 (H) [mm]
    • Packaging: Brown Box
